Connect Analog Radio over Modern Networks

Our solutions provide crystal clear voice over a stable and secure mission critical platforms.

Migrating your critical networks, such as analog voted radio systems and broadcast applications, from legacy copper-based circuits to modern IP-based solutions delivers not only greater reliability, but also significant cost savings.

At TC Communications, we provide smart solutions that:

  • Enable you to replace costly leased lines
  • Reduce overall network costs
  • Integrate with voter/comparators and dispatch consoles
  • Deliver higher audio quality
  • Lean on a trusted, mission critical design
  • Fully compatible with simulcast and voting systems

Plus, all TC Communications products are:

  • Easy to set up
  • Backed by a 5-year warranty with included Support
  • Made in USA

See our FAQ on migrating voted radio systems in the Technology section

Current Challenges

Providers of leased lines have been given permission by the Federal Communications Commission (FCC) to perform the following:

  • Eliminate Existing Lines

    Existing leased lines may be eliminated by the provider replacing only phone connectivity. Other uses like radio site connectivity do not need to be replaced.

    TC Communications has a simple replacement technology as a solution.

  • Increase Costs

    The FCC has removed any cost controls for leased lines and many customers around the country are seeing uncontrolled cost increases they did not anticipate nor budget for.

    TC Communications will help reduce these costs

  • Non-Guaranteed Service

    Since there are no requirements for leased lines to be provided in the future, they are poorly maintained with low availability.

3-step Process to Reducing Costs

We have a 3-step process on saving money on Leased Line Replacement. Users have an average of at least $50,000 in savings. Learn more how to save money on leased line replacement by viewing our video:

Solutions

We specialize in migrating critical networks, particularly analog voted radio systems and broadcast applications from legacy copper-based circuits to modern IP-based solutions. This allows better reliability as well as significant cost savings. Our product does this by taking the audio signal and converting it to Ethernet packets. Utilizing a TDM over packet based technology, the signal is reconstituted at the other end exactly the way it was transmitted initially, with no distortion or attenuation, thus providing a "perfect wire" connection. This creates a seamless migration to an Ethernet network that is completely transparent to the user.

Choose a TC Communications mission critical solution to dramatically improve your system reliability.

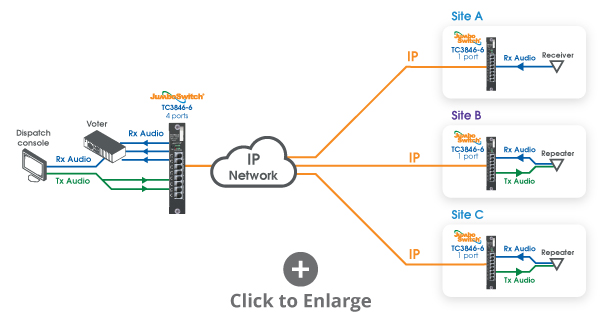

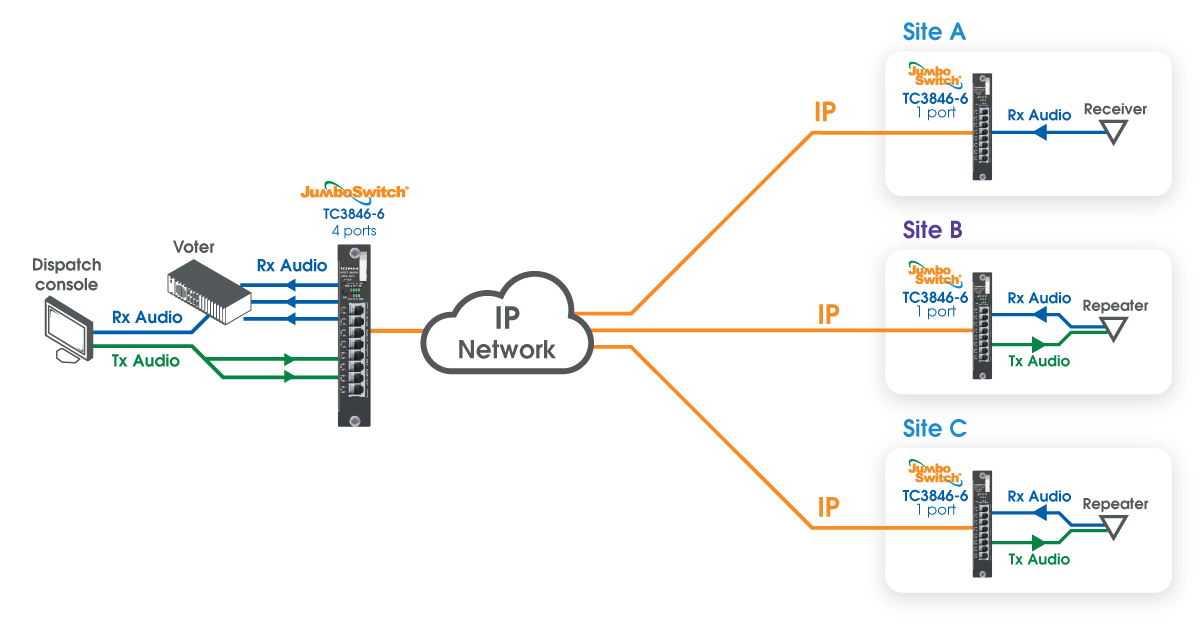

A typical radio system in a simulcast voting network. Using a TC3846-6 at each of the remote sites, 4W from these sites are converted and sent back to dispatch through a packet-based network, then converted back to 4W to communicate with the voter and dispatch console. A single card at dispatch can communicate with up to 4 remote locations.

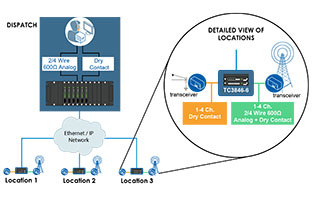

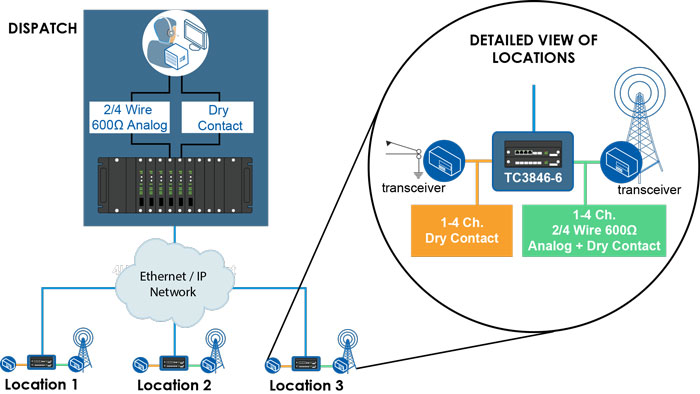

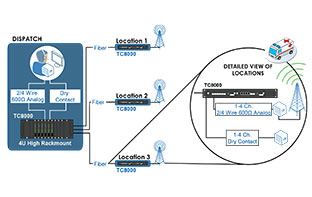

JumboSwitch® allows you to seamlessly integrate analog devices over an existing or new IP/MPLS or Carrier Ethernet backbone. Our products allow you to connect 4-wire E&M and 2-wire 600 ohm analog circuits between the remote repeater or voting receiver sites to the central voting and dispatch site.

Learn more about enhanced audio through Analog Radio over IP in this technical write-up

Copper, RTNA, PLNA, FDDA, leased lines... different names, same challenge. Leased lines are becoming increasingly expensive and more difficult to maintain as telcos look to retire these services for other carrier options for private backhaul of their radio networks. Our JumboSwitch product line allows customers to quickly find optimal alternatives that minimize impact on existing networks without a forklift upgrade of their infrastructure. Utilizing JumboSwitch in Radio over IP solutions allows network managers to preserve existing analog devices while moving to an IP network, providing a cost-effective, low maintenance solution that seamlessly integrates with private and carrier backhaul networks.

White paper: Navigating leased line network modernization

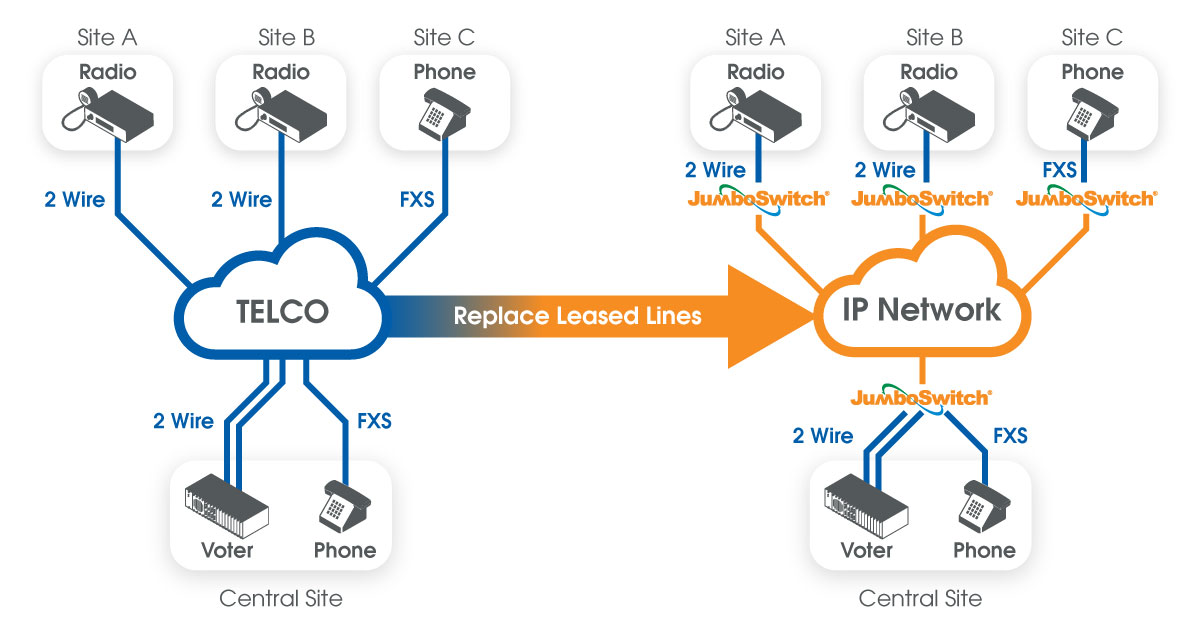

Replacing existing copper or leased lines

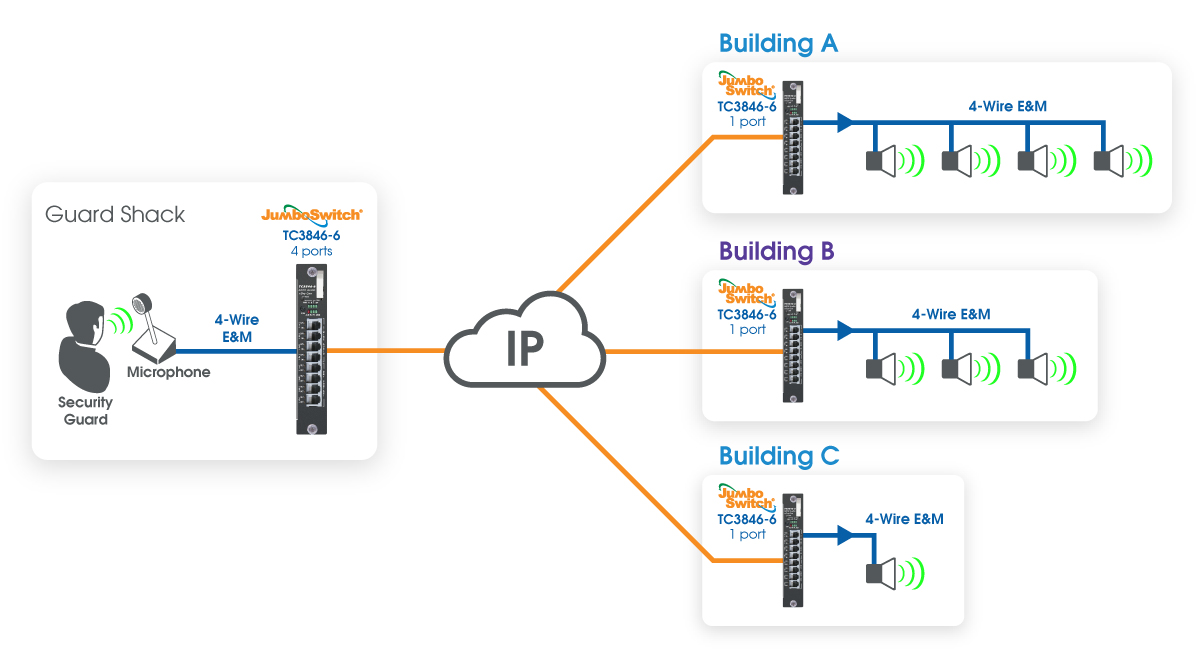

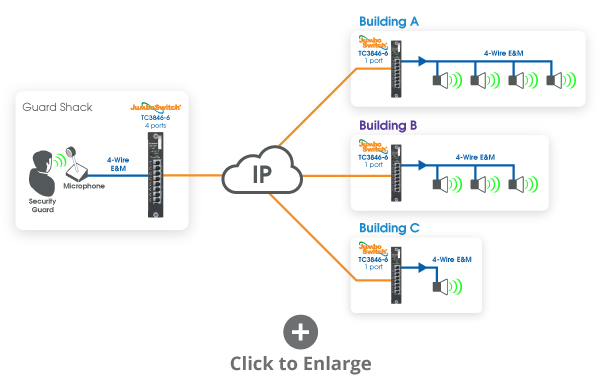

The TC3846-6 can take 1 input and broadcast by cloning the signal over its other open ports, ideal for PA networks that are looking to migrate their transport to a packet-based network.

The solution can be expanded to work for many analog devices including radio, and master/slave SCADA systems, as well as alarm dry contacts.

Animation: Broadcasting analog signals over IP

As carriers retire their leased lines, some are offering a T1 line as a replacement. Moving from a dedicated line to a backhauled network can be essential for customers that need high reliability and resiliency like Public safety agencies.

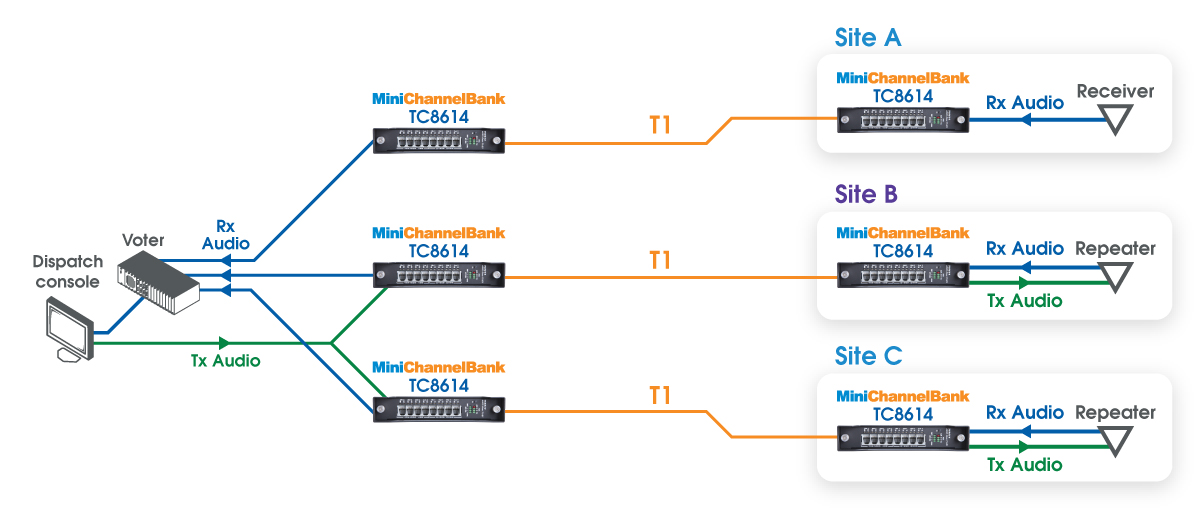

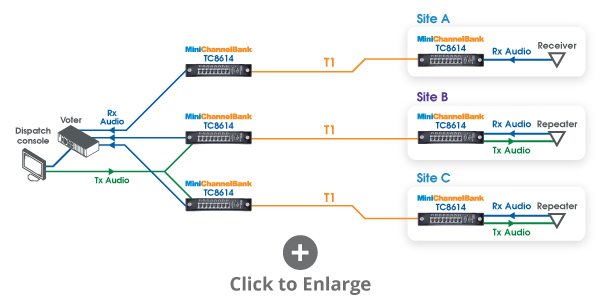

In this simulcast radio system with dispatch and voter, the leased 4-wire lines were discontinued and the carrier offered T1 lines as a replacement. The TC8614 4-wire over T1 multiplexer was inserted at each end, seamlessly

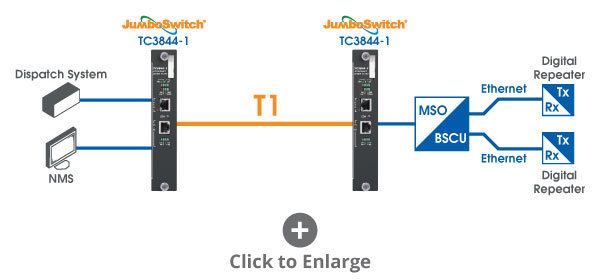

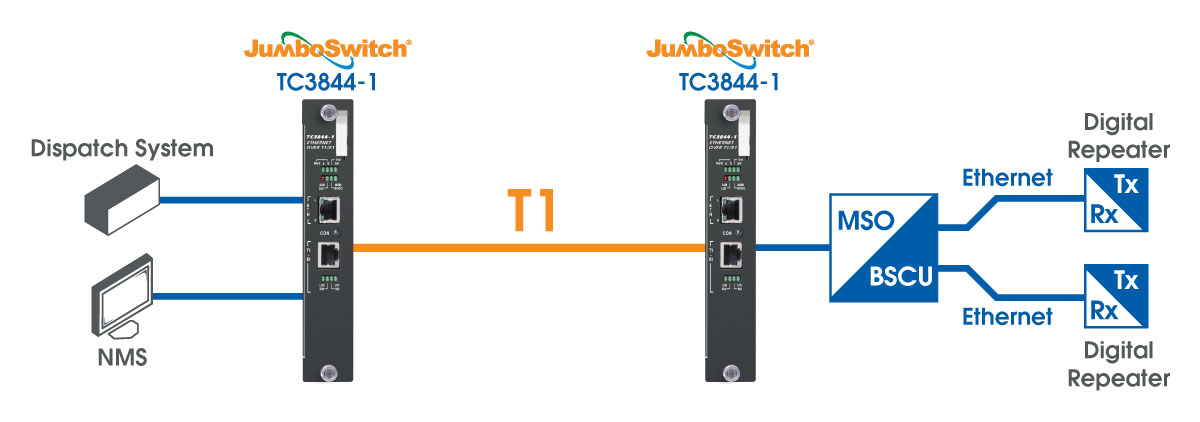

In some cases, an Ethernet connection is not available and T1 lines are offered as an alternative. T1 lines are generally available in much of the US and are a cost-effective solution for linking radio sites. As a typical digital radio system uses less than 40kb/s per channel, you can connect multiple repeaters at a site to a single T1.

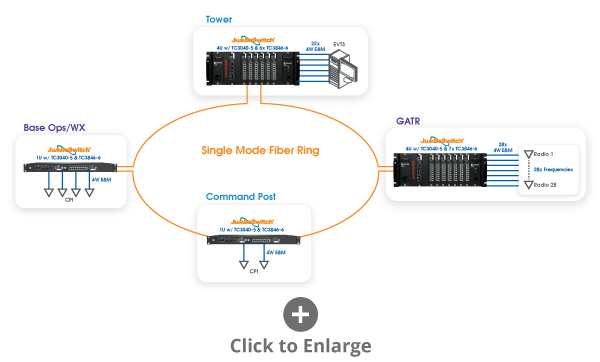

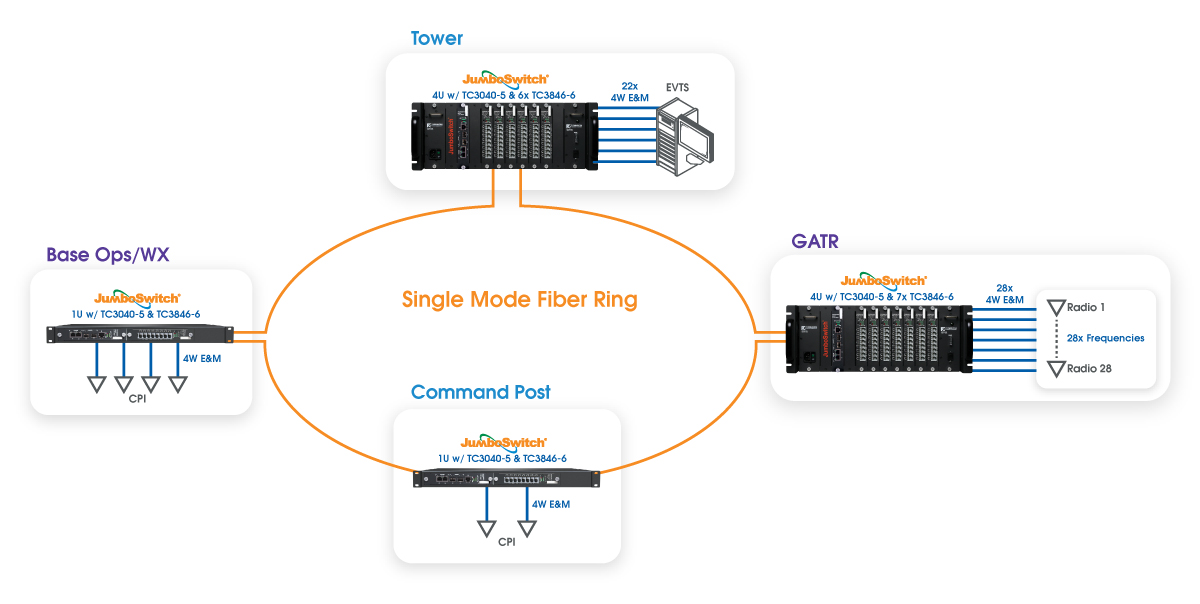

Communications between the Digital Antenna System (DAS), air traffic control and weather operations buildings via an upgraded self-healing IP/Ethernet fiber optic ring.

Case Studies

ESRN eliminates leased line costs

East Shore Radio Network (ESRN) needed a replacement solution to eliminate their leased line costs. Support for leased lines had also lessened in recent years. Finding a cost-effective and future-proof solution was critical. ESRN was able to fully integrate existing equipment while improving audio quality.

Read more

Mid-Atlantic utility replaces leased lines

With the availability of telco leased lines facing an uncertain future, power utility network managers are looking at alternative tools and transmission mediums for communications transport.

Read more

Watch the video about the East Shore Radio Project

Testimonial

"Over the past thirty-five years I have used similar boxes from other vendors for similar applications. But I have never seen one that would produce such a linear, uniform audio transmission from one end to the other - especially across an IP link."
- Martin T. Vinson, N.C.T., A.S.C.E.T.

Read more

Technology

Radio for mission critical communications systems must provide maximum reliability and seamless integration across multiple products in the network. Radio over IP (RoIP) solutions provide stable, high quality voice audio, and maximum system reliability in critical network connectivity applications.

In addition to analog radios many public safety networks rely on analog voters to monitor multiple remote sites and select the receiver with the best audio quality. Migration for an entirely analog system would require a complete equipment overhaul and training.

As an alternative TC Communications offers an interim, cost-effective, easy to deploy solution that will help network managers migrate their analog radios and voting comparators to an IP network in an easy, secure fashion while maintaining audio quality where other products may fail. Our analog over IP products have been deployed and proven in some of the harshest environments in the world.

Frequently Asked Questions

Q: Why is TDM over IP important?

Voice is a time critical application.

In traditional transmission of data, if packets get delayed or lost, they can be reinserted into the received data when they arrive or are resent. With voice however if the received audio is to be intelligible, then packets need to be received in a manner that allows them to be used in the right time and in the right order.

Since Ethernet was designed for the transmission of data, there is no standard-defined way to transport an analog signal over a packet-based network, so TC Communications has developed an industry-leading solution based on TDM (Time division Multiplexing) over IP technology. This solution has particular benefits, especially when used with voters and Simulcast systems, because these audio characteristics are a key requirement when moving from a legacy copper circuit to a modern IP network.

TDM over Ethernet/IP is a technology where it emulates Time Division Multiplexing over a packet switched network. TDM over Ethernet/IP takes a real-time bit stream and packetizes it. When combined with a special clock recovery scheme called Adaptive Clock Recovery (ACR), this solution provides a low-latency, reliable solution for clear Analog audio and tones over an IP network.

As a result, TDM-over-packet transported analog voice data is identical to a conventional Telco's 600 ohm leased copper line. The E&M signaling that forms an important part of the connection of many radio systems is catered for by "mirroring" the signaling at the interface and transporting this signaling information across the network as part of the management packets that are transmitted with the TDM over IP packets. This technology has been widely used for many years and is robust and reliable.


Q: How is it different from SIP and VoIP?

SIP is a standard typically used for PABX control; this uses VoIP which is a standard for telephony.

VoIP, will result in compression of the audio. This impacts the intelligibility of the audio and affects the control tones when they are passed. Additionally there is no defined way to pass E&M signaling without control tones, so systems that require these may not use a VoIP based solution.

VoIP also does not provide a consistent latency across the network. Latency is critical for the operation of bot voted systems and Simulcast systems. The TDM-over-IP based solution provided by TC Communications provides consistent latency and no audio compression thus making it the perfect choice for replacing existing copper lines.


Q: I have a voted radio system. Why is clarity and passing tones so important?

VoIP will often compress the audio signal. This compression is optimized around the frequencies of the human voice and while this is acceptable for the intelligibility of the spoken audio, this can have a disastrous effect on the control tones used to control the radio network. These control tones are usually outside the common voice frequencies and as such will be often significantly attenuated by the compression resulting in either unreliable or non-existent operation of the control functions. "Many systems using VoIP or other digital formats utilize a tone detection and regeneration mechanism which introduces both phase and time delays into the system and may cause integration issues."2

"Past experience with 'Ethernet radio boxes' has demonstrated issues sending EIA tone signaling from one end to the other. When the audio is compressed the control tones are often distorted causing problems with the decoders. The compression can also cause changes in levels that interfere with the decoder's ability to properly distinguish between the function and guard tones. Likewise the same compression can affect the quality and levels of paging tones sent by the console. This can lead to problems with the pagers and handheld radios used by the various volunteer fire departments. The need for consistent audio levels and quality become more stringent with the advent of narrow-band audio requirements."1


For more information, please see these two helpful resources (also used to answer these questions):

1. Technical review of a bench test for a Fire Department network

2. Strategies and Considerations: Moving from Analog Radio to IP Connectivity (white paper)
