TC8614

4W E&M Analog & Dry Contact over T1/E1 Multiplexer

TC8614
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8614 is a 4-channel 600 ohm Analog & Dry Contact-over-T1/E1 Multiplexer that allows network managers the flexibility of leveraging their existing T1/E1 circuits by adding low cost analog or dry contact links as needed. It is economical, simple to install and comes standard with built-in power redundancy.

The TC8614 is typically used to link or extend various 600 ohm analog, audio and intercom devices (e.g. FSK modems, E&M, teleprotection relay controllers, etc.) and dry contacts over existing T1/E1 links. It is also used as a backup network to ensure business continuity.

The TC8614 is available in the following configurations:

  • 4-Channel 2-Wire Analog with 4-Channel Dry Contact
  • 4-Channel 4-Wire Analog with 4-Channel Dry Contact
  • 2-Channel 2-Wire/ 2-Channel 4-Wire Analog with 4-Channel Dry Contact
  • TC8614-2: 2 Channel 600 Ohm Analog & Bi-Directional Dry Contact over T1/E1 (view datasheet)
  • 4-ch. 600 ohm Analog & Dry Contact
  • 2-Wire or 4-Wire Analog
  • ESF Framing Support for T1
  • PCM31C Framing Support for E1
  • Diagnostic Feature CSU Loop Up/Down Code Supported
  • Very Low Latency
  • Dry contact detectors with Isolated Ground
  • Built-in Power Redundancy

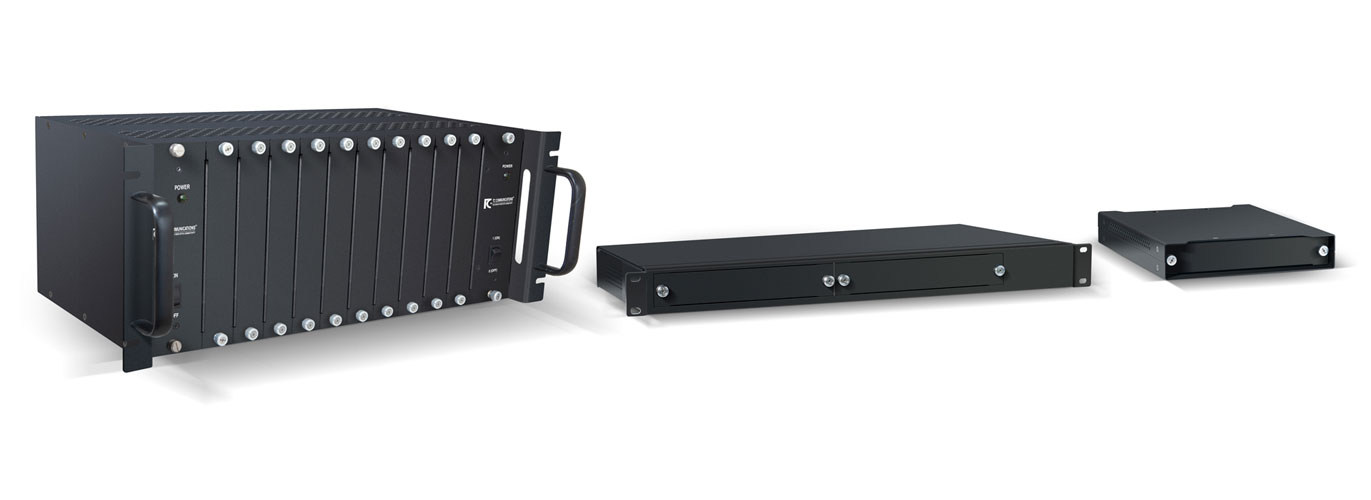

  • Rack Mount or Stand Alone

Applications

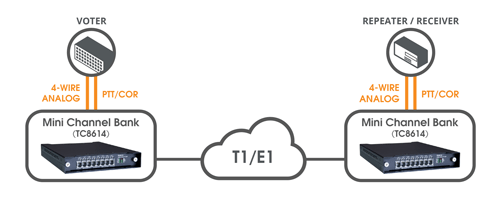

Leased line replacement

An alternative to a copper leased line is the T1 line available from many telcos. Users of this system will avoid dealing with prioritization requirements and cybersecurity headaches with no additional configuration.

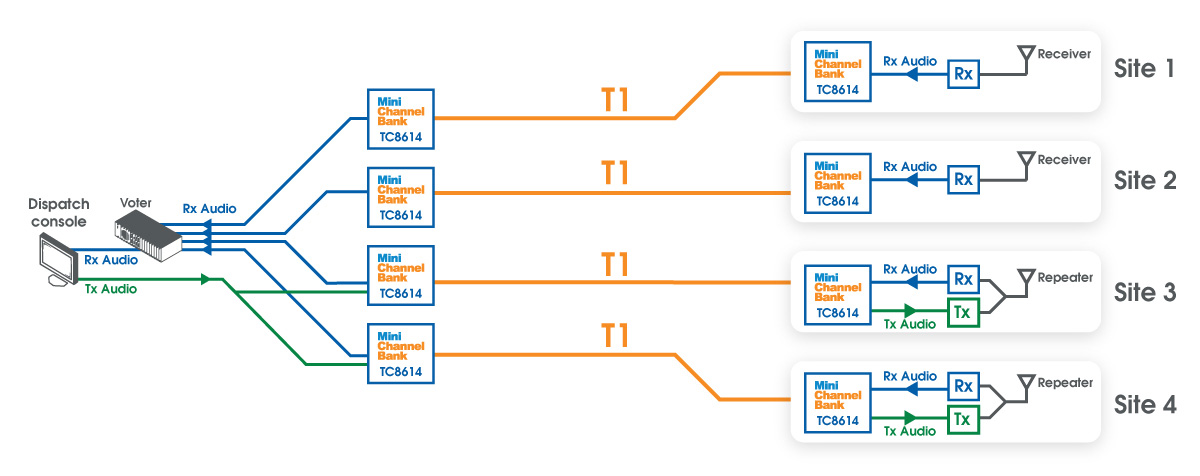

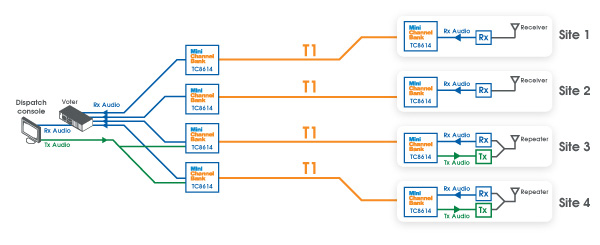

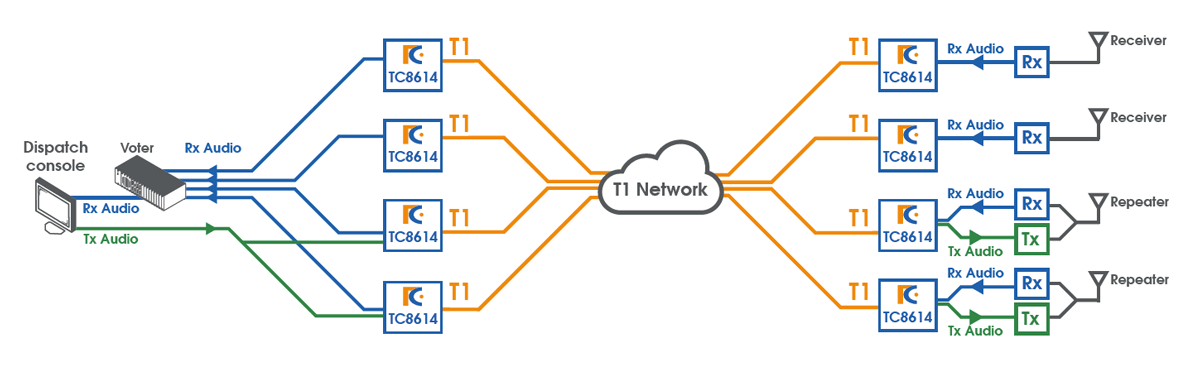

When transitioning off leased lines, users can expect extremely low latency and improved voice quality. The application diagram shows how one network was able to keep existing JPS SNV-12 Voters and Motorola Astrotac Receivers connected to 4W E&M Analog Radios and the TC8614 Analog & Dry Contact over T1/E1 Mini Channel Bank.

4W E&M Analog & Dry Contact
over T1/E1 Multiplexer - SNV-12 Voter and Motorola astrotac receivers radio application

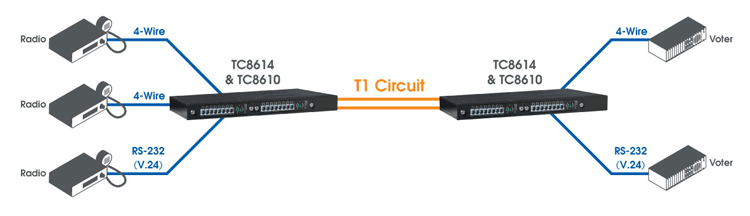

Voted radio over T1 network application

Replacing tradational channel banks

A low cost and immediate solution, the TC8614 is typically used to link or extend various 600 ohm analog, audio and intercom devices (e.g. FSK modems, E&M, teleprotection relay controllers, etc.) and dry contacts over existing T1/E1 links. It is also used as a backup network to ensure business continuity.

The TC8614 is also ideal for replacing channel banks where only a few channels are needed. A simpler, more efficient solution to strengthen your network. This 600 ohm Analog over T1/E1 solution eliminates complicated setup and management and includes up to 4-ch Dry Contact (PTT/COR compatible).

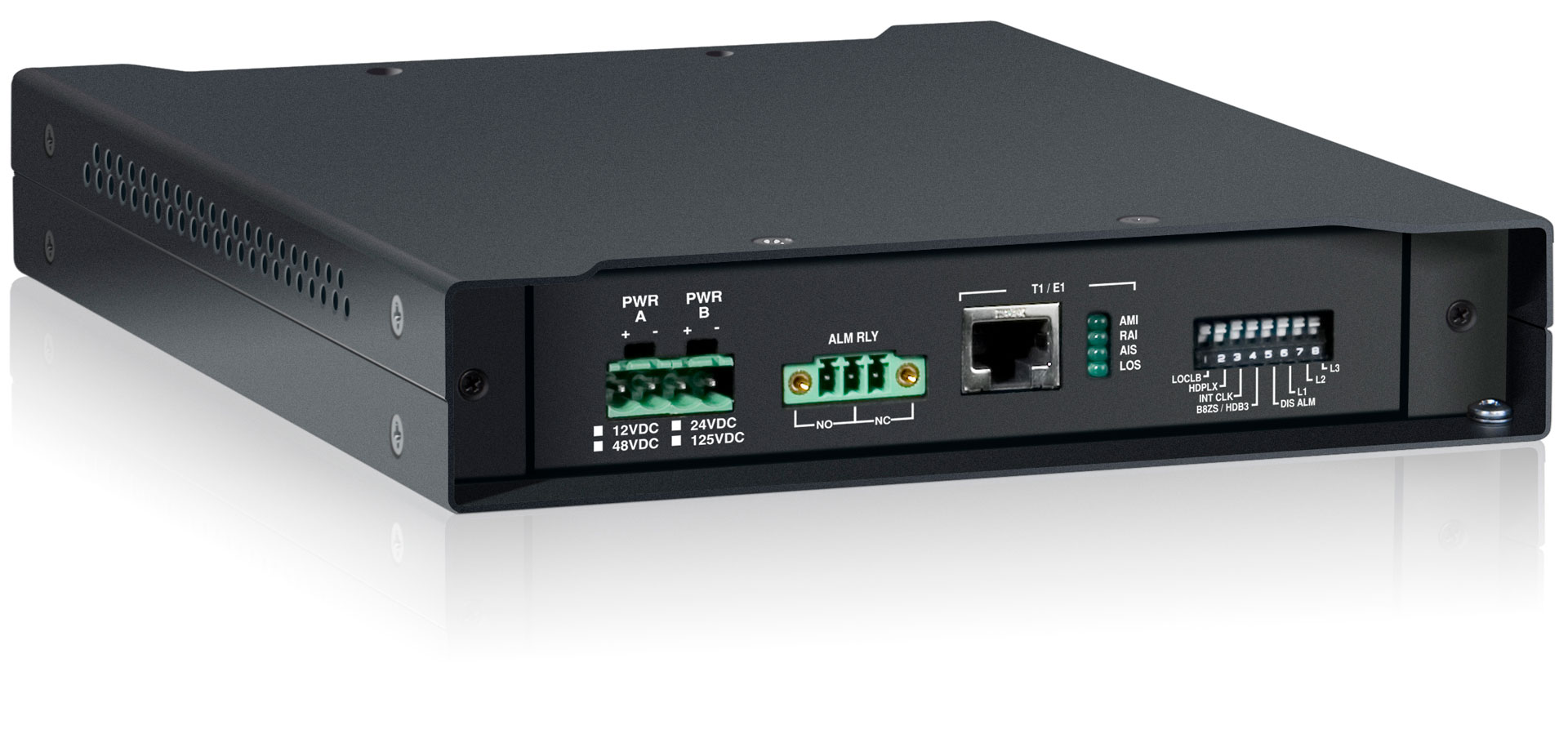

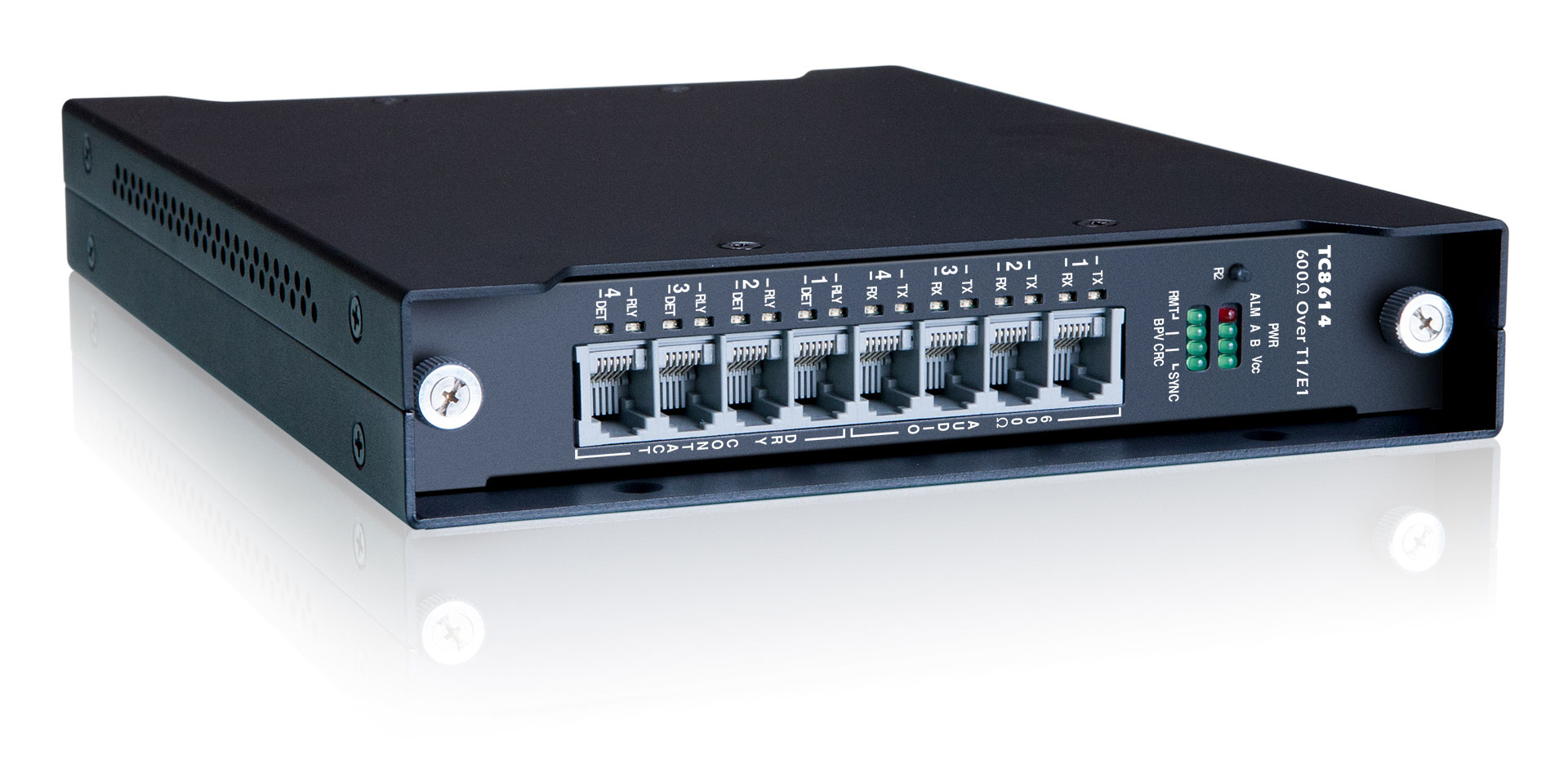

TC8614 - Analog Dry Contact Over T1/E1 Multiplexer
Click to enlarge

Specifications

Connection Capacity
  1. 600 ohm (2/4 Wire)4 Ports
  2. Dry Contact4 Ports
T1/E1
  1. T1
  2. Receiver Sensitivity0dB to -36dB
  3. Line CodeAMI / B8ZS
  4. FramingESF (Only)
  5. E1
  6. Receiver Sensitivity0dB to -43dB
  7. Line CodeAMI / HDB3
  8. FramingPCM31C
Electrical
  1. Dry Contact Interface
  2. Normal openstandard
  3. Normal closeoptional
  4. Load Voltage (peak AC)60V
  5. Load Voltage (DC)60V
  6. Continuous load current0.55A
  7. Peak load current1.2A
  8. Max On Resistance2.5 Ω
  9. Output Capacitance150pF
  10. Detector Max input voltage9V
  11. 600Ω analog interface
  12. Impedance600Ω
  13. Max Input3Vp-p
  14. Frequency band300 to 3400Hz
Visual Indicators
  1. Channel Status (each ch.)TX/RX or RLY/DET
  2. SystemPWR A, PWR B, Vcc, ALM, RMT
  3. T1/E1AMI, RAI, AIS, CRC, BPV, LOS, SYNC
System
  1. Bit Error Rate1 in 109 or better

Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @300mA
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC w/ power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53cm) 1.40"
  2. Width(18.14cm) 7.20"
  3. Depth(24.89cm) 9.80"
  4. Weight(907g) 2.0lbs
*Contact factory for higher requirements/availability
