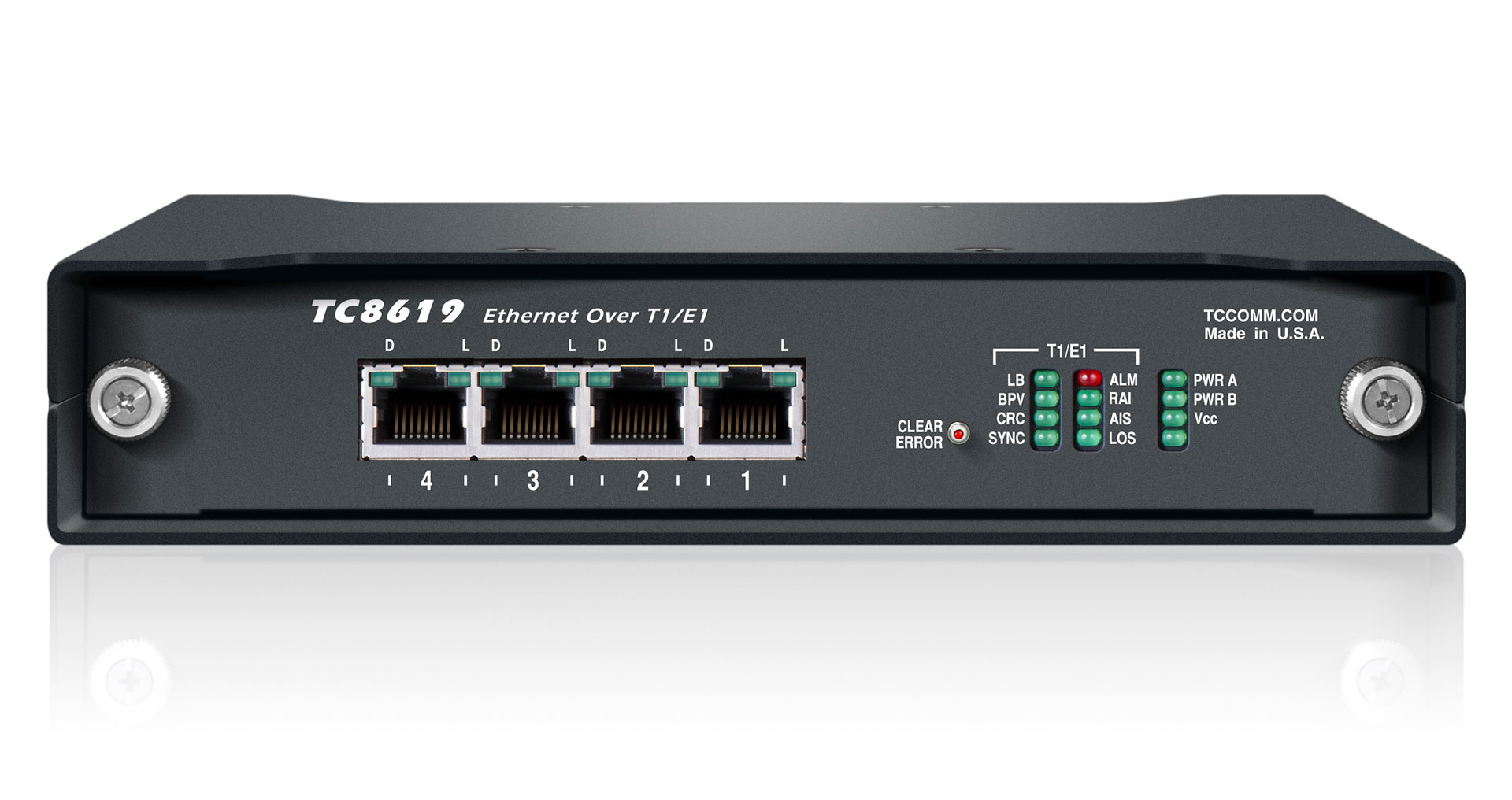

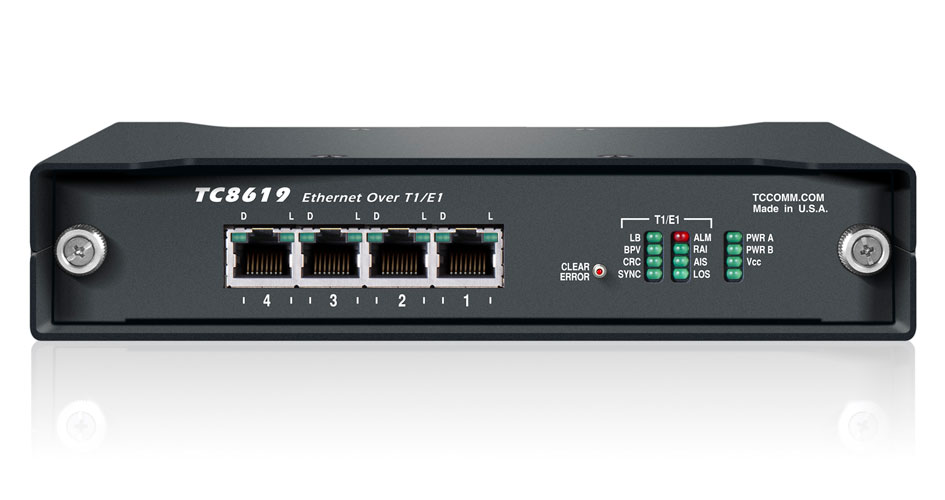

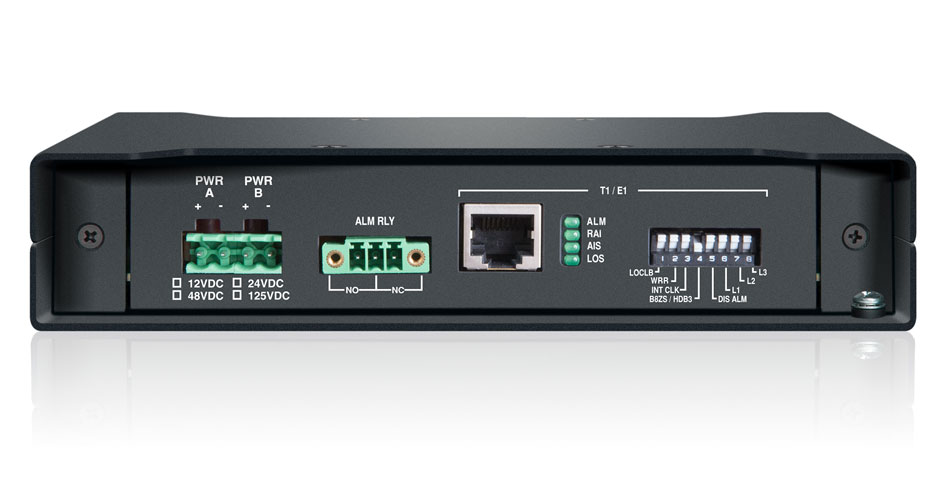

4 Channel Ethernet/IP over T1/E1 Multiplexer

TC8619
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8619 Ethernet-over-T1/E1 Gateway allows the user to extend Ethernet backhaul applications to remote locations over existing TDM Telecom infrastructure. It converts the Ethernet data into framed T1/E1 format for transmission over T1/E1 links, and the modules are used in pairs. The TC8619 performs store-and-forward of frames with Ethernet traffic conditioning and bridging functions at wire speed, fully utilizing the TDM circuit.

  • Fast Ethernet Transport over Framed T1 or E1
  • IEEE 802.1p QoS with Four Queues
  • Strict or Weighted Round Robin Priority Scheduling
  • Extreme Temp (-40°C to +80ºC) Optional
  • Built-in Power Redundancy
  • Meets or Exceeds IEC 61850-3, IEEE 1613 & NEMA TS-2 Standards

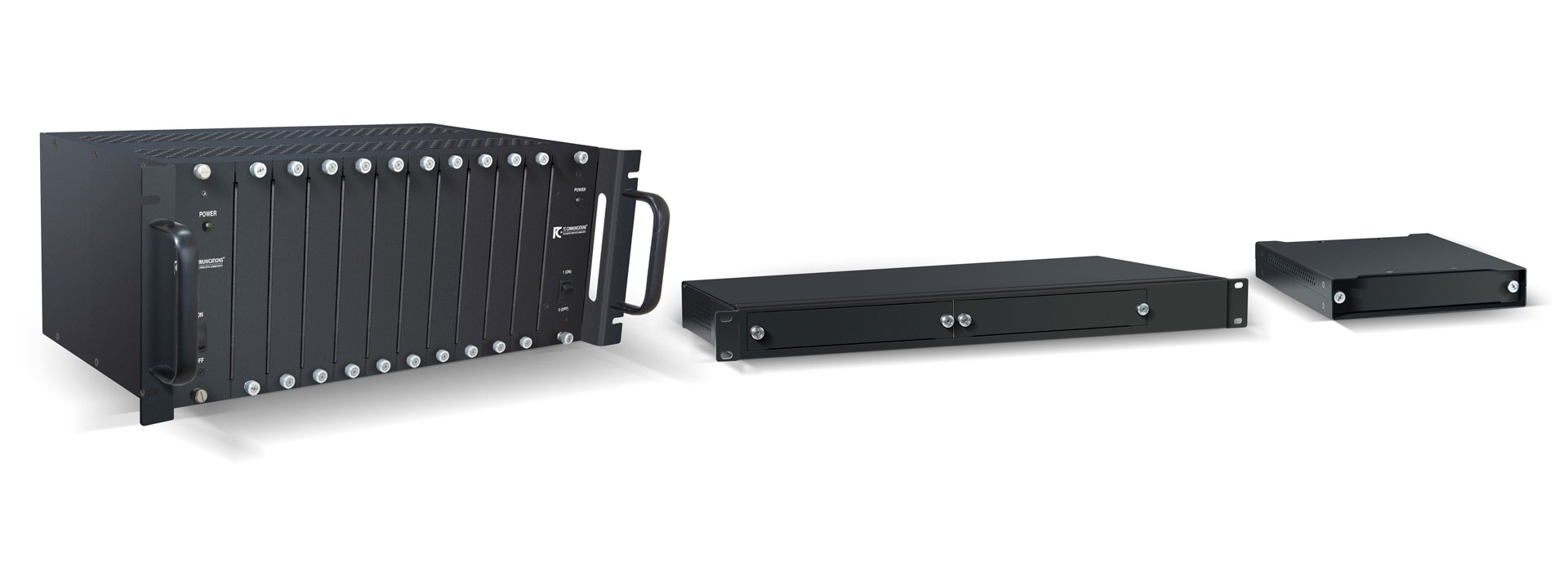

  • Member of the Mini Channel Bank Product Family

The TC8619 is often used for bridging Ethernet LANs over existing T1/E1 telecom network and extending Ethernet networks by utilizing TDM telecom infrastructure.

Applications

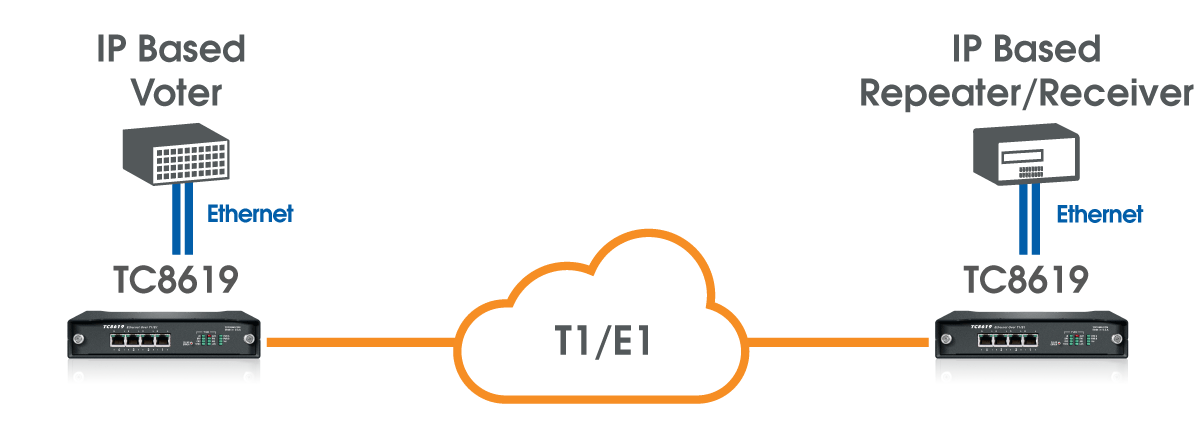

  • Bridging Ethernet LANs over Existing T1/E1 Telecom Network
  • Extending Ethernet Networks by Utilizing TDM Telecom Infrastructure (i.e. T1/E1 Landline, or T1/E1s/PDH/SDH Microwave Carrying T1/E1)
  • Demarcation Between the Carrier’s and Customer’s Networks
  • Bonded Transparent LAN Service

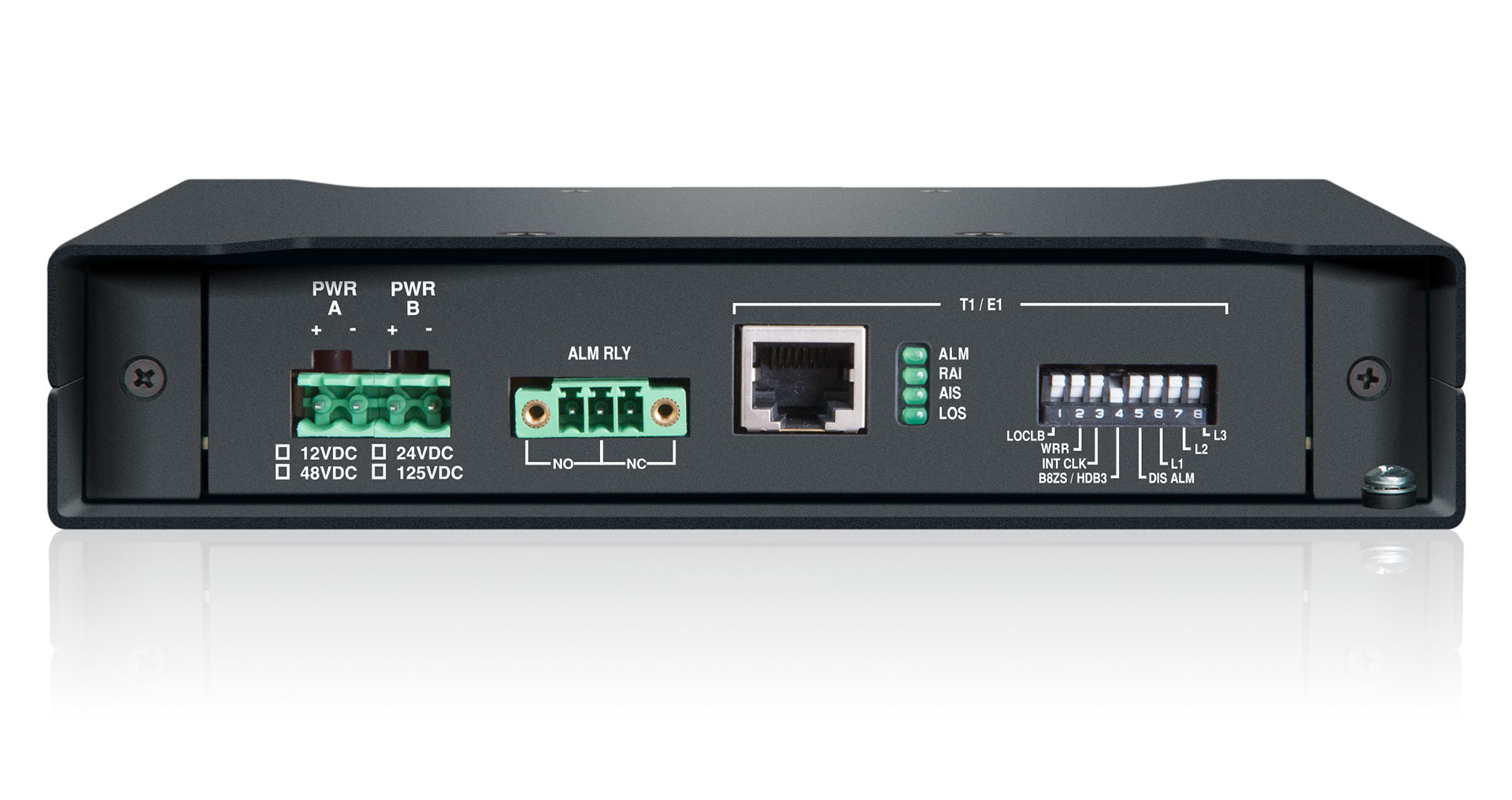

TC8619 - 4-Channel Ethernet over T1/E1 Multiplexer
Click to enlarge

Specifications

Electrical
  1. T1 Interface
  2. ConnectorElectrical, RJ-48
  3. Line Termination100Ohm, balanced
  4. Data Rate1.544Mbps
  5. Line CodeAMI, B8ZS
  6. E1 Interface
  7. ConnectorElectrical, RJ-48
  8. Line Termination120Ohm, balanced, 75Ohm, unbalanced via RJ-48 to BNC adapter cable
  9. Data Rate2.048Mbps
  10. Line CodeAMI, HDB3
  11. Ethernet Interface
  12. ConnectorElectrical, RJ-45
  13. Type10/100Base-T
  14. ComplianceIEEE 802.3
System
  1. Bit Error Rate1 in 109 or better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
LEDs
  1. ALM, D (Duplex), L (Link), PWR A, PWR B, Vcc, LOS, RAI, AIS, BPV, CRC, SYNC
Power
  1. Standard12VDC
  2. Optional24VDC, -48VDC, or 90/260VAC 50/60Hz
  3. Power Consumption<10W
Temperature
  1. Hi-Temp (optional)-20°C to 70°C
  2. Extreme (optional)-40°C to 80°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53cm) 1.40"
  2. Width(18.14cm) 7.20"
  3. Depth(24.89cm) 9.80"
  4. Weight(907g) 2.0lbs
