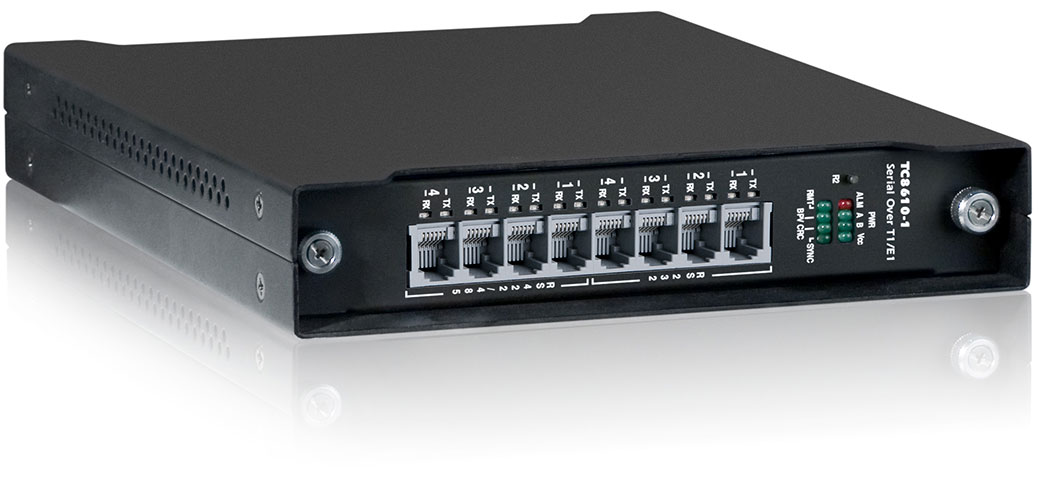

4 Channel Serial-over-T1/E1 Multiplexer

TC8610
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8610-1 is a 4 Channel Serial-over-T1/E1 multiplexer with built-in power redundancy. It supports data rates up to 38.4 Kbps.

The TC8610 provides an inexpensive, plug and play solution for connecting up to four serial devices over existing T1/E1 links.

It can support either T1 or E1 upon order. Four options are available for serial inputs:

  • TC8610-1-1: 4 Channel RS-232
  • TC8610-1-3: 4 Channel RS-422
  • TC8610-1-4: 4 Channel RS-485, 4-wire
  • TC8610-1-5: 4 Channel RS-485, 2-wire
  • ESF Framing Support for T1
  • PCM31C Framing Support for E1
  • Very Low Latency - 600µs
  • Diagnostic Feature CSU Loop Up/Down Code Supported
  • Individually Isolated Ground for each Serial Port
  • Supports 120Ω & 75Ω E1
  • Built-in Power Redundancy

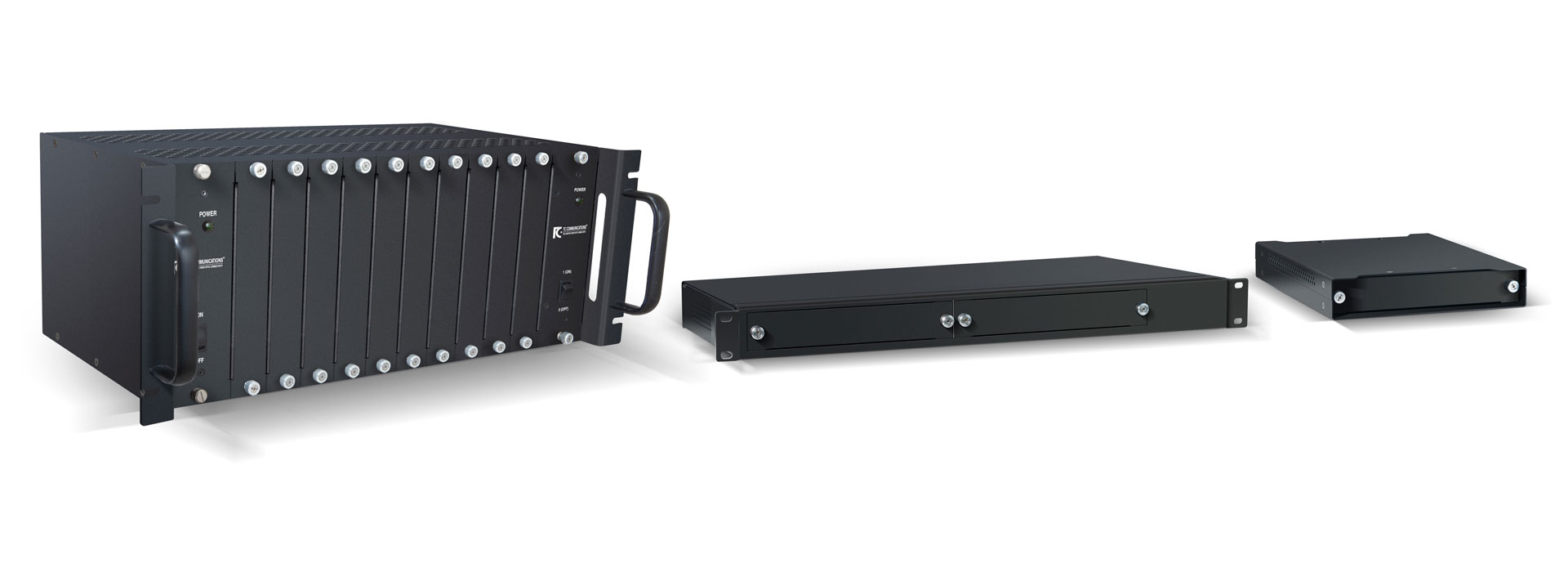

  • Rack Mount or Stand Alone

Applications

The TC8610 offers an inexpensive, plug and play method for connecting up to four serial devices over existing T1/E1 links. Popular applications include:

  • Transporting asynchronous RS232/RS422/RS485
  • Transporting SCADA communications
  • Protocol-transparent
  • Supports SEL Mirrored Bits®*
  • Connecting two Power Utility teleprotection relays

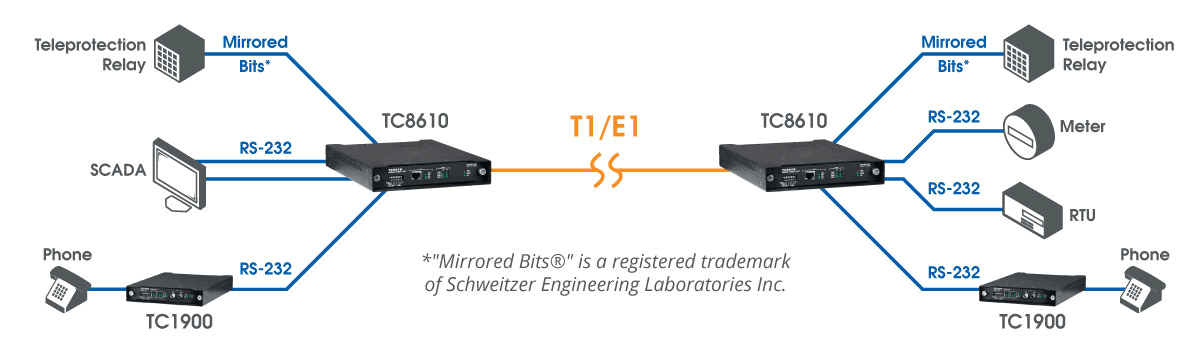

TC8610 SCADA Master to RTU application

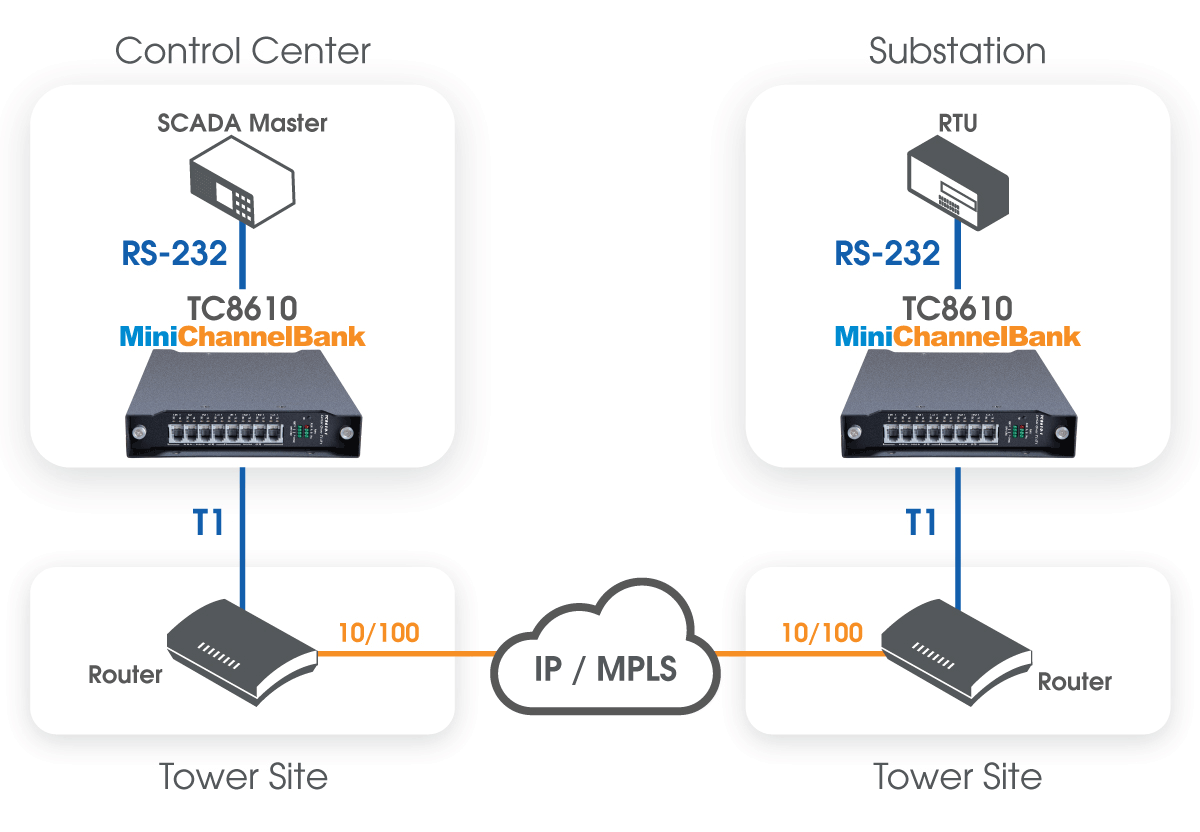

Control center to substation RTU application

The TC8610 can also convert the RS-232 Async to RS-422/RS-485 signals running from the local side to the remote side or vice-versa.

*NOTE - Mirrored Bits® is a registered trademark of Schweitzer Engineering Laboratories Inc.

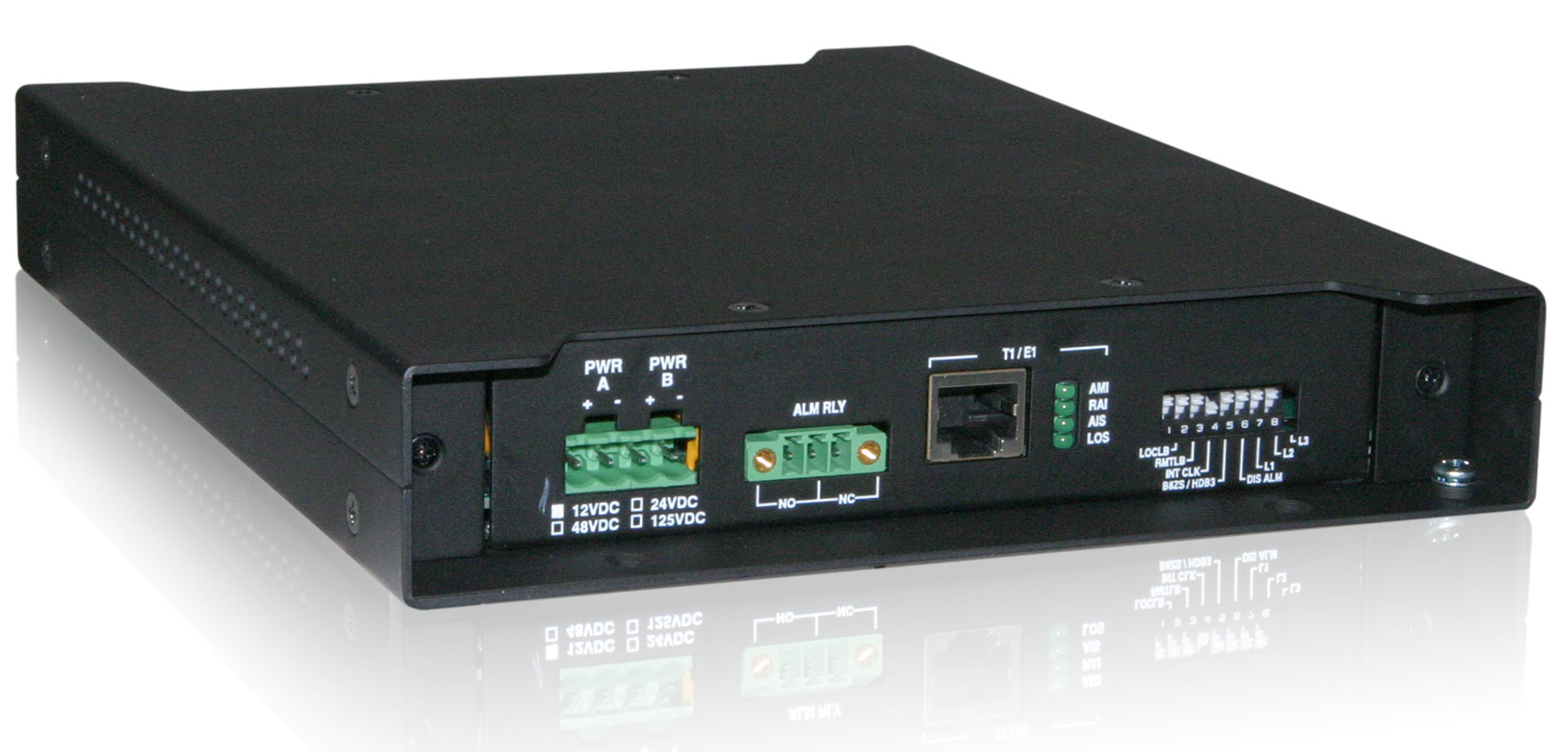

TC8610 - Serial-over-T1/E1 Multiplexer
Click to enlarge

Specifications

Serial
  1. StandardRS-232/RS-422/RS-485
  2. Ports4
  3. Data Rate
  4. RS-232 Async w/ ControlUp to 64 Kbps
  5. RS-422 AsyncUp to 64 Kbps
  6. RS-485 2 or 4-WireUp to 4.8 Kbps, 9.6Kbps, 19.2Kbps, 38.4Kbps
T1/E1
  1. T1
  2. Receiver Sensitivity0dB to -36dB
  3. Line CodeAMI / B8ZS
  4. FramingESF
  5. E1
  6. Receiver Sensitivity0dB to -43dB
  7. Line CodeAMI / HDB3
  8. FramingPCM31C
Visual Indicators
  1. Channel Status (each ch.)Tx, Rx
  2. SystemPWR A, PWR B, Vcc, ALM, RMT
  3. T1/E1BPV, LOS, SYNC, AMI, RAI, AIS, CRC
System
  1. Bit Error Rate1 in 109 or better
Electrical
  1. ConnectorRJ11F
  2. Interface (standard)RS-232
  3. Interface (optional)RS-232, RS-422 2 or 4-wire RS-485

Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @300mA
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC w/ power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53cm) 1.40"
  2. Width(18.14cm) 7.20"
  3. Depth(24.89cm) 9.80"
  4. Weight(907g) 2.0lbs
*Contact factory for higher requirements/availability

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
