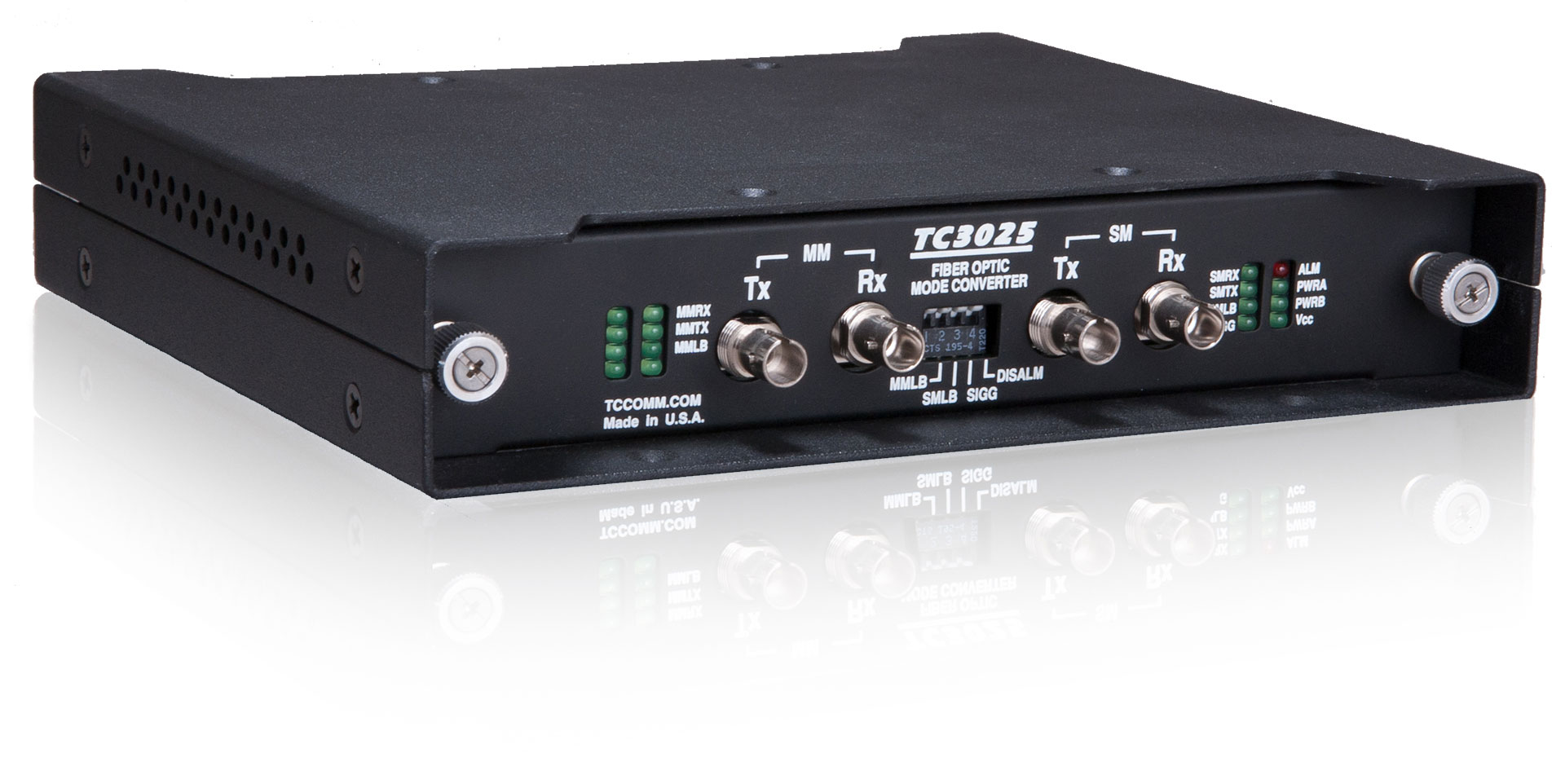

TC3025

Fiber Optic Mode Converter/Repeater for C37.94

TC3025
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3025 Mode Converter supports C37.94 teleprotection relays and converts, regenerates or extends 850nm, 1300nm or 1550nm wavelength optical signals to distances up to 120 km.* It features a Dry Contact Relay Alarm, Audible Alarm Buzzer, Power Redundancy, and standalone or rackmount modularity. The Dry Contact Alarm Relay also features a buzzer alarm to identify Optical Signal Loss on either the multimode or single mode ends.

  • Designed for C37.94 Teleprotection Relays
  • Converts Multimode to Single Mode (and vice versa)
  • Distances up to 120km
  • 8 Diagnostic LED Indicators
  • Test Signal Generator
  • Built-in Loopback Functions
  • Local Dry Contact Alarm Relay
  • Stand Alone or Rackmount

The TC3025 is used to convert multimode to single mode, or vice versa, for C37.94 teleprotection relays. This conversion is done to cross-connect different fiber types, regenerate optical signals and/or extend transmission distances.

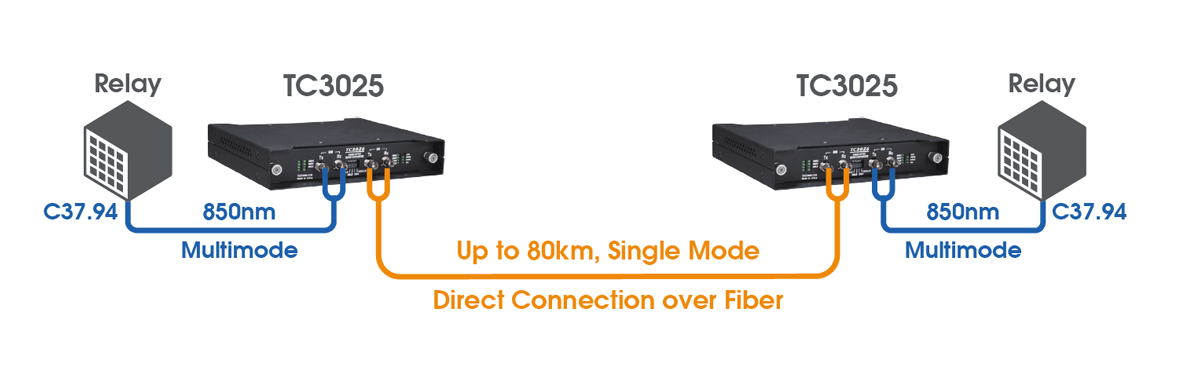

Applications

The TC3025 Mode Converter is used to convert multimode to single mode, or vice versa, for C37.94 teleprotection relays. This conversion is done to cross-connect different fiber types, regenerate optical signals and/or extend transmission distances.

TC3025 - Fiber Optic Mode Converter for Teleprotection
Click to enlarge

Specifications

Optical
  1. TransmitterLASER (FP, DFB)
  2. ReceiverPIN Diode
  3. Wavelength
  4. Multimode850nm/1300nm
  5. ConnectorST, SC*
  6. Single Mode1310/1550nm
  7. ConnectorST,SC*,FC*
  8. Loss Budget**
  9. LASER (FP) Multimode 850nm
  10.  13dB @62.5/125µm
  11.  9dB @50/125µm
  12. LASER (FP)up to 28dB 1310nm*
  13.  Single Mode @9/125µm
  14. LASER (DFB)up to 36dB 1550nm*
  15.  Single Mode @9/125µm

**Any two wavelengths are available on each unit

System
  1. Bit Error Rate1 in 1010 or better
Visual Indicators
  1. PWRA, PWRB, Vcc, ALM,
  2. MM RX, MM TX, SM RX, SM TX
  3. MM LB, SM LB, SIGG
Alarm
  1. Dry ContactNormal OPEN

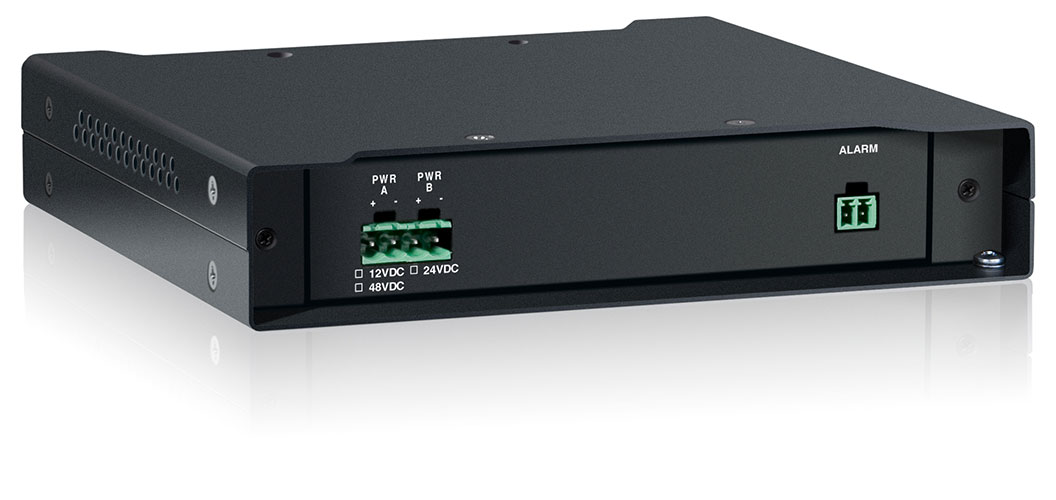

Power
  1. Standard12VDC @800mA (max)
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC with power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (Optional)-20°C to 70°C
  3. Extreme (Optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(16.59 cm) 6.53"
  4. Weight(512 gm) 1.5 lbs

*Contact factory for availability
