Multimode to Single Mode Converter/Repeater (& vice versa) up to 1.25 Gbps

TC3006
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Intended for applications requiring high data rates, the TC3006 Fiber Mode Converter converts multimode to single mode, or vice versa, at speeds up to 1,000 Mbps.

The MAXI converts or repeats 1300nm multimode or 1300/1550nm single mode fiber optics. It is compatible with most network communication technologies including Ethernet, Token Ring, TAXI, OC1/OC3, ATM, FDDI & SONET. Transmission distances to more than 100km are typical.

  • Converts/Repeats Multimode to SingleMode (and vice versa)
  • 1000Mbps Continuous Data Rate
  • One Fiber Bi-Directional Communication (optional, single mode only)
  • Distances up to 100km
  • Local Dry Contact Alarm Relay
  • 8 Diagnostic LED Indicators
  • Built-In Power Redundancy
  • Rackmount or Standalone

Applications

The MAXI Mode Converter is used to convert multimode to single mode, or vice versa, in a variety of LAN environments including Gigabit Ethernet Switches and Routers. This conversion is done to crossconnect different fiber types, regenerate optical signals and/or extend transmission distances. It can also be used to repeat a Gigabit signal on multimode or single mode fibers.

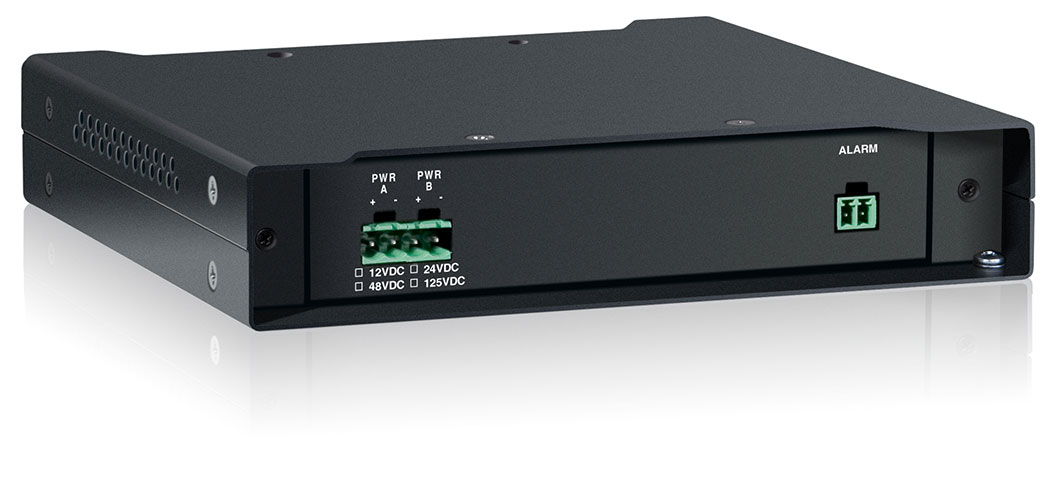

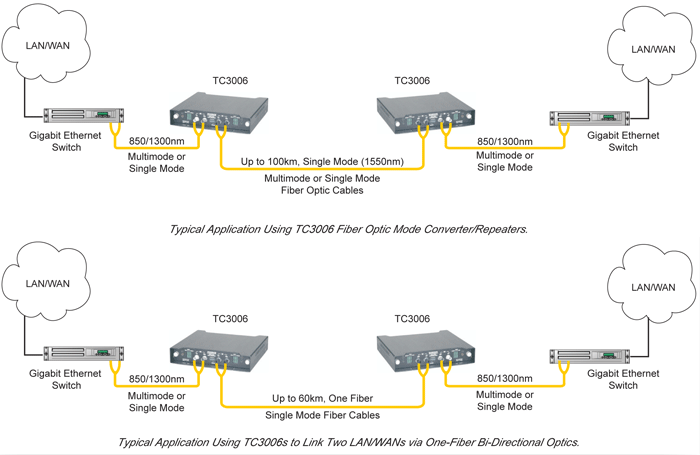

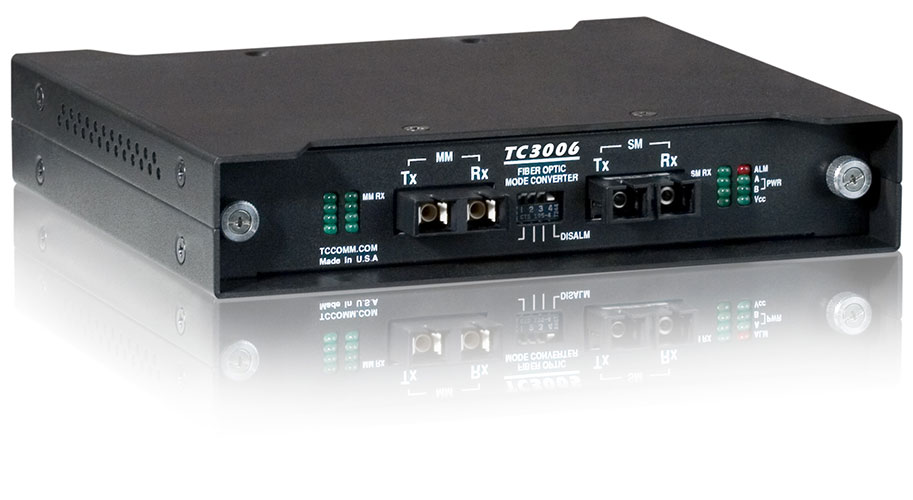

TC3006 - High Speed Mode Converter/Repeater (up to 1.25 Gbps)
Click to enlarge

Specifications

Data Rates
  1. Rates1000 Mbps
Optical
  1. TransmitterLED/LASER
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm Multimode, 1300/1550nm Single Mode
  4. Fiber Optic ConnectorsSC, ST, FC
  5. Loss Budgets *
  6. LED16dB 850/1300µm
  7. Multimode @62.5/125 µm
  8. LASER25dB 1300µm
  9. Single Mode @9/125 µm
  10. HI-PWR LASER34dB 1300/1550µm
  11. Single Mode @9/125 µm
System
  1. Bit Error Rate1 in 1010 or Better
Visual Indicators
  1. PWRA, PWRB, VCCA, VCCBYes
  2. MM RX, MM TX, SM RX, SM TXYes
Alarm
  1. Dry ContactNormal OPEN
Power
  1. Standard12VDC @800mA (max)
  2. Optional24VDC, -48VDC, or 115/230VAC with Power Cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Rackmount Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(16.59 cm) 6.53"
  4. Weight(512 gm) 1.5 lbs
