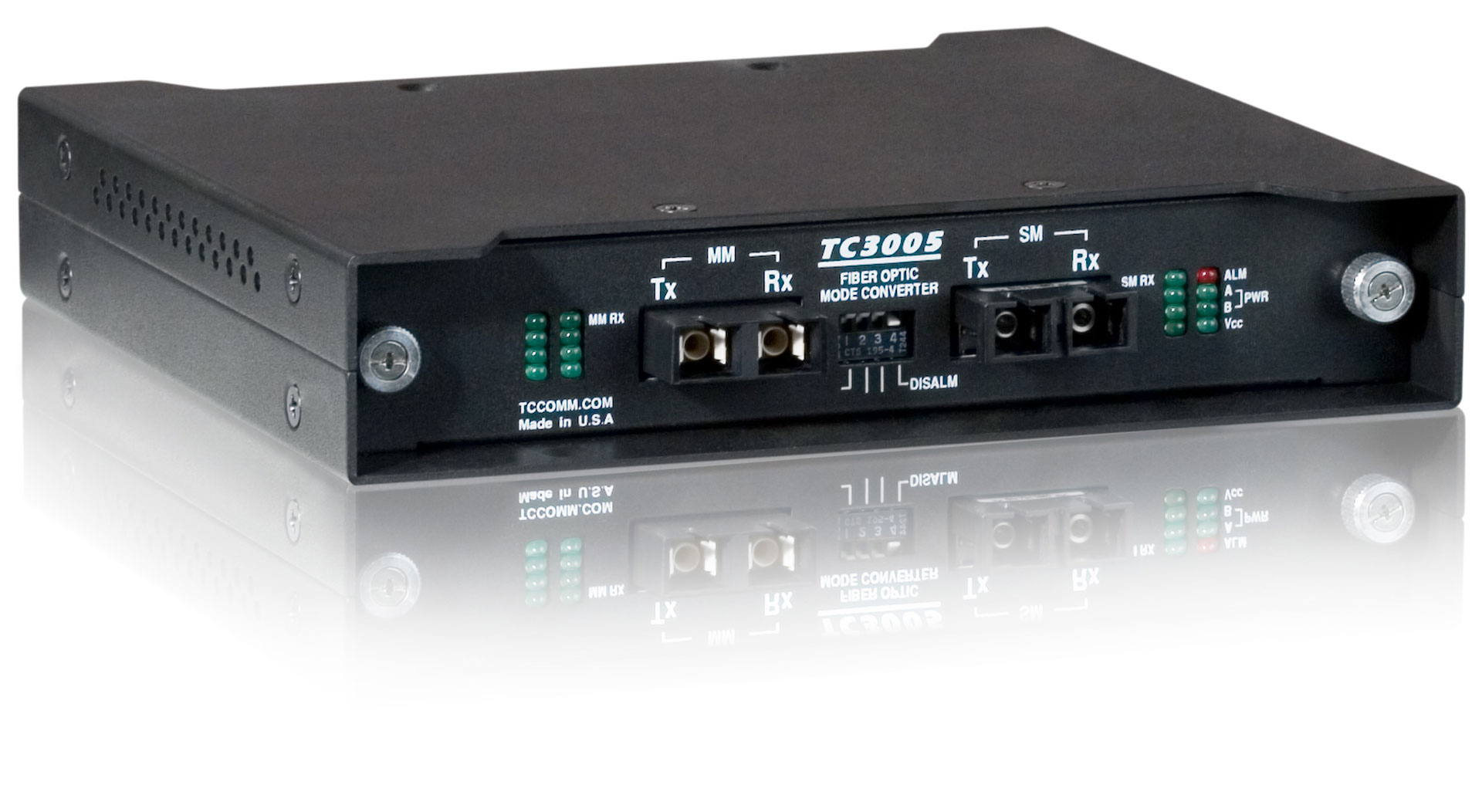

TC3005

Multimode to Single Mode Converter/Repeater (& vice versa) up to 200 Mbps

TC3005
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3005 Fiber Optic Mode Converter is ideal for converting multimode to single mode (& vice versa), with plug and play simplicity, for data transmission up to 200 Mbps.

  • Converts or Repeats Multimode to Single Mode (and vice versa)
  • Data Rates up to 200 Mbps
  • Distances up to 100km

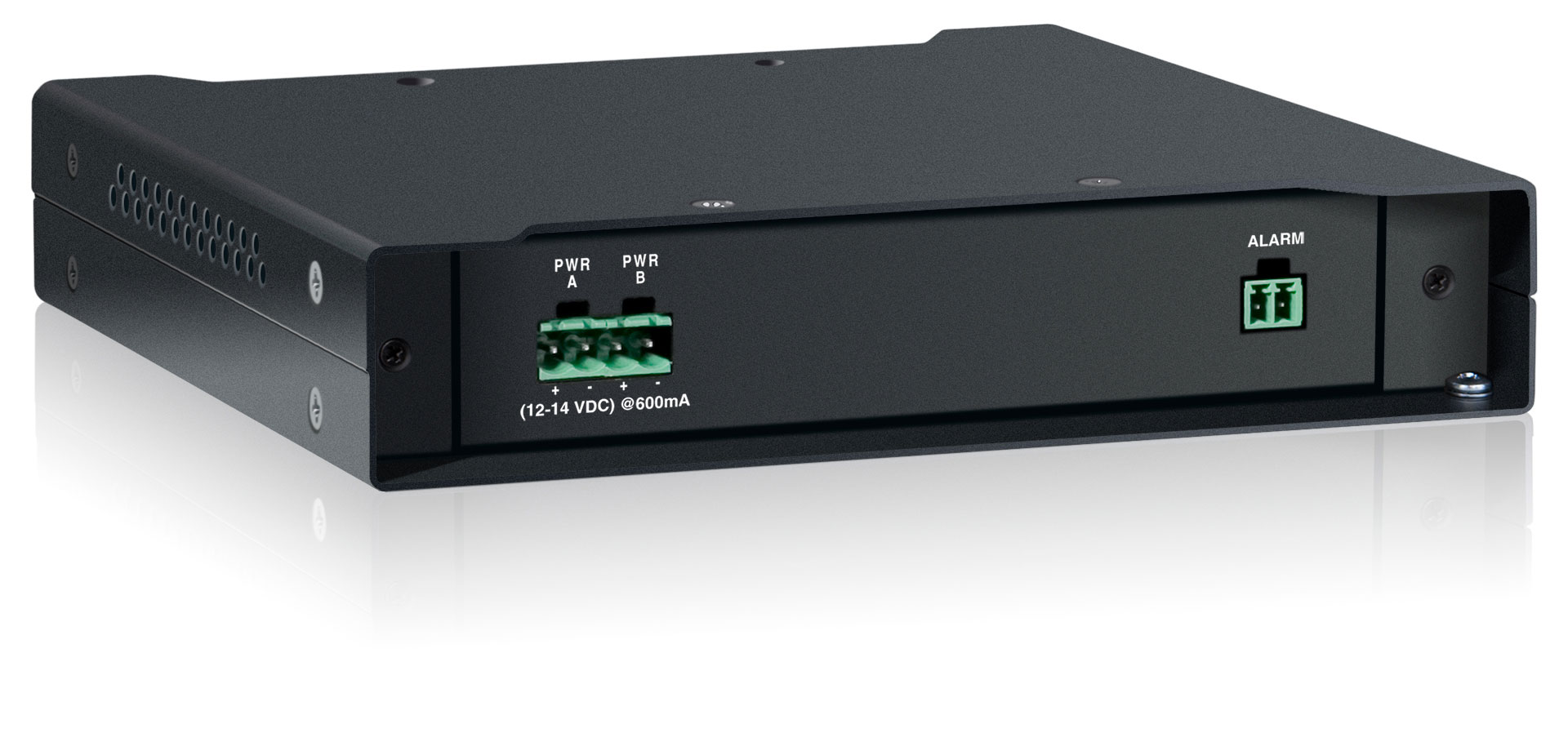

  • Local Dry Contact Alarm Relay
  • 8 Diagnostic LED Indicators
  • Built-In Redundant Power Supply
  • Two-way Single Fiber Communication (option, single mode)

The TC3005 converts multimode to single mode, or vice versa, in a variety of LAN and Telephony communication environments including PABX, Ethernet, Token Ring, FDDI, ATM & SONET (OC1 & OC3).

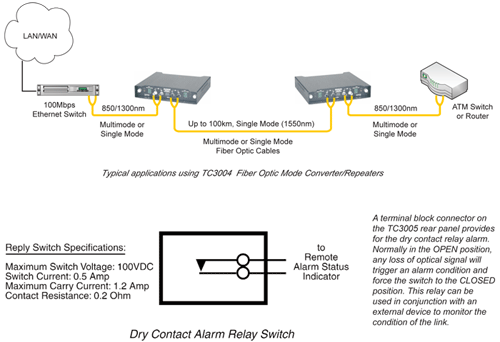

Applications

The MAXI Mode Converter is used to convert multimode to single mode, or vice versa, in a variety of LAN and Telephony communication environments including PABX, Ethernet, Token Ring, FDDI, ATM & SONET (OC1 & OC3). This conversion is done to cross-connect different fiber types, regenerate optical signals and/or extend transmission distances.

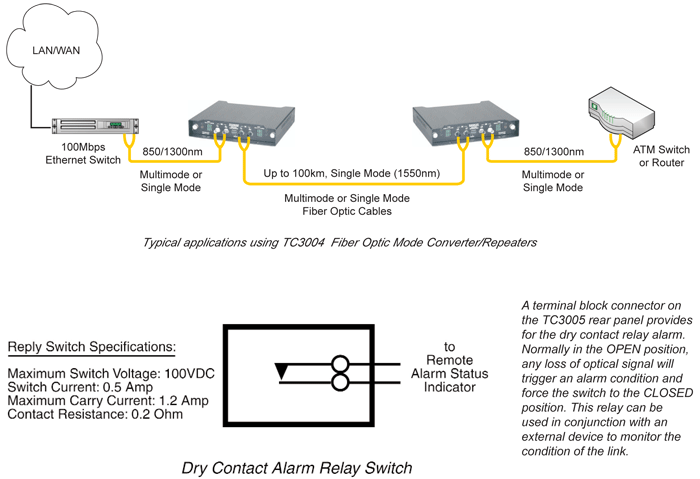

TC3005 - High Speed Mode Converter/Repeater (up to 200 Mbps)
Click to enlarge

Specifications

Data Rates
  1. Ratesup to 200 Mbps
Optical
  1. TransmitterELED/LASER
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm Multimode, 1300/1550nm Single Mode
  4. Fiber Optic ConnectorsSC, ST, FC
  5. Loss Budgets *
  6. LED16dB 850/1300nm
  7. Multimode @62.5/125 nm
  8. ELED16dB 1300/1550nm
  9. Single Mode @9/125 nm
  10. LASER25dB 1300nm
  11. Single Mode @9/125 nm
  12. HI-PWR LASER34dB 1300/1550nm
  13. Single Mode @9/125 nm
System
  1. Bit Error Rate1 in 1010 or Better
Visual Indicators
  1. PWRA, PWRB, VCCA, VCCBYes
  2. MM RX, MM TX, SM RX, SM TXYes
Alarm
  1. Dry ContactNormal OPEN
Power
  1. Standard12VDC @800mA (max)
  2. Optional24VDC, -48VDC, or 115/230VAC with Power Cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Rackmount Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(16.59 cm) 6.53"
  4. Weight(512 gm) 1.5 lbs
