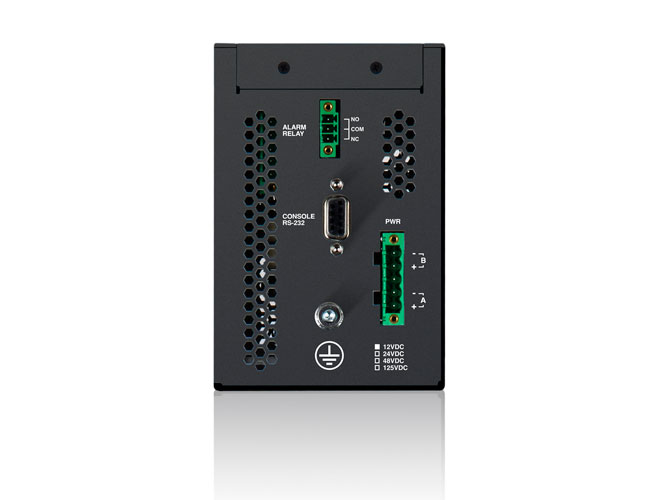

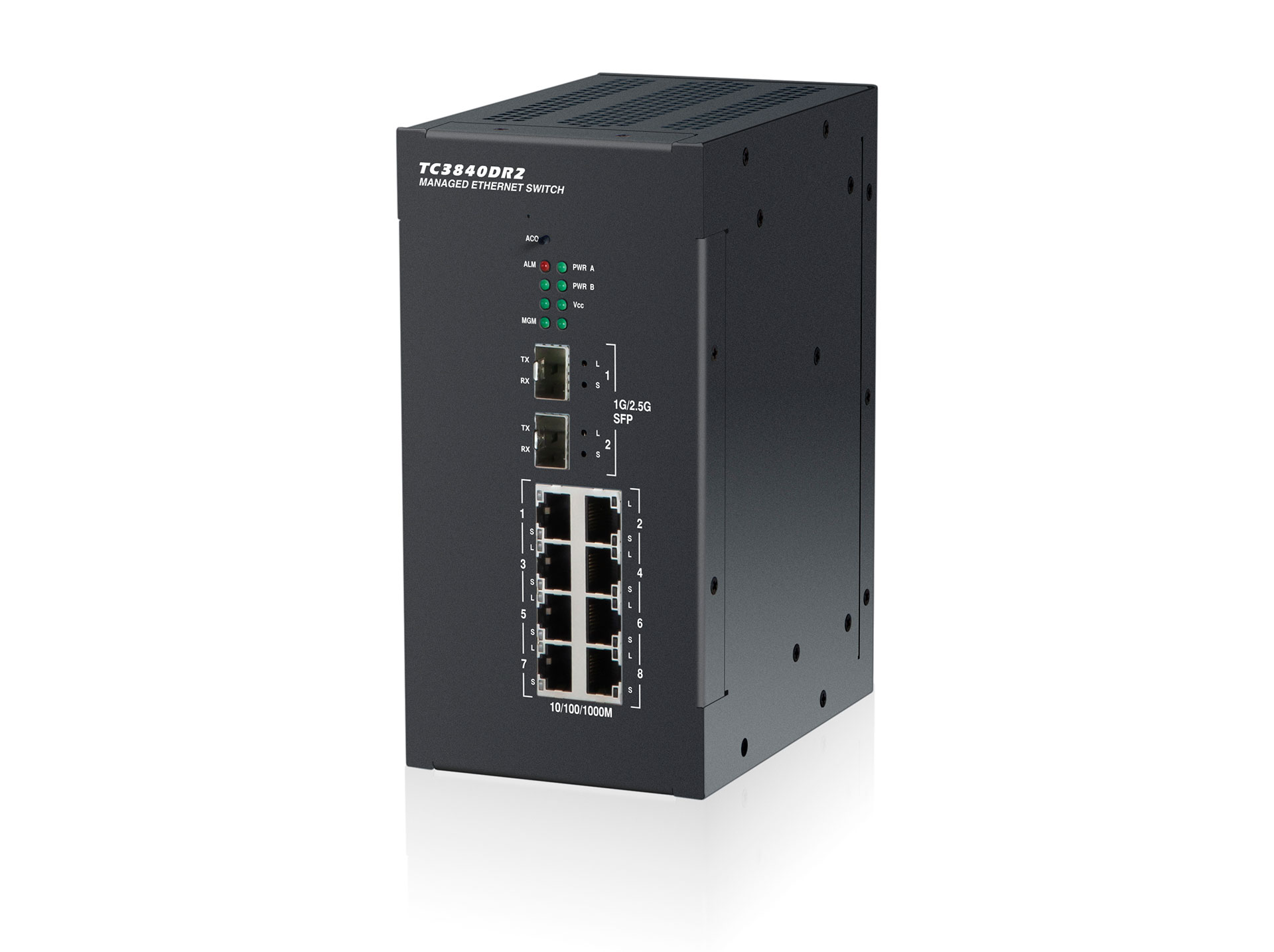

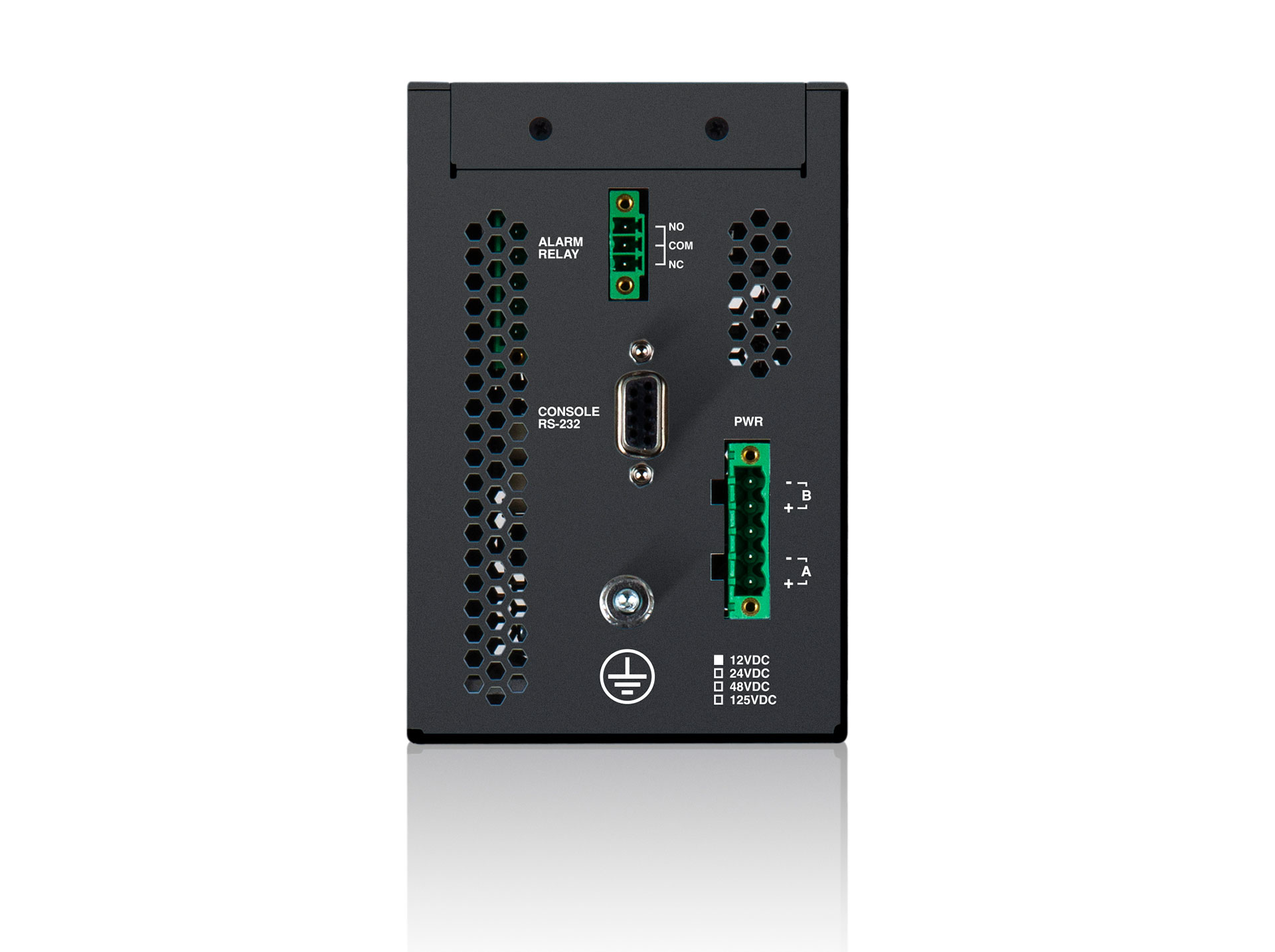

TC3840DR2
JumboSwitch DIN Rail Managed Industrial Ethernet Switch
Features
The TC3840DR is a compact, efficient Industrial Ethernet switch solution with full JumboSwitch network compatibility and integrated Serial Server, Phone, or Ethernet card expandability. Our JumboSwitch® series offers a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN). TDM over IP/Ethernet is a TDM pseudowire (PW) technology making it possible to provision E1, T1, E3, T3, STS-1 and serial data services across PSN's such as IP, MPLS or layer 2 Ethernet Networks.
Features- Member of JumboSwitch® Product Family
- Compact chassis with full management
- MEF Carrier Ethernet 2.0 Compliant
- Sub-50ms Protection Switching by ITU-T G.8032v2 ERPS
- IEEE 1588v2 PTP Time Synchronization
- 2-Port GbE SFP (Optional 2.5G)
- 8-Port GbE RJ45

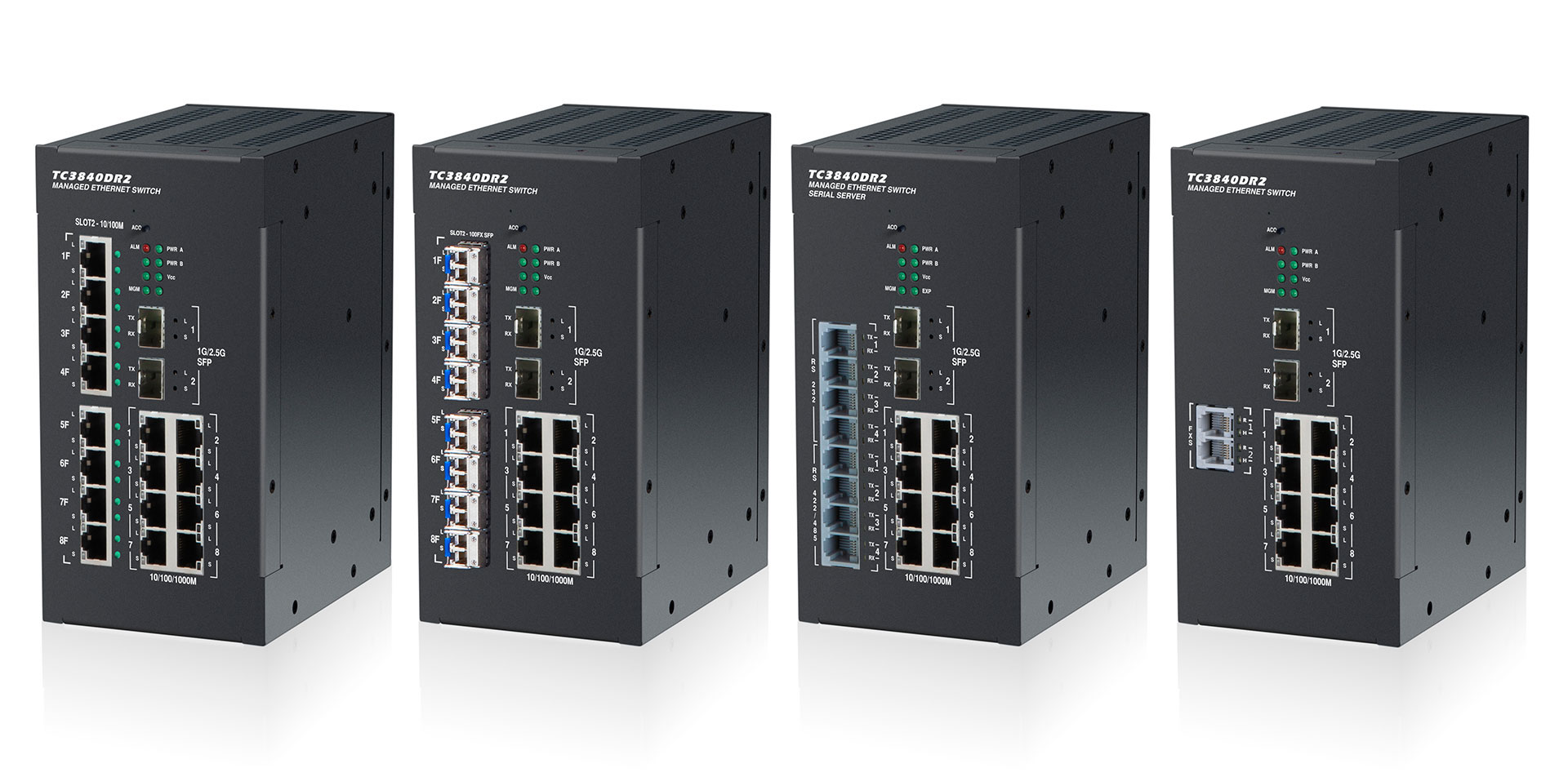

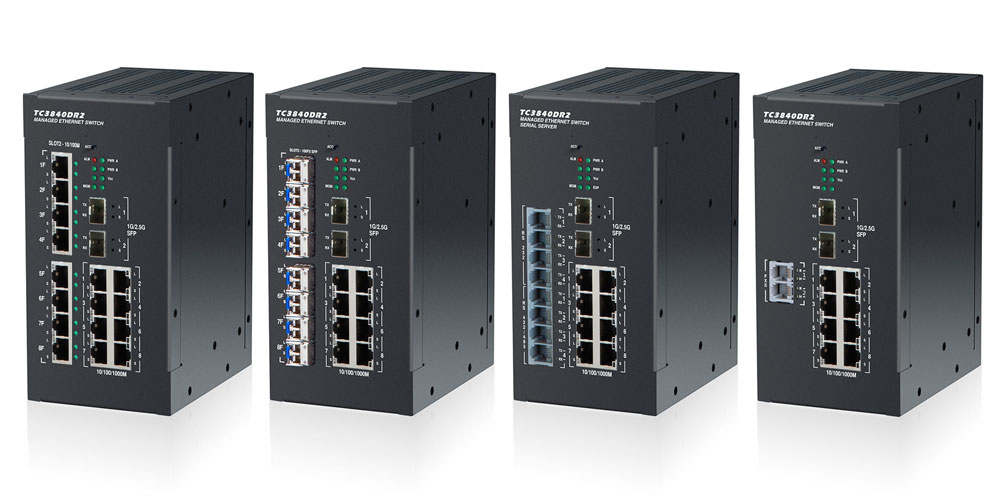

- Optional expansion card:
- 8 port GbE RJ45 Ethernet
- 2 port FXS Phone
- 8 port GbE SFP
- 4 port RS232/422/485 Serial
The TC3840DR is often used by Utilities to connect substation RTUs/PLCs, including older legacy units with serial interfaces, to a central control center. Transportation entities use the TC3840DR for traffic control and intelligent transportation system communication networks.
Applications

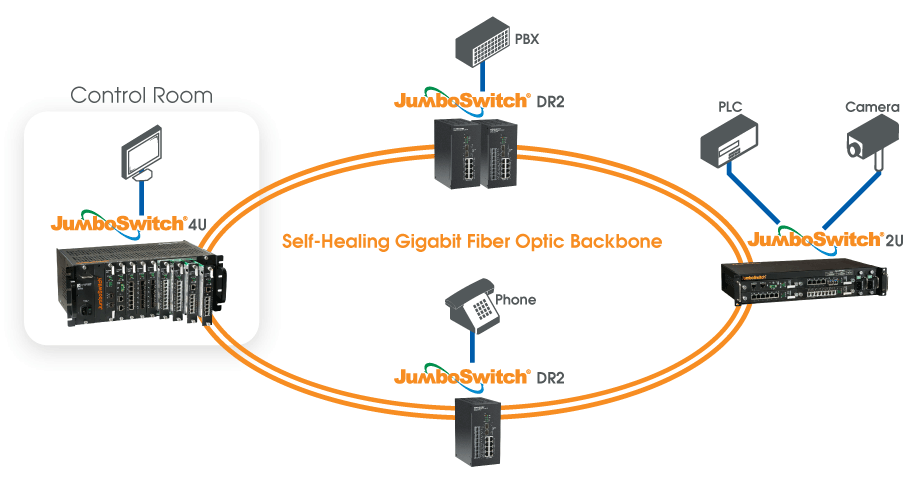

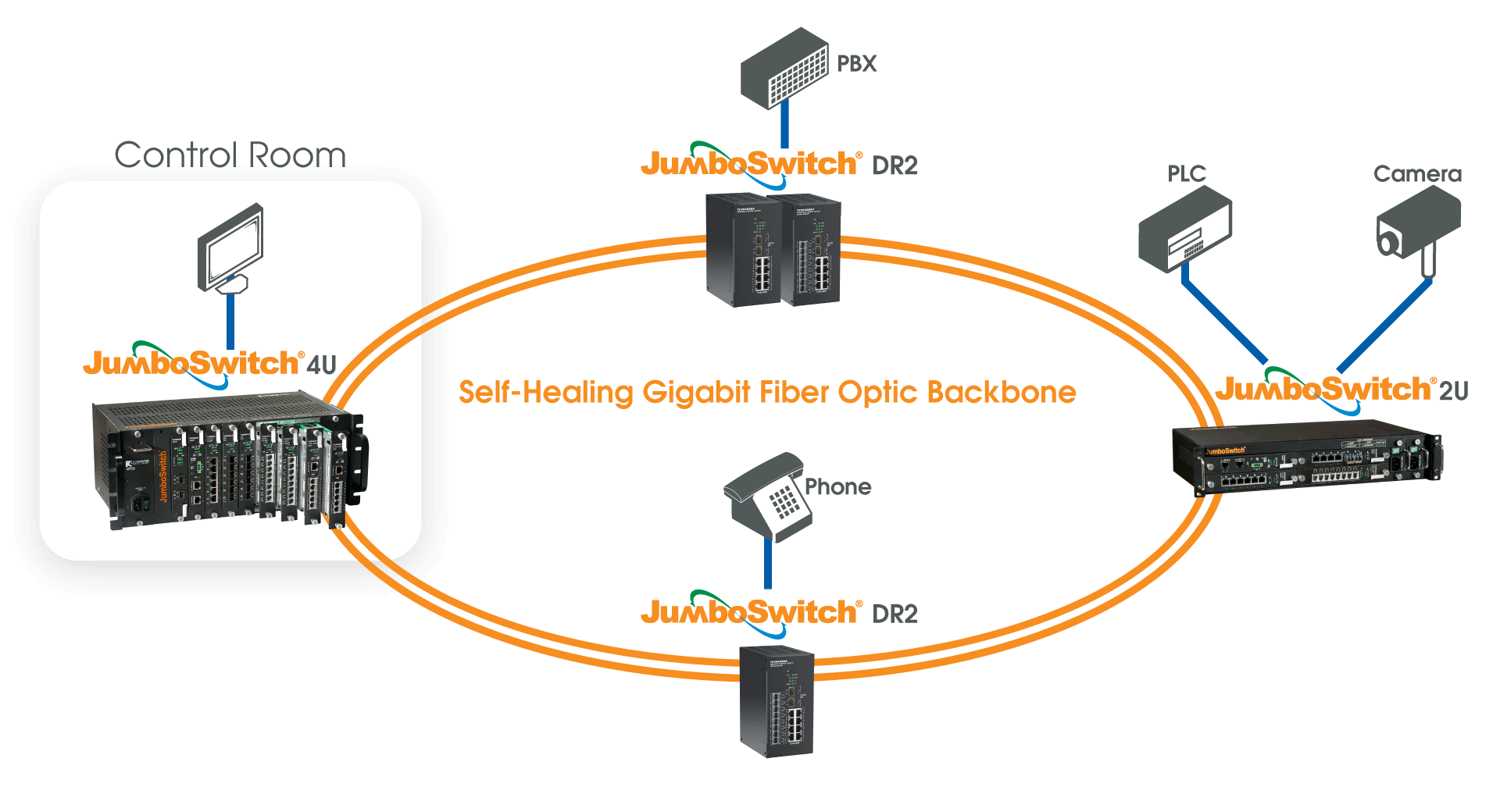

An all-in-one connectivity solution for industrial automation and commercial network applications, the TC3840DR DIN Rail Ethernet Switch benefits users by offering an additional builtin 4-channel Serial Server or 8-port GigabitEthernet card.
The TC3840DR is often used by Utilities to connect substation RTUs/PLCs, including older legacy units with serial interfaces, to a central control center. Transportation entities use the TC3840DR for traffic control and intelligent transportation system communication networks.
The TC3847-1DR DIN Rail serial card is also used to support MicroLok devices over IP networks in railroad Positive Train Control (PTC) applications.
Specifications
- SFPup to 2.5 Gbps
- RJ4510/100/1000 Mbps
- Wavelength
- Multimode850nm
- Single Mode1310/1550nm
- SFP Optic
- ConnectorLC
- Port2
- SFP I/F1000 BASE-LX/SX, 100FX, 2.5G
- Ethernet
- ConnectorRJ45
- Port8
- Interface1000 Base-T
- Console
- ConnectorRJ45
- Port1
- InterfaceRS-232
- CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA
LEDs
- PWR A, PWR B, VCC, MGM, ALARM, LINK, SPEED
Expansion
- Ethernet
- TC3841-5DR8 Ports RJ45
- AC115/230V, 50/60Hz
- DC12/24/48/125V
- High Temp-20°C to 70°C
- Extreme Temp-40°C to 80°C
- Storage-40°C to 90°C
- Humidity95% non-condensing
- Height(17.8 cm) 7.0"
- Width(8.9 cm) 3.5"
- Depth(13.3 cm) 5.25"
- Weight(0.9 kg) 2.0 lbs
Below are SFP module options available. Click on the products to view datasheets.
| SFP Modules | ||||
|---|---|---|---|---|
| Model No. | Data Rate | Mode | Wavelength | Distance |
| 760-011S1-00
760-011S1-05 |
1.25 Gbps | Multimode | 850 nm | 550 m |
| 760-031S1-00
760-031S1-05 |
1.25 Gbps | Multimode | 1310 nm | 2 km |
| 760-050S1-20
760-050S1-25 |
155 Mbps | Single Mode | 1310 nm | 20 km |
| 760-050S1-40
760-050S1-45 |
155 Mbps | Single Mode | 1310 nm | 40 km |
| 760-051S1-20
760-051S1-25 |
1.25 Gbps | Single Mode | 1310 nm | 20km |
| 760-051S1-40
760-051S1-45 |
1.25 Gbps | Single Mode | 1310 nm | 40km |
| 760-071S1-C0
760-071S1-C5 |
1.25 Gbps | Single Mode | 1550 nm | 120 km |
| 760-071S1-G0
760-071S1-G5 |
1.25 Gbps | Single Mode | 1550 nm | 200 km |
| 760-071S1-80
760-071S1-85 |
1.25 Gbps | Single Mode | 1550 nm | 80 km |
| 760-G57S1-20
760-G57S1-25 |
1.25 Gbps | Single Mode | 1310 nm/1550 nm | 20 km |
| 760-G57S1-40
760-G57S1-45 |
1.25 Gbps | Single Mode | 1310 nm/1550 nm | 40 km |
| 760-G75S1-20
760-G75S1-25 |
1.25 Gbps | Single Mode | 1550 nm/1310 nm | 20 km |
| 760-G75S1-40
760-G75S1-45 |
1.25 Gbps | Single Mode | 1550 nm/1310 nm | 40 km |
