TC3850-1

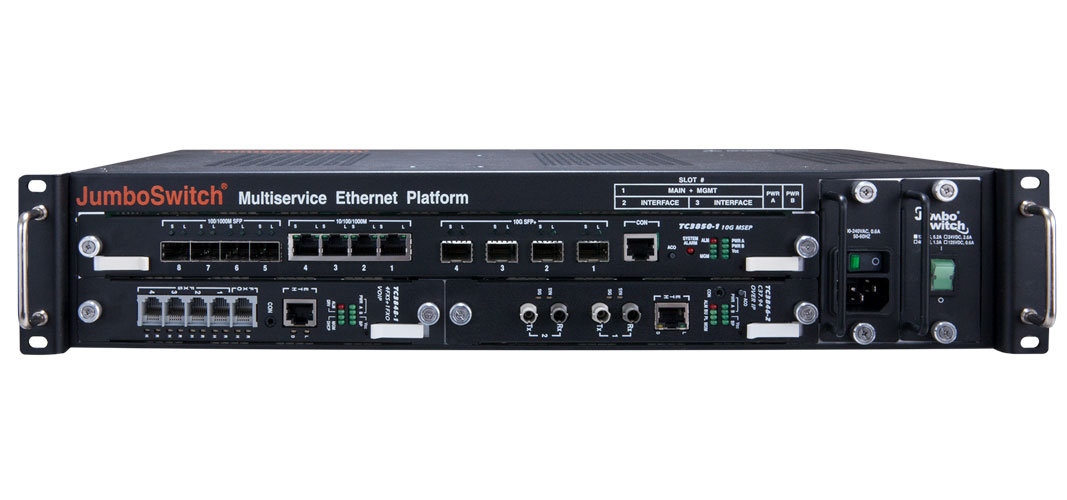

JumboSwitch 10G Multi-Service Ethernet Switch

TC3850-1

Rollover or Touch for Expanded View. Scroll to Zoom.

The JumboSwitch® TC3850-1 is a 10G Multi-Service Layer 2 Switch supported in a modular chassis design with 2 open slots compatible with JumboSwitch® interface cards. It is MEF Carrier Ethernet 2.0 Compliant allowing network providers the ability to utilize Ethernet technology in network as well as providing Ethernet services to customers.

Supported interfaces (via modular interface cards):

  • Teleprotection over Ethernet/IP (C37.94, G.703/64K)
  • Ethernet/IP over T1/E1, T3/E3, or OC-3/STM-1
  • T1/E1 or T3/E3 over Ethernet/IP
  • Serial (RS-232, RS-422, RS-485)
  • Radio over Ethernet/IP
  • Modem over Ethernet/IP
  • Voice over Ethernet/IP
  • Dry Contact over Ethernet/IP

For assistance with this product or to request a user manual please contact Technical Support.


Features


10G JumboSwitch® Carrier Ethernet

Features

  • MEF Carrier Ethernet 2.0 Compliant
  • E-Line, E-LAN, E-Tree, and E-Access Services
  • Ethernet OAM Service Assurance
  • Sub-50ms Protection Switching by ITU-T G.8032v2 ERPS
  • IEEE 1588v2 PTP Time Synchronization
  • Advanced Networking Features : Rate Control, VLAN, QoS, and Security
  • Diagnostics: Temperature, Power Monitoring, and Traffic Statistics
  • Management through Web, SNMP, or Command Line Interface
  • Durable and Reliable: Designed with Extended Temperature, Shock/Vibration, and Surge Ratings
  • Redundant Modular Power Supplies (AC/DC)

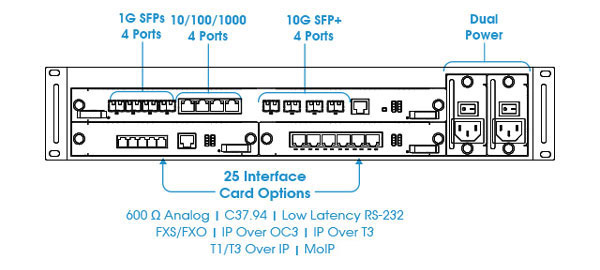

Configuration

  • 4-port SFP+ 10GbE, 4-port SFP GbE and 4-port 10/100/1000Base-T RJ45
  • 2 Open Slots for JumboSwitch® Ethernet and TDM Interface Cards
  • 2U Chassis

Adding to the JumboSwitch Family

Secure and Dependable

  • Teleprotection over IP with 10G JumboSwitch®.

Performance for Teleprotection:

  • Low Channel Delay
  • Low Channel Delay Variation
  • Sub 50ms protections switching

Resiliency:

  • Dual power supplies (hot-swappable, AC & DC)
  • Replaceable fan tray (hot-swappable)
  • Hot-Swappable interface cards
  • Industrial Hardened for operation in harsh environments
  • Card and Port-level traffic redundancy
  • Management sub-system redundancy
  • Domain clock redundancy
  • Provides advanced Carrier Ethernet services for utility communication applications

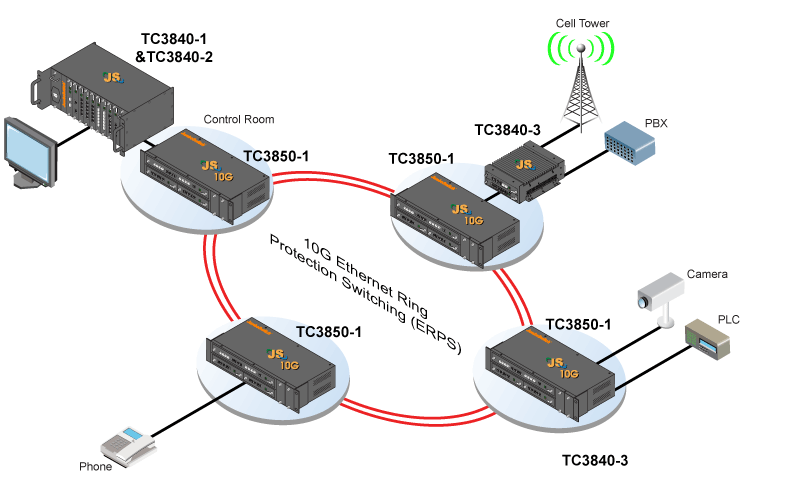

Applications

Built for mission critical and industrial communications:

  • Teleprotection
  • Internet Service Provider (ISP)
  • Public Safety
  • Air Traffic Control
  • Oil & Gas
TC3850-1 - 10G Ethernet Switch
Click to enlarge

Specifications

Data Rates
  1. 10 Gbps
  2. 10/100/1000 Mbps with Rate Control

Optical
  1. TransmitterLASER*
  2. ReceiverPIN Diode
  3. Wavelength
  4. SFP850nm MM
  5. SFP1300/1550nm SM
  6. SFP+ Optic
  7. ConnectorsLC
  8. Port4
  9. Interface10G BASE-SR/ER/LR
  10. SFP Optic
  11. ConnectorsLC
  12. Port4
  13. Interface1G LX/SX
Electrical
  1. Ethernet
  2. ConnectorRJ45
  3. Female Ports4
  4. Interface10/100/1000M
  5. Console
  6. ConnectorRJ45 Female
  7. Port1
  8. InterfaceRS-232
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA
LEDs
  1. PWR A, PWR B, SPEED, LINK STATUS, UNIT ALARM, SYSTEM ALARM, MGMT, VCC
Power
  1. AC115/230V, 50/60Hz
  2. DC12/24/48/125V
Operating Temperature
  1. High Temp-20°C to 70°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Storage
  1. Height(8.9 cm) 3.5"
  2. Width(48.3 cm) 19.0"
  3. Depth(26.7 cm) 10.5"
  4. Weight(6.8 kg) 15.0 lbs*
*Contact factory for higher requirements
