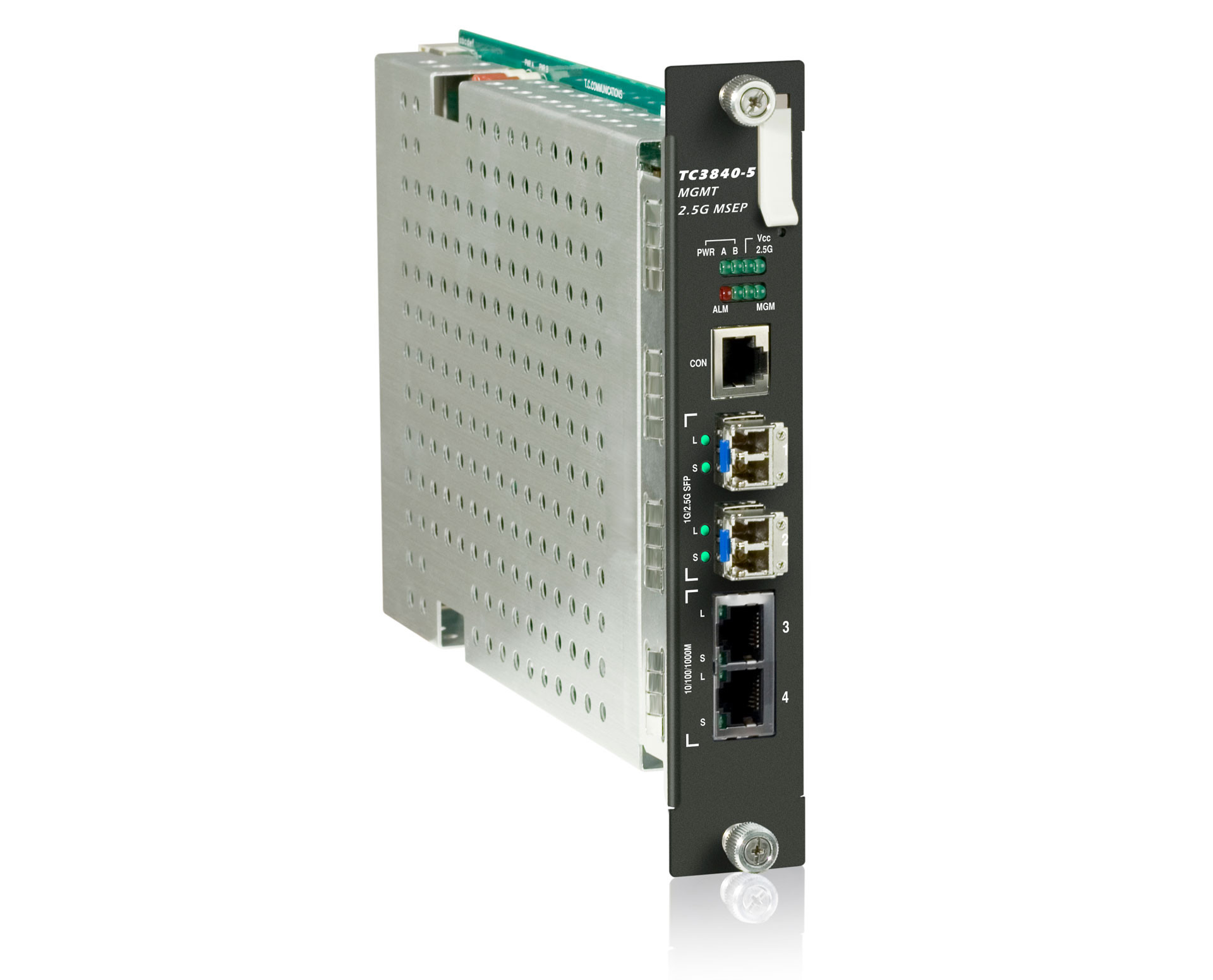

TC3840-5

JumboSwitch 2.5G 1U/2U/4U Ethernet Management Card

TC3840-5
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3840-5 is a 2.5G Multi-Service Layer 2 Switch supported in a modular chassis design with 7 open slots in the 4U chassis, offering 2x SFP ports capable of speeds up to 2.5G for connecting up and down nodes to form a ring or bus topology. It’s part of the JumboSwitch® series, which is a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN).

The TC3840-5 is commonly used by Utilities to connect substation RTUs/PLCs and telephones or T1/E1 links to a central control center, and by Data Service Providers for its modular multi-interface, rate limiting, one fiber- bi-directional and media conversion capabilities.

Features
  • MEF Carrier Ethernet 2.0 Compliant
  • E-Line, E-LAN, E-Tree, and E-Access Services
  • Ethernet OAM Service Assurance
  • Sub-50ms Protection Switching by ITU-T G.8032v2 ERPS
  • IEEE 1588v2 PTP Time Synchronization
  • Temperature, Power Consumption & SFP Monitoring

Applications

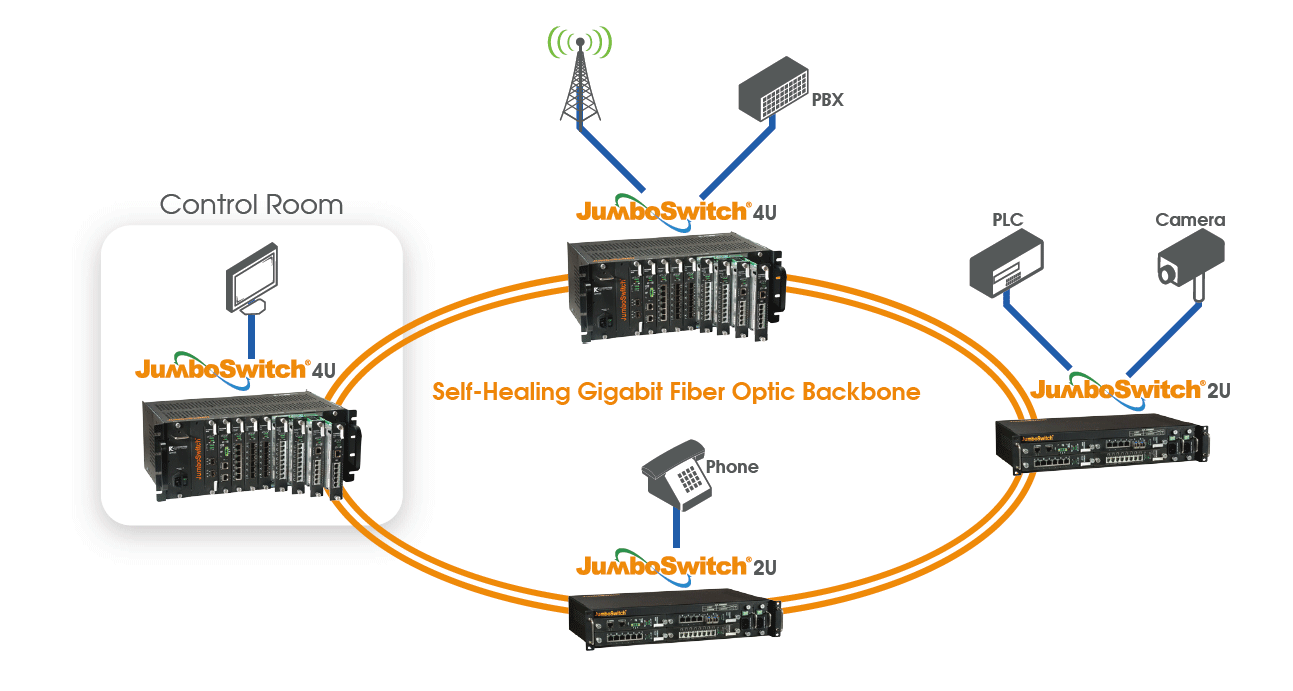

The JumboSwitch® Management Card is commonly used by Utilities to connect substation RTUs/PLCs and telephones or T1/E1 links to a central control center.

It is also used by Data Service Providers for its modular multiinterface, rate limiting, onefiber- bi-directional and media conversion capabilities.

TC3840-5 - 2.5G Mgmt for 4U Chassis
Click to enlarge

Specifications

Configuration
  • 2-Port GbE SFP (Optional 2.5G)
  • 2-Port GbE RJ45

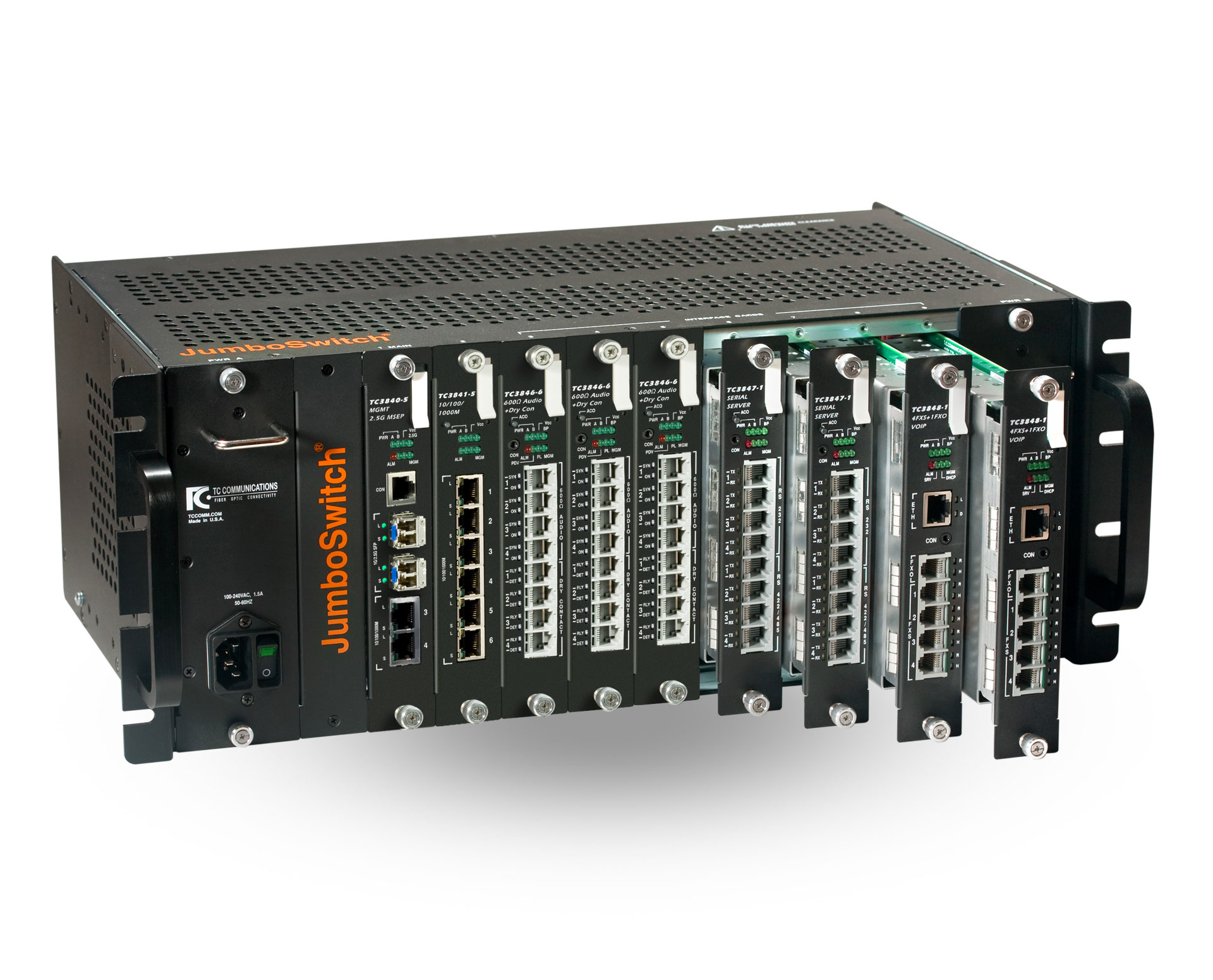

  • Supports up to 7 JumboSwitch® Interface cards
  • Supports 1 additional JumboSwitch® Ethernet card
  • For JumboSwitch® 1U/2U/4U Chassis
Data Rates
  1. SFPup to 2.5 Gbps
  2. RJ4510/100/1000 Mbps
Optical
  1. Wavelength
  2. Multimode850nm
  3. Single Mode1310/1550nm
  4. SFP Optic
  5. ConnectorLC
  6. Port2
  7. SFP I/F1000 BASE-LX/SX, 100FX, 2.5G
Electrical
  1. Ethernet
  2. ConnectorRJ45
  3. Port2
  4. Interface1000 Base-T
  5. Console
  6. ConnectorRJ45
  7. Port1
  8. InterfaceRS-232
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA

LEDs
  1. PWR A, PWR B, VCC, MGM, ALARM, LINK, SPEED

Power
  1. AC115/230V, 50/60Hz
  2. DC12/24/48/125V
Operating Temperature
  1. High Temp-20°C to 70°C
Storage
  1. Storage-40°C to 90°C
  2. Humidity95% non-condensing
Physical (rack mount card))
  1. Height(3.2 cm) 1.25"
  2. Width(17.8 cm) 7.0"
  3. Depth(23.5 cm) 9.25"
  4. Weight(0.5 kg) 1.0 lbs
* Contact factory for higher requirements
