TC3705

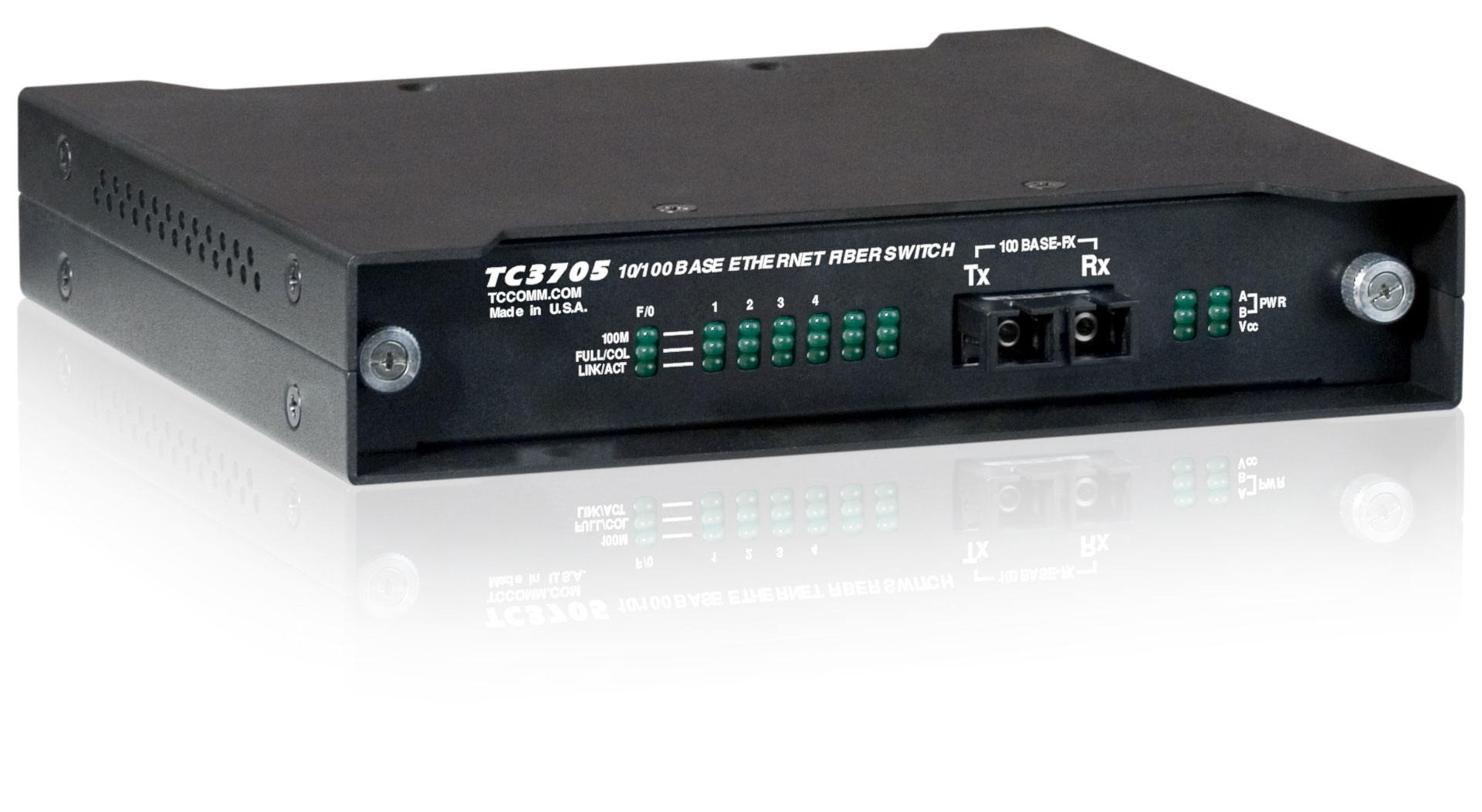

Unmanaged 10/100 Fiber Optic Ethernet Switch (4Tx + 1Fx)

TC3705

Rollover or Touch for Expanded View. Scroll to Zoom.

Supporting distances up to 80km, the TC3705 10/100Base-T Ethernet Fiber Optic Switch provides one multimode or single mode optical port and four Ethernet ports.

Product version may differ from current manual. For assistance or proper manual version please contact Technical Support.


Features

  • 4 Ethernet 10/100-Base Auto-Sensing UTP Ports
  • 1 Fiber Optic 100Base-FX Port
  • Distances up to 80km
  • Multimode or Single Mode(1300/1550nm)
  • Full or Half-Duplex Operation
  • Hardened Temperature (optional)
  • Exceeds Pertinent NEMA & Caltrans Traffic Control Specifications
  • Rackmount or Stand Alone

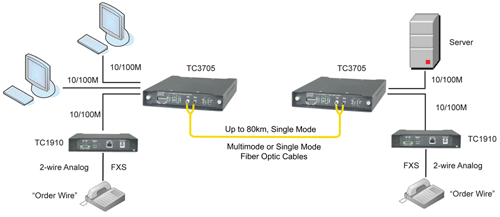

Applications

The TC3705 10/100 Ethernet Switch is a low cost and flexible bandwidth solution to efficiently handle the heavy traffic of local workgroups--- reducing the need of expensive routers that usually cater to the network backbone.

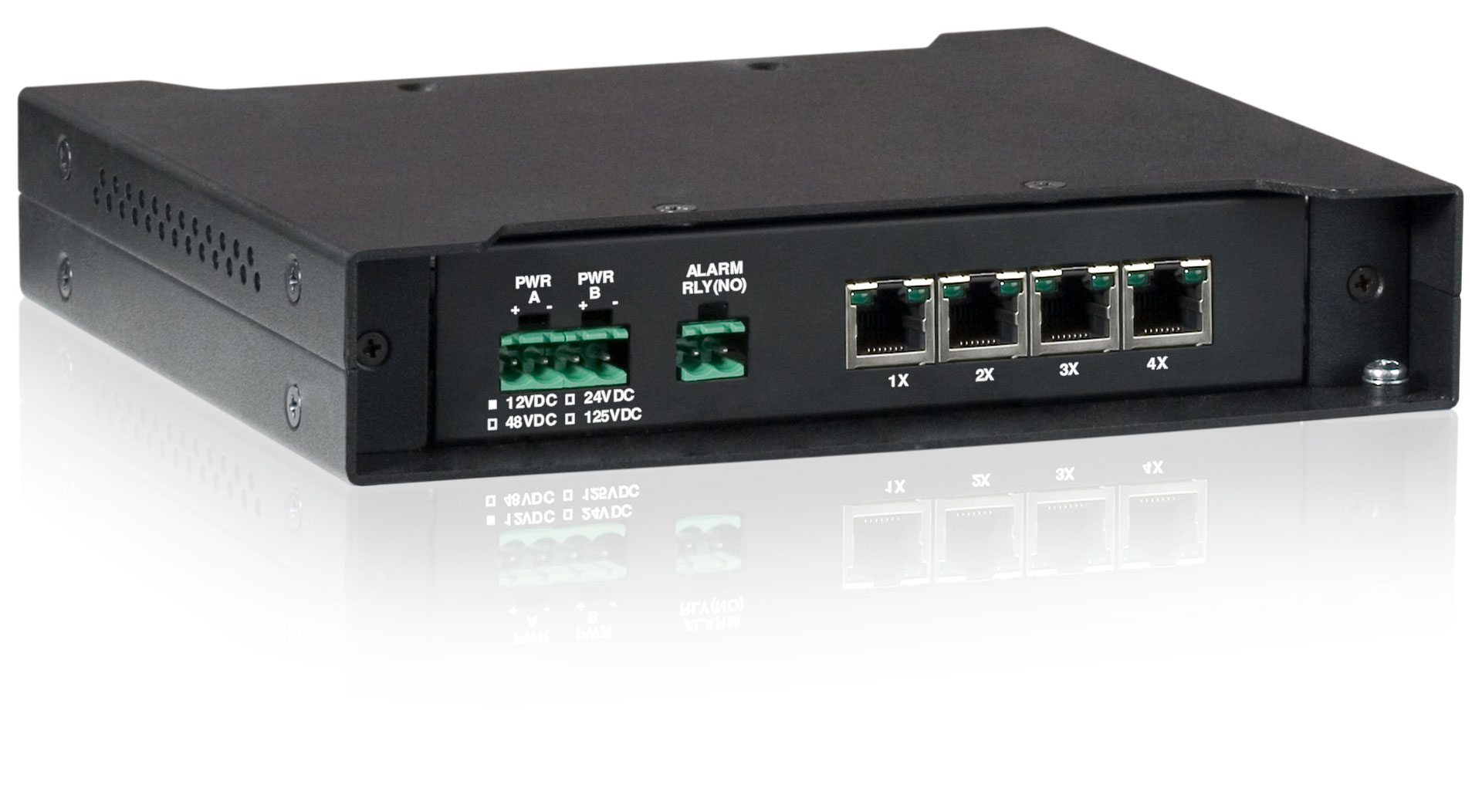

TC3705 - 4 Ports 10/100Base-TX Ethernet Fiber Optic Switch
Click to enlarge

Specifications

Data Rates
  1. Rates10/100 Mbps
Optical
  1. TransmitterLED/ELED/LASER*
  2. ReceiverPIN Diode
  3. Wavelength1300nm Multimode, 1300/1550nm Single Mode
  4. Fiber Optic ConnectorsST, Optional FC, SC
  5. Loss Budgets * - 1300/1550nm
  6. LED/ELED15dB MM @62.5/125µm
  7. LASER20dB SM @9/125µm
Visual Indicators
  1. System LEDsPower (1), Status (10)
  2. Port Status (each port)10/100, Act, Link, Tx, Rx, Act, Speed
Electrical
  1. Switch/HUB/Bridge Ports4 x RJ-45 Female
  2. InterfaceEthernet 10/100Base-T
  3. EmissionFCC Class A
  4. SafetyCSA
System
  1. Bit Error Rate12VDC @ 500mA
Power
  1. Standard12VDC @ 500mA
  2. Optional24VDC, -48VDC, 115/230VAC with Power Cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme Temp (option)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(16.59 cm) 6.53"
  4. Weight(544 gm) 1.2 lbs
