Managed 10/100/1000 Fiber Ethernet Switch w/ Self-Healing Ring (2+2 Ports)

TC3340
Rollover or Touch for Expanded View. Scroll to Zoom.

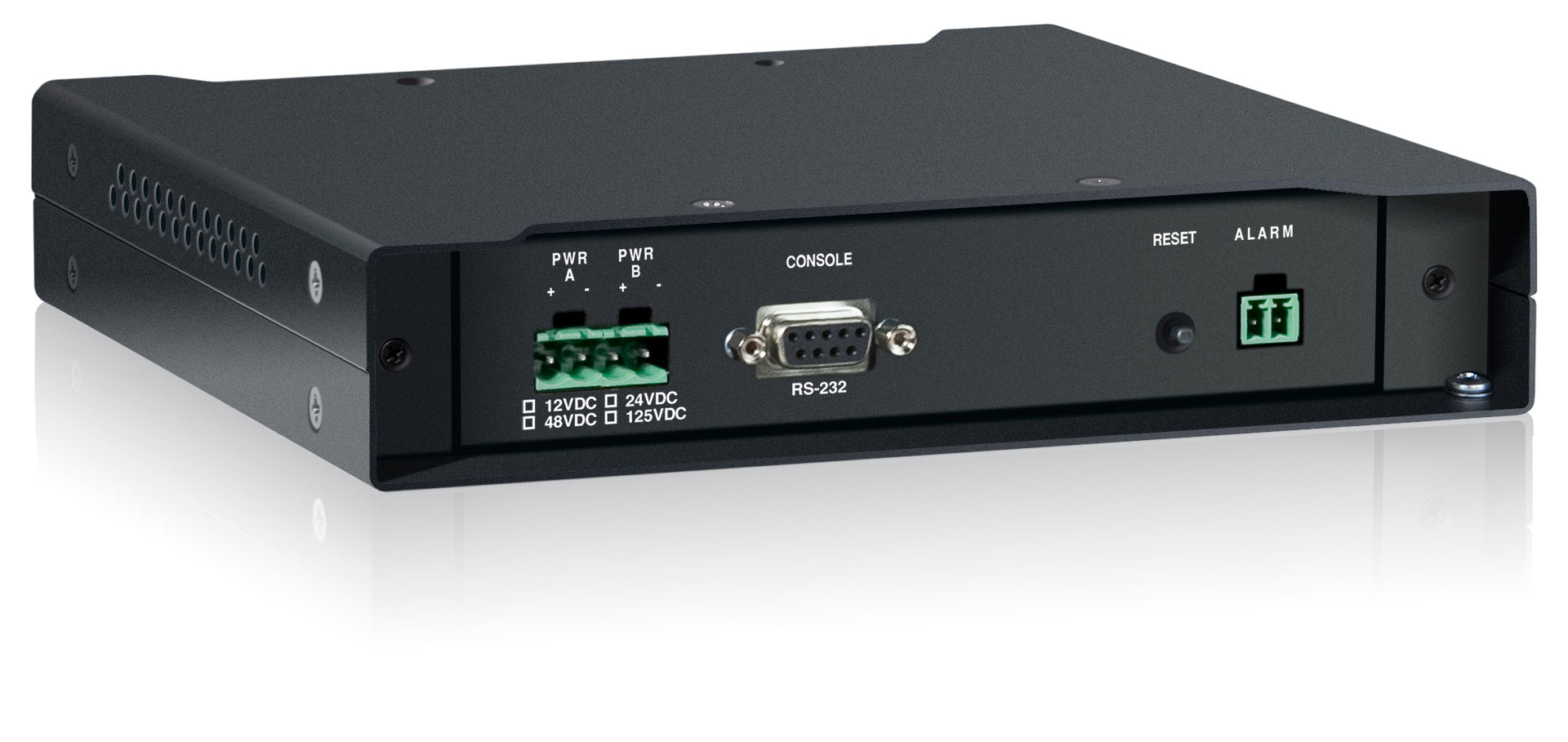

Features

The TC3340 Redundant Gigabit Ethernet Switch Substation is a rugged, cost-effective networking solution for both industrial and commercial fiber networks. It offers a wide range of advanced networking features including Self-Healing Ring capability, VLAN, QoS, Rate Limiting, Management, Security and Industrial Hardened capability.

  • 2 Ports 10/100/1000Base-TX (UTP) & 1000Base-SX/LX
  • Optical Redundancy (ring "self-heals" within 38 msec.)
  • Ethernet Rate Limit, VLAN & QoS
  • Built-In Power & Temperature Sensors
  • Remote Optic Measurements (e.g. Transmit Power & Receive Power)
  • Network Management (Web, SNMP, Console & Telnet)
  • SM/MM & Bi-Directional SFP Optics
  • Extreme-Temp (-40ºC to 80ºC) & Hi-Temp (-20ºC to 70ºC) Options
  • IEC 61850-3, IEEE 1613 & NEMA TS-2
  • Power: 12VDC, 24VDC, -48VDC or 115/230VAC

The TC3340 is an ideal Gigabit Switch solution for both industrial automation and commercial networks because it offers a wide range of advanced networking features including Redundancy, Rate Limiting, Diagnostics, Security and Industrial Hardened capability. It is also used by Data Service Providers for its rate limiting; one fiber, bi-directional; and media conversion capabilities.

Applications

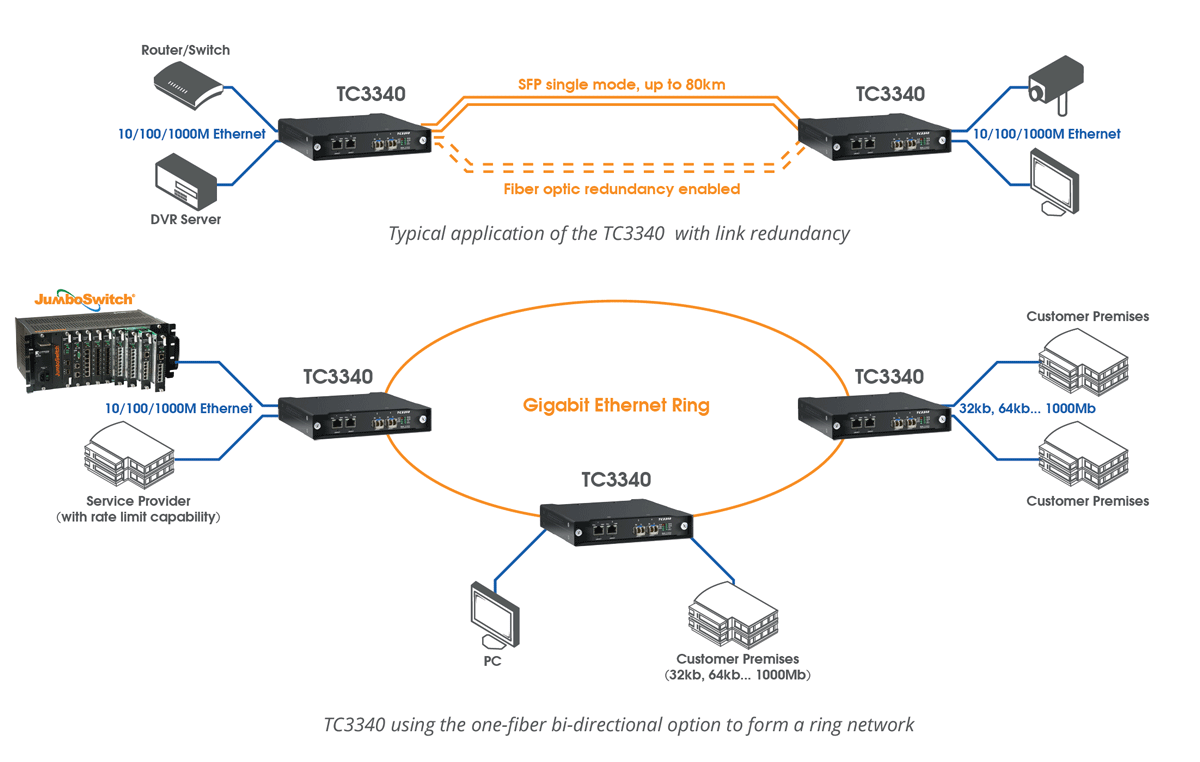

The TC3340 is a compact Gigabit Switch solution for both industrial automation and commercial networks because it offers a wide range of advanced networking features including Redundancy, Rate Limiting, Diagnostics, Security and Industrial Hardened capability. It is also used by Data Service Providers for its rate limiting; one fiber, bi-directional; and media conversion capabilities.

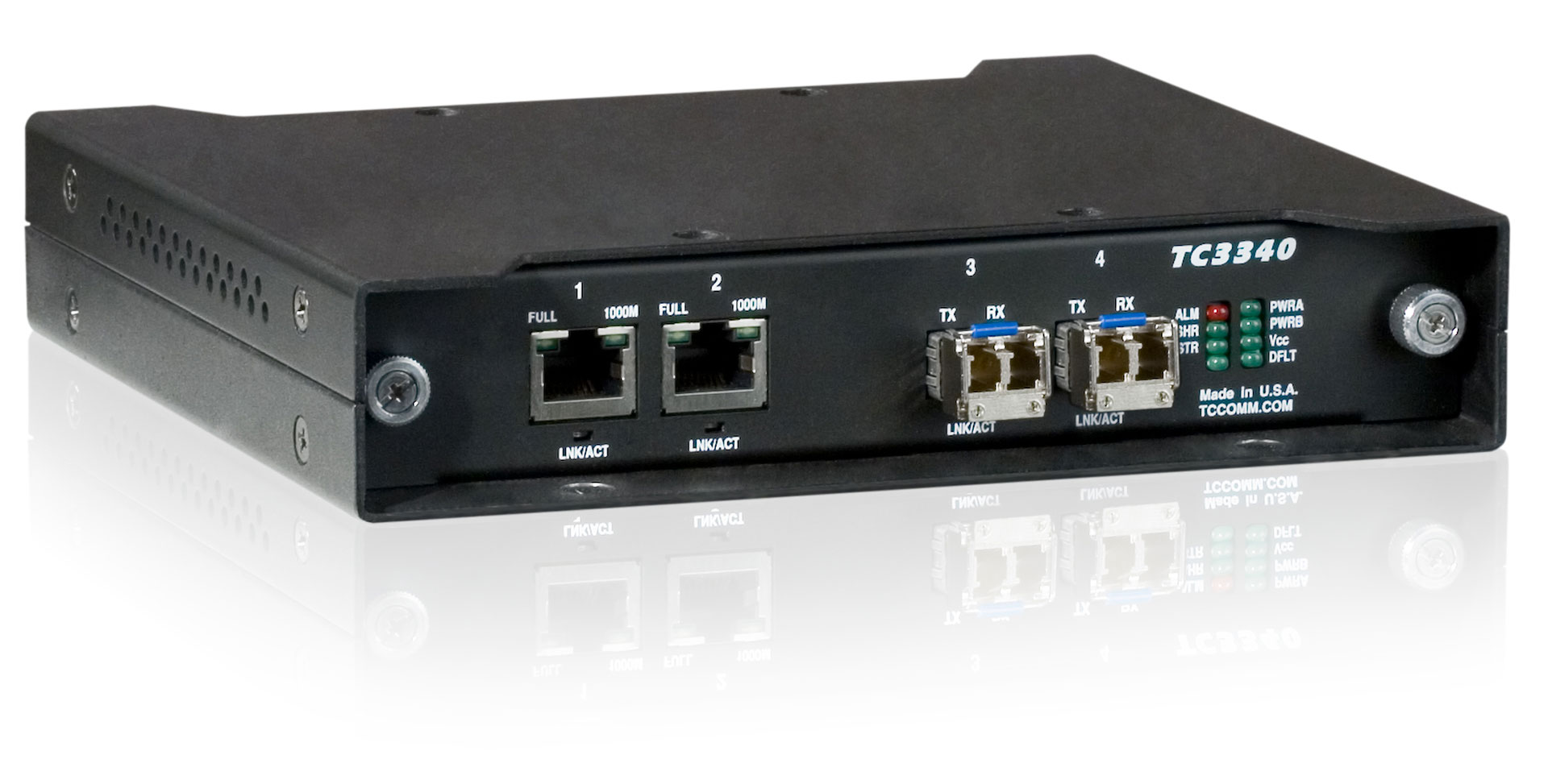

TC3340 - Managed Gigabit 2+2 Ethernet Switch
Click to enlarge

Specifications

Data Rates
  1. 10/100/1000 Mbps with Rate Control
Optical
  1. TransmitterELED/LASER
  2. ReceiverPIN Diode
  3. WavelengthSFP: 850nm Multimode, SFP: 1300/1550nm Single Mode
  4. SFP ConnectorsLC
  5. Loss Budgets * - 1300/1550nm
  6. Multimode @62.5/125µm15dB
  7. Single Mode @9/125µm20dB*
Electrical
  1. ConnectorRJ45 (10/100/1000M), SFP: RJ45 (10/100/1000M)
  2. InterfaceEthernet
Visual Indicators
  1. ALM, LINK, FULL, 1000M, PWR A, PWR B, VCC, DFLTYes
System
  1. Bit Error Rate1 in 1010 or Better
Diagnostic Functions
  1. Traffic StatisticsYes
  2. Transmit Power/Receive PowerYes
  3. TemperatureYes
Alarm
  1. Dry ContactNormal Open
Power
  1. Standard12VDC
  2. Optional24VDC, -48VDC, or 115/230VAC
  3. Comsumption< 10W
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (opt.)-20°C to 70°C
  3. Extreme Temp (opt.)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(16.59 cm) 6.53"
  4. Weight(544 gm) 1.2 lbs
* Contact factory for higher requirements

Below are SFP module options available. Click on the products to view datasheets.

SFP Modules
Model No. Data Rate Mode Wavelength Distance
760-011S1-00
760-011S1-05 		1.25 Gbps Multimode 850 nm 550 m
760-031S1-00
760-031S1-05		 1.25 Gbps Multimode 1310 nm 2 km
760-050S1-20
760-050S1-25		 155 Mbps Single Mode 1310 nm 20 km
760-050S1-40
760-050S1-45		 155 Mbps Single Mode 1310 nm 40 km
760-051S1-20
760-051S1-25		 1.25 Gbps Single Mode 1310 nm 20km
760-051S1-40
760-051S1-45		 1.25 Gbps Single Mode 1310 nm 40km
760-071S1-C0
760-071S1-C5		 1.25 Gbps Single Mode 1550 nm 120 km
760-071S1-D0
760-071S1-D5		 1.25 Gbps Single Mode 1550 nm 160 km
760-071S1-G0
760-071S1-G5		 1.25 Gbps Single Mode 1550 nm 200 km
760-071S1-80
760-071S1-85		 1.25 Gbps Single Mode 1550 nm 80 km
760-G57S1-20
760-G57S1-25		 1.25 Gbps Single Mode 1310 nm/1550 nm 20 km
760-G57S1-40
760-G57S1-45		 1.25 Gbps Single Mode 1310 nm/1550 nm 40 km
760-G75S1-20
760-G75S1-25		 1.25 Gbps Single Mode 1550 nm/1310 nm 20 km
760-G75S1-40
760-G75S1-45		 1.25 Gbps Single Mode 1550 nm/1310 nm 40 km
