TC3847-1

4-Channel RS232/422/485 Serial Server

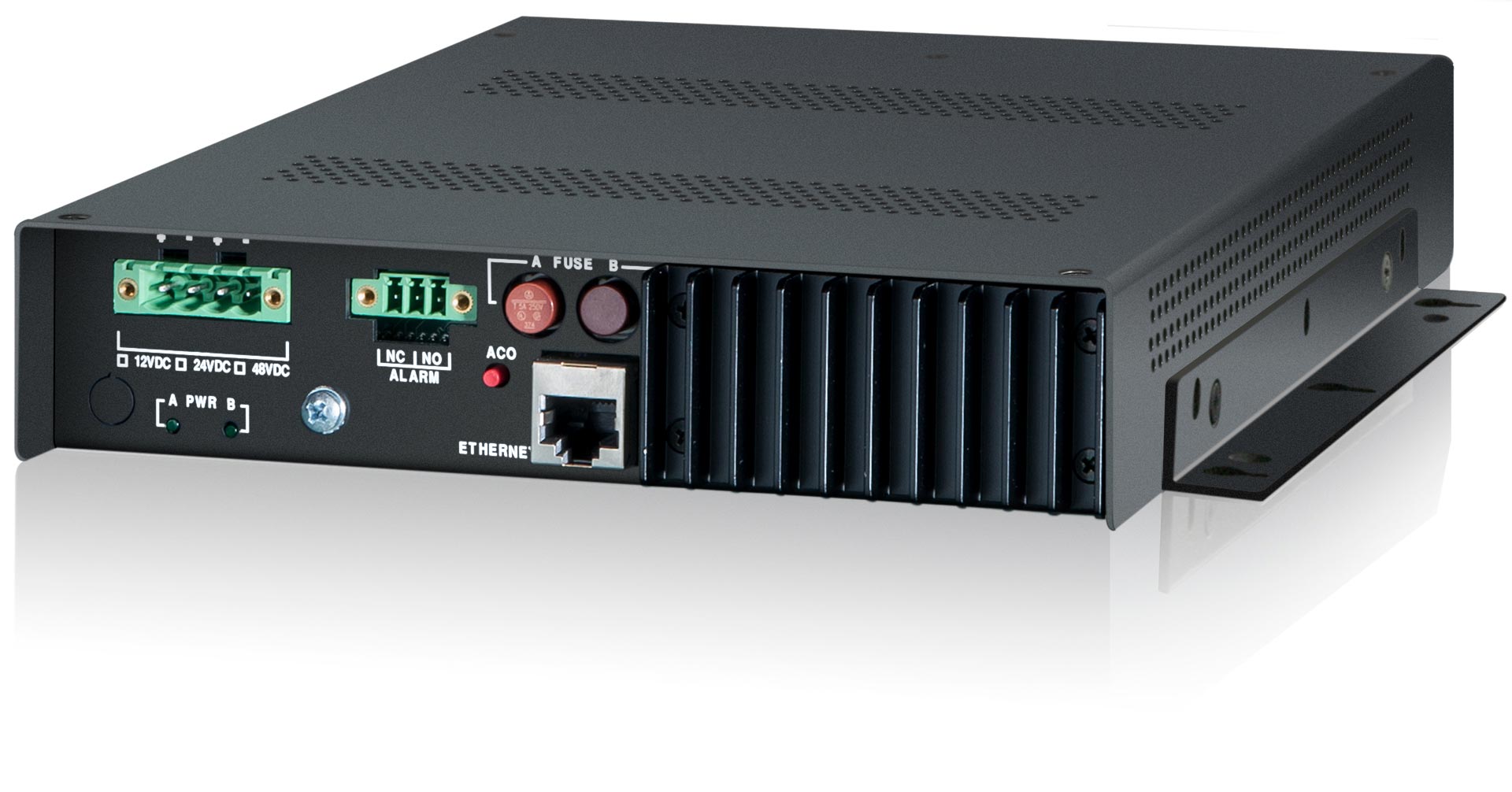

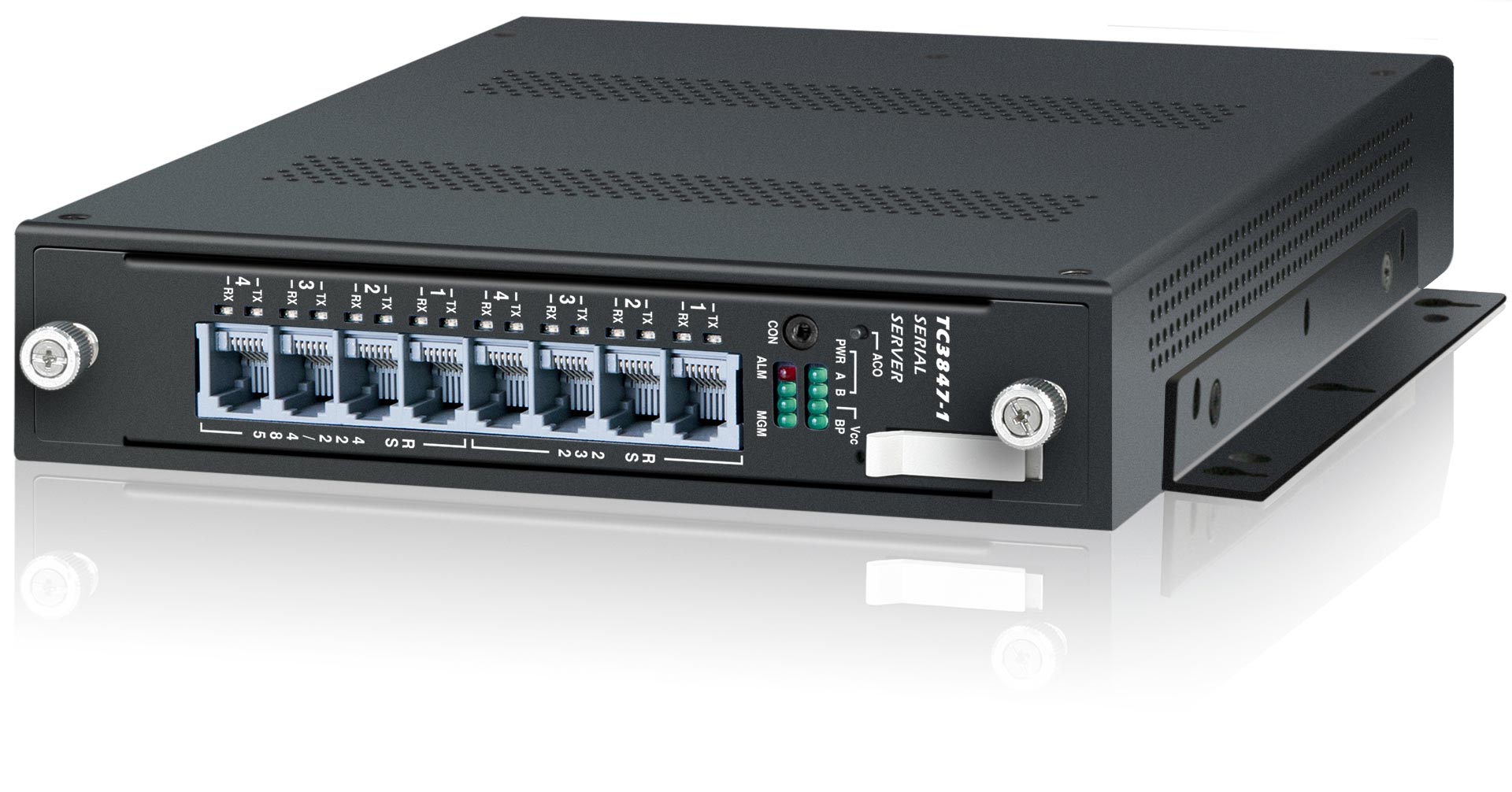

TC3847-1
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Compact and simple to configure, the TC3847-1 Serial Server interface card transports four channels of RS-232 or RS-422/RS-485 data over existing Layer 2/Layer 3 Ethernet networks.

The JumboSwitch® series is a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN). TDM over IP/Ethernet is a TDM pseudowire (PW) technology making it possible to provision E1, T1, E3, T3, STS-1 and serial data services across PSN's such as IP, MPLS or layer 2 Ethernet Networks.

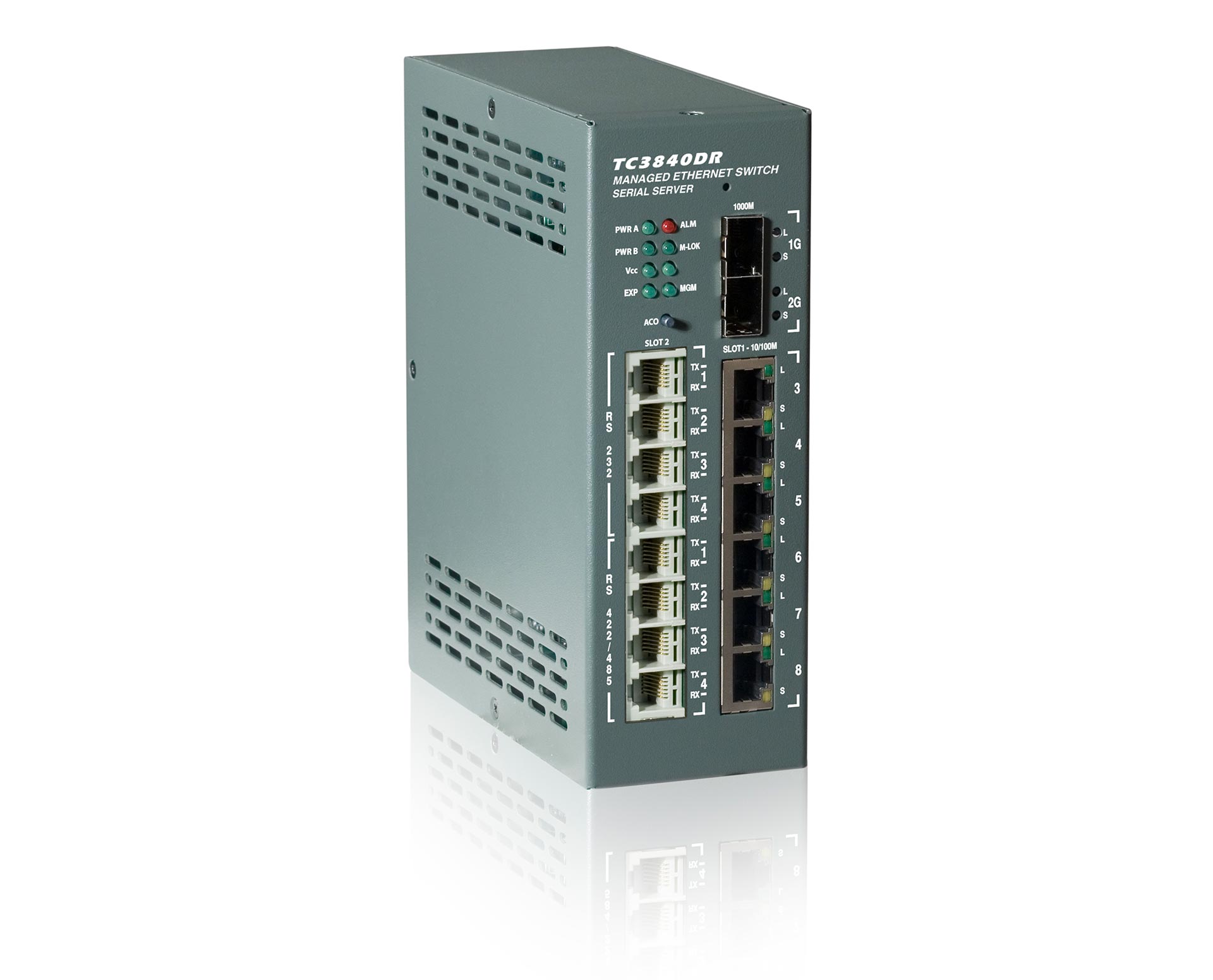

DIN Rail (DR) version also available for specialized applications view product page

  • Transports 4 Ch. RS-232 or RS-422/ RS-485 over Ethernet/IP
  • Supports RS-232 Handshaking (CTS/RTS)
  • Supports MicroLok®, Genisys, Modbus, DNP 3 serial protocols
  • 128 bit SSL Encryption for Management and Serial Data
  • Port Password Protection
  • Manage Via Web, SNMP or Telnet
  • Temperature and Power Consumption Monitoring
  • Extreme Temp (-40°C to +80°C) Optional
  • Meets or Exceeds IEC 61850-3, IEEE 1613 & NEMA TS-2 Standards

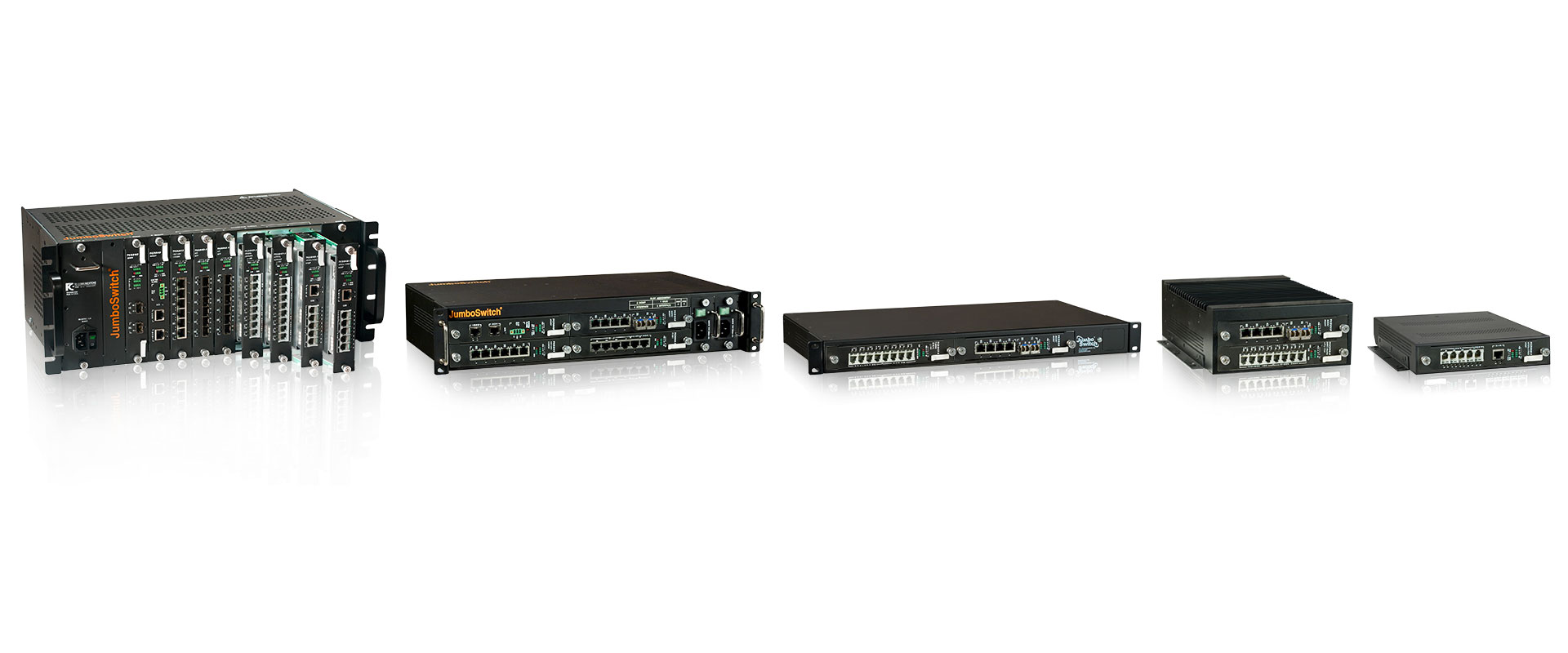

  • Member of the JumboSwitch® Product Family
MicroLok® is a trademark for ANSALDO STS USA, INC.

Applications

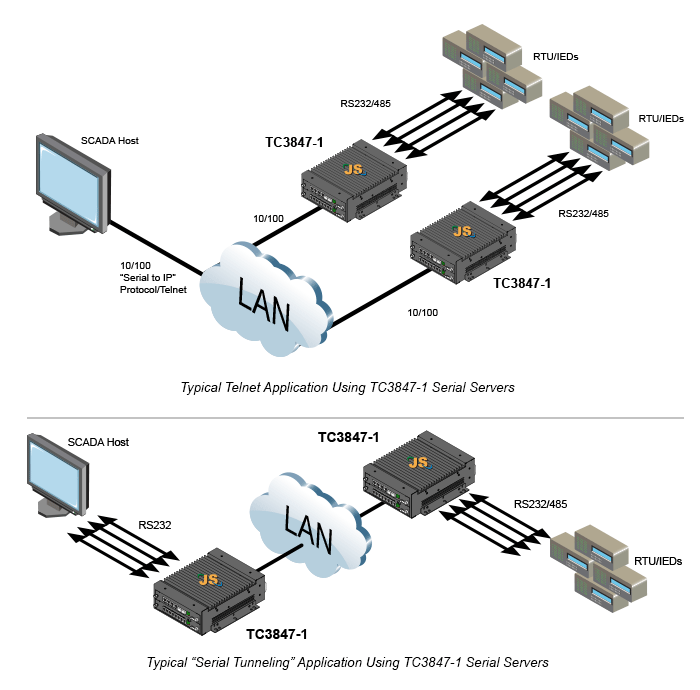

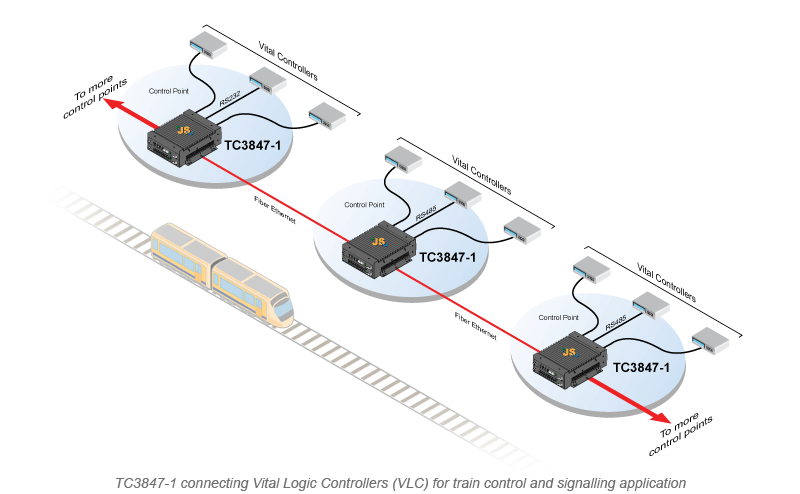

Typical applications centered around transporting serial data over IP networks.

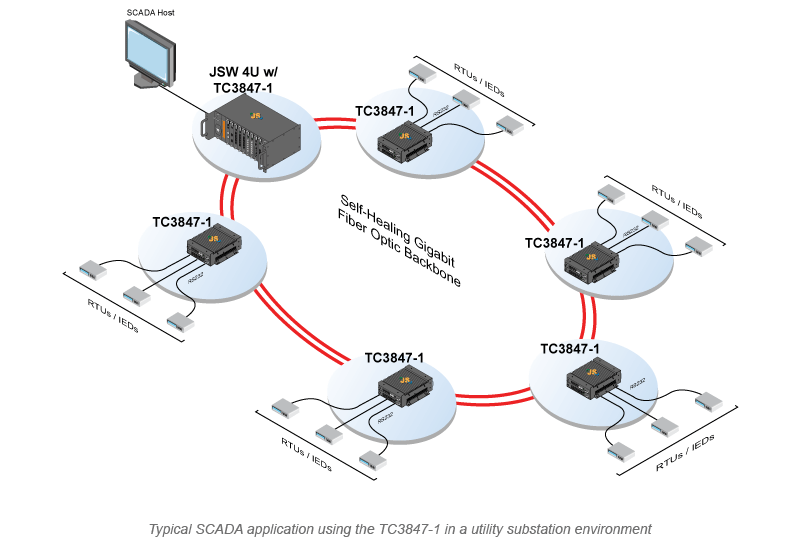

For example the TC3847-1 is often used in Utility, SCADA, Traffic Control and Process Control Networks to link RS-232 or RS-485 RTUs and PLCs to a Host CPU.

Click to enlarge
Click to enlarge

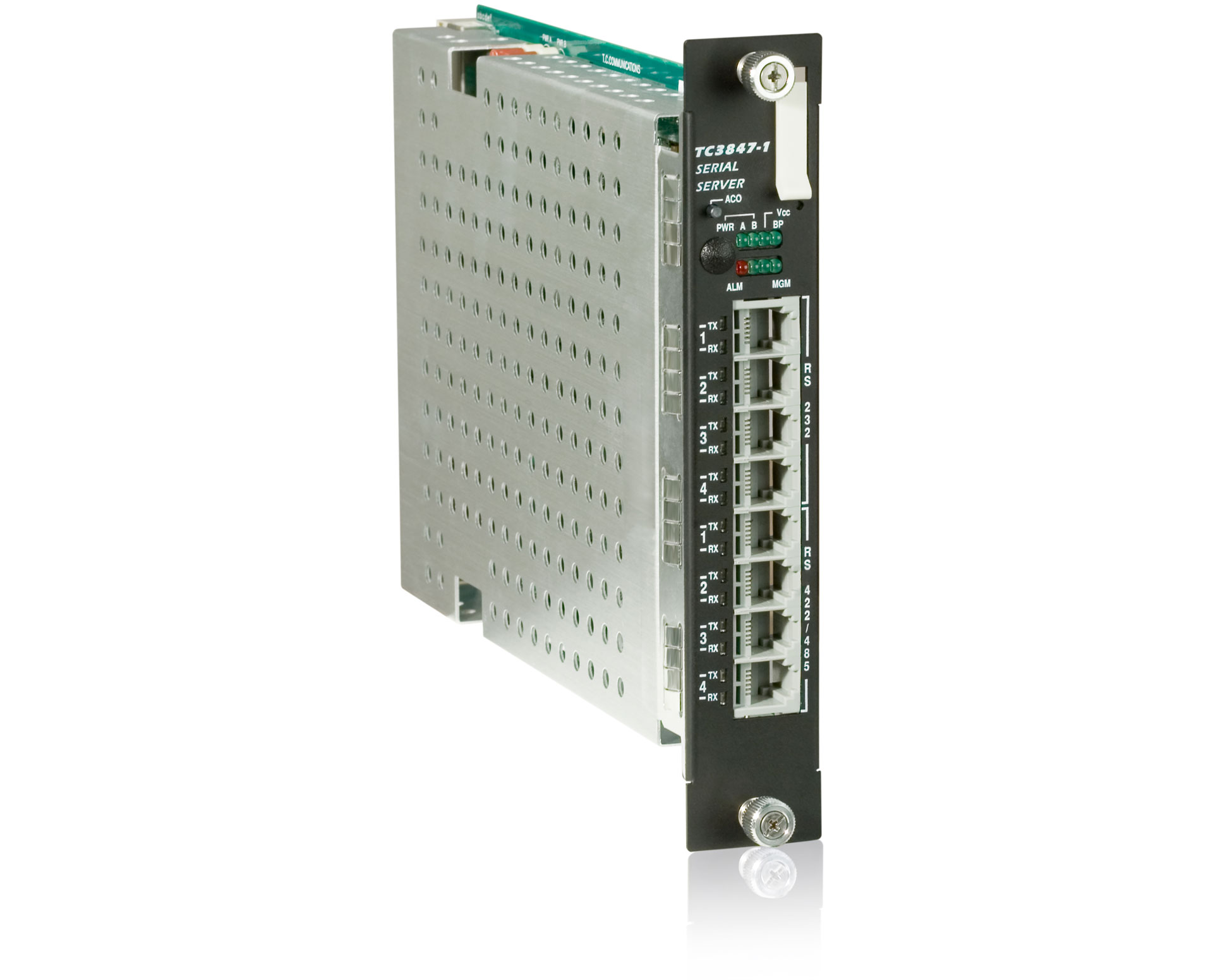

TC3847-1 - 4-Ch. Serial Server
Click to enlarge

Specifications

Data Rates
  1. RS-232Up to 115Kbps
  2. RS-422/RS-485Up to 115Kbps
  3. Ethernet10/100Mbps, Full Duplex/Auto negotiation
Connection Capacity
  1. RS-232 or RS-422/RS-4854 Ports
Electrical
  1. RS-232 Interface
  2. ESD Protection+/-15KV HBM
  3. ConnectorRJ11F
  4. RS-422 Interface
  5. Termination (optional)100 Ohm
  6. ESD Protection+/-15KV HBM
  7. ConnectorRJ11F
  8. RS-485 Interface
  9. Termination (optional)100 Ohm
  10. ESD Protection+/-15KV HBM
  11. ConnectorRJ11F
  12. Ethernet Interface
  13. StandardsIEEE 802.3, 802.3u, 802.1p&Q
Regulatory Approval
  1. CE, FCC Part 15, CISPR, CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
System
  1. Bit Error Rate1 in 1010 or Better
Diagnostic Functions
  1. Local and Remote Loopback for Serial Data
LEDs
  1. Unit StatusPWR (A, B), Alarm, Vcc, BP, MGM
  2. ChannelRx/Tx/Status
  3. EthernetLink/Act
Power
  1. Standard12VDC
  2. Optional24, -48 VDC, 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs

Literature / News

Ordering

For more information

Request details
Datasheet
Have a question?

For assistance with this product or to request a user manual please contact Technical Support.
