TC3841

6-Port Gigabit Copper Ethernet Switch

TC3841
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3841 is a 6-Port GigE card copper interface Ethernet switch that is fully featured allowing control over Security Network Configurations, Rate Limiting, VLAN and QoS.

  • 6-Port 10/100/1000 Copper Ethernet Switch
  • 6-Port 10/100 Copper Ethernet Switch (Optional)
  • 6-Port 10/100/1000 Copper Ethernet Expansion (TC3841-5 Datasheet)
  • Rate-Limit, VLAN, QoS & More
  • Network Manageable Via Web (with TC3840 MGMT card)
  • Built-In Temperature & Power Sensors
  • Extreme Temp (-40°C to +80°C) Optional
  • Meets or Exceeds IEC 61850-3, IEEE 1613, & NEMA TS-2 Standards

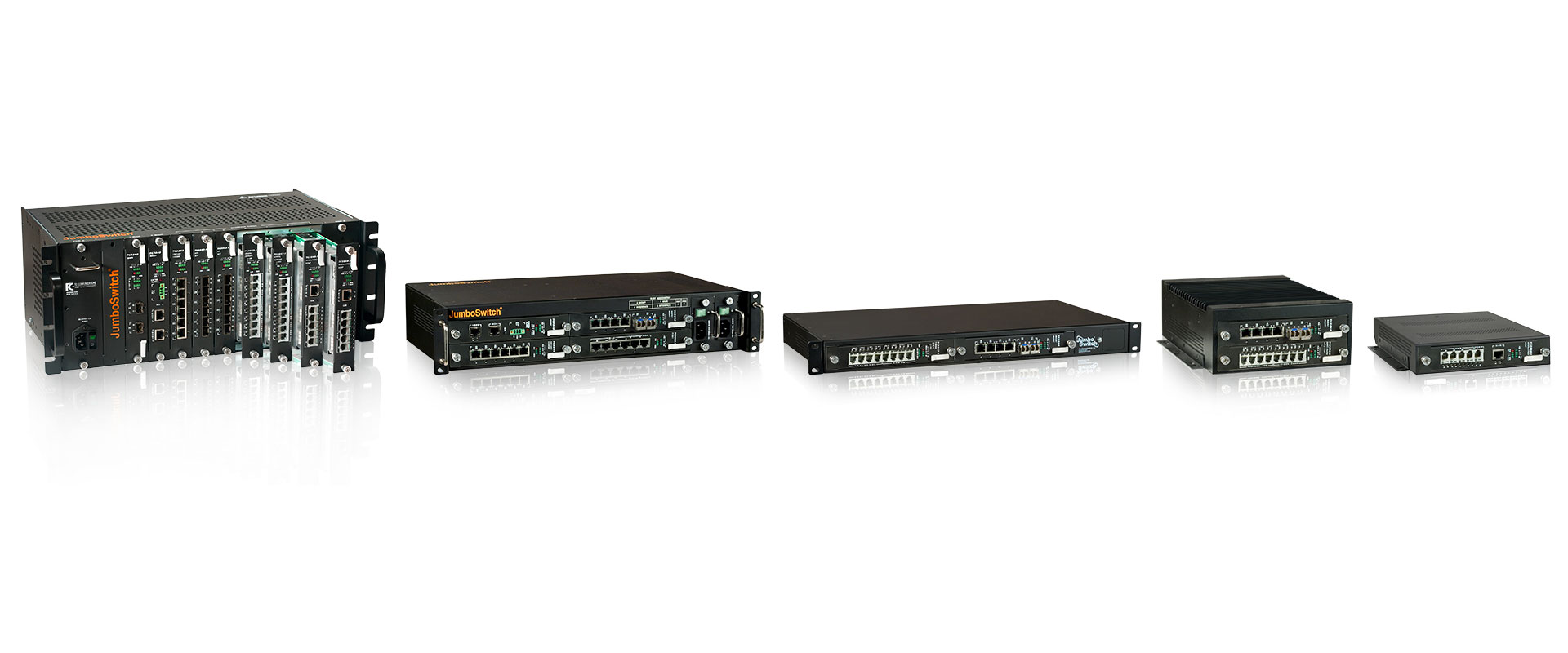

  • Member of the JumboSwitch® Product Family

The TC3841 can operate in the harshest of environments and, with advanced networking features, is the perfect solution for virtually all Ethernet Switch applications encountered in the Industrial Automation, Utility and Transportation industries. It is also used by Data Service Providers to control the bandwidths they offer to their customers.

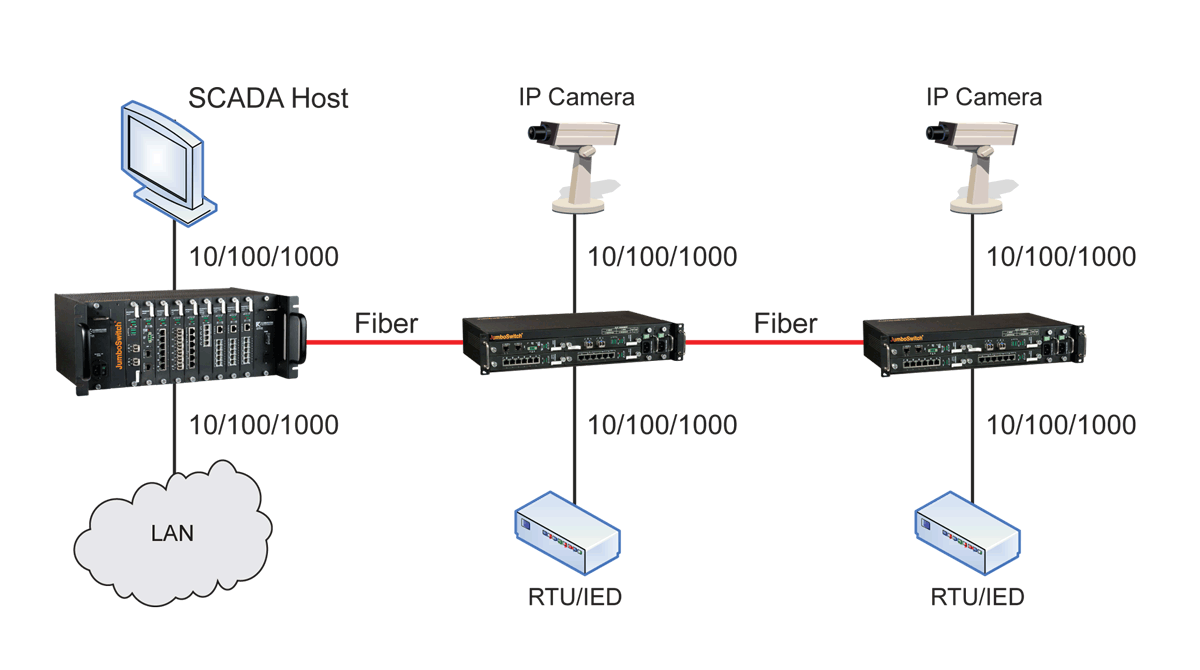

Applications

With its ability to operate in the harshest of environments and its advanced networking features, the TC3841 is the perfect solution for virtually all Ethernet Switch applications encountered in the Industrial Automation, Utility and Transportation industries. It is also used by Data Service Providers to control the bandwidths they offer to their customers.

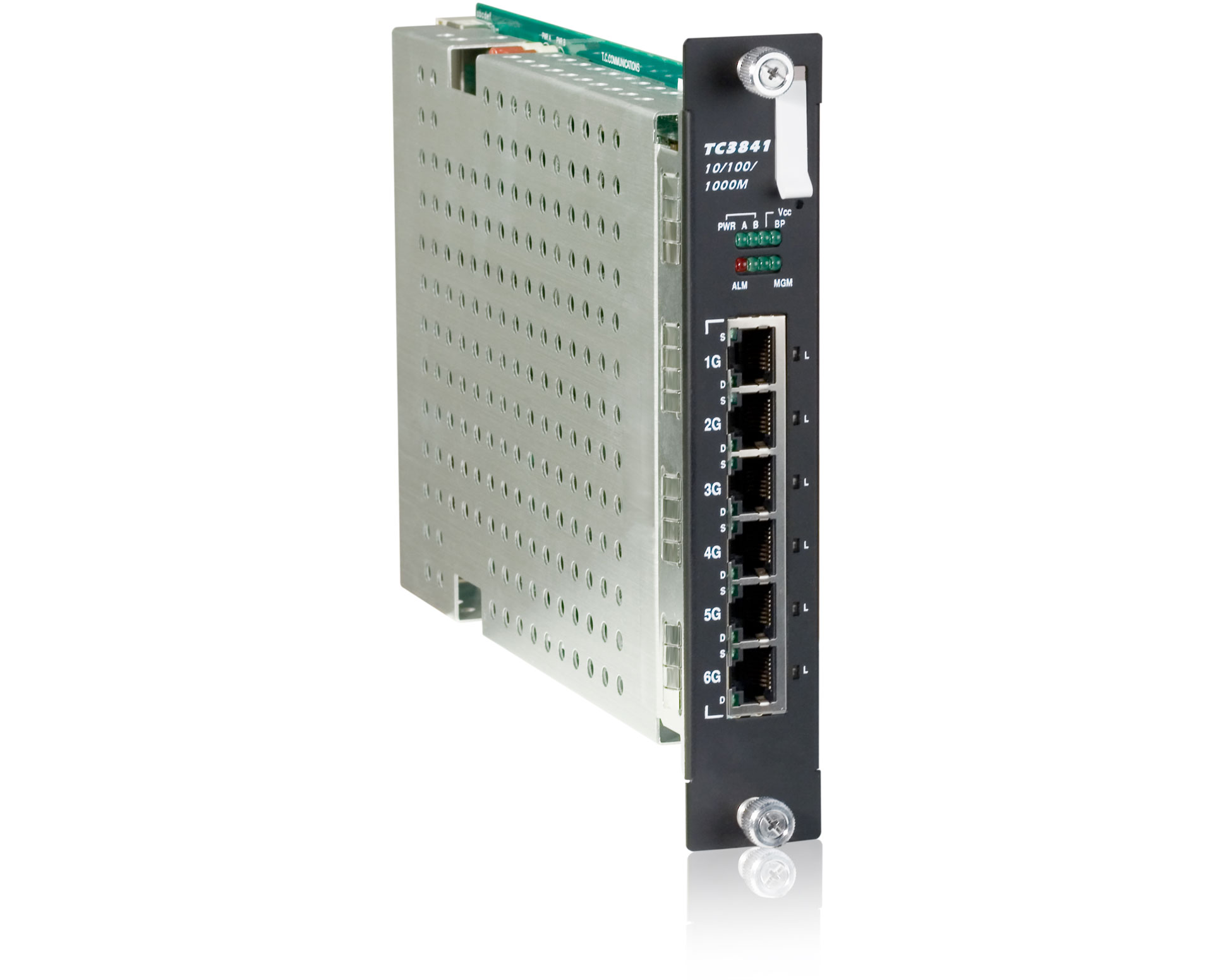

TC3841 - 6-Port Copper GB Ethernet Switch
Click to enlarge

Specifications

Data Rates
  1. Standard10/100/1000Mbps with rate control
  2. Optional10/100Mbps Only (Optional)
Electrical
  1. Ethernet Interface ConnectorRJ45 (CAT5E/CAT6 gold plated contact)
System
  1. Bit Error Rate1 in 1010 or better
LEDs
  1. ALM, Vcc, PWR (A, B), Link/Act, Duplex (10/100/1000 ports only), Speed (10/100/1000 ports only), BP, MGM
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
Power
  1. Standard12VDC
  2. Optional24, -48 VDC 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(24.89 cm) 9.80"
  4. Weight(887 gm) 1.96 lb
