TC2200

Multi-Drop Fiber Optic Modem (Bus/String: RS232/422/485)

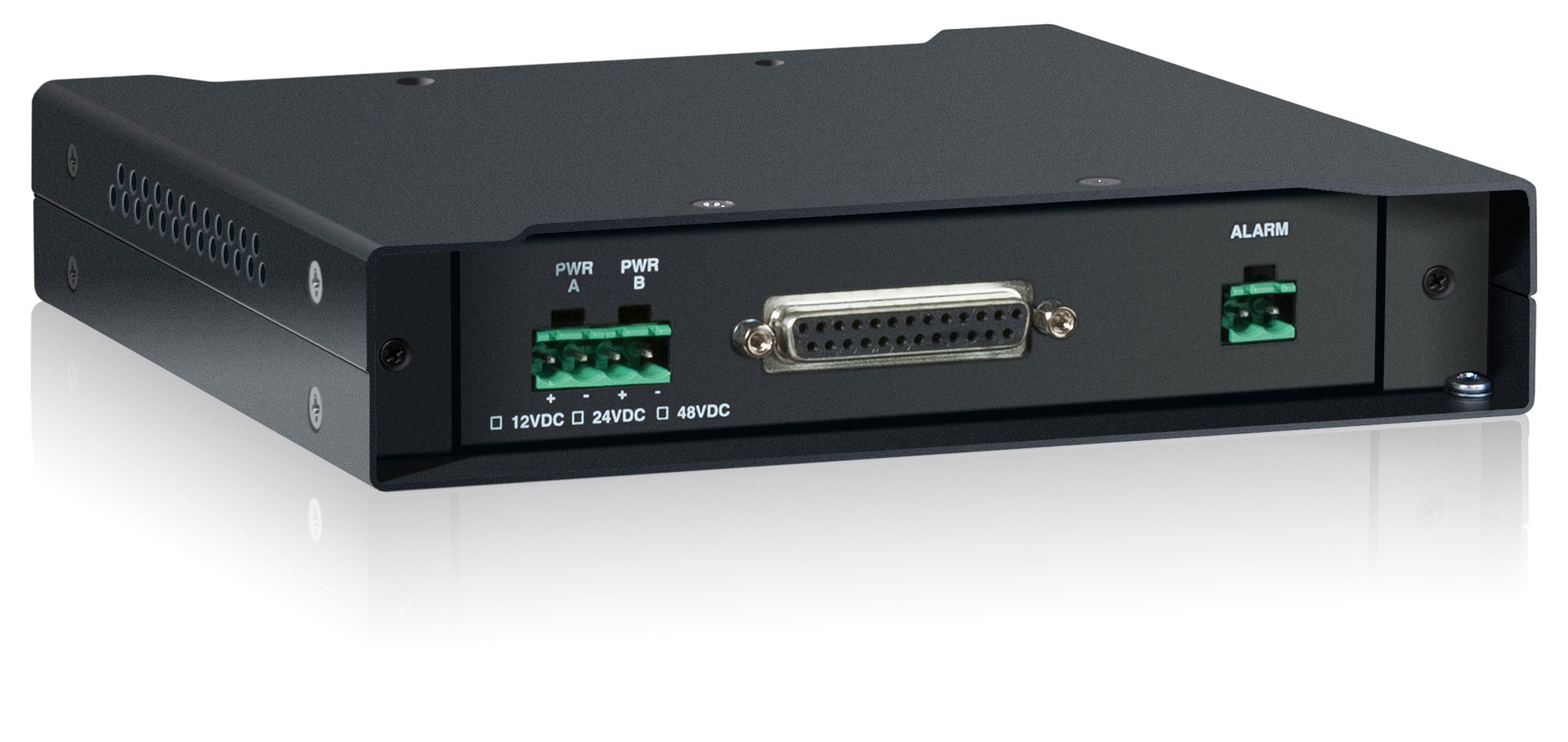

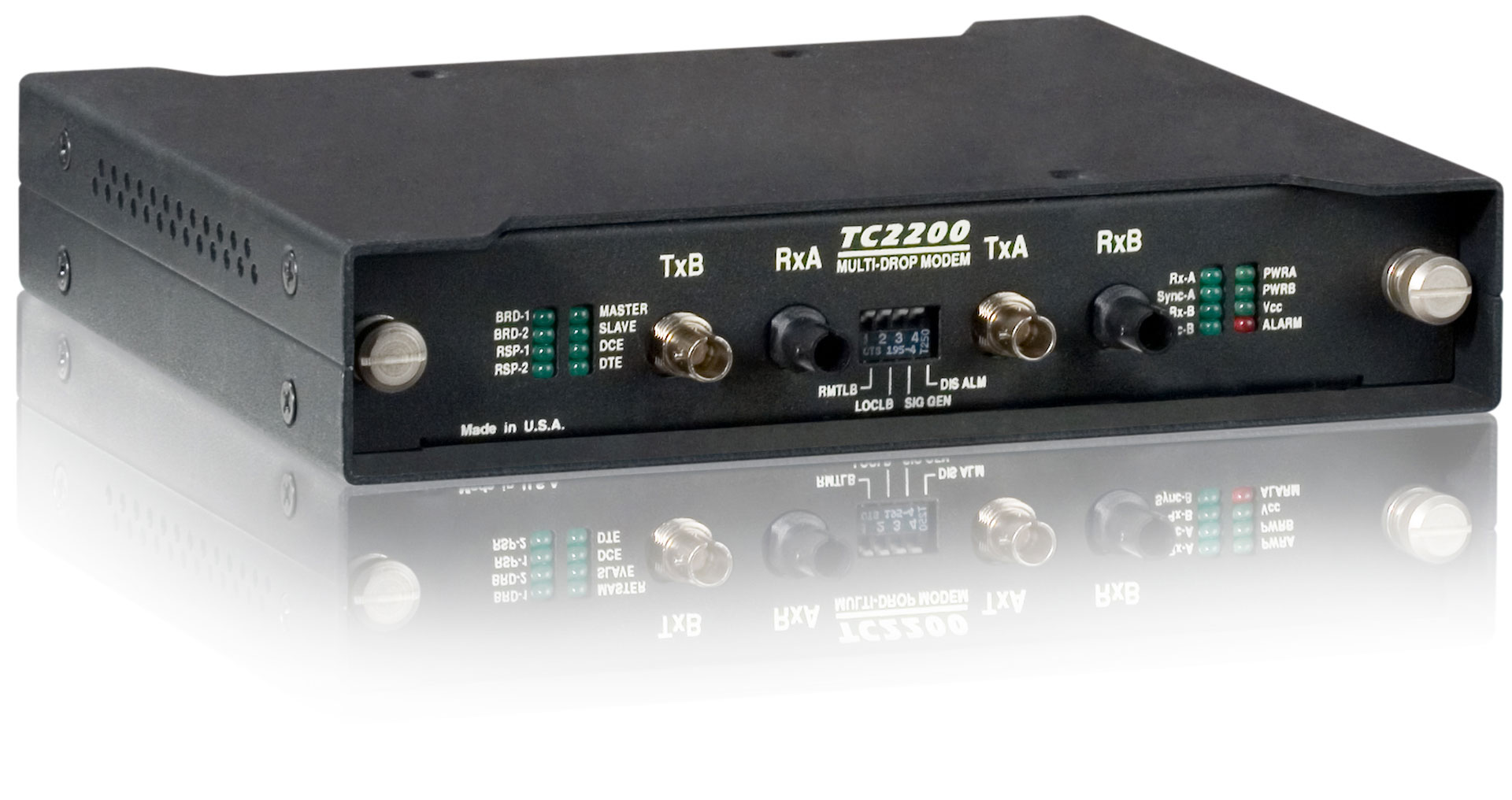

TC2200
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Featuring "Dual Master" redundancy & 2 data/control channels, the TC2200 Multi Drop Fiber Modem supports Bus & String topologies in SCADA & Process Control networks.

Notice: Product End of Life
(10/29/2020) for new applications use TC3847-1, or TC3847-1DR

The TC2200 supports RS232, RS422 or RS485 interfaces and is often used to interconnect RTUs, PLCs & IEDs in Utility, SCADA, Traffic Control & Industrial Process Control networks.

  • Bus or String Topologies
  • Fault Tolerant "Double" Master (optional)
  • Async Data Rates up to 38.4 Kbps
  • RS-232, RS-422 or RS-485
  • Multimode & Single Mode (850/1300/1550)
  • Hardened

Applications

Notice: Product End of Life
(10/29/2020) for new applications use TC3847-1, or TC3847-1DR

Renowned for its high reliability, the TC2200 Multi-Drop Modem is ideal for Bus or String communication links in SCADA, Traffic Control, Industrial Process Control and security networks. It is frequently used to interconnect Remote Terminal Units (RTUs) or Programmable Logic Controllers (PLCs) in Utility substation SCADA Networks.

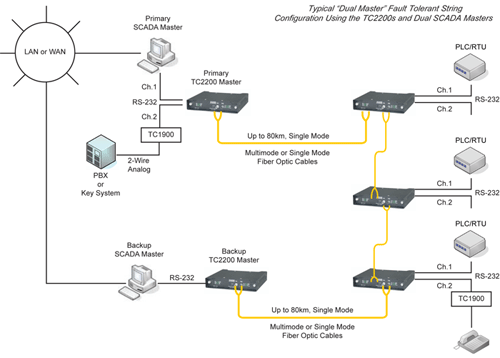

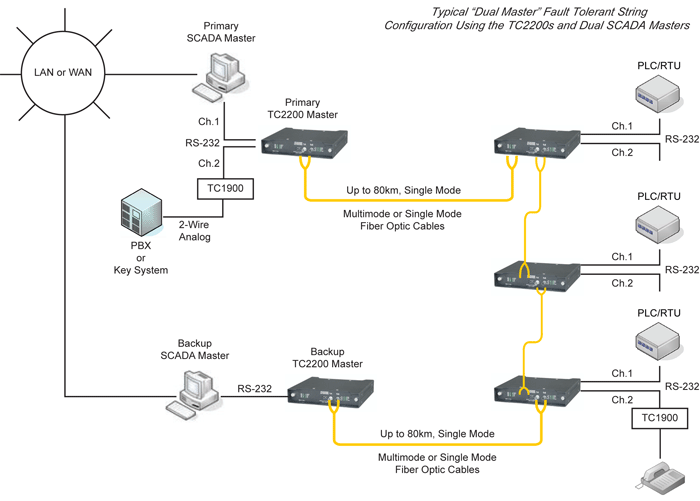

TC2200 - Multi-Drop (Bus/String) Fiber Optic Modem
Click to enlarge

Specifications

Notice: Product End of Life
(10/29/2020) for new applications use TC3847-1, or TC3847-1DR
Data Rates
  1. Async RS-232, RS-422, RS-485up to 38.4 Kbps
Optical
  1. TransmitterLED/ELED/LASER*
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorsST, Optional FC
  5. Loss Budgets * - 850/1300/1550nm
  6. Multimode @ 62.5/125µm15dB
  7. Single Mode @ 9/125µm20dB
Electrical
  1. ConnectorDB25 Female
  2. Interface(DCE or DTE) RS-232,RS-422, or RS-485 (2 or 4-wire)
System
  1. Bit Error Rate1 in 109 or Better
Diagnostic Functions
  1. Local & Remote LoopbackYes
  2. Signal Generator, Disable AlarmYes
Visual Indicators
  1. SystemMASTER, SLAVE, PWRA, PWRB, Vcc, ALARM
  2. ElectricalBRD-1, BRD-2, RSP-1, RSP-2, DCE, DTE
  3. OpticalRx-A, Rx-B, Sync-A, Sync-B
Alarm
  1. Dry ContactNormal OPEN
Power
  1. Standard12VDC @400mA
  2. Optional24VDC, -48VDC, or 115/230VAC w/ Power Cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-40°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(16.59 cm) 6.53"
  4. Weight(544 gm) 1.25 lbs
* Contact factory for higher requirements
