TC1520

RS422 / RS485 (2/4-Wire) Fiber Optic Modem (Async)

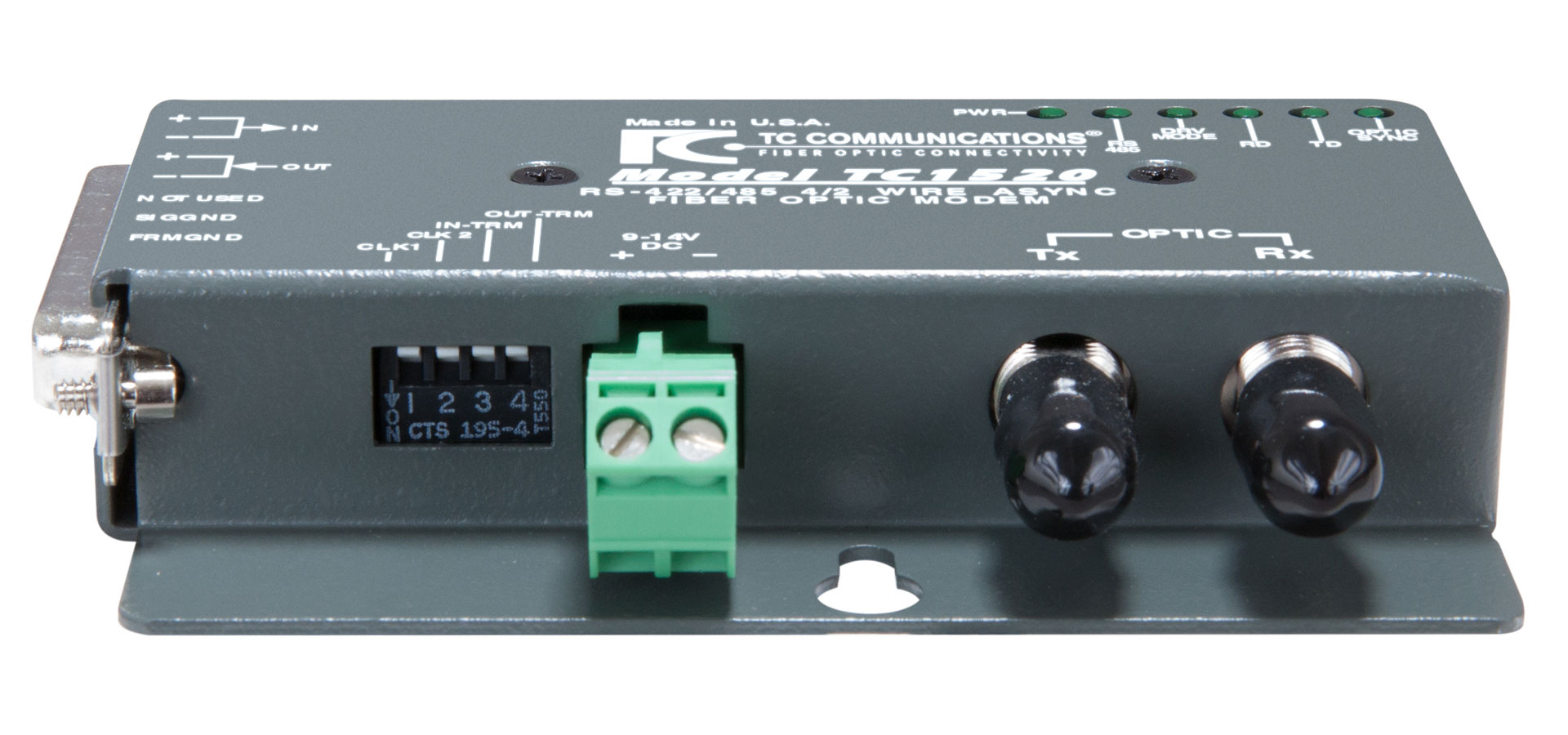

TC1520
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC1520 RS-422/RS-485 (2/4-Wire) Asynchronous Fiber Modem is ideal as an efficient network connectivity solution for linking IEDs and various Remote Terminal Units (RTUs).

Notice: Product End of Life
(08/19/2020) for new applications use TC1705, TC1710, and/or TC1720

Because the TC1520 can be multi-dropped on the electrical side (RS-485), it is ideal for poll and response applications (e.g. SCADA & Process Control) in Industrial and Manufacturing environments. An extreme temperature version (-20°C to 70°C) for hostile environments is optional.

  • Async Data Rates up to 500 Kbps*
  • RS-422, 2 or 4-wire RS-485
  • Hardened Temperature Version (optional)
  • Ring or Point-to-point Topologies
  • Distances up to 80km
  • Multimode or Single Mode (850/1300/1550nm)
  • Six Diagnostic LEDs
  • Sturdy Compact Metal Case

Applications

Notice: Product End of Life
(08/19/2020) for new applications use TC1705, TC1710, and/or TC1720

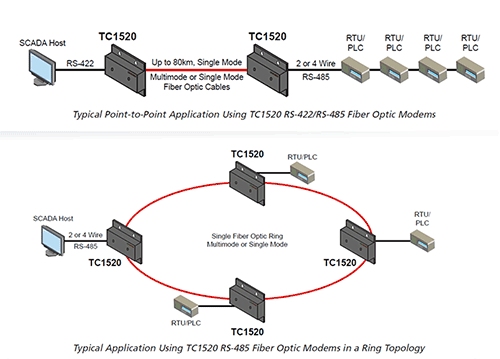

The TC1520 is often used to link various process control systems in manufacturing plants, refineries, etc. It is also commonly used to connect Remote Terminal Units to SCADA hosts, to monitor Power and Water plant devices and to link security networks.

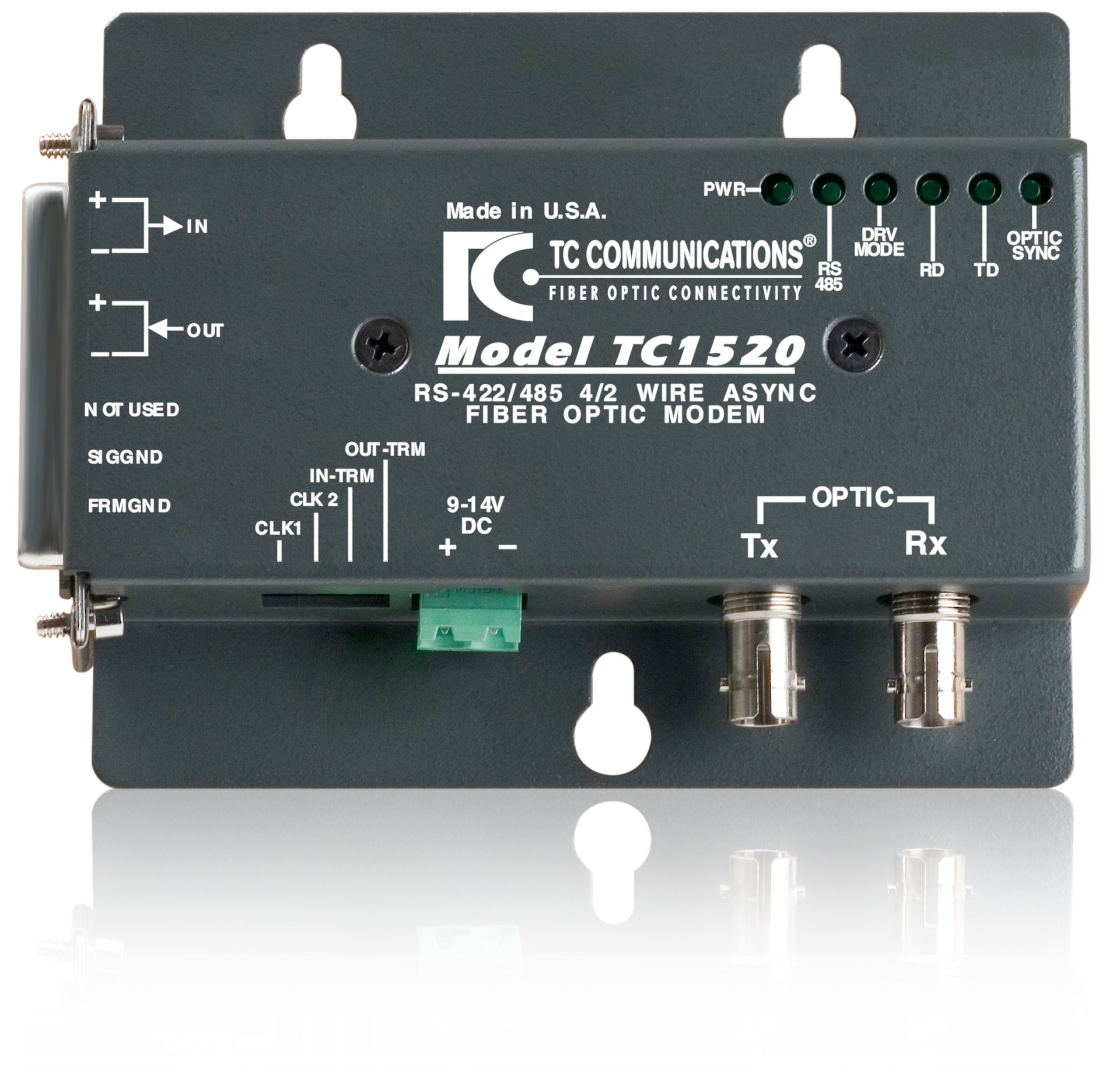

TC1520 - Async RS-422/485 Fiber Optic Modem
Click to enlarge

Specifications

Notice: Product End of Life
(08/19/2020) for new applications use TC1705, TC1710, and/or TC1720
Data Rates
  1. Asyncup to 500 Kbps*
Optical
  1. TransmitterLED/ELED
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorsST, Optional FC
  5. Loss Budgets * - 850/1300/1550nm
  6. Multimode @62.5/125µm15dB
  7. Single Mode @9/125µm20dB
Electrical
  1. ConnectorTerminal Blocks
  2. InterfaceRS-422, 2-wire or 4-wire RS-485
System
  1. Bit Error Rate1 in 109 or Better
Visual Indicators
  1. LEDsPWR, TD, RD, RS-485, DRV Mode, Optic Sync
Power
  1. Standard12VDC @ 200mA
  2. Optional115/230VAC (with External Power Cube)
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(2.24 cm) 0.88"
  2. Width(10.05 cm) 3.96"
  3. Depth(4.40 cm) 1.73"
  4. Weight(104 gm) 3.67 oz
* Contact factory for higher requirements
