TC1540

Multi-Interface Async Fiber Optic Modem [RS232/422/485 (2/4-Wire)]

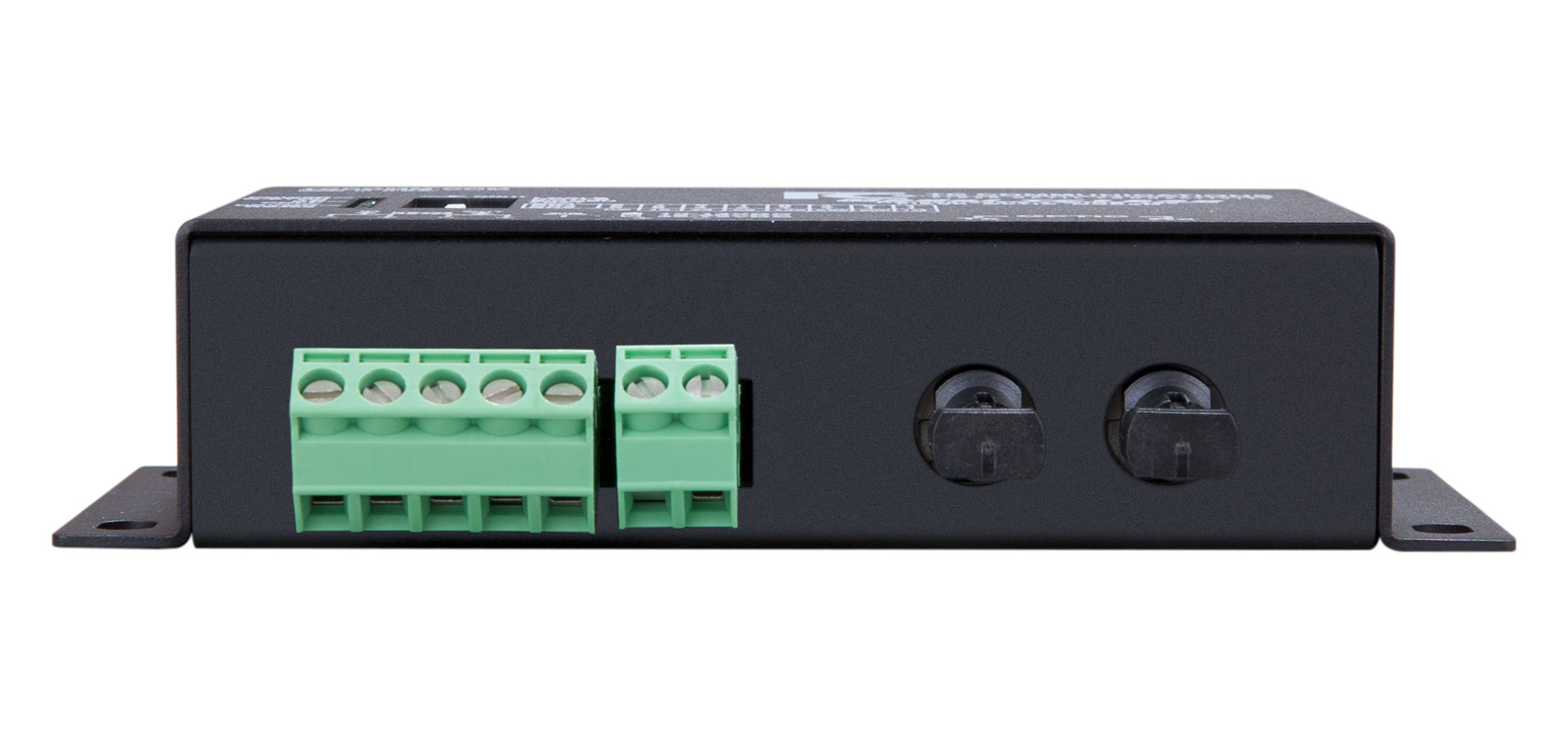

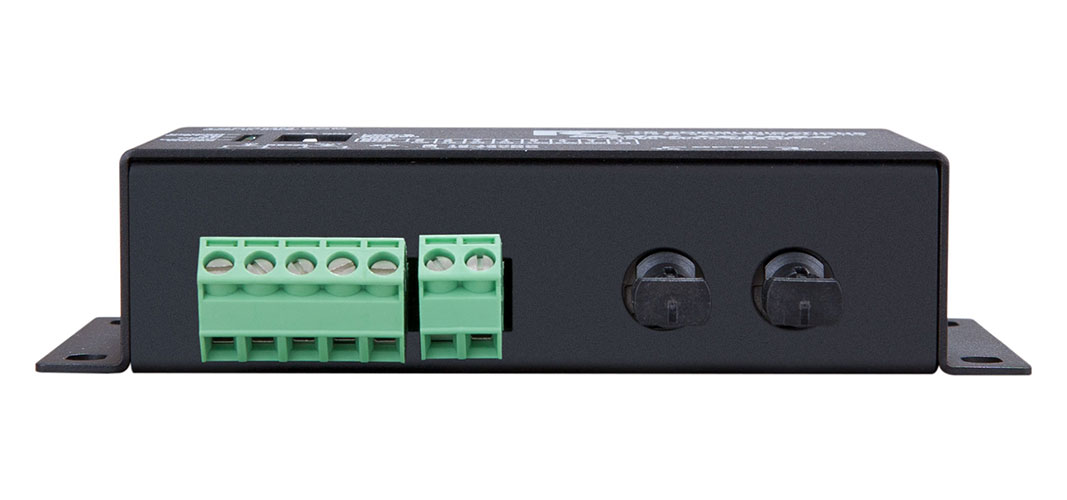

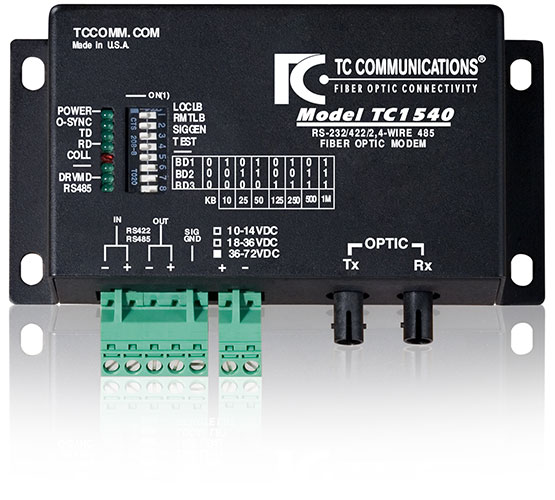

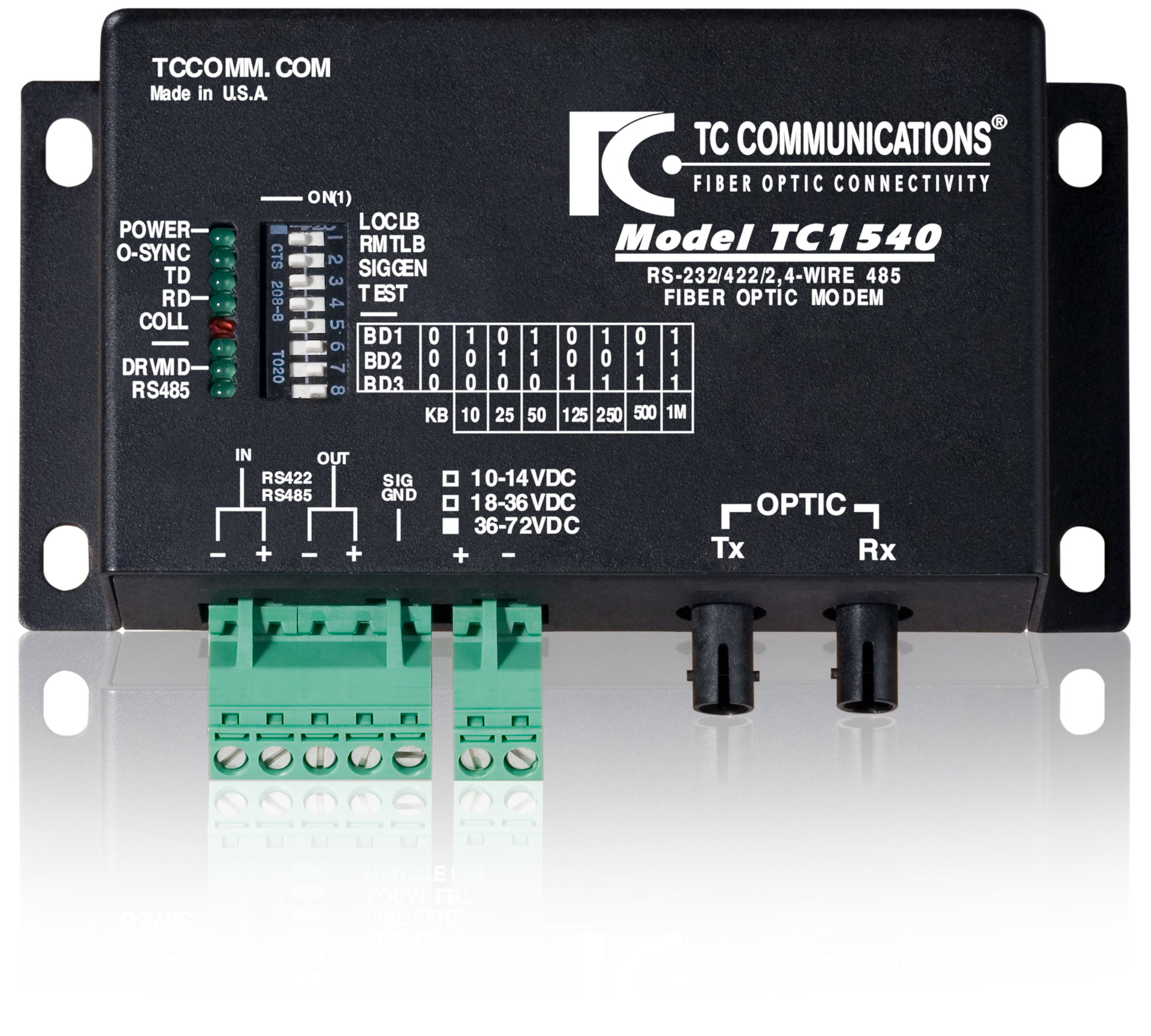

TC1540
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Supporting data rates up to 500 Kbps, the TC1540 RS485 Fiber Modem is an unusually flexible point-to-point link for Industrial, SCADA & Process Control Networks.

Notice: Product End of Life
(08/19/2020) for new applications use TC1705, TC1710, and/or TC1720

The TC1540 is a highly versatile, switch-selectable 2/4-wire RS 485 fiber optic modem that can mix or match RS-232, RS-422 or RS-485 (2-wire or 4-wire) interfaces, as required. For example, a user could link a RS-485 interface on one end with an RS-232, RS-422 or 4-wire RS-485 interface on the other. The 2-wire RS-485 versions can be converted to 4-wire RS-485 by changing a DIP switch.

  • Async Data Rates to 500 Kbps*
  • Distances up to 80km
  • Multimode or Single Mode (850/1300/1550nm)
  • Switch-Selectable RS-485 (2/4 wire) or RS-422
  • Mix & Match RS-232/422/485
  • Built-In Test Signal Generator
  • 7 LEDs & 7 DIP Switches for Diagnostics
  • Detachable Terminal Block Connectors
  • Local & Remote Loopback
  • 12VDC, 24VDC, -48VDC, or 115/230VAC

Applications

Notice: Product End of Life
(08/19/2020) for new applications use TC1705, TC1710, and/or TC1720

The TC1540 typically interconnects CPUs or Host Controllers with remote terminal units (RTUs). It is frequently used in SCADA, Traffic Control, Manufacturing Process Control and Security applications.

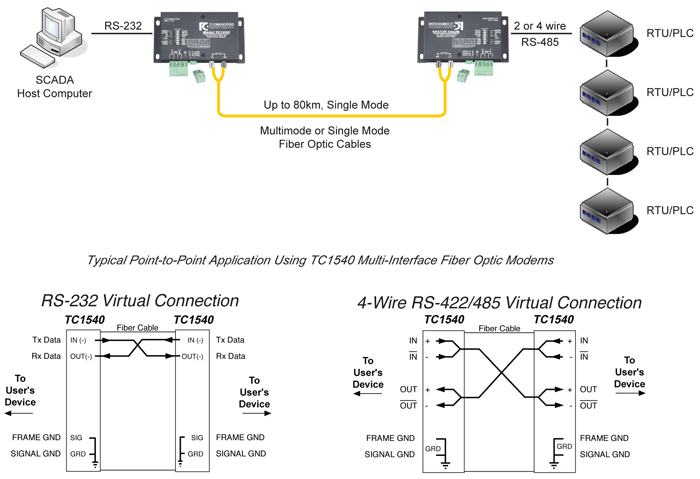

TC1540 - Async RS-232/422/485 Fiber Optic Modem
Click to enlarge

Specifications

Notice: Product End of Life
(08/19/2020) for new applications use TC1705, TC1710, and/or TC1720
Data Rates
  1. Asyncup to 500 Kbps*, (RS-232) up to 120 Kbps
Optical
  1. TransmitterLED/ELED
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorsST, Optional FC
  5. Loss Budgets * - 850/1300/1550nm
  6. Multimode @62.5/125µm15dB
  7. Single Mode @9/125µm20dB
Electrical
  1. ConnectorTerminal Blocks
  2. Interface(DCE) RS-232, RS-422, or RS-485 (2 or 4-wire)
System
  1. Bit Error Rate1 in 109 or Better
Visual Indicators
  1. LEDsTD, RD, O-Sync, Coll, DrvMd, RS-485, Power
Power
  1. Standard12VDC @250mA
  2. Optional24VDC, -48VDC or 115/230VAC (with External Power Cube)
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(2.86 cm) 1.13"
  2. Width(12.70 cm) 5.00"
  3. Depth(6.60 cm) 2.60"
  4. Weight(148 gm) 5.22 oz
* Contact factory for higher requirements

Ordering

For more information

Product version may differ from current manual. For assistance or proper manual version please contact Technical Support.
