1U 2-10 Channel C37.94-Over-T1/E1 Multiplexer

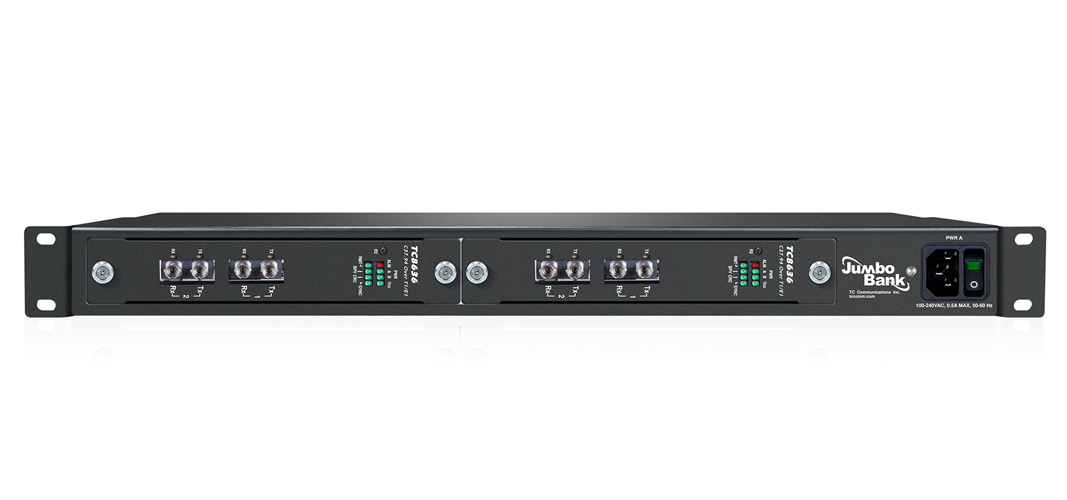

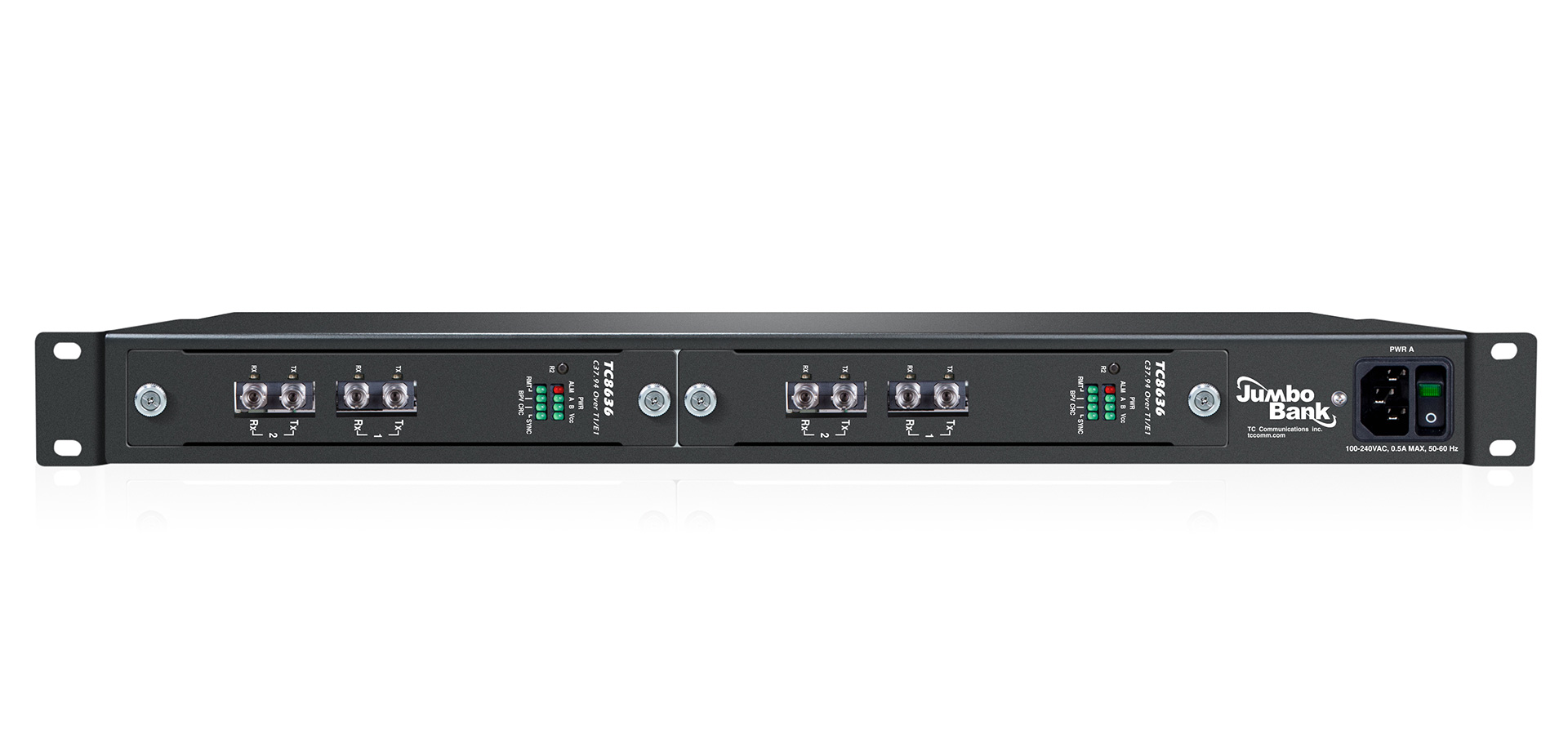

TC8636
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

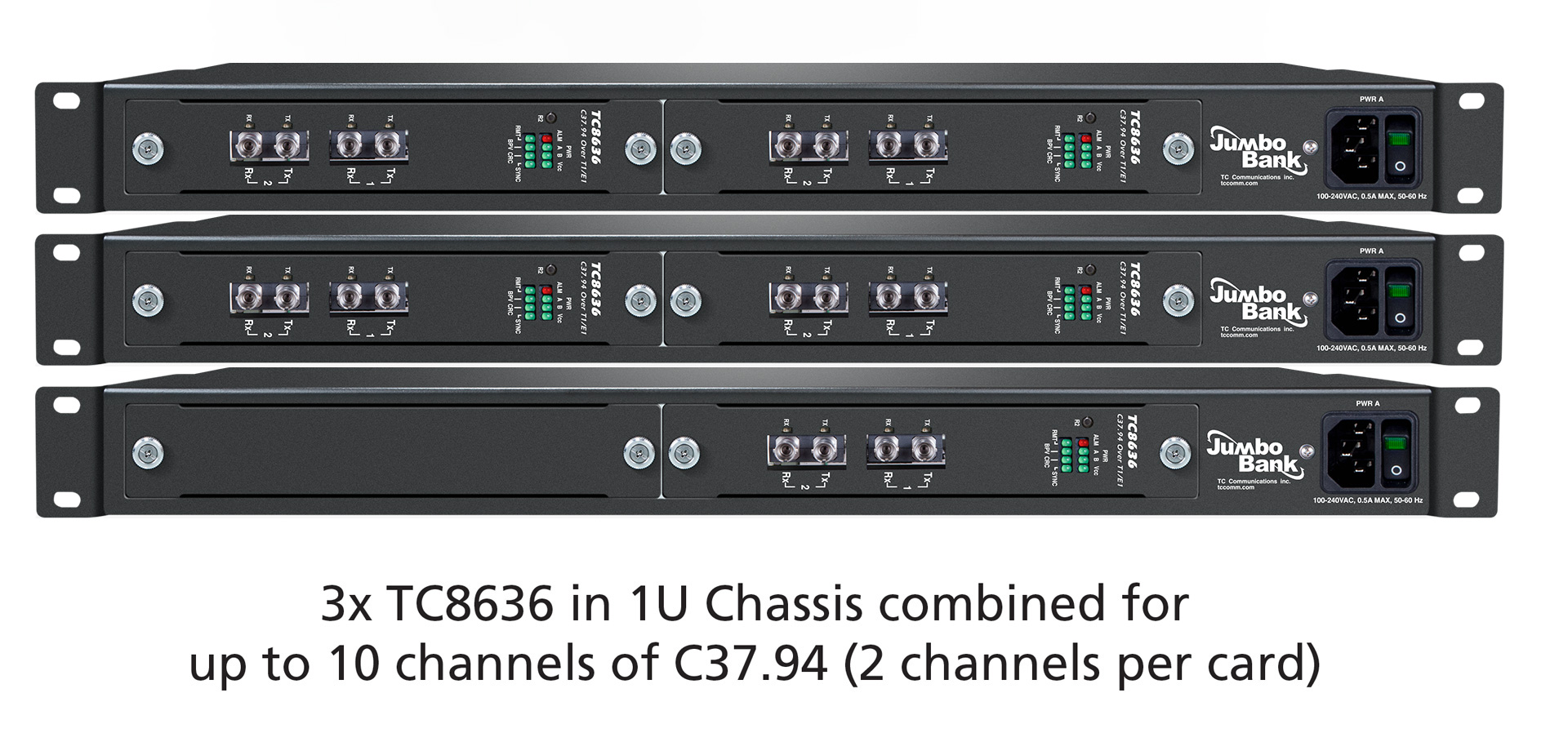

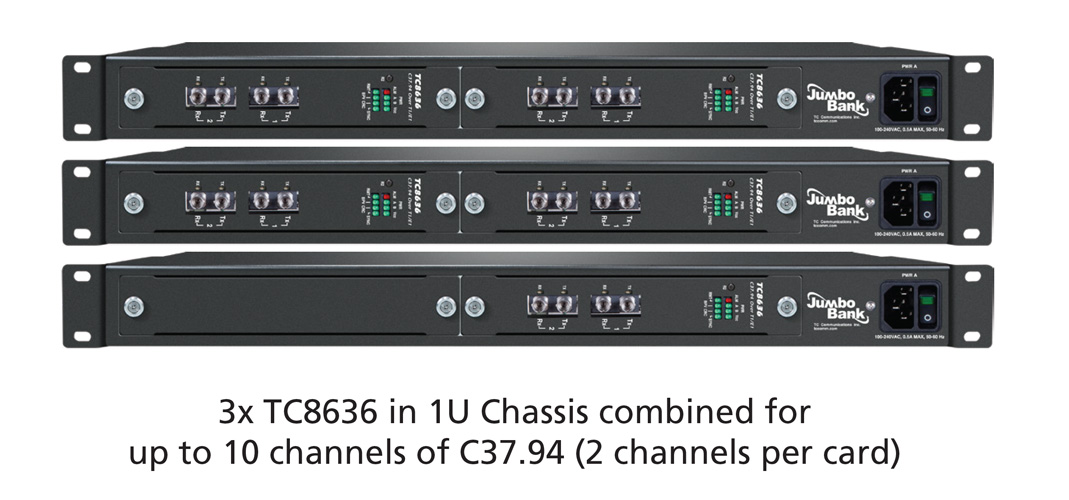

The TC8636 is a 2- to 10-channel C37.94-over-T1/E1 Multiplexer that supports modular 1U configurations by combining cards to handle up to 10 channels over T1/E1 links.

The TC8636 allows network managers the flexibility to leverage existing T1/E1 circuits by adding teleprotection relays.

The TC8636 is available in two configurations:

  • Multimode
  • Single-mode
  • 2-10 Channel IEEE C37.94 over T1/E1
  • Channels Support N=1, N=2 for 10 Channel Operation
  • ESF Framing Support for T1
  • PCM31C Framing Support for E1
  • Very Low Latency
  • Dry contact detectors with Isolated Ground
  • Built-in Power Redundancy
  • Rackmount or Stand Alone

Applications

A scalable and reliable solution, the TC8636 is typically used to aggregate and extend up to 10 channels of C37.94 Teleprotection relays over existing T1/E1 networks. It is suited for substations requiring high-density relay consolidation or comprehensive Dual-Main protection paths.

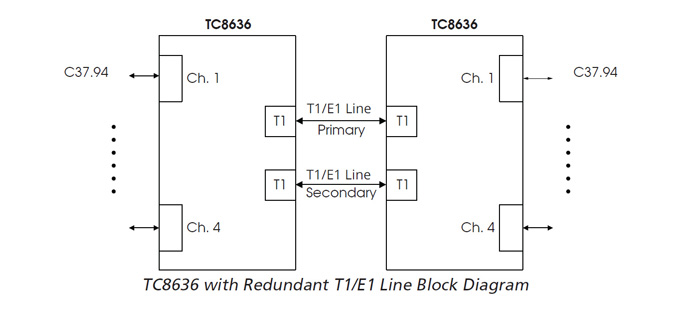

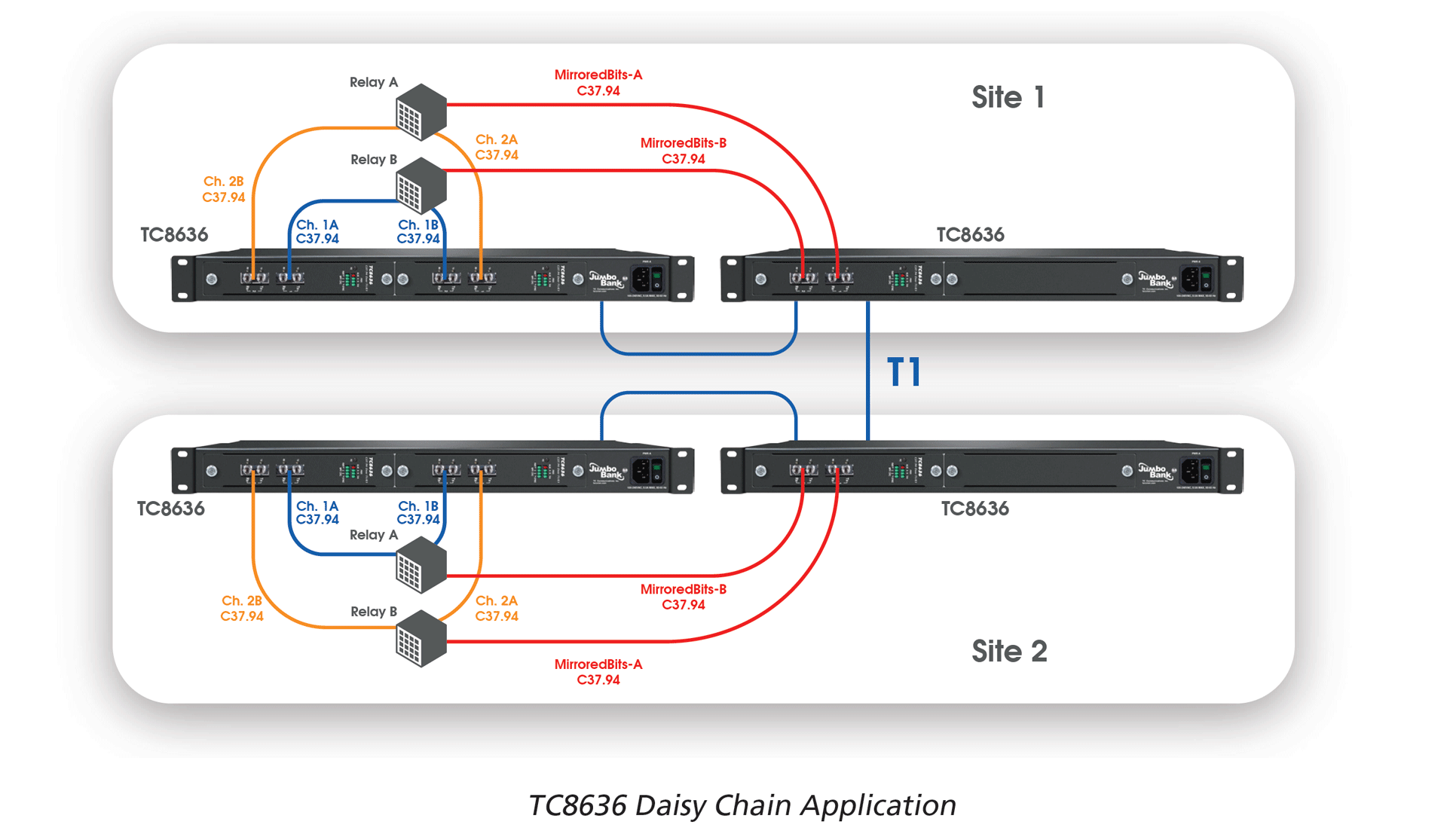

TC8636 - Redundant Block Diagram

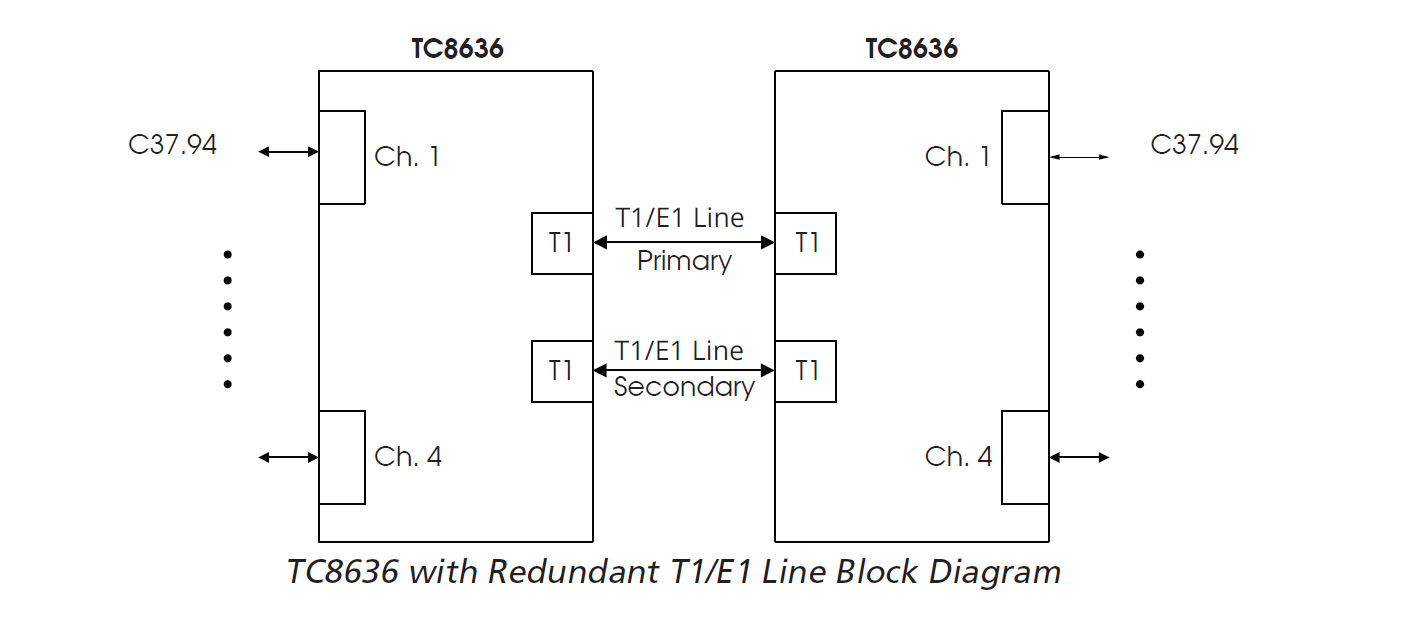

Redundant T1/E1 Configuration
TC8636 - Independent Block Diagram

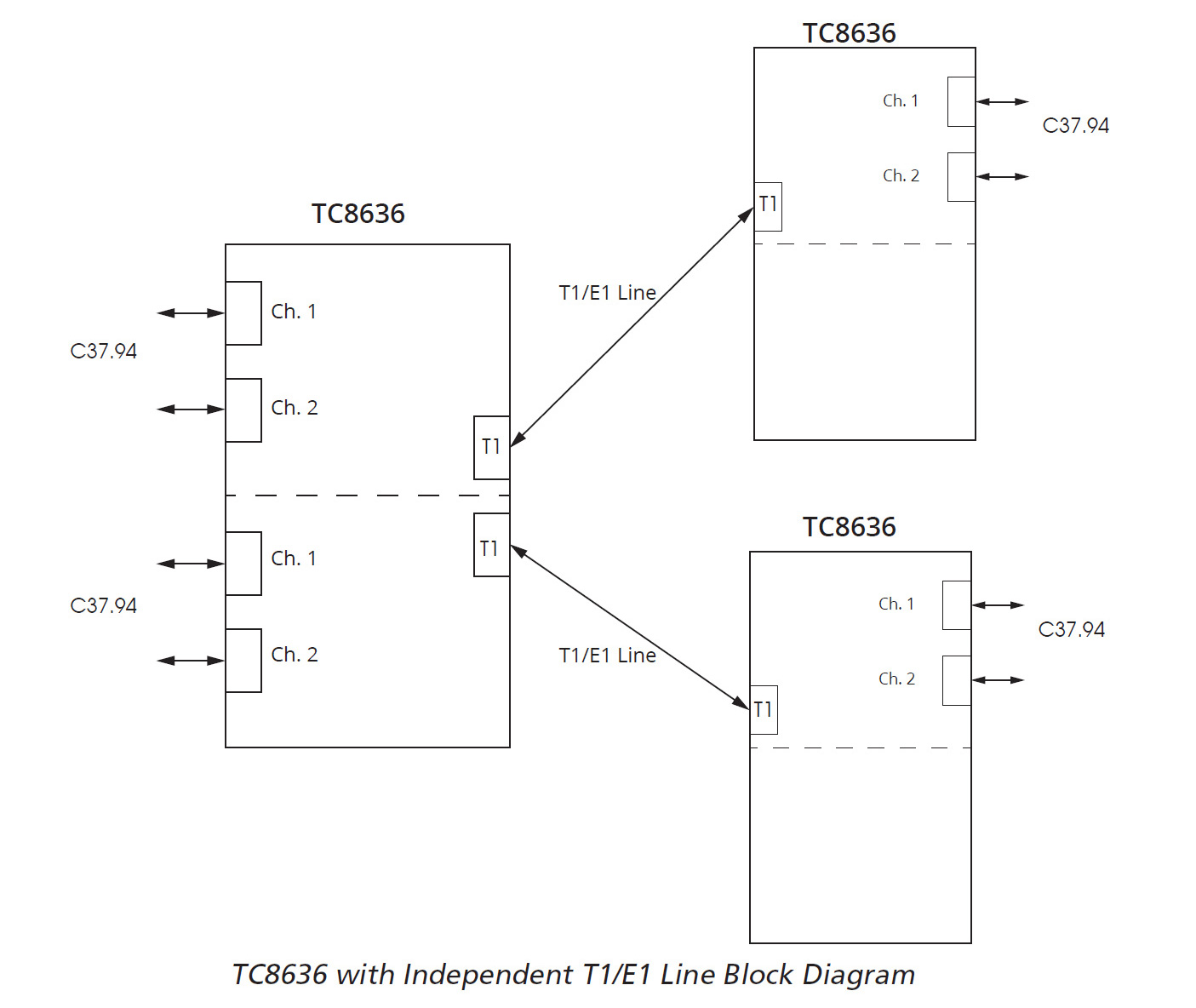

Independent T1/E1 Configuration

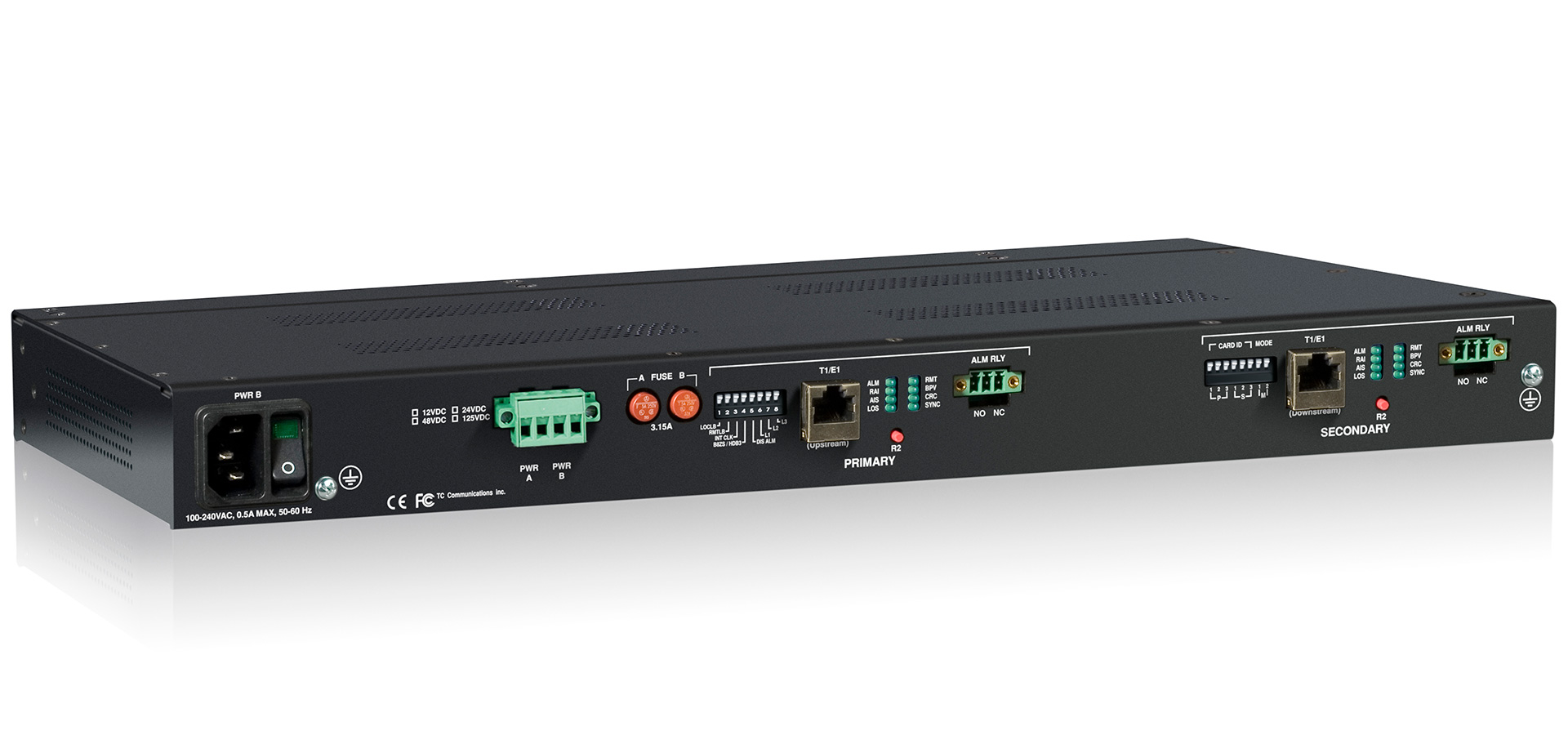

TC8636 - 2-10 Channel C37.94-Over-T1/E1 Multiplexer
Click to enlarge

Specifications

Connection Capacity
  1. C37.94
  2. For T1
  3.  Channel 1 N=1 to 12
  4.  Channel 2 N=1 to 8
  5. For E1
  6.  Channel 1 N=1 to 12
  7.  Channel 2 N=1 to 12
T1/E1
  1. T1
  2. Receiver Sensitivity0dB to -36dB
  3. Line CodeAMI / B8ZS
  4. FramingESF Only
  5. E1
  6. Receiver Sensitivity0dB to -43dB
  7. Line CodeAMI / HDB3
  8. FramingPCM31C
Optical (C37.94)
  1. TransmitterLED/ELED
  2. ReceiverPIN Diode
  3. Wavelength850nm MM, 1300/1550nm SM
  4. Fiber Optic ConnectorST
  5. Loss Budget* - 850/1300/1550nm
  6. Multimode @ 62.5/125µm15dB
  7. Single Mode @ 9/125µm20dB
Visual Indicators
  1. Channel Status (each ch.)RX, TX
  2. SystemPWR A, PWR B, Vcc, ALM, RMT
  3. T1/E1AMI, RAI, AIS, CRC, BPV, LOS, SYNC
System
  1. Bit Error Rate1 in 109 or better
Alarm
  1. Dry ContactNormal Open/Closed
Power
  1. Standard12VDC @300mA
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC w/ power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53cm) 1.40"
  2. Width(18.14cm) 7.20"
  3. Depth(24.89cm) 9.80"
  4. Weight(907g) 2.0lbs
*Contact factory for higher requirements/availability
