TC3844-3

Ethernet-Over-T3/E3 Link

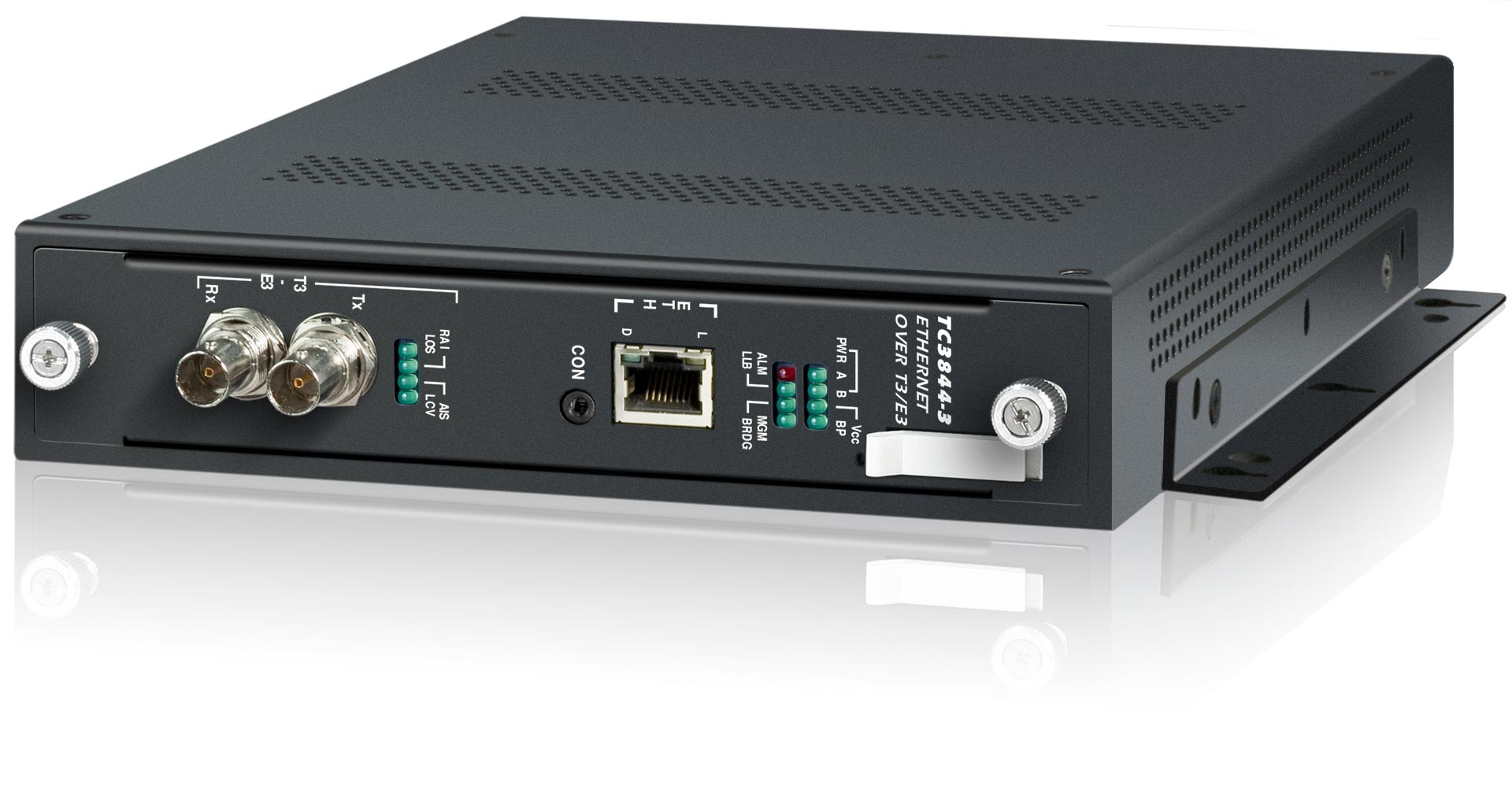

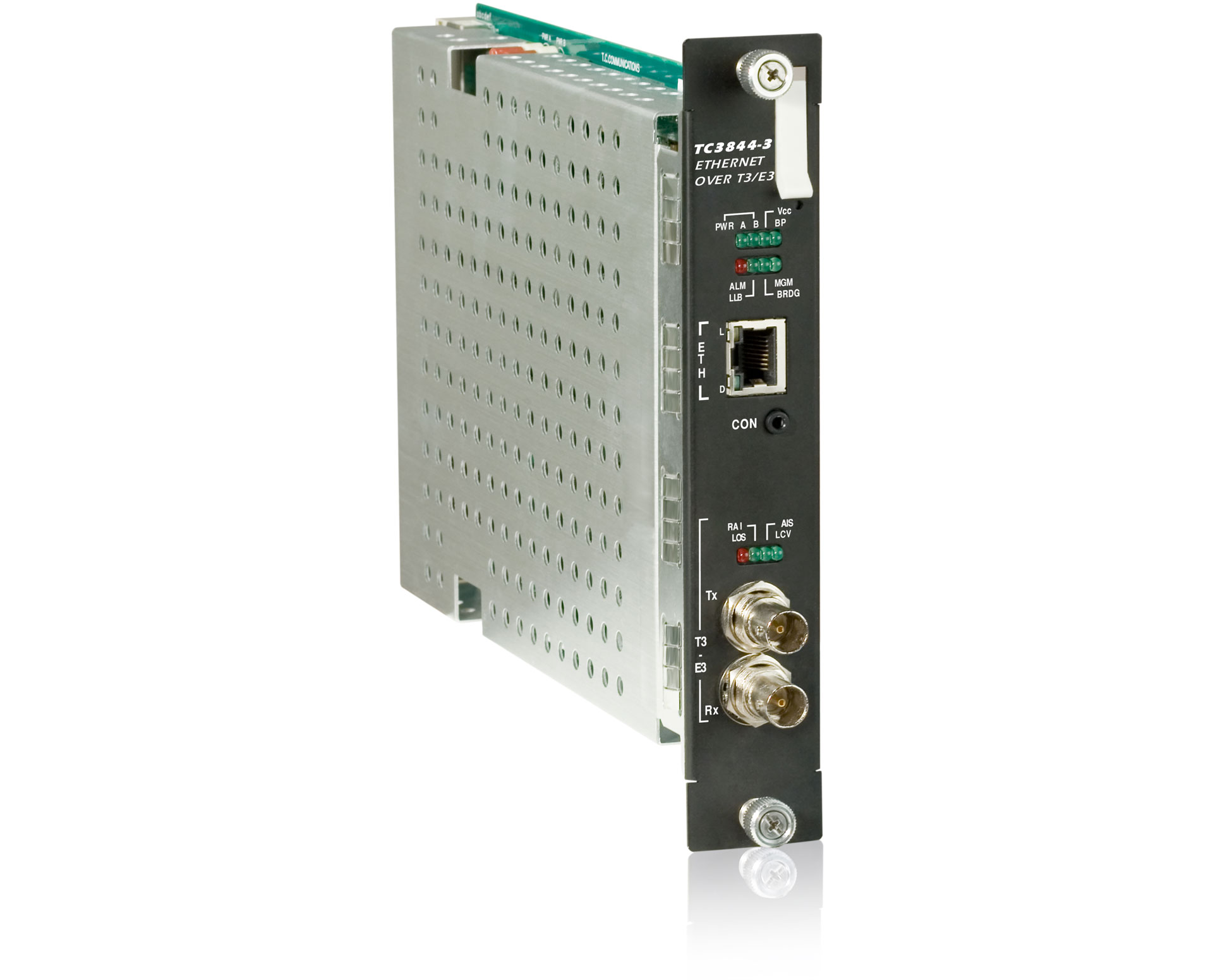

TC3844-3
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

JumboSwitch® offers an Ethernet-over-T3/E3 interface card as a rugged device for connecting a JumboSwitch® or any third-party Ethernet network over existing TDM circuits.

The TC3844-3 is part of the JumboSwitch® series, a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN).

The TC3844-3 is ideal for bridging Ethernet LANs over an existing T3/E3 telecom network, extending Ethernet networks by utilizing TDM telecom infrastructure (i.e., T3/E3 Landline, or T3/ E3s/SDH Microwave Carrying T3/E3), demarcation between carrier and customer networks, and bonded transparent LAN service.

  • Fast Ethernet Transport over Framed & Unframed T3 or E3
  • IEEE 801.p QoS with four queues
  • Ethernet and T3/E3 Statistics Monitoring
  • VLAN Tagging and Priority Labeling
  • Manage Via Web, SNMP, Serial Console, Telnet
  • Built-In Temperature & Power Sensors
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEEE1613 & NEMA TS-2 Standards

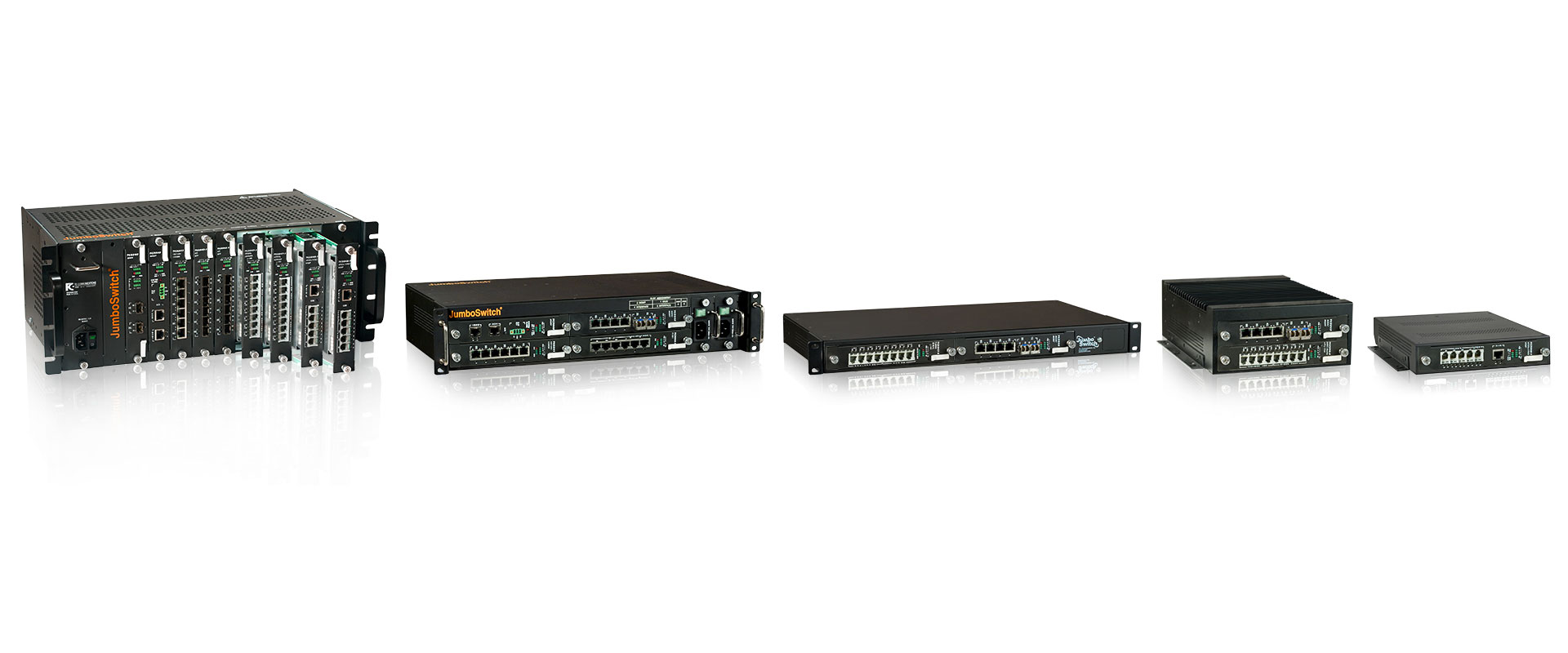

  • Member of the JumboSwitch® Product Family

Applications

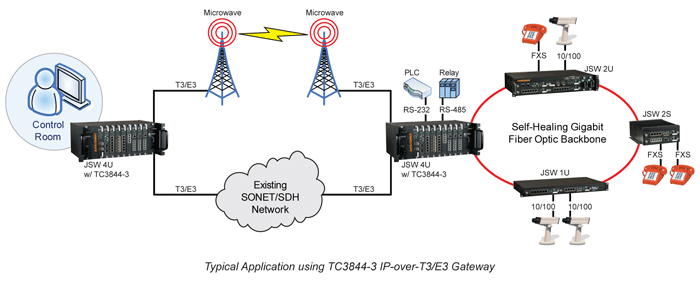

  • Bridging Ethernet LANs over Existing T3/E3 Telecom Network
  • Extending Ethernet Networks by Utilizing TDM Telecom Infrastructure (i.e. T3/E3 Landline, or T3/ E3s/SDH Microwave Carrying T3/E3)
  • Demarcation Between the Carrier’s and Customer’s Networks
  • Bonded Transparent LAN Service
TC3844-3 - Ethernet-over-T3/E3
Click to enlarge

Specifications

Electrical
  1. T3 Interface
  2. ConnectorCo-axial, BNC
  3. Line Termination75Ω, unbalanced
  4. Data Rate44.736Mbps
  5. Line CodeB3ZS
  6. FramingUnframed M23 C-Bit
  7. ComplianceGR-499-CORE ANSI T1.102, 107
  8. E3 Interface
  9. ConnectorCo-axial, BNC
  10. Line Termination75Ω
  11. Data Rate34.368Mbps
  12. Line CodeHDB3 AMI
  13. FramingUnframed G.751 G.832
  14. ComplianceITU-T G.703
  15. Ethernet Interface
  16. ConnectorElectrical RJ-45
  17. Type10/100Base-T
  18. ComplianceIEEE 802.3
System
  1. Bit Error Rate1 in 109 or Better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
Power
  1. Standard12VDC
  2. Optional24, -48 VDC 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs
