TC3847-7

2-Channel Turbo RS-422 Serial over IP Gateway

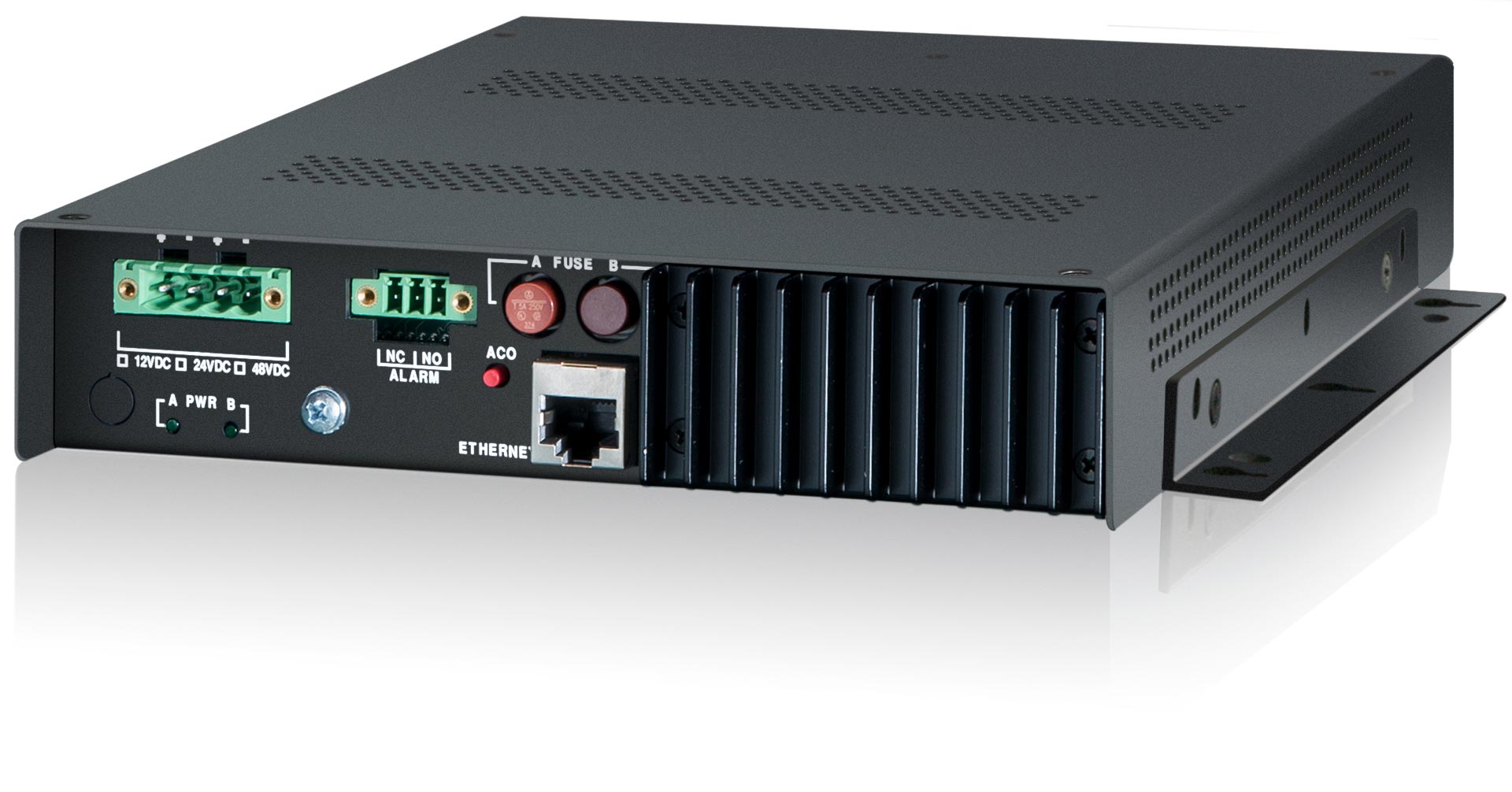

TC3847-7
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3847-7 links or extends up to 2 channels of RS-422 serial (asynchronous with control or synchronous) across Layer 2/3 Ethernet/ IP, CE, or MPLS networks. It is easy to configure, offers extremely low latency, and supports point-to-point and point-to-multipoint topologies.

The JumboSwitch® series is a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN). TDM over IP/Ethernet is a TDM pseudowire (PW) technology making it possible to provision E1, T1, E3, T3, STS-1 and serial data services across PSN's such as IP, MPLS or layer 2 Ethernet Networks.

  • 2 Channels of RS-422 Serial
  • Data Rates up to 115200 bps
  • Supports Handshaking or Synchronous Mode
  • Increased Security Features
  • Extremely Low Latency
  • Protocol Transparent: Mirrored Bits*, DNP-3, Modbus, etc.
  • Temperature & Power Consumption Monitoring
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEC 60834, IEEE 1613 & NEMA TS-2 Standards

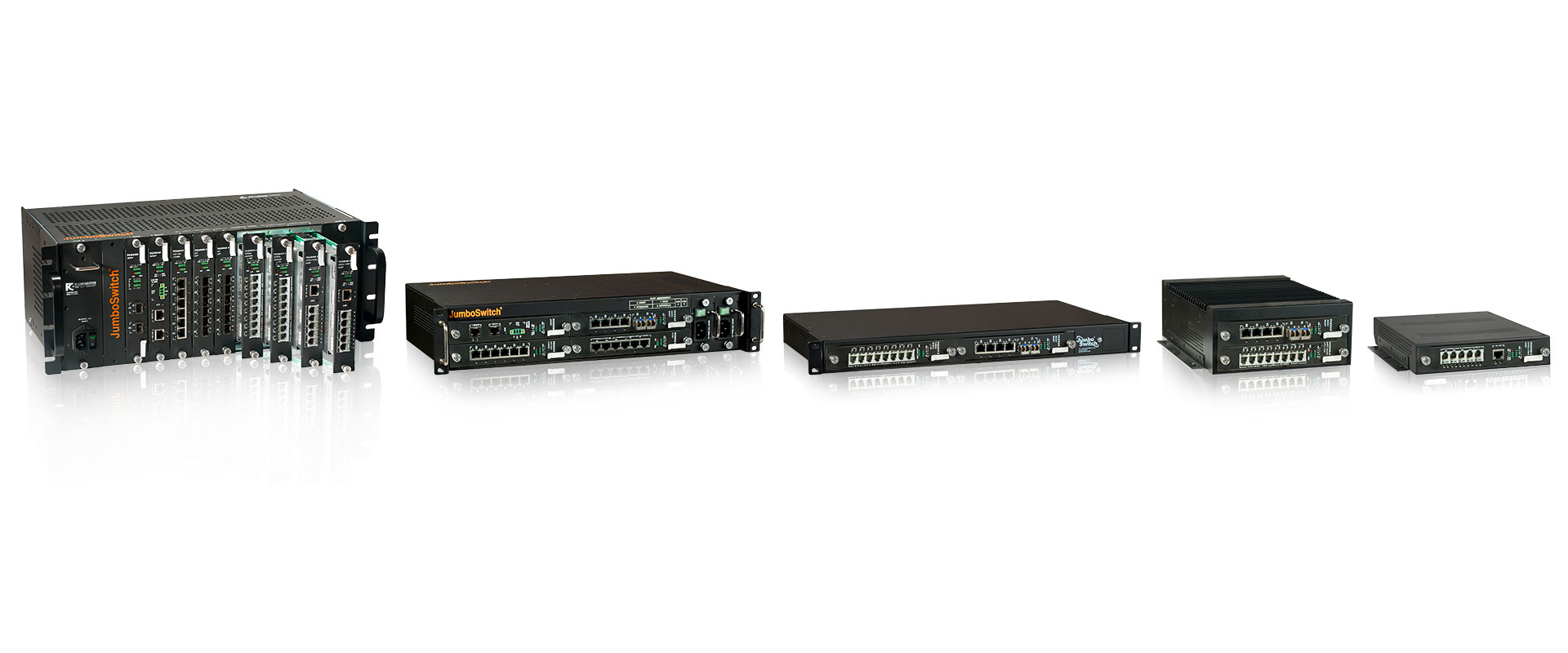

  • Member of the JumboSwitch® Product Family
*"Mirrored Bits®" is a registered trademark of Schweitzer Engineering Laboratories Inc.

Applications

Typical applications include extending serial data across IP networks.

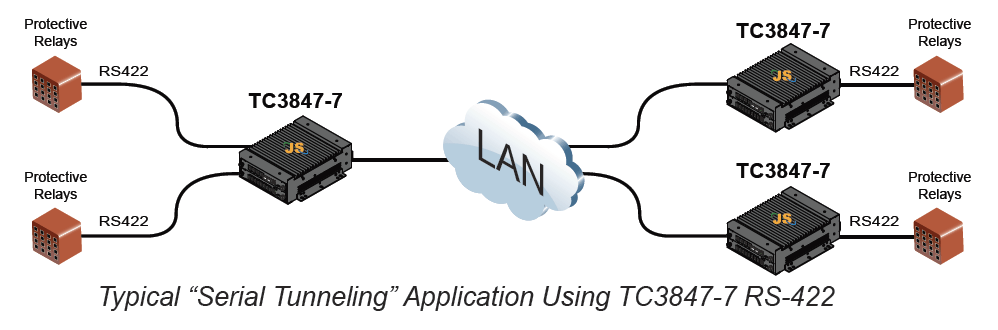

For example, the TC3847-7 is often used to extend RS-422 signals from one protection relay to another across Layer 2/Layer 3 networks.

  • Railroad Microlock*
  • Airport Digital Radar
  • Utility SCADA
  • Any RS-422 Communication via IP
*MicroLok® is a trademark for ANSALDO STS USA, INC.

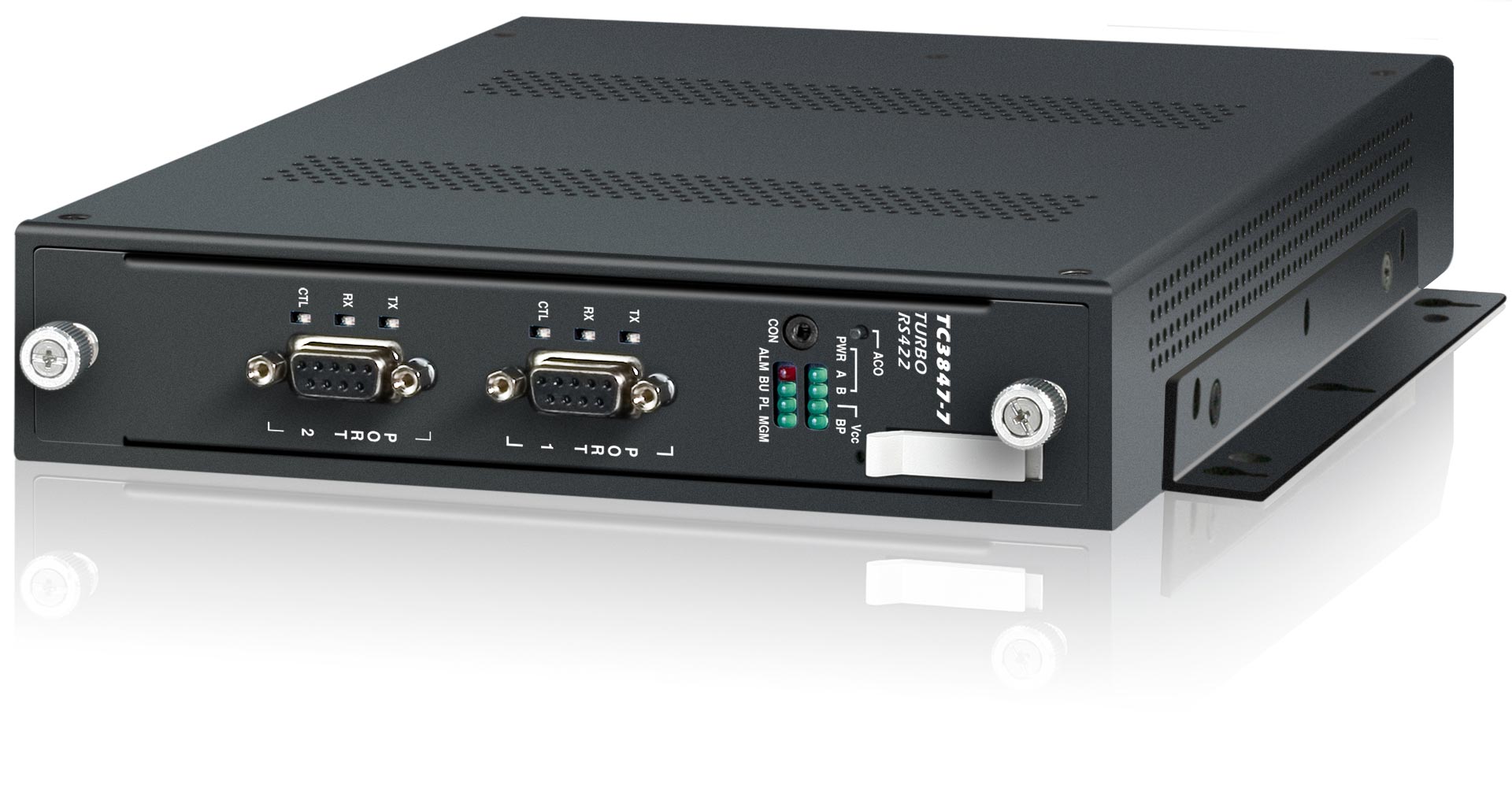

TC3847-7 - 2-Ch. Turbo RS-422
Click to enlarge

Specifications

Connection Capacity
  1. RS-4222 Ports
  2. Ethernet1 Port
Electrical
  1. RS-422 Interface
  2. Baud Rateup to 115200 bps
  3. Termination (optional)200 Ohm
  4. ESD Protection+/-15KV HBM
  5. ConnectorDB9F
  6. Ethernet Interface
  7. StandardsIEEE 802.3, 802.3u
  8. ConnectorRJ45
  9. Console Interface
  10. Console Port2.5mm Audio Jack
Standard Compliance
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, IEC 60834
Diagnostic Functions
  1. Local and Remote Loopback for Serial
LEDs
  1. Unit StatusPWR (A, B), Alarm, BU, PL, Vcc, BP, MGM
  2. ChannelTX, RX, CTL
Power
  1. Standard12VDC
  2. Optional24VDC, -48 VDC, or 125VDC (1U/ 2U/ 4U only), 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing

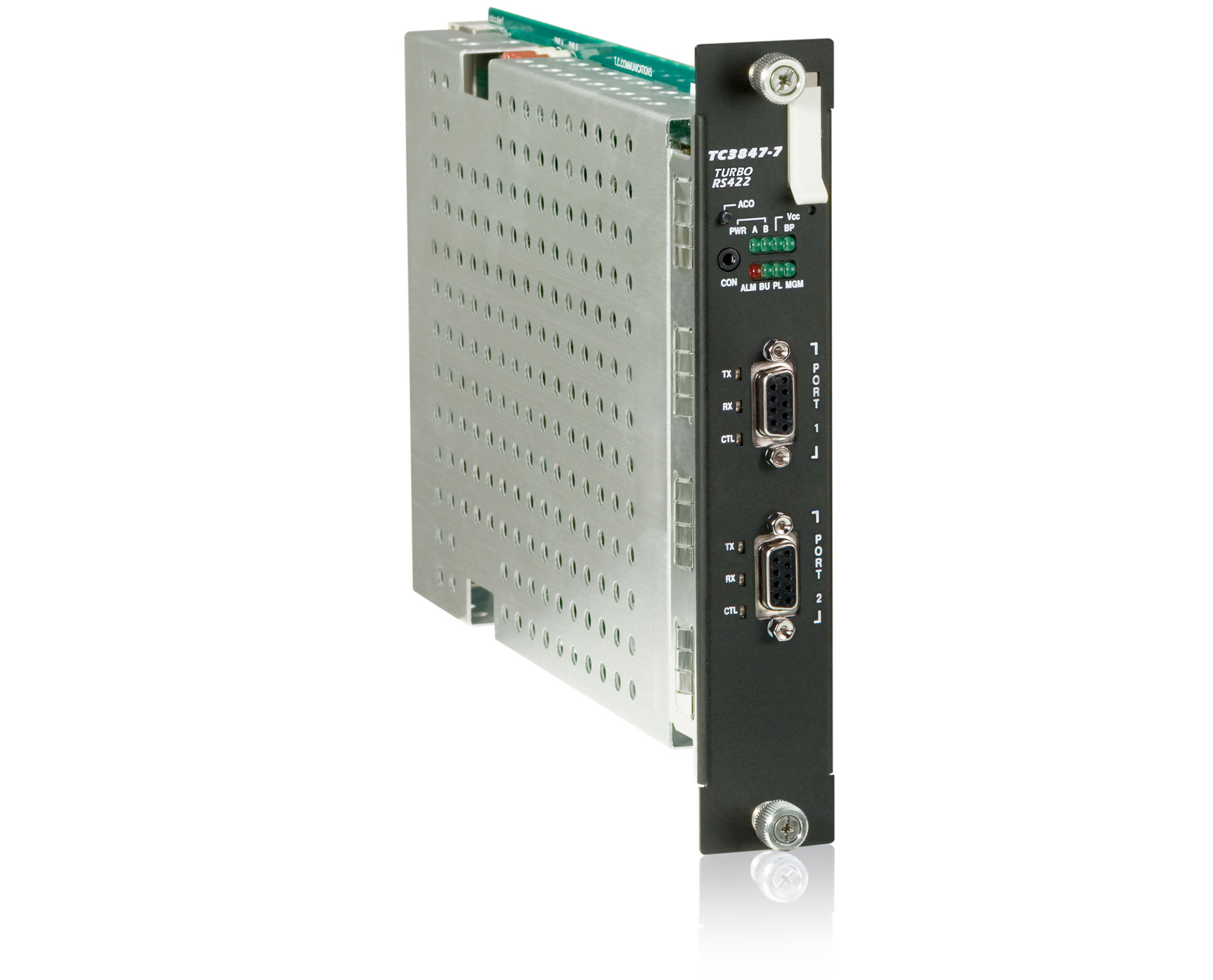

Physical (rack mount card)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
