TC3845-1

T1 / E1-over-IP Gateway (1-4 ch.)

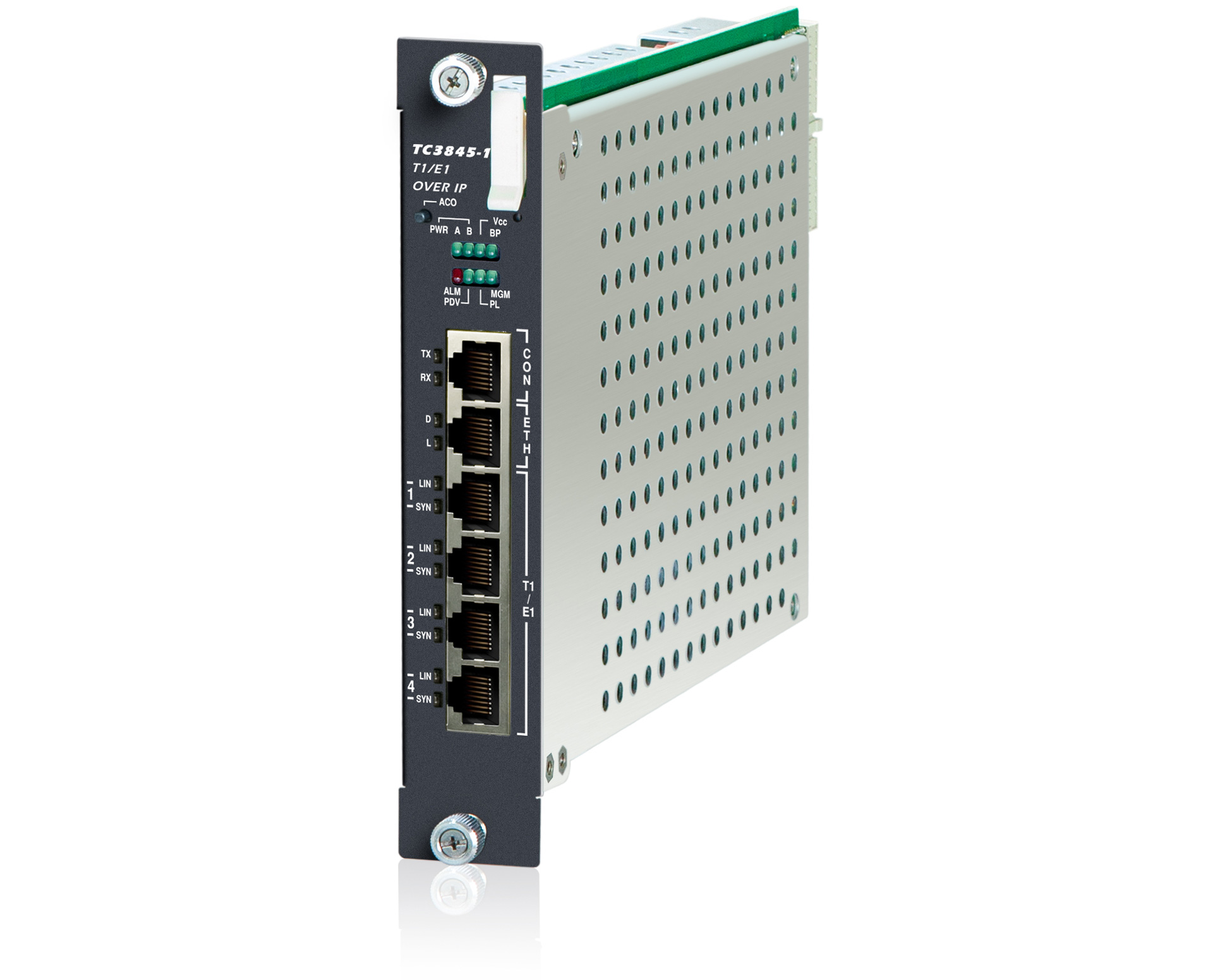

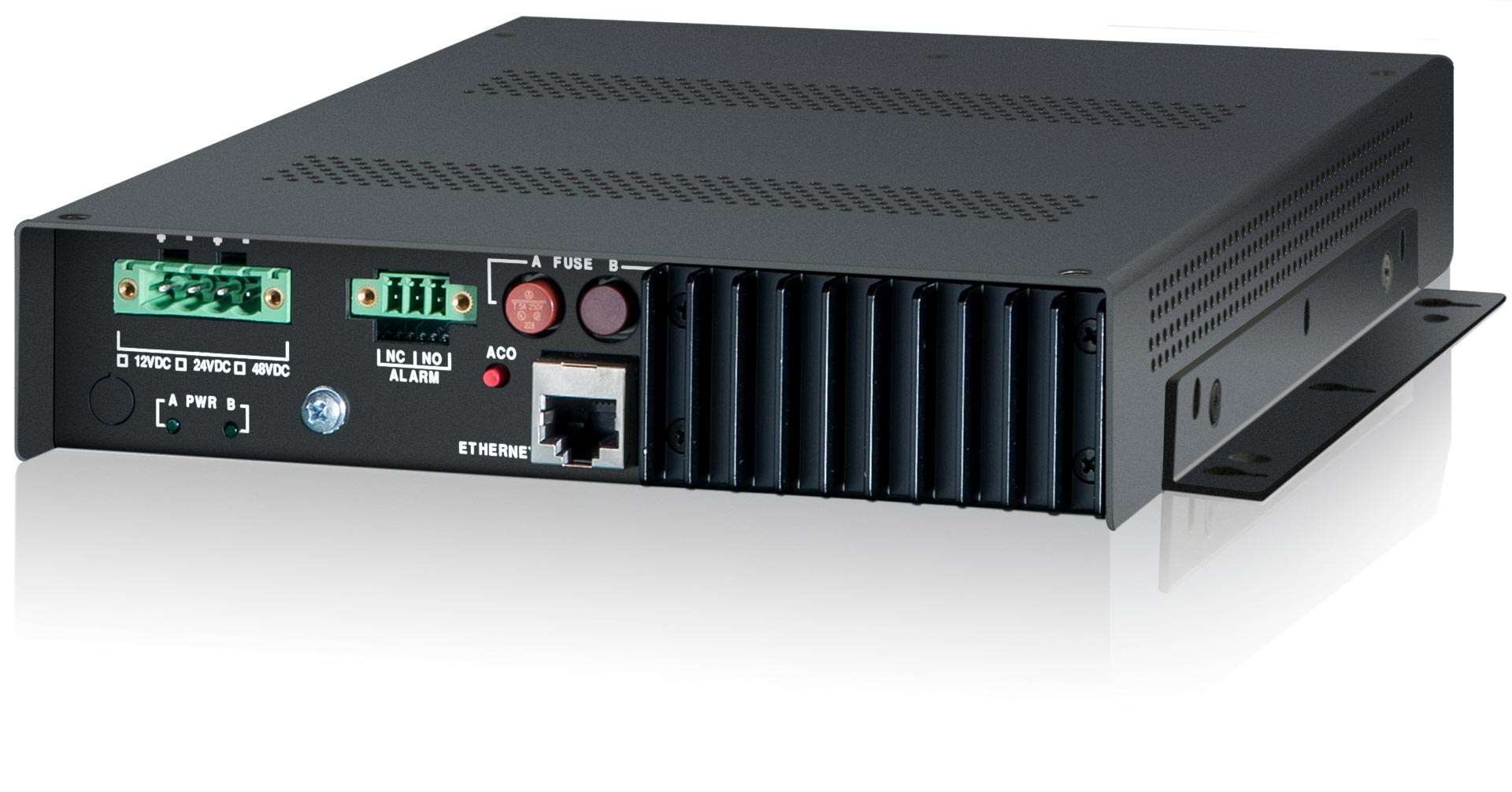

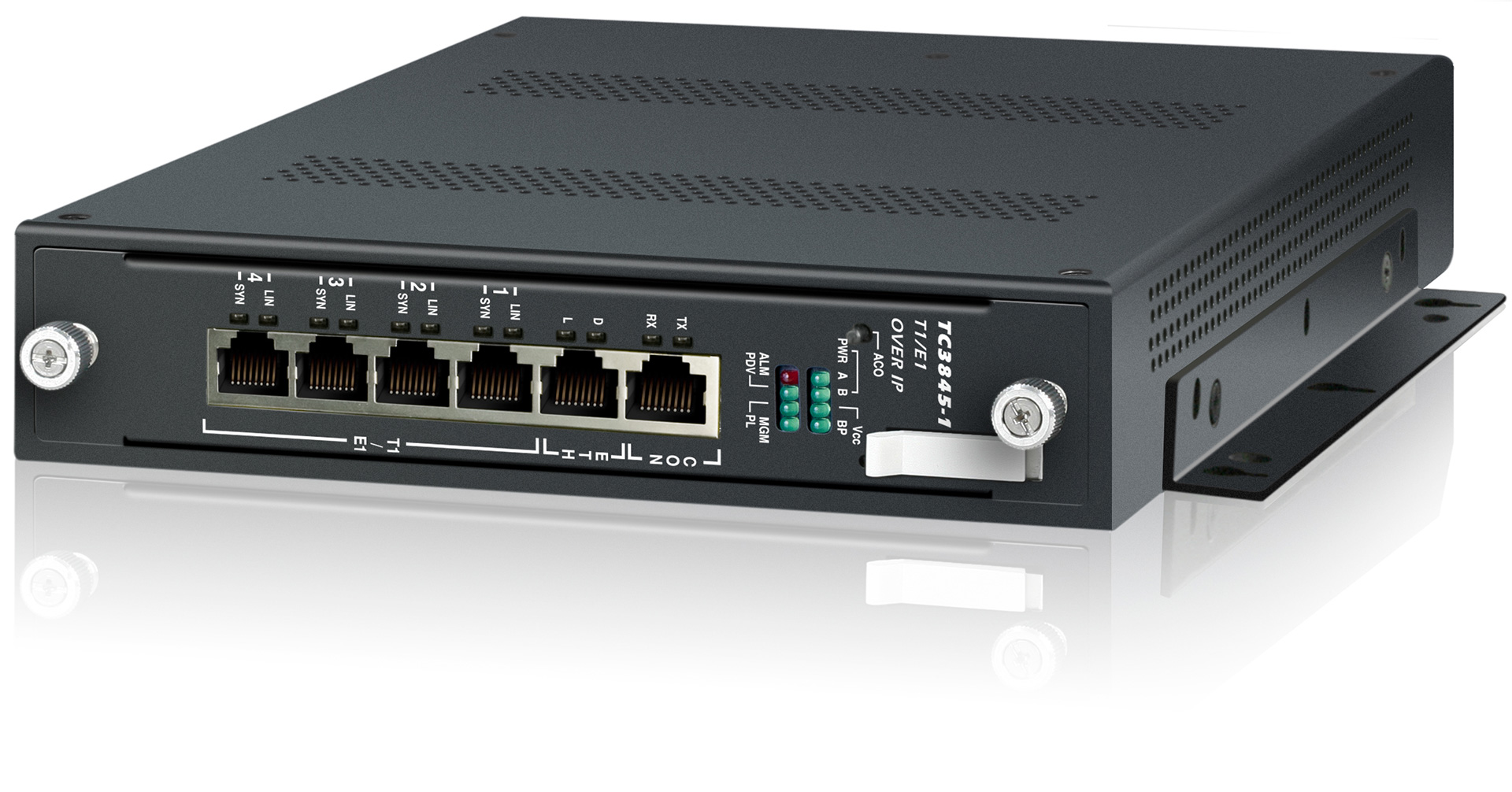

TC3845-1
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

This T1/E1 over IP Gateway transports up to 4 channels of T1 and/or E1 over Layer 2/3 Ethernet networks with low latency.

  • Transports 4 Ch. T1/E1 Over Ethernet/IP
  • Extremely Low Latency
  • Point-to-Point & Point-to-MultiPoint Applications
  • VLAN and QoS Support
  • Manage Via Web, SNMP, Serial Console, Telnet
  • Temperature & Power Consumption Monitoring
  • Extreme Temp (-40°C to +80°C) Optional
  • Meets or Exceeds IEC 61850-3, IEEE1613 & NEMA TS-2 Standards
  • Member of the JumboSwitch® Product Family

The JumboSwitch series is a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN). TDM over IP/Ethernet is a TDM pseudowire (PW) technology making it possible to provision E1, T1, E3, T3, STS-1 and serial data services across PSN's such as IP, MPLS or layer 2 Ethernet Networks.

Applications

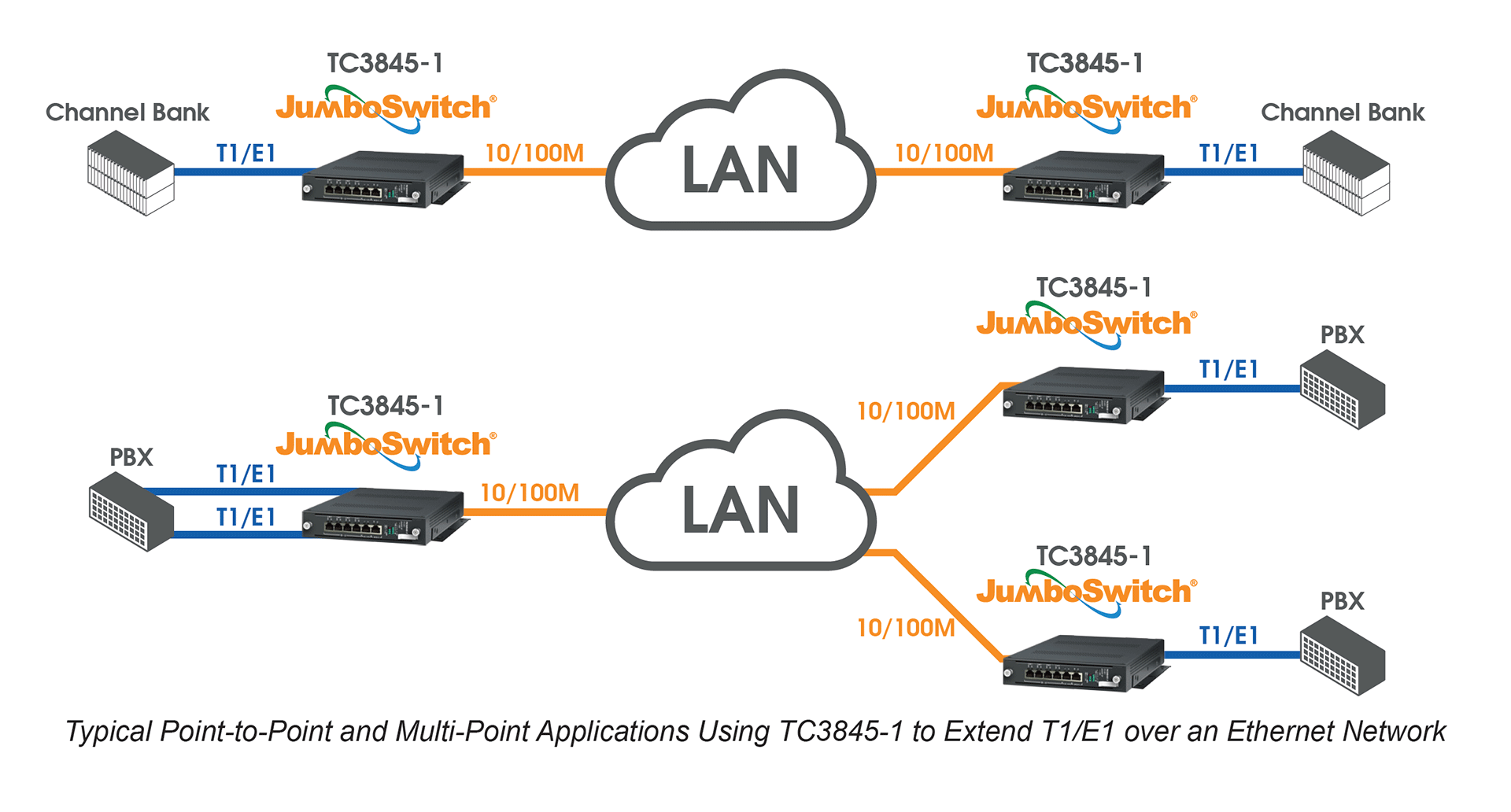

Typical applications include transporting voice, video, and data across IP networks. For example, the TC3845-1 is used to extend T1/E1 links between PBX’s, connect video conferencing, or link Cell Towers to Central Offices, all over existing Layer 2 / Layer 3 Networks.

TC3845-1 - T1 / E1 Over IP
Click to enlarge

Specifications

Data Rates
  1. T11.544 Mbps
  2. E12.048 Mbps
  3. Ethernet10/100 Mbps Full Duplex
  4. Console9.6K
Connection Capacity
  1. T1/E14 Channels
  2. Ethernet1 Port
Electrical
  1. T1 Interface
  2. Line CodeAMI, B8ZS
  3. StandardsAT&T TR-62411, G.703, G.704, G.824, ANSI T1.403
  4. ConnectorRJ48
  5. Impedance100 Ohm
  6. E1 Interface
  7. Line CodeAMI, HDB3
  8. StandardsG.703, G.704, G.706, G.732, G.823
  9. ConnectorRJ48, BNC via cable
  10. Impedance75, 120 Ohm
  11. Ethernet Interface
  12. StandardsIEEE 802.3, 802.3u, 802.1p&Q
  13. ConnectorRJ45
  14. Console PortRJ45
System
  1. Bit Error Rate1 in 1010 or Better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS AYes
  2. IEC 61850-3, IEEE 1613, NEMA TS-2Yes
Diagnostic Functions
  1. Local and Remote Loopback for T1/E1 and EthernetYes
LEDs
  1. Unit StatusPWR (A, B), Alarm, Vcc, BP, MGM
  2. T1/E1Status
  3. EthernetLink/Act
Power
  1. Standard12VDC
  2. Optional24, -48 VDC, 90-260 VAC, 50/60Hz
  3. Power Consumption<10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Operating Temperature
  1. High Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing

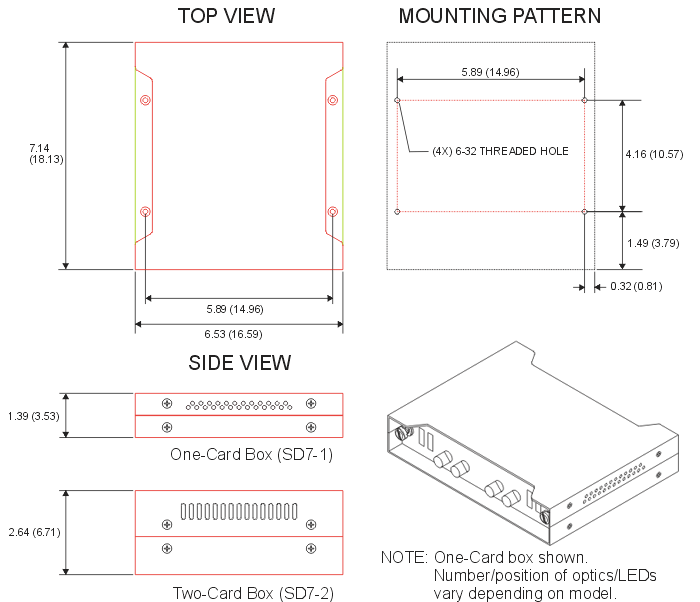

Physical (Standalone Unit)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs

Literature / News

Ordering

For more information

Request details
Datasheet
Have a question?

For assistance with this product or to request a user manual please contact Technical Support.
