TC3842

6-Port SFP Gigabit Ethernet Switch

TC3842
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3842 is a 6-Port SFP GigE Switch that is compatible with both SFP optical and copper modules, supporting 850nm multi-mode and 1300/1550nm single mode.

  • 6-Port SFP Gigabit Ethernet Switch
  • 6-Port SFP Gigabit Ethernet Expansion (TC3842-5 Datasheet)
  • Optional 3 Ports 100Base-FX
  • Single Mode, Multimode, Optional One Fiber Bi-Directional Communications
  • Ethernet Rate-Limit, VLAN, QoS & More
  • Network Manageable Via Web (with TC3840 MGMT card)
  • Built-In Temperature & Power Sensors
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEEE 1613, & NEMA TS-2 Standards

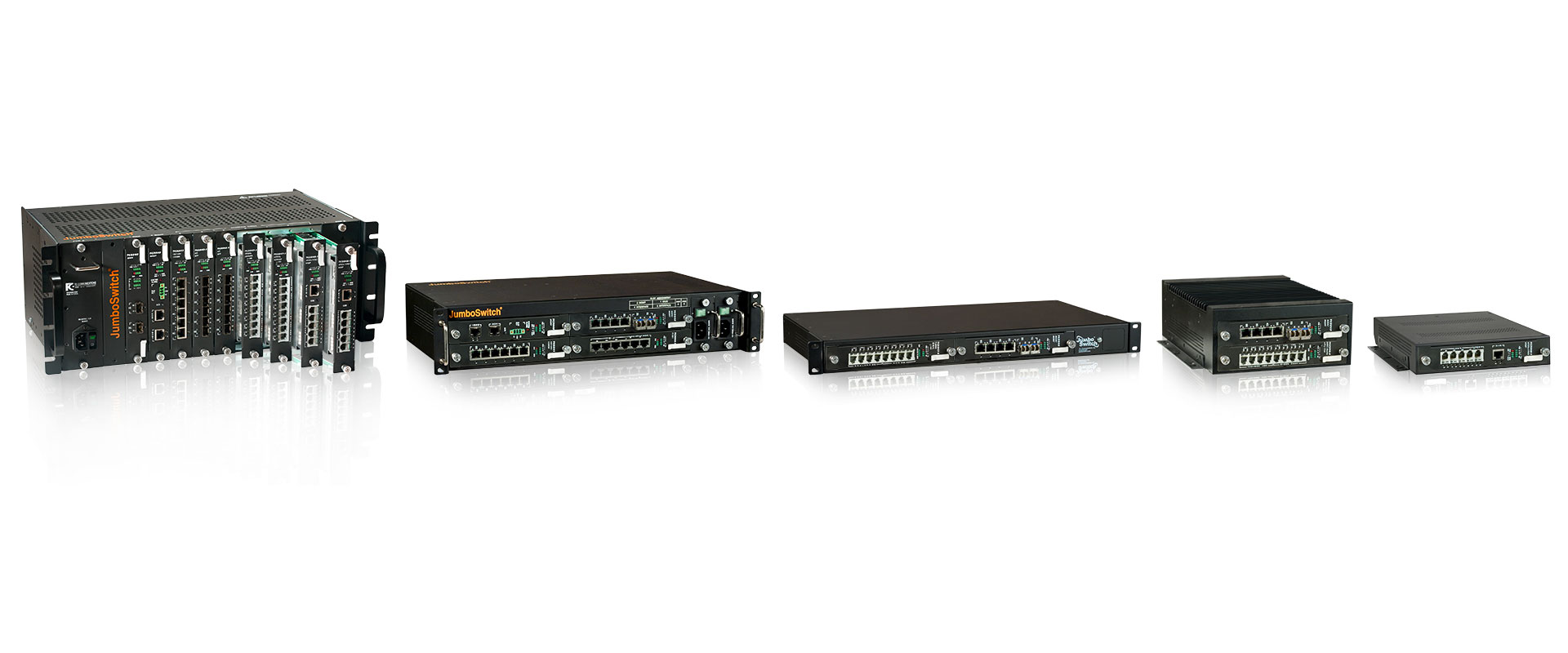

  • Member of the JumboSwitch® Product Family

Configurations:

  • TC3842-1: 6-ports for 1000Base-SX/LX SFP Modules
  • TC3842-2: 3-ports for 1000Base-SX/LX, 3-ports for 100Base-FX SFP Modules
  • TC3842-3: 6-ports for 100Base-FX SFP Modules

The TC3842 can operate in the harshest of environments and, with its advanced networking features, is the perfect solution for virtually all Ethernet Switch applications encountered in the Industrial Automation, Utility and Transportation industries. It is also used by Data Service Providers to control the bandwidths they offer to their customers.

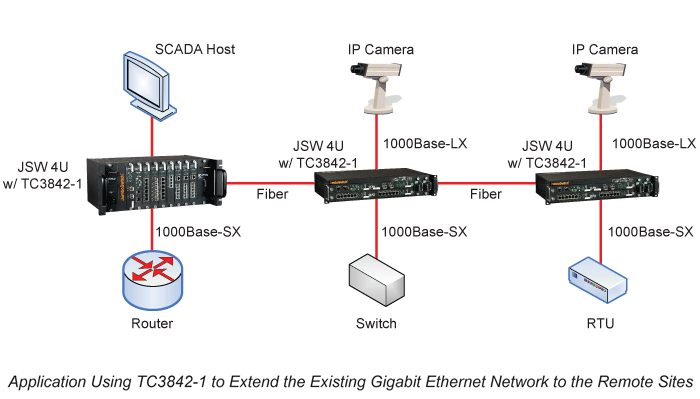

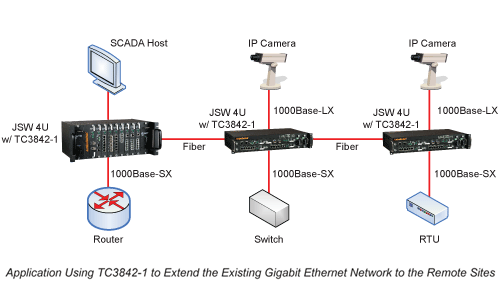

Applications

With its ability to operate in the harshest of environments and its advanced networking features, the TC3842 is the perfect solution for virtually all Ethernet Switch applications encountered in the Industrial Automation, Utility and Transportation industries. It is also used by Data Service Providers to control the bandwidths they offer to their customers.

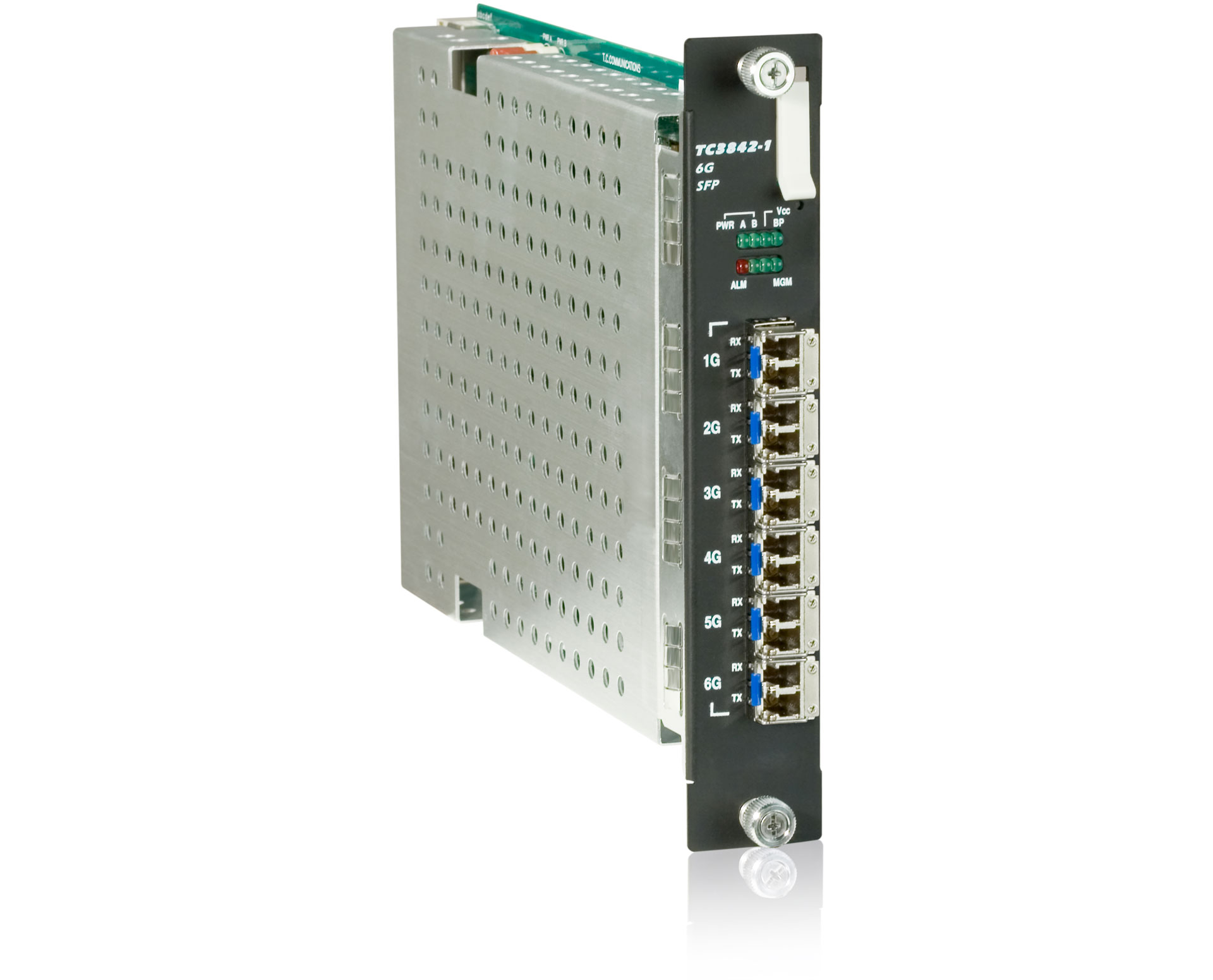

TC3842 - 6-Port SFP Gigabit Ethernet Switch
Click to enlarge

Specifications

Data Rates
  1. Standard1000 Mbps with rate control
SFP Interface
  1. SFP
  2. Ethernet Interface Connector850/1300nm MM 1300/1490/1550nm SM
  3. SFP Optical Connectors: LCStandard
  4. Loss Budget*
  5. Multimode @ 62.5/125um15db
  6. Single Mode @ 9/125um20db
Copper
  1. SFP copper module, RJ45F connector
System
  1. Bit Error Rate1 in 1010 or better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, TS-2
Diagnostic Functions
  1. Traffic Statistics
LEDs
  1. ALM, Vcc, PWR (A, B), Link/Act, BP, MGM
Power
  1. Standard12VDC
  2. Optional24, -48 VDC 260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.89 cm) 3.89"
  2. Width(18.54 cm) 7.3"
  3. Depth(24.87 cm) 9.79"
  4. Weight(0.4 kg) 1.0 lb

Below are SFP module options available. Click on the products to view datasheets.

SFP Modules
Model No. Data Rate Mode Wavelength Distance
760-011S1-00
760-011S1-05 		1.25 Gbps Multimode 850 nm 550 m
760-031S1-00
760-031S1-05		 1.25 Gbps Multimode 1310 nm 2 km
760-050S1-20
760-050S1-25		 155 Mbps Single Mode 1310 nm 20 km
760-050S1-40
760-050S1-45		 155 Mbps Single Mode 1310 nm 40 km
760-051S1-20
760-051S1-25		 1.25 Gbps Single Mode 1310 nm 20km
760-051S1-40
760-051S1-45		 1.25 Gbps Single Mode 1310 nm 40km
760-071S1-C0
760-071S1-C5		 1.25 Gbps Single Mode 1550 nm 120 km
760-071S1-G0
760-071S1-G5		 1.25 Gbps Single Mode 1550 nm 200 km
760-071S1-80
760-071S1-85		 1.25 Gbps Single Mode 1550 nm 80 km
760-G57S1-20
760-G57S1-25		 1.25 Gbps Single Mode 1310 nm/1550 nm 20 km
760-G57S1-40
760-G57S1-45		 1.25 Gbps Single Mode 1310 nm/1550 nm 40 km
760-G75S1-20
760-G75S1-25		 1.25 Gbps Single Mode 1550 nm/1310 nm 20 km
760-G75S1-40
760-G75S1-45		 1.25 Gbps Single Mode 1550 nm/1310 nm 40 km
