TC1910

Telephone/Analog-over-Ethernet Extender (10BaseT)

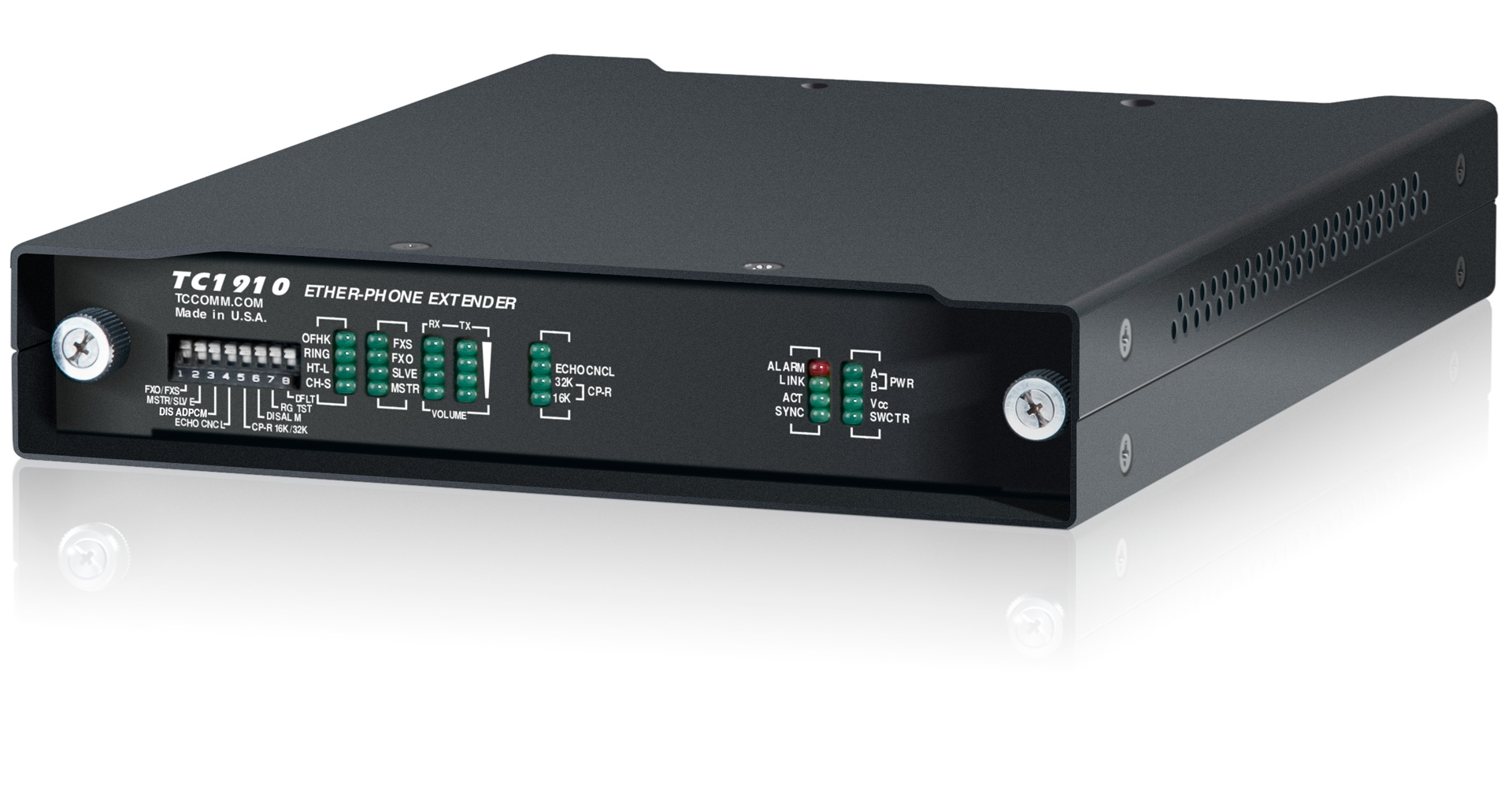

TC1910
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC1910 Ethernet Telephone/Analog Extender provides toll quality telephone service over LANs. Compatible with POTS Key Systems and PBXs, it has a built-in Codec that digitizes voice and converts to packets for transmission between local and remote TC1910s with designated IP addresses.

It is used in a variety of Ethernet network applications including point-to-point "hot links" or connecting to a PBX for outside telephone service. Phone connection is automatic upon power-up or when network interruption is restored. LAN connections can be made by most Full Duplex Ethernet devices, including switches, routers, bridges, transceivers, etc.

  • Extends Telephone/Analog Link via 10 Base-T Ethernet Connection
  • Web-Based Configuration Interface
  • PBX & Key System (POTS) Compatible
  • Voice Bandwidth from 300Hz to 3.4KHz for Toll Quality Sound
  • 18 LEDs for Diagnostics & Status Monitoring
  • Built-in Dry Contact Relay for External Alarm and Ringer Connection
  • 12VDC, Optional 24VDC, -48VDC, 125VDC, or 115/230VAC with Power Adapter
  • Hardened Temperature Version (optional)

Applications

The TC1910 is intended to provide flexible point-to-point telephone service via Ethernet Networks. It is often used by maintenance or service personnel in Campus, Traffic Control, or Utility Substation Networks.

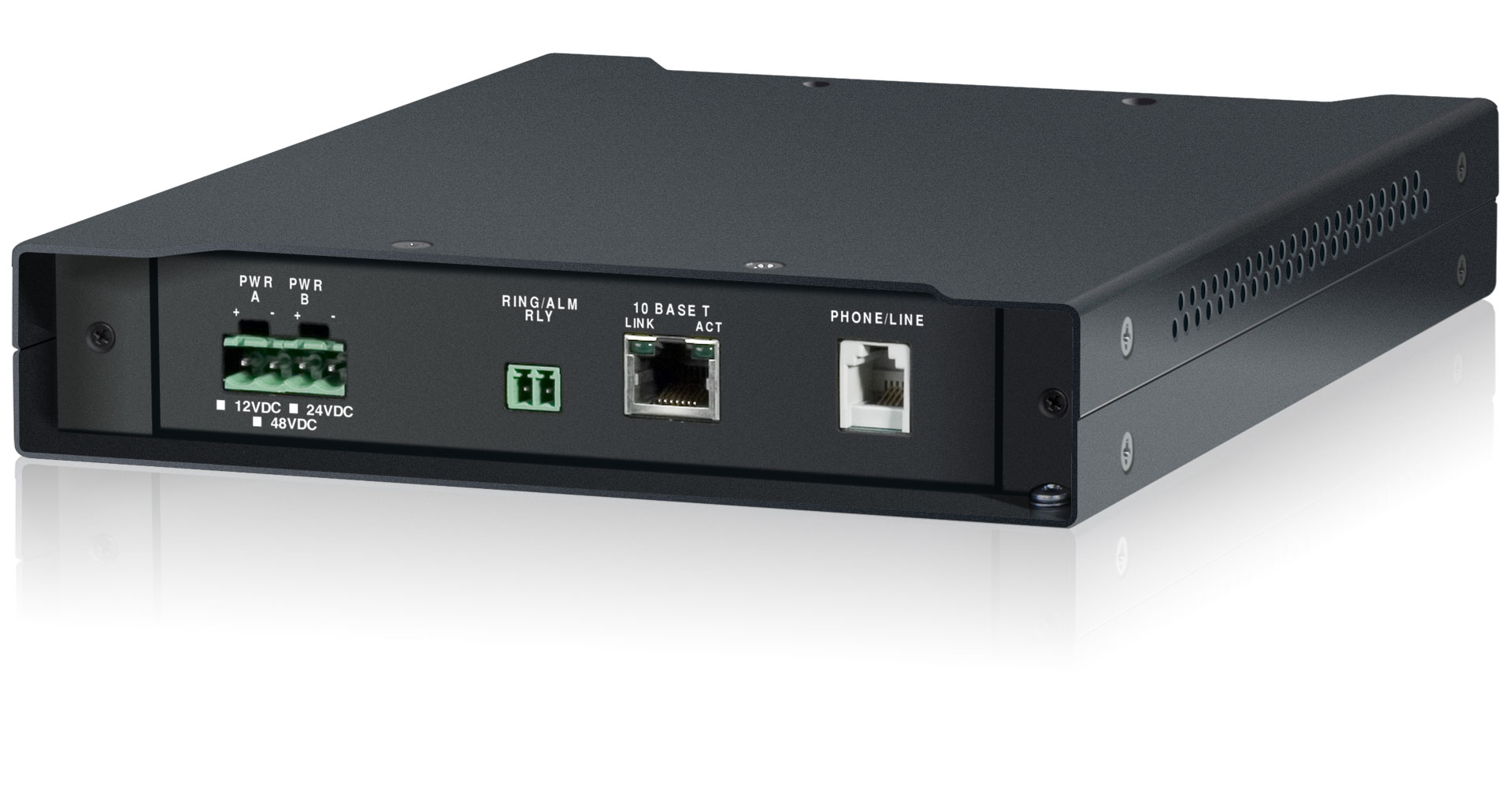

TC1910 - Ethernet Telephone Extender
Click to enlarge

Specifications

Audio Bandwidth
  1. Bandwidth300Hz to 3.4Khz
Electrical
  1. Phone ConnectorRJ11 Female
  2. Ring Voltage55Vrms at 25Hz (Depending on the ringing load)
  3. FXO Impedance600 Ohm
  4. FXS Impedance600 Ohm
  5. Ethernet (10Base-T)RJ45 Female
  6. Rate10Mbps
Visual Indicators
  1. Off Hook, Ring, Master/Slave, Hot Link, Link Status, Tx and Rx Volume, DHCP, off-hook, FXO, FXS, Alarm, Link, Sync, Activity, VccA, VccB, PWR A, PWR
Alarm / Ring
  1. Dry ContactNormal OPEN
Power
  1. Standard12VDC @500mA
  2. Optional24VDC, -48VDC, 125VDC, or 115/230VAC with power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp(optional)-20°C to 70°C
  3. Storage-40°C to 90°C
  4. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.53 cm) 1.39"
  2. Width(18.13 cm) 7.14"
  3. Depth(24.89 cm) 9.80"
  4. Weight(907 gm) 2.0 lbs
