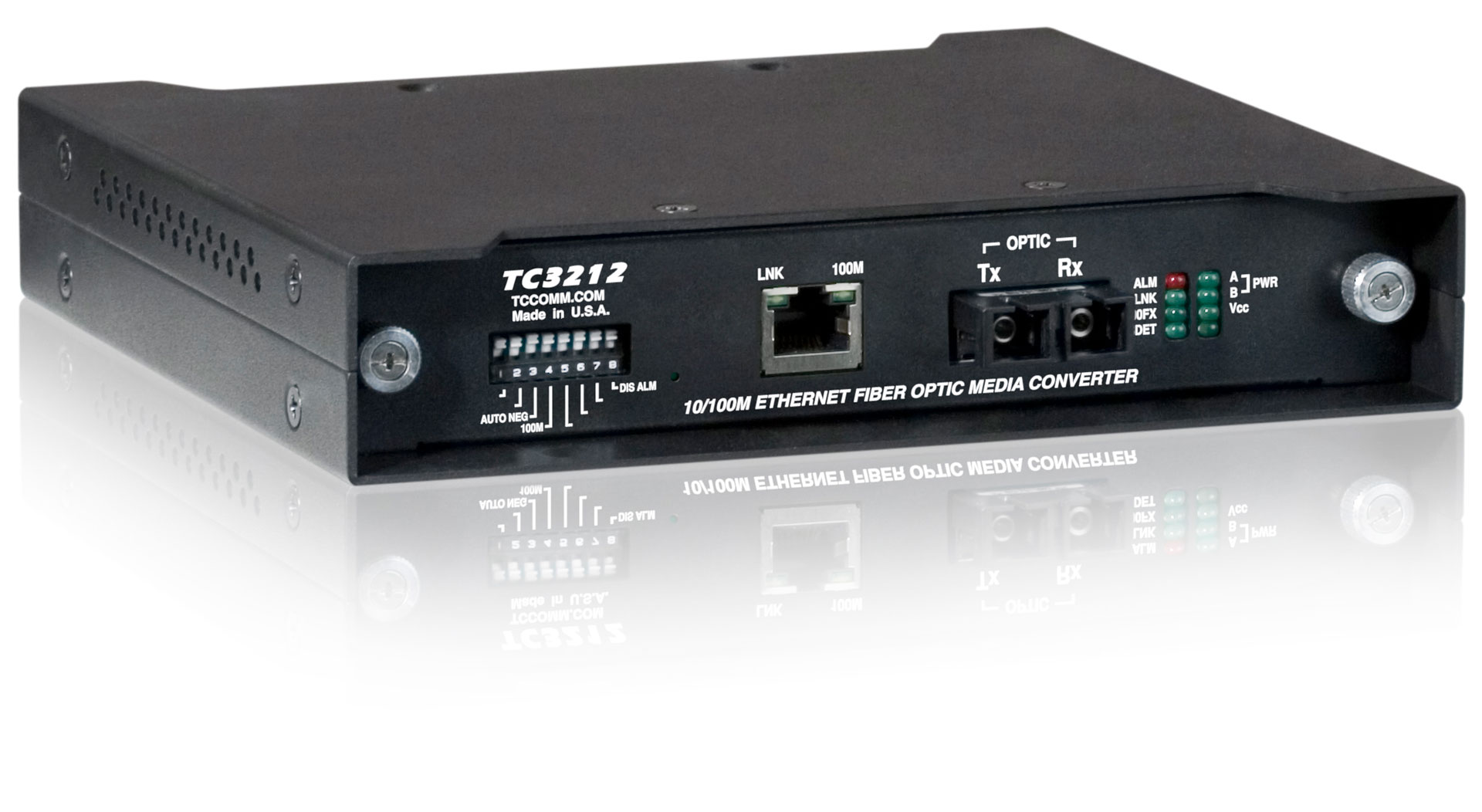

TC3212

10/100 Fiber Optic Media Converter/Switch

TC3212
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3212 10/100Base-T Ethernet Fiber Optic Converter is specifically designed for long distances and can extend LAN segments up to 80 kilometers and maximize bi-directional, fiber optic cable usage. It provides a 100Base-FX port that combines Ethernet Switching with the benefits of fiber optic technology to boost network bandwidth, security and immunity from electro-magnetic Interference (EMI) and ground loops.

  • Link Distances up to 80km *
  • One-Fiber Bi-Directional Communication (optional)
  • Multimode or Single Mode (1300/1550nm)
  • Full or Half-Duplex Operation
  • Seven LED Status Indicators
  • Power: 12VDC, 24VDC, -48VDC or 115/230VAC
  • Operating Temp -10°C to 50°C (Extreme Temp -40°C to 80°C optional)

The TC3212 is frequently used to extend or connect Ethernet segments up to 80km*. Typical applications include linking Ethernet Switches or workstations.

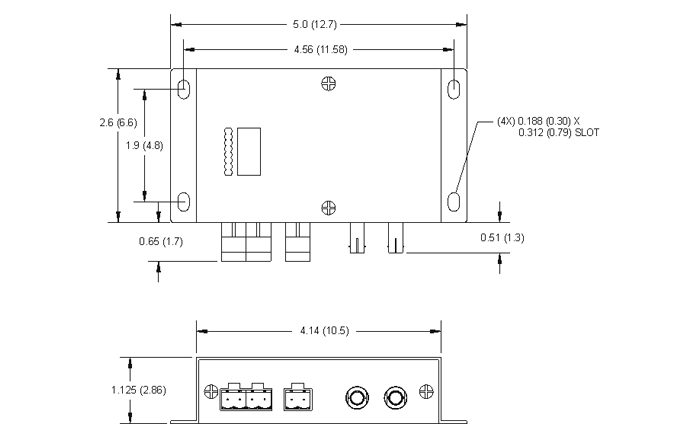

Change Notification 8/1/2024: Compact "pocket rocket" chassis size discontinuation

The TC3212 pocket rocket product size will no longer be manufactured. The standalone version will still be available.

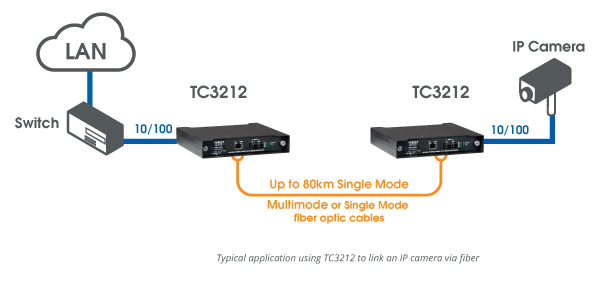

Applications

The TC3212 is frequently used to extend or connect Ethernet segments up to 80km*. Typical applications include linking Ethernet Switches or workstations.

TC3212 - 10/100 Base-TX Ethernet to Fiber Optic Media Converter
Click to enlarge

Specifications

Change Notification 8/1/2024: Compact "pocket rocket" chassis size discontinuation

The TC3212 pocket rocket product size will no longer be manufactured. The standalone version will still be available.

Data Rates (per channel)
  1. Rates10/100 Mbps
Optical
  1. TransmitterLASER
  2. ReceiverPIN Diode
  3. Wavelength1300nm Multimode 1300/1550nm Single Mode
  4. Fiber Optic ConnectorsSC, Optional FC, ST
  5. Loss Budget* - 1300/1550nm
  6. Multimode @ 62.5/125µm15dB
  7. Single Mode @ 9/125µm20dB
  8. One Fiber (Bi-Directional Communications)Up to 60Km
Electrical
  1. Connector(UTP) RJ45 Female
Visual Indicators
  1. Power StatusPWR, & VCC
  2. Alarm StatusALARM
  3. UTP Signal StatusLNK, 100M (Standalone)
  4. Optic Signal StatusLNK,100FX, SDET (Standalone)
Ethernet Standards
  1. IEEE 802.3, 802.3u, 802.3x10/100Base-T, 100Base-FX
Power
  1. Standard12VDC
  2. Optional24VDC, -48VDC, 115/240VAC with Power Cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme-Temp (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing
Physical (Standalone)
  1. Height(3.53 cm) 1.39”
  2. Width(18.13 cm) 7.14”
  3. Depth(16.59 cm) 6.53”
  4. Weight(544 gm) 1.2 lbs
* Contact factory for higher requirements
