TCRM199

JumboSwitch 19'' 1U Rackmount Card Cage

TCRM199

Rollover or Touch for Expanded View. Scroll to Zoom.

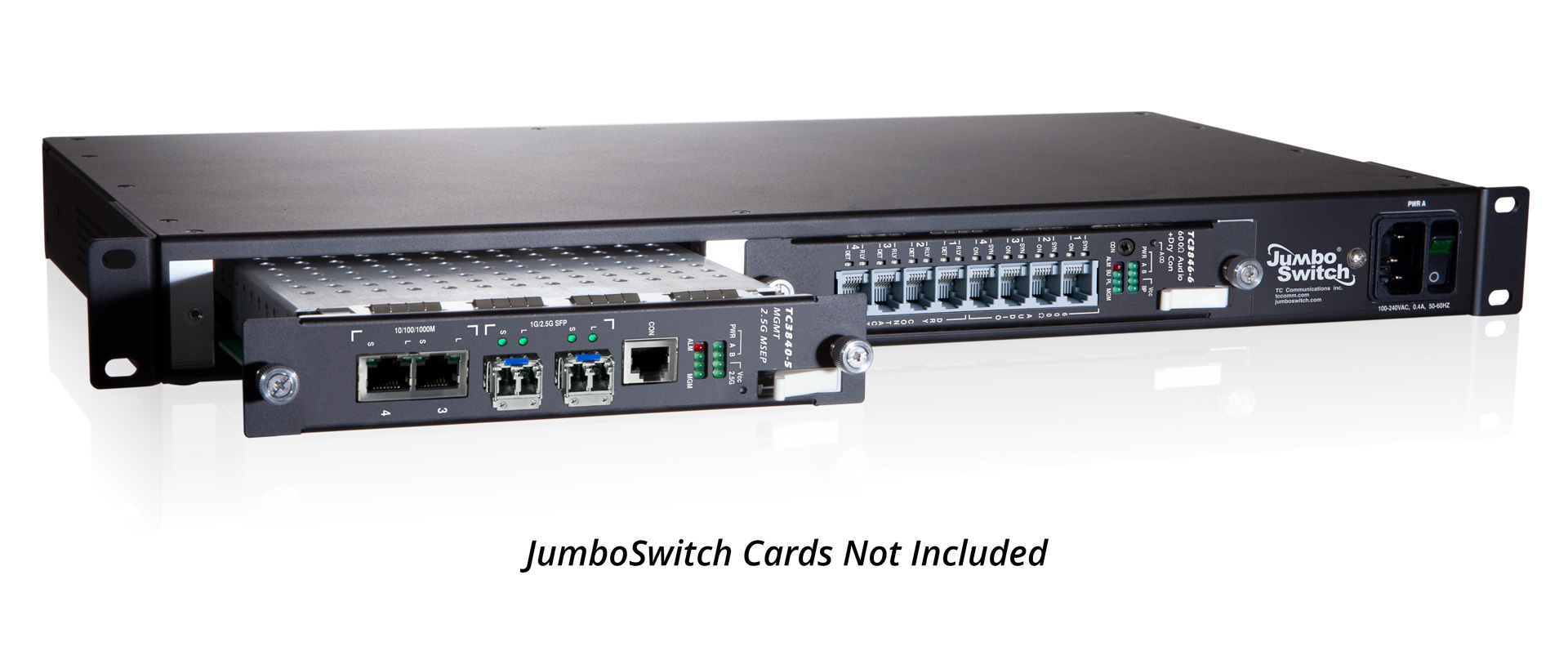

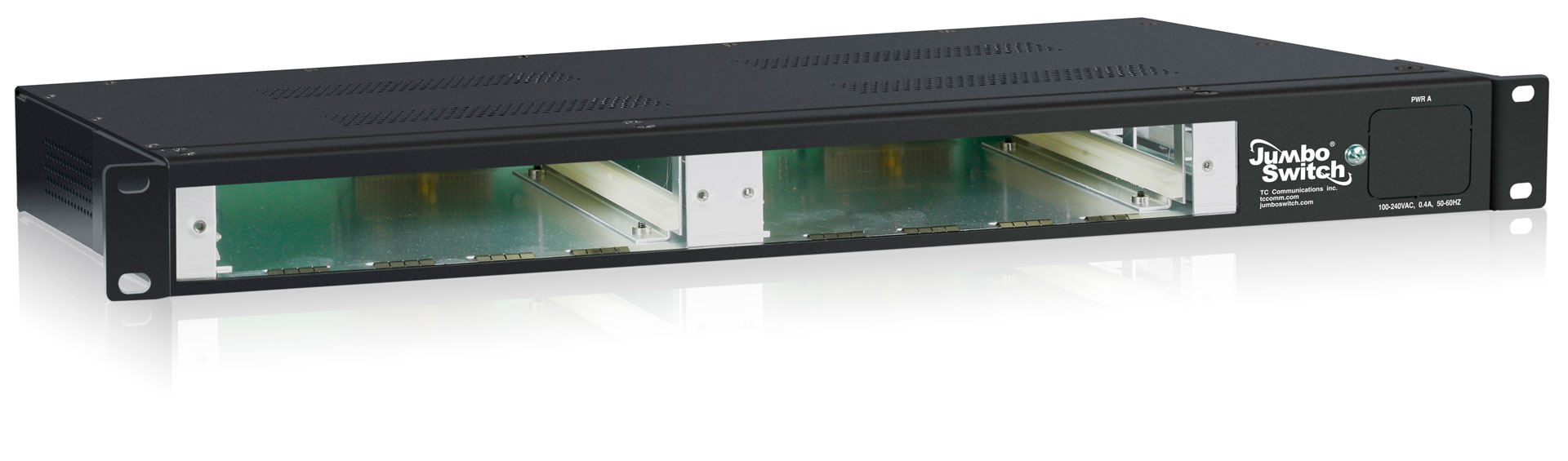

The 1U chassis is 19" wide and holds one Main / Management card and one interface card option.

The TCRM199 holds one Main/Management Combo Card and one interface card. The TCRM199i holds one or two interface cards.

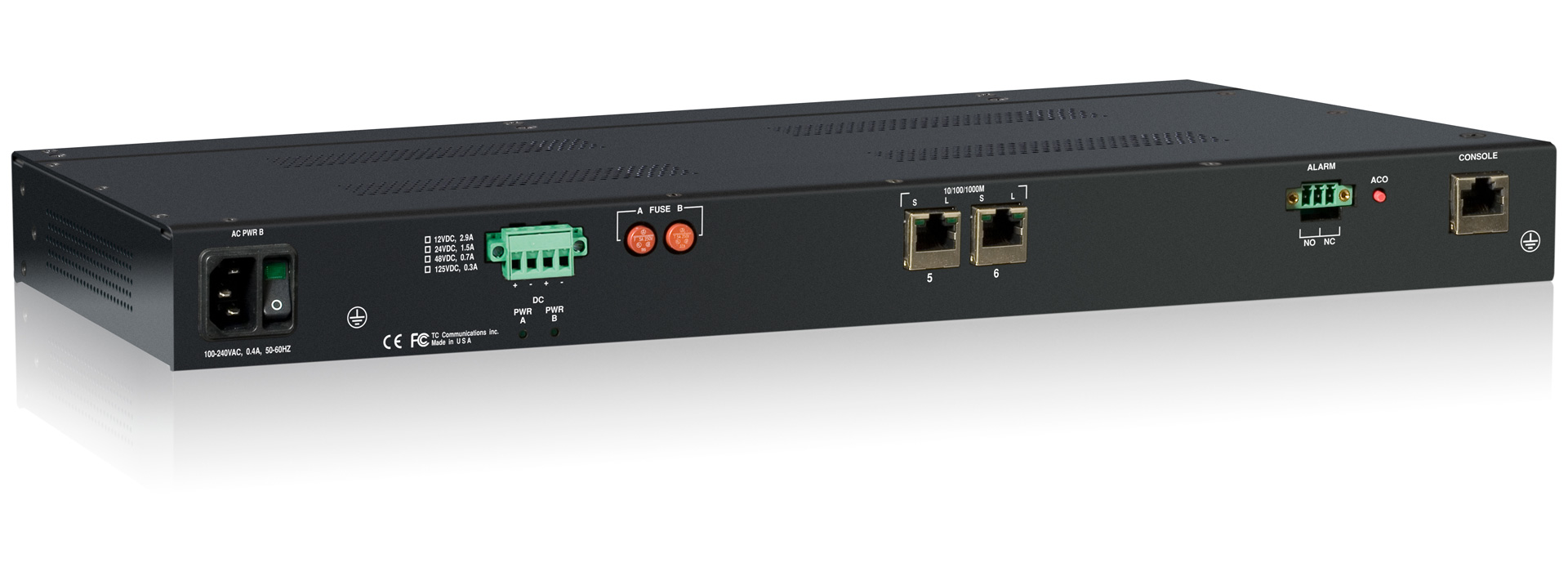

The dual load-sharing power supplies automatically switch over in the event a power failure affects one of the supplies. It should be noted that only one power supply is required to operate a 1U Card Cage. The power supply options are:

  • 12VDC (standard)
  • 24VDC, -48VDC and 125VDC (optional)
  • 115VAC / 230VAC

The power supply (DC only) on the Model TCRM199 can be remotely managed via web, SNMP Serial Console or Telnet. Power supply cycling and monitoring ON/OFF status can be done remotely.

Standard temperature range is -20°C to +70°C and the extreme temperature option is -40°C to +80°C.


For assistance with this product or to request a user manual please contact Technical Support.


Features

  • Ruggedized design for Harsh Environments
  • Cages Hold 1 or 2 Interface Cards
  • Extreme Temperature (-40°C to +80°C) Optional
  • Power Supply Managed via Web, SNMP, Serial Console or Telnet (TCRM199 with DC only)
  • Various AC & DC Power Ranges
  • Built-In Power Redundancy
  • Member of the JumboSwitch® Family

Applications

The TCRM199 Card Cage is designed with sturdy construction to house TC products in standard 19" racks.

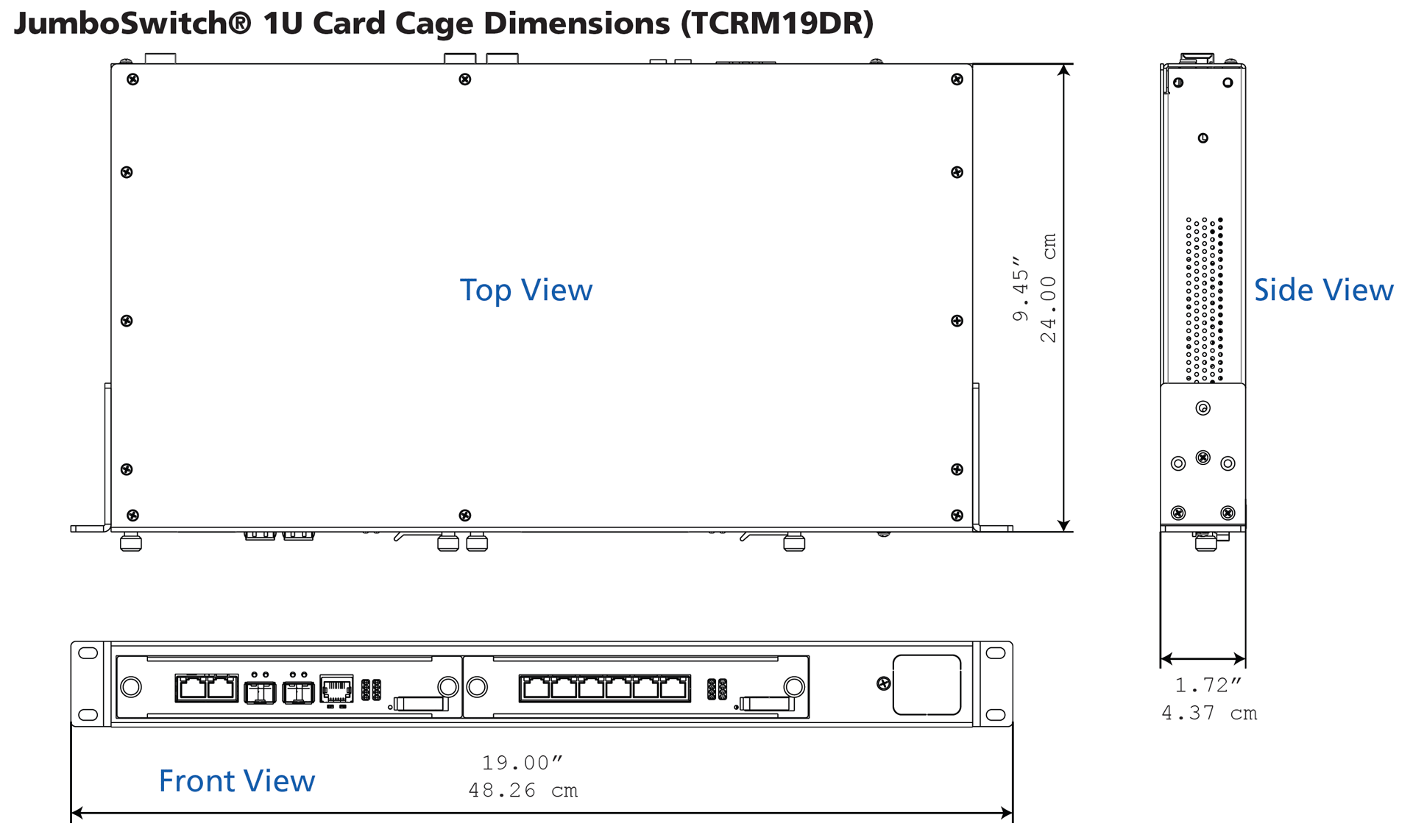

TCRM199 - 1U JumboSwitch Card Cage
Click to enlarge

Specifications

  1. Width19" (48.3 cm)
  2. Height 1.7" (4.3 cm)
  3. Depth10.5" (26.7 cm)
  4. Power SupplySingle 115/240VAC, 24VDC, -48VDC, 125VDC
