TCRM199i

JumboSwitch 1U Standalone Rackmount Card Cage

TCRM199i
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The JumboSwitch® 1U (TCRM199i) rackmount cages are designed to hold JumboSwitch® family hot-swappable cards. The TCRM199i hold one or two JumboSwitch family interface cards.

The dual load-sharing power supplies automatically switch over in the event a power failure affects one of the supplies. It should be noted that only one power supply is required to operate a 1U Card Cage.

The power supply options are:

  • 12VDC (standard)
  • 24VDC, -48VDC and 125VDC (optional)
  • 115VAC/230VAC

Standard temperature range is -20°C to +70°C and the extreme temperature option is -40°C to +80°C.

  • Ruggedized design for Harsh Environments
  • Cages Hold 1 or 2 Interface Cards
  • Extreme Temperature (-40°C to +80°C) Optional
  • Various AC & DC Power Ranges
  • Built-In Power Redundancy
  • Member of the JumboSwitch® Family

Applications

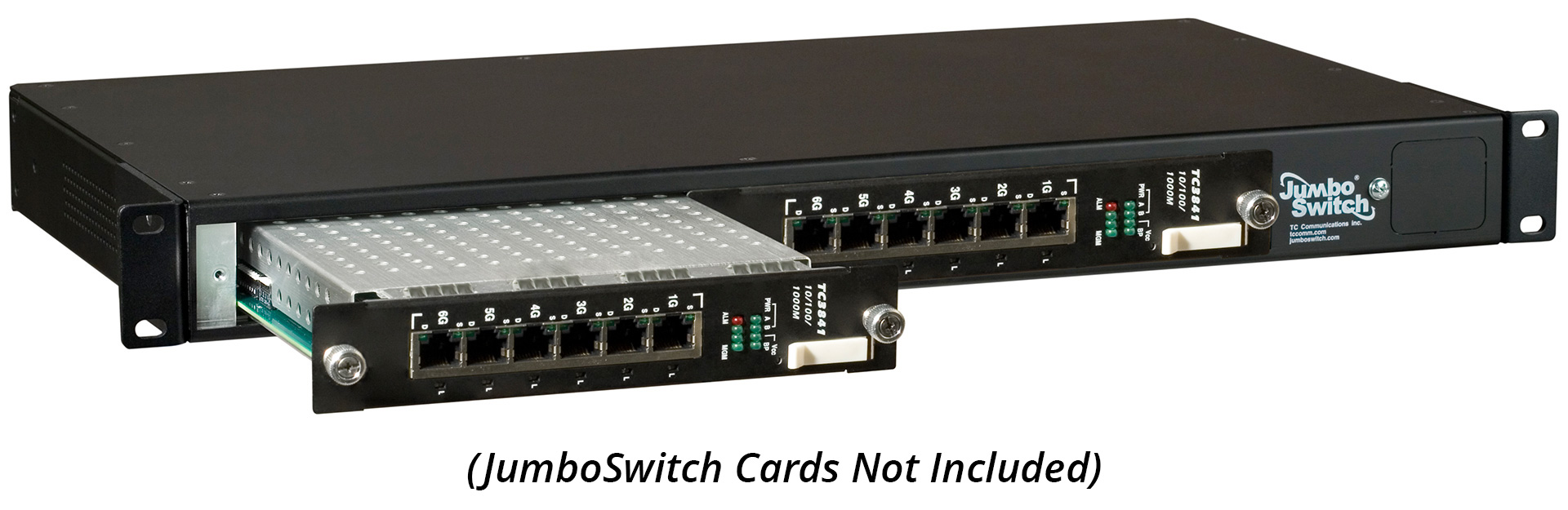

Sturdy and durable, the 1U Card Cage holds 1 or 2 JumboSwitch family interface cards.

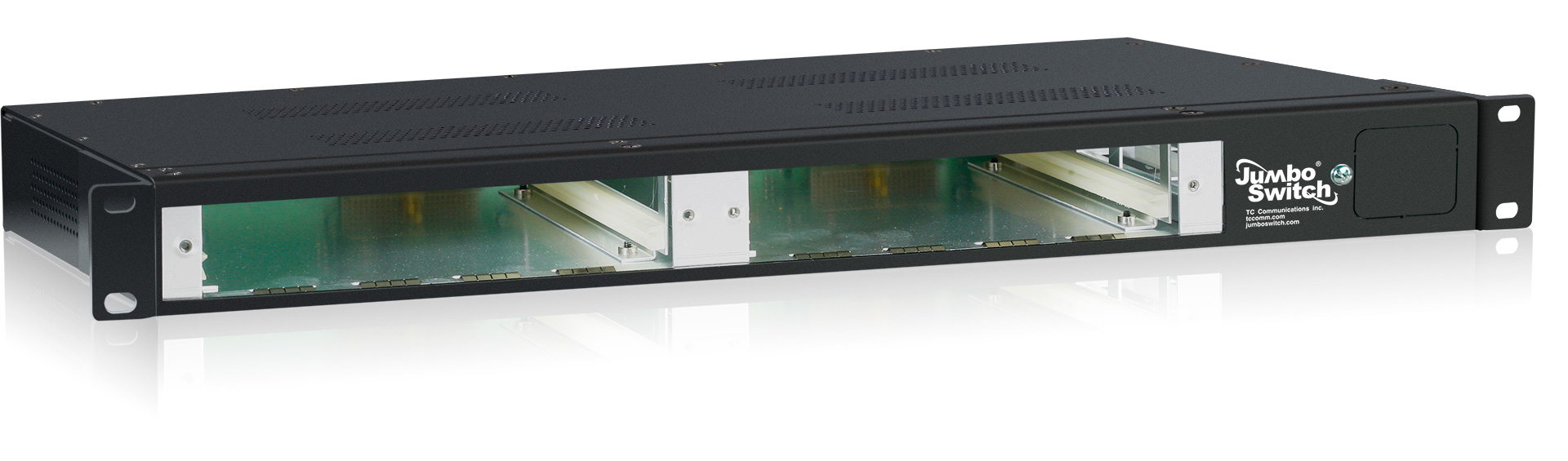

TCRM199i - 1U JumboSwitch Standalone Chassis
Click to enlarge

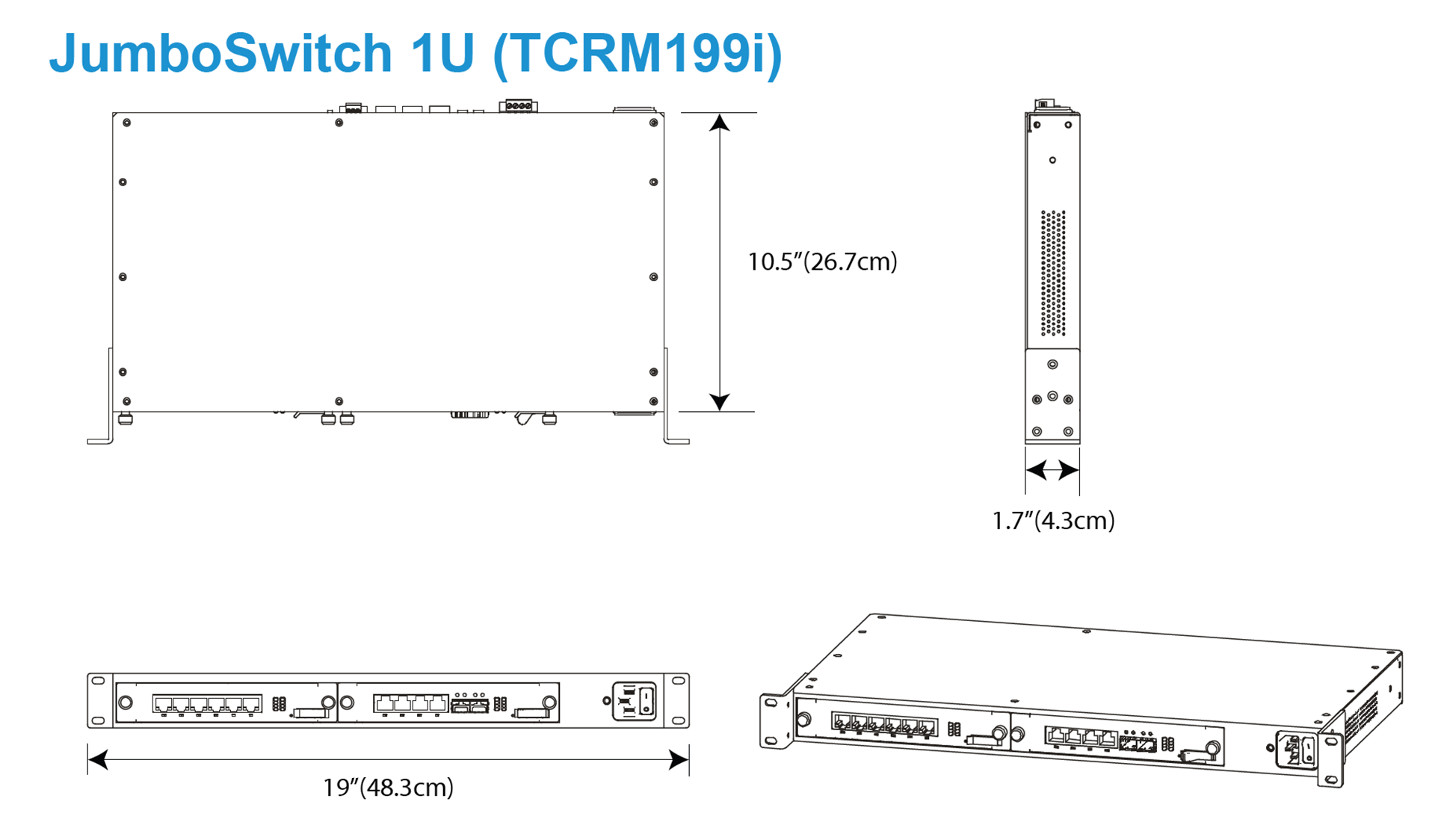

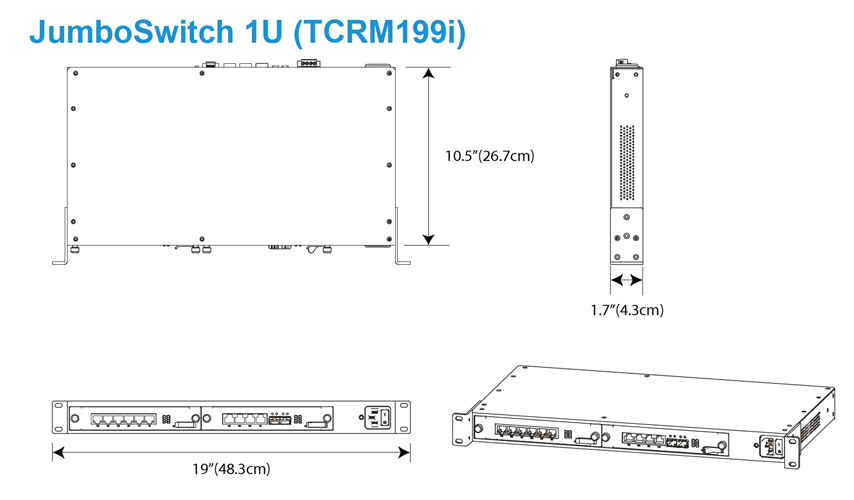

Specifications

  1. Width19" (48.3 cm)
  2. Height 1.7" (4.3 cm)
  3. Depth10.5" (26.7 cm)
