Case Studies:

JumboSwitch® Provides G.703-to-Ethernet Link for Teleprotection Communication in MPLS Network

Situation

A large Power Transmission Utility in Alberta, Canada needed a G.703 to Ethernet interface for substation-to-substation teleprotection communications within it's MPLS network.

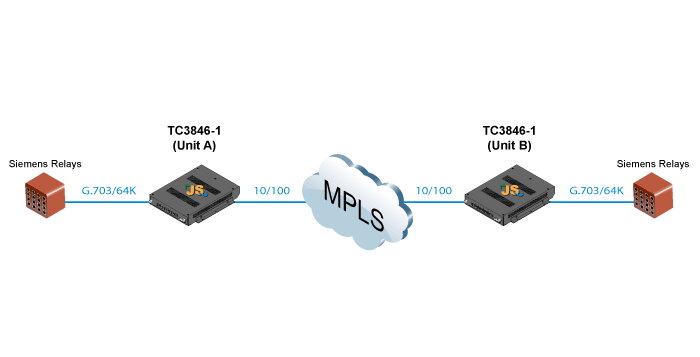

Specifically, it needed to link Siemens Relays between substations with a delay of less than 10 msec. (end-to-end). Other requirements included -48V power and an extreme temperature (-40ºC to +80ºC) options to withstand harsh winter conditions

Solutions

After extensive testing, the G.703/64K-to-Ethernet card offered on TC Communications’ JumboSwitch® Multi-Service Ethernet Platform emerged as the solid choice.

The JumboSwitch®’s TC3846-1 interface card met all of the Power Utility’s latency, power and environmental requirements. End-to-end latency was less than 8 msec. and temperature specifications were -40ºC to +80ºC degrees. The TC3846-1 also provided built-in management capability (web GUI).

In addition, TC LateView, a software program which works in conjunction with the TC3846-1 card, enabled the Power Utility to monitor real time latency on its Ethernet network. With TC Lateview, the Power Utility has the confidence of immediately accessing current and historic network delay readings on the TC3846-1.
