TC3847-4

2-Channel RS-422 Sync Serial over IP Gateway

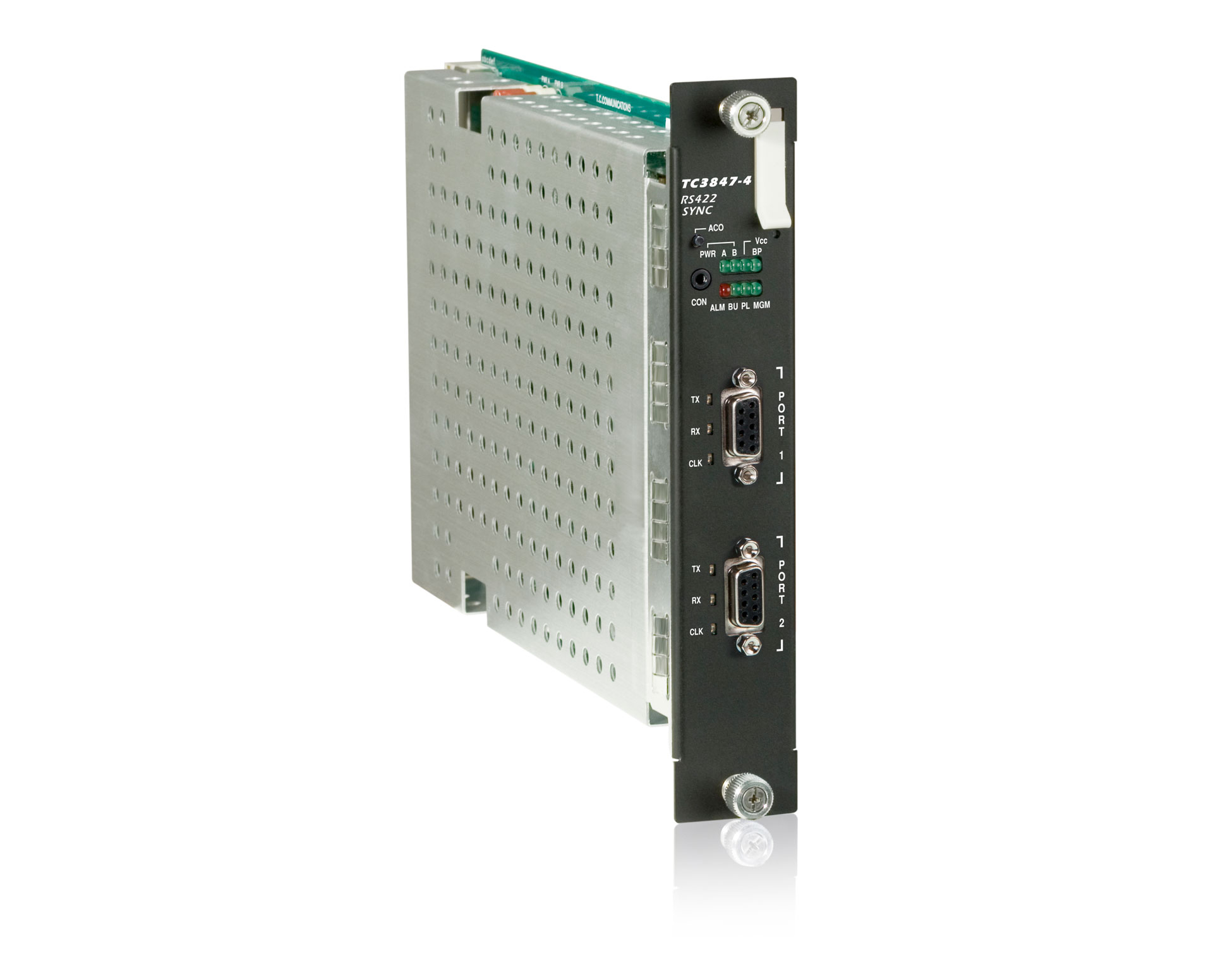

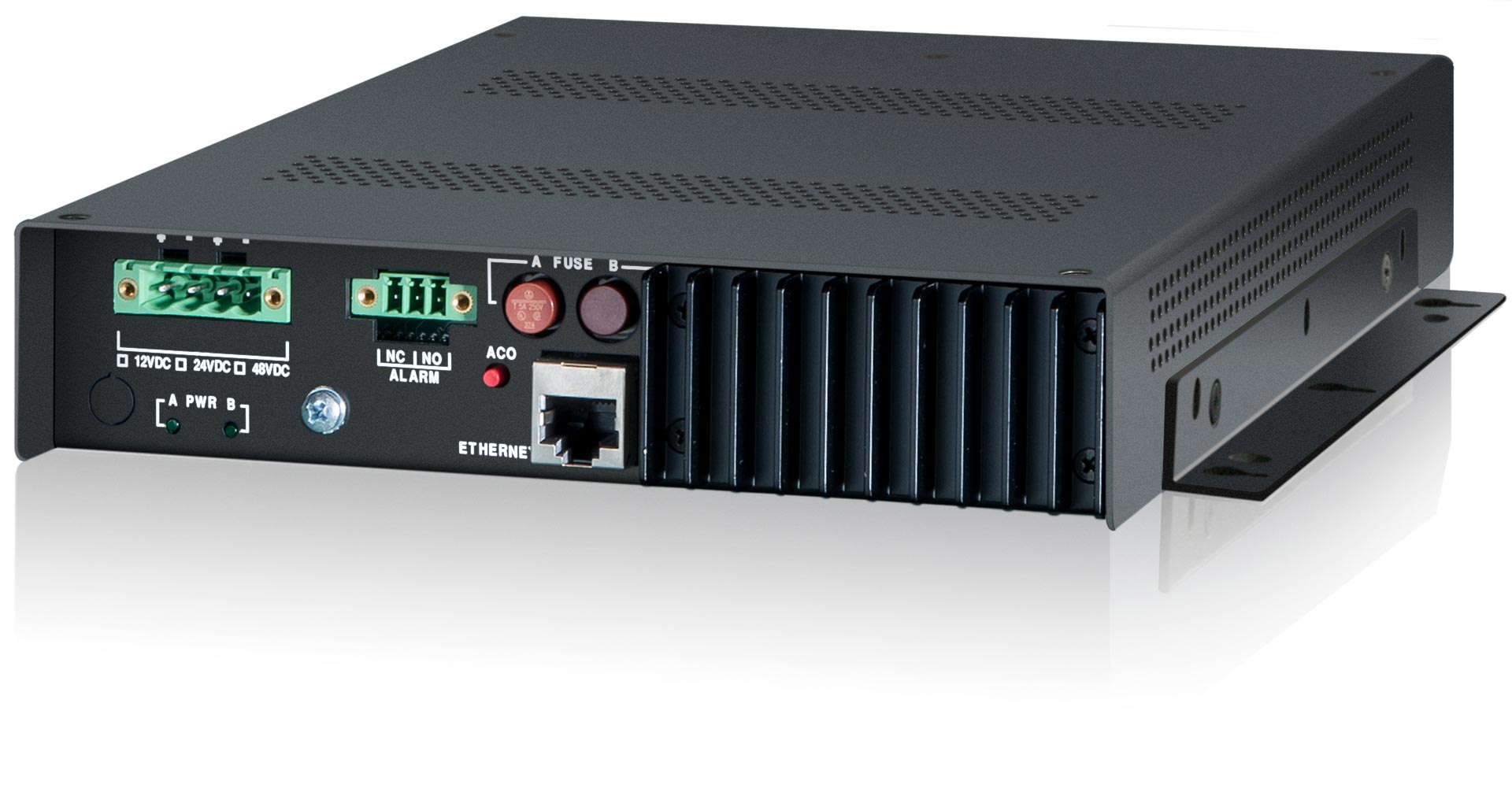

TC3847-4
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

Featuring support for teleprotection relays, the TC3847-4 RS-422 Gateway Card transports 2 channels of RS-422 Sync serial data over existing Layer 2/Layer 3 networks.

The JumboSwitch® series is a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN). TDM over IP/Ethernet is a TDM pseudowire (PW) technology making it possible to provision E1, T1, E3, T3, STS-1 and serial data services across PSN's such as IP, MPLS or layer 2 Ethernet Networks.

  • 2-Channel RS-422 Sync Serial
  • Extremely Low Latency
  • VLAN QoS Support
  • Increased Security Features
  • Temperature & Power Consumption Monitoring
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEEE 1613 & NEMA TS-2 Standards

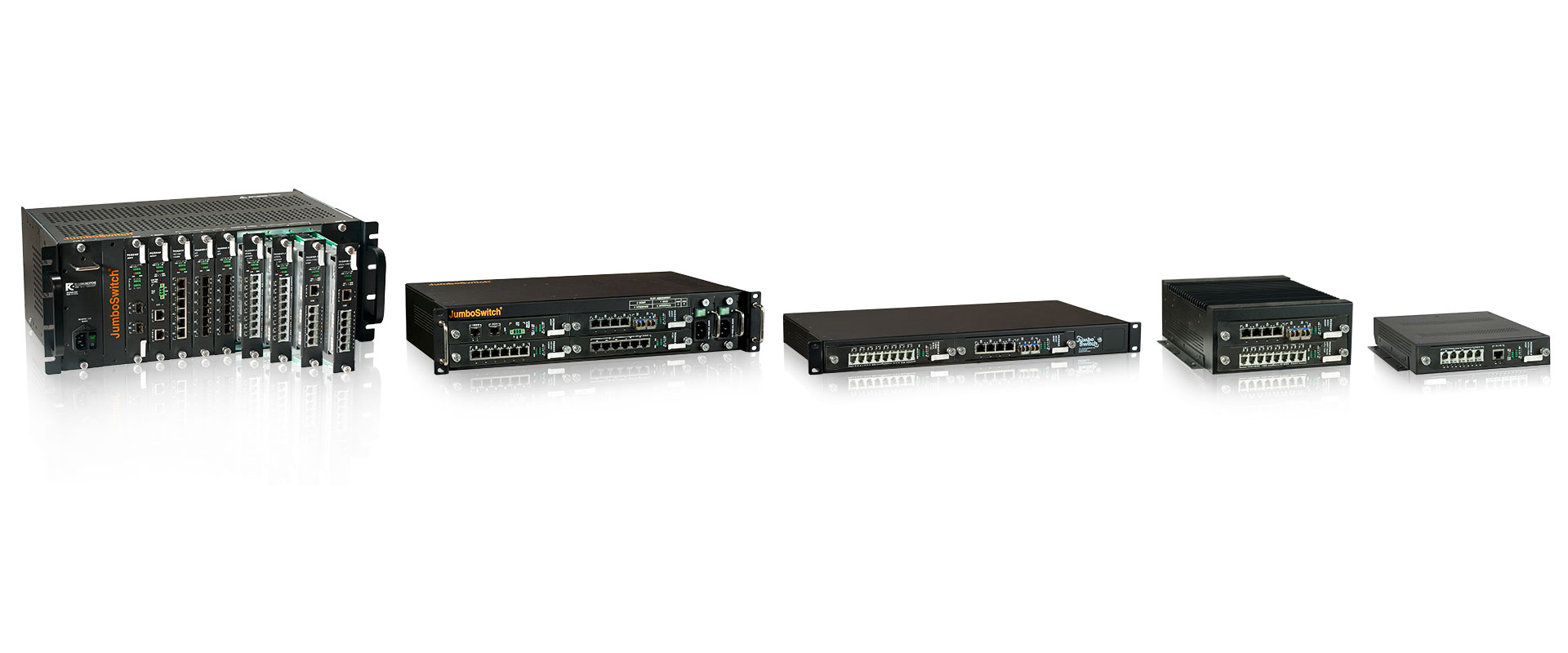

  • Member of JumboSwitch® Product Family

Applications

Typical applications include extending serial data across IP networks.

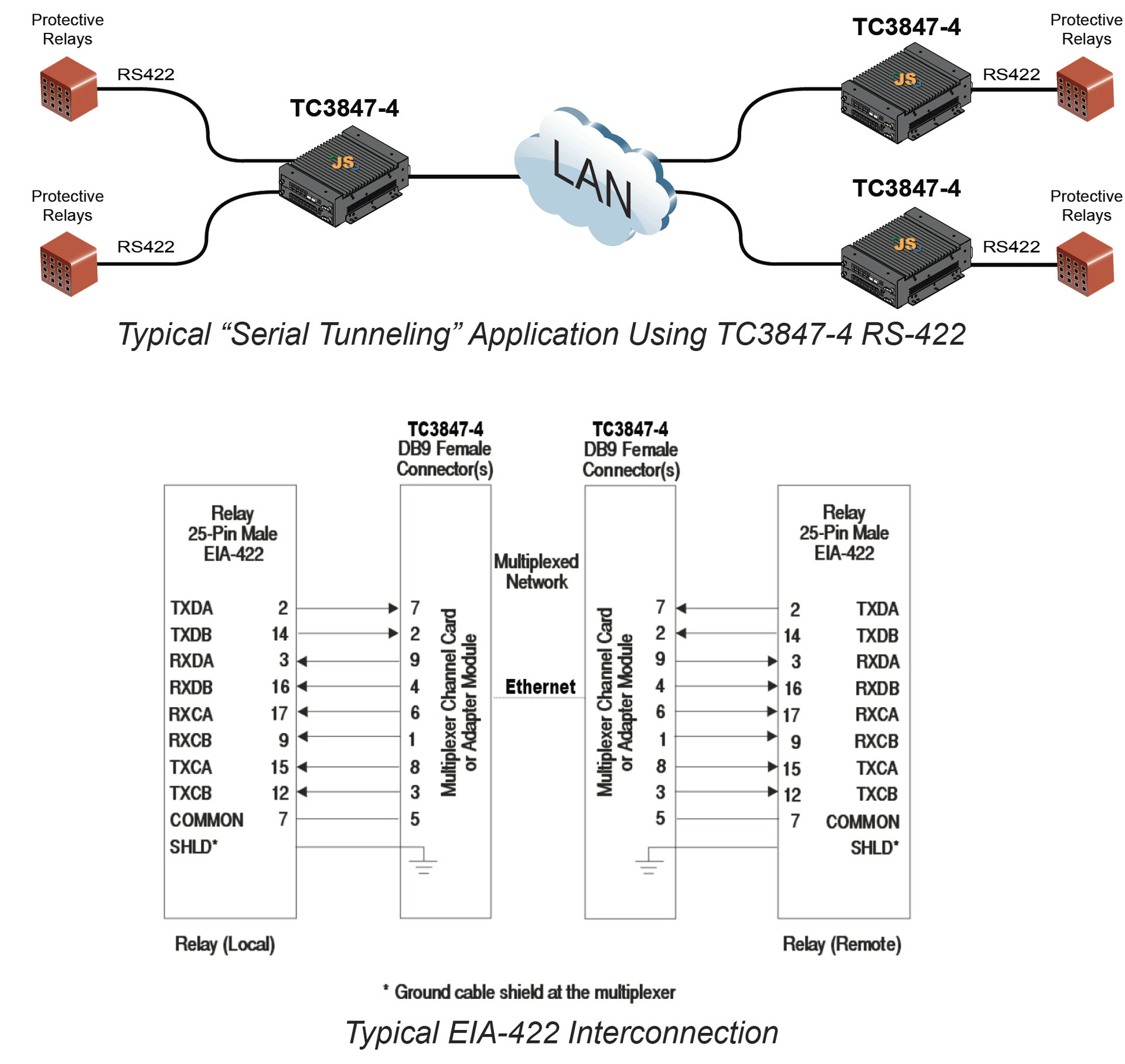

For example, the TC3847-4 is often used to extend RS-422 signals from one protection relay to another across Layer 2/Layer 3 Networks.

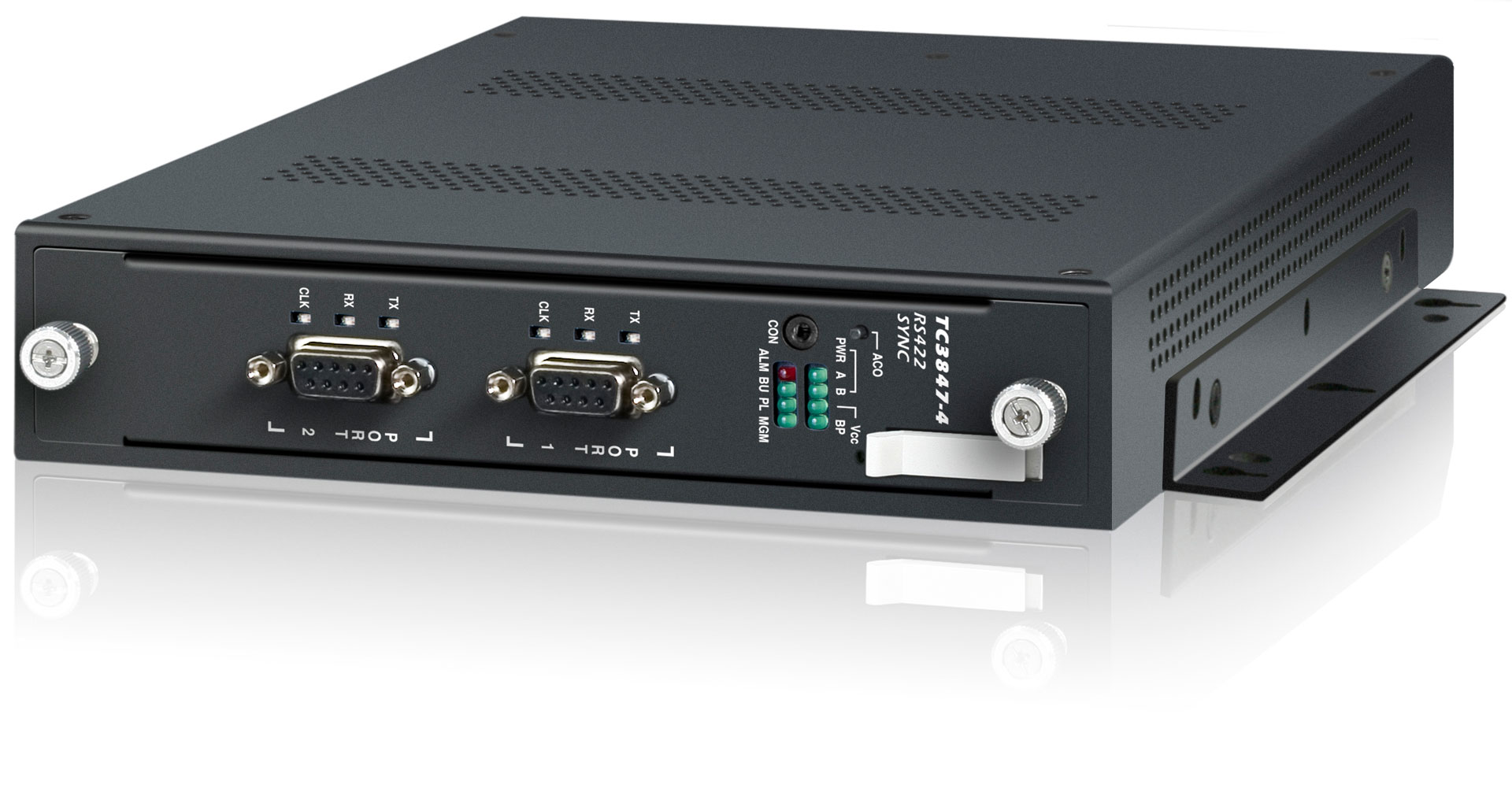

TC3847-4 - 2-Ch. RS-422 Sync
Click to enlarge

Specifications

Connection Capacity
  1. RS-4222 Ports
  2. Ethernet1 Port
Electrical
  1. RS-422 Interface
  2. Baud Rate64 Kbps to 2 Mbps
  3. ClockCentral Directional
  4. ESD Protection+/-15KV HBM
  5. ConnectorDB9F
  6. Ethernet Interface
  7. StandardsIEEE 802.3, 802.3u
  8. ConnectorRJ45
  9. Console Interface
  10. Console Port2.5mm Audio Jack
Standard Compliance
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, IEC 60834

Diagnostic Functions
  1. Local and Remote Loopback for Serial

LEDs
  1. Unit StatusPWR (A, B), Alarm, BU, PL, Vcc, BP, MGM
  2. ChannelTX, RX, CLK
Power
  1. Standard12VDC
  2. Optional24VDC, -48VDC, 125VDC (1U/ 2U/ 4U only), or 90/260VAC, 50/60Hz
  3. Power Consumption<10W
Operating Temperature
  1. Standard Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage Temperature
  1. Storage-40°C to 90°C
  2. Humidity95% non-condensing
Physical (rack mount card))
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs
* Contact factory for higher requirements
