TC3844-1

Ethernet / IP-over-T1/ E1

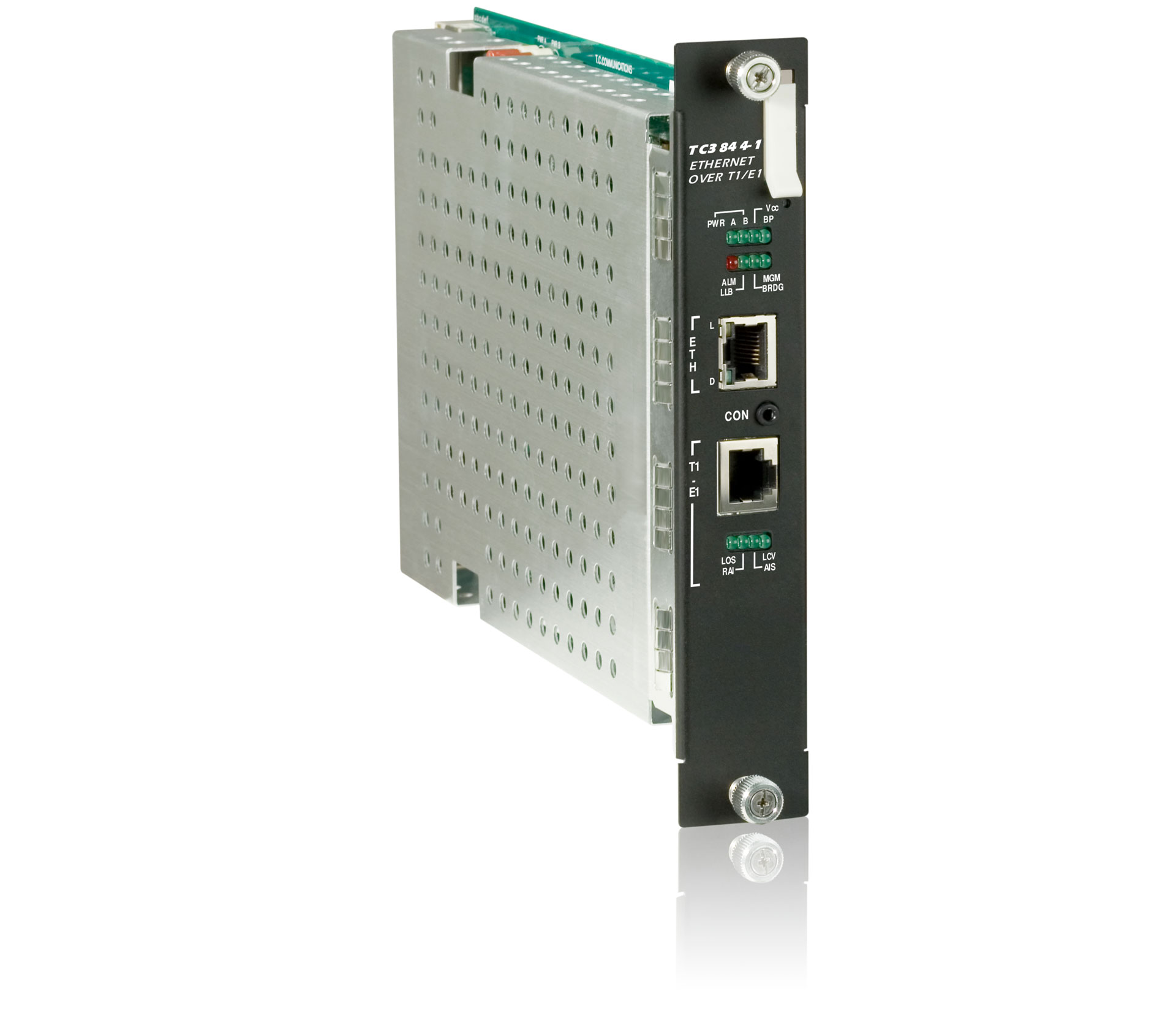

TC3844-1
Rollover or Touch for Expanded View. Scroll to Zoom.

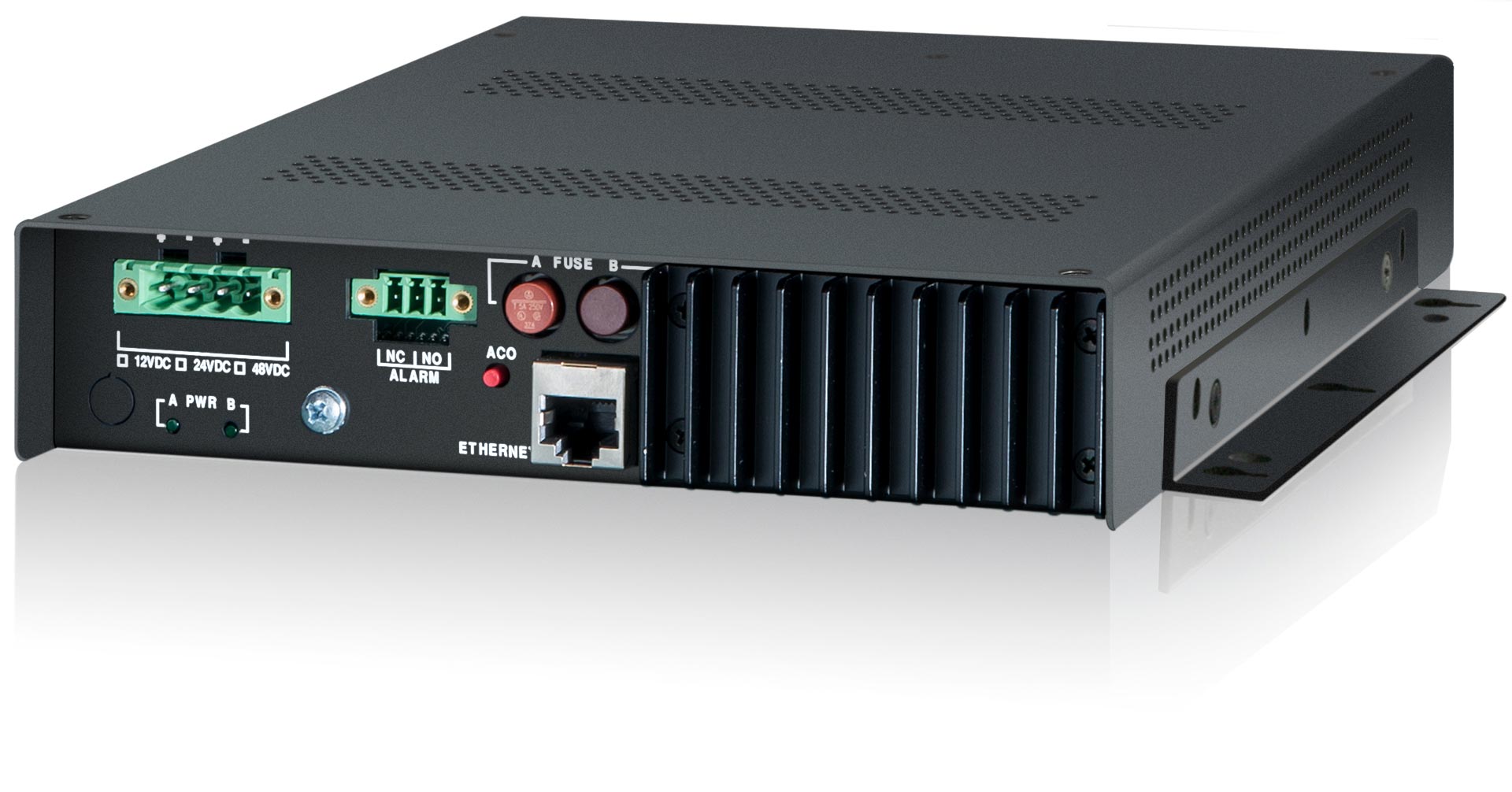

Features

JumboSwitch® offers an Ethernet-over-T1/E1 card that connects a JumboSwitch® network or any third party Ethernet networks over existing T1/E1 circuits.

The JumboSwitch® series is a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN). TDM over IP/Ethernet is a TDM pseudowire (PW) technology making it possible to provision E1, T1, E3, T3, STS-1 and serial data services across PSN's such as IP, MPLS or layer 2 Ethernet Networks.

  • Fast Ethernet Transport over Framed & Unframed T1 or E1
  • IEEE 801.p QoS with Four Queues
  • Ethernet and T1/E1 Statistics Monitoring
  • VLAN Tagging and Priority Labeling
  • Manage Via Web, SNMP, Serial Console, Telnet
  • Temperature & Power Consumption Monitoring
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEEE1613 & NEMA TS-2 Standards
  • Member of the JumboSwitch® Product Family

Applications

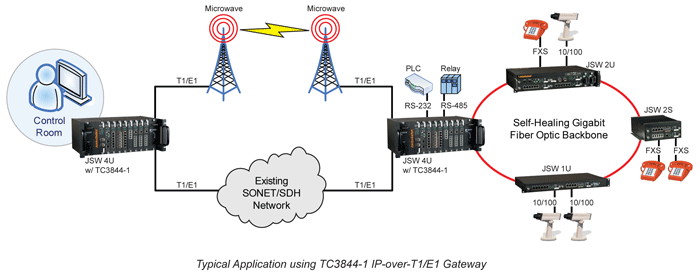

  • Bridging Ethernet LANs over Existing T1/E1 Telecom Network
  • Extending Ethernet Networks by Utilizing TDM Telecom Infrastructure (i.e. T1/E1 Landline, or T1/E1s/SDH Microwave Carrying T1/E1)
  • Demarcation Between the Carrier’s and Customer’s Networks
  • Bonded Transparent LAN Service

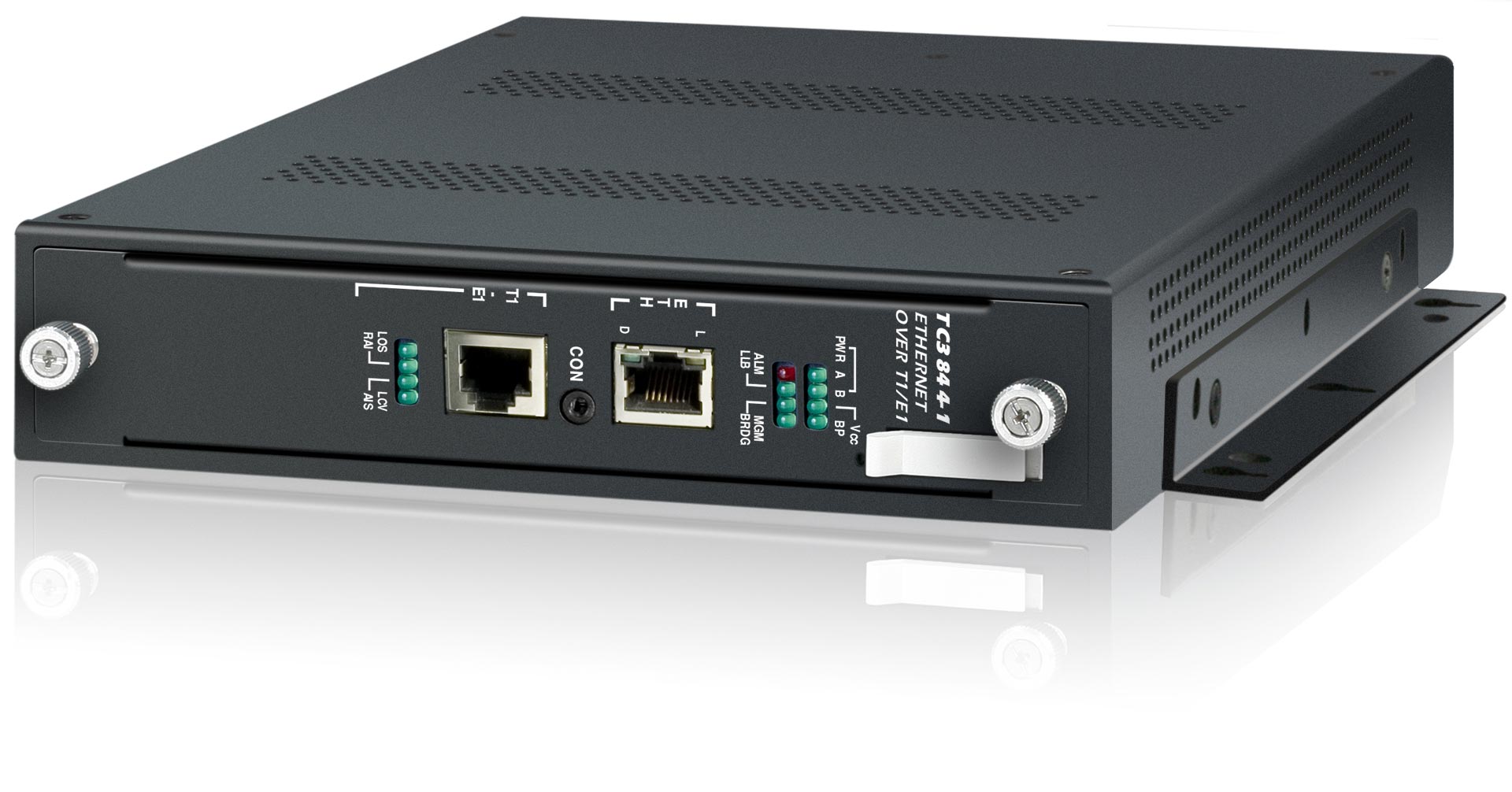

TC3844-1 - Ethernet-over-T1/E1
Click to enlarge

Specifications

Electrical
  1. T1 Interface
  2. ConnectorElectrical, RJ-48
  3. Line Termination100Ω, balanced
  4. Data Rate1.544Mbps
  5. Line CodeB8ZS
  6. FramingUnframed D4 ESF SLC-96
  7. ComplianceANSI T1.102, 403 ITU-T G.703, 736, 823
  8. E1 Interface
  9. ConnectorElectrical, RJ-48
  10. Line Termination120Ω, balanced, 75Ω, unbalanced via RJ-48 to BNC adapter cable
  11. Data Rate2.048Mbps
  12. Line CodeHDB3
  13. Framing: Unframed FAS CRC-4 multiframe G.732 CA multiframe
  14. ComplianceITU-T G.703, 704, 736, 823
  15. Ethernet Interface
  16. ConnectorElectrical, RJ-45
  17. Type10/100Base-T
  18. ComplianceIEEE 802.3
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
LEDs
  1. ALM, RLB, MS, D (Duplex), L (Link), PWR A, PWR B, CS, LOS, B8ZS/HDB3, AIS, BPV
Power
  1. Standard12VDC
  2. Optional24, -48 VDC 90-260 VAC, 50/60Hz
  3. Power Consumption < 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (rack mount card)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs
