TC3840-4 and -2

Main and Management Individual Interfaces w/ Four 10/100/1000 Ethernet Ports

TC3840-4 and -2
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

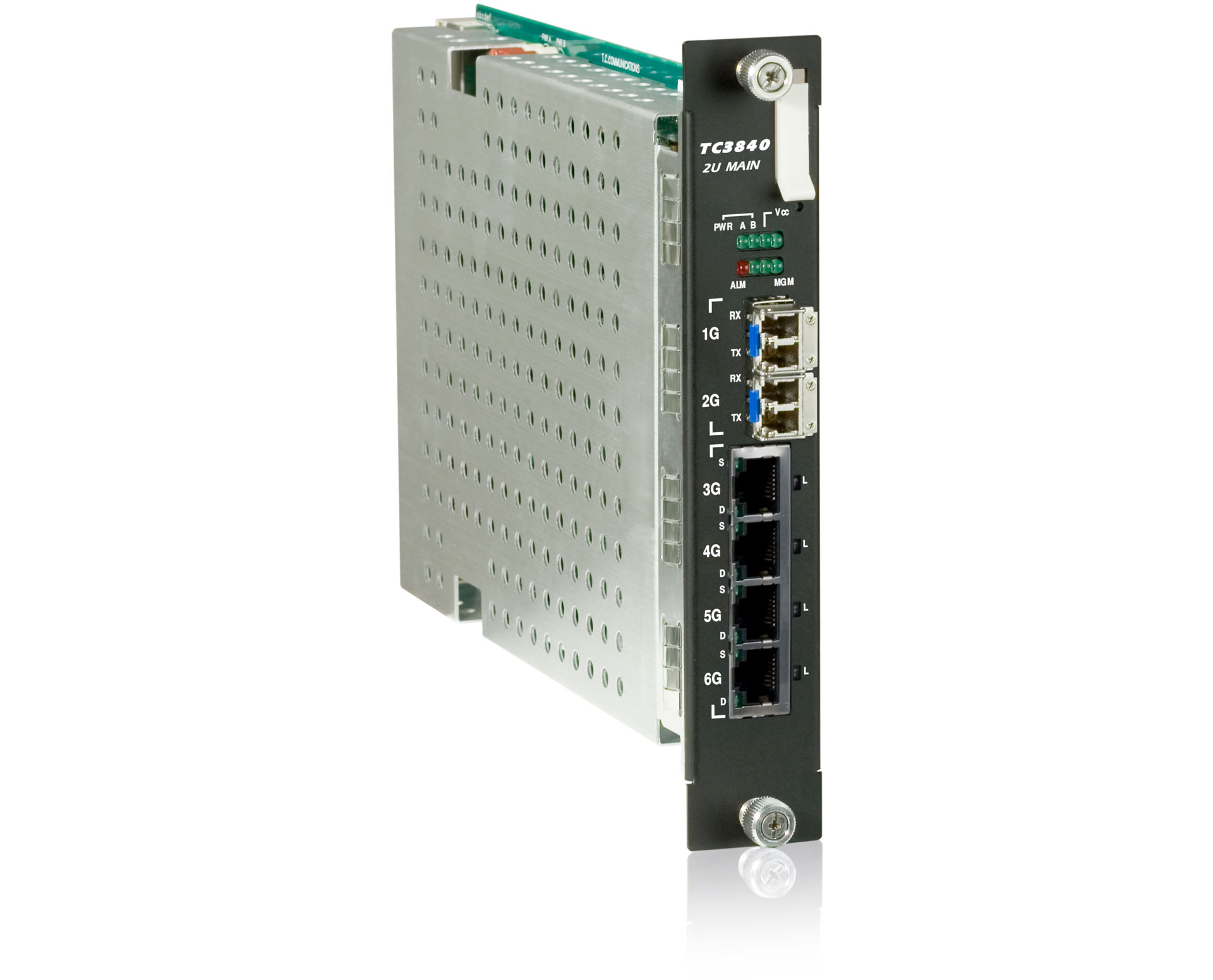

Designed specifically for 2U chassis options, the JumboSwitch Main (TC3840-4) and Management (TC3840-2) plug-in cards provide layer 2 switching functionalities and the central switching fabric for JumboSwitch interface cards. Each 2U chassis must include both a Main and a Management card to function properly.

Notice: Product End of Life
(07/22/2022) for new applications use TC3840-5

Optional interface cards communicate with the Main and Management Cards through the backplane, which contain both Data & Control buses. Together, the Main and Management cards provide the "intelligence" for the entire JumboSwitch network platform and serve as both the JumboSwitch’s central processing unit and as the control bus access point for JumboSwitch management.

  • Provides Layer 2 Switching Functionality
  • Fully Managed via Web, CLI, Telnet & SNMP
  • 2-Port SFP + 4-Port 10/100/1000 Gigabit for the Main Card
  • 1-Management Port and 1-Console Port for the Management Card
  • Built-In Power/Temperature Sensors
  • Industrial Hardened & IEC 61850-3, IEEE 1613 & NEMA TS-2

Applications

Notice: Product End of Life
(07/22/2022) for new applications use TC3840-5

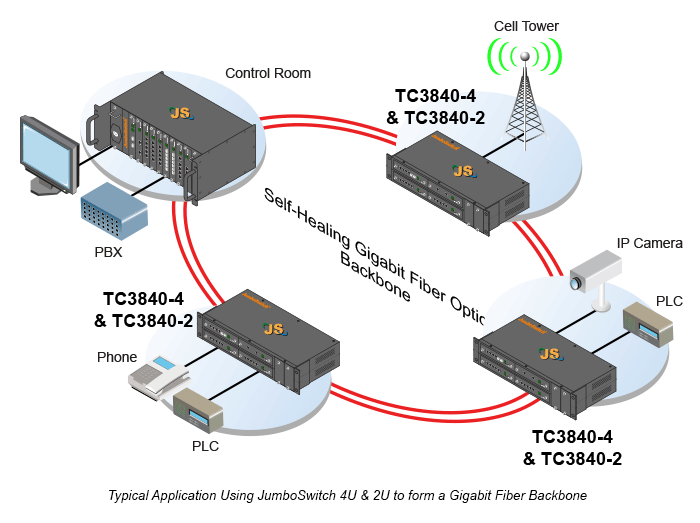

All JumboSwitches must include Main and Management plug-in cards to operate properly. The Management Card functions as the JumboSwitch’s central processing unit and the Main Card is the control bus access point for JumboSwitch management. Together, these cards provide the "intelligence" for the entire JumboSwitch network platform.

Because the Model TC3840-4 Main Card also provides two SFP Gigabit ports and four copper 10/100/1000 Ethernet ports, it benefits users by enabling space for another interface card or eliminating the need for an additional Ethernet card. (The JumboSwitch 2U chassis can hold 1 main, 1 management and up to 2 interface cards).

TC3840-4 and -2 - Main & Mgmt for 2U Chassis Only
Click to enlarge

Specifications

Notice: Product End of Life
(07/22/2022) for new applications use TC3840-5
Data Rates
  1. 10/100/1000 Mbps with Rate ControlYes
Main Card
  1. Optical
  2. TransmitterELED/LASER*
  3. ReceiverPIN Diode
  4. Wavelength
  5. SFP850nm MM
  6. SFP1300/1550nm SM
  7. SFP Optic
  8. ConnectorsLC
  9. Port2
  10. Interface1000SX/LX
  11. Electrical
  12. ConnectorsRJ45 Female
  13. Port4
  14. Interface10/100/1000Base-T
MGMT Card
  1. Management Ports
  2. ConnectorRJ45 Female
  3. Port1
  4. Console Port
  5. ConnectorRJ45 Female
  6. Port1
System
  1. Bit Error Rate1 in 1010or Better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
Diagnostic Functions
  1. Traffic Statistics, Launch Power/Sensitivity, Temperature
LEDs
  1. Main
  2. PWR (A,B), Vcc, ALM, MGM, Speed, Duplex, Link/ActYes
  3. MGMT
  4. PWR (A,B), Vcc, BP, ALM, MGM, SHRYes
  5. MSTR, SYSTEM ALARM, Link/Act, SpeedYes
Power
  1. Standard15W
  2. Option12, 24, -48, 125VDC or 115/230 VAC, 50/60Hz
Operating Temperature
  1. High Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Storage
  1. Height(3.2 cm) 1.25”
  2. Width(17.8 cm) 7.0”
  3. Depth(23.5 cm) 9.25”
  4. Weight(0.5 kg) 1 lbs*
*Contact factory for higher requirements

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
