TC3840U

JumboSwitch 24-Port Ethernet Switch

TC3840U
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The JumboSwitch® TC3840U is a Layer 2 Ethernet Switch with 22 Gigabit Ethernet ports and 2 Gigabit SFP ports with 2.5G capability for connecting up and down nodes to form a ring or bus topology

The TC3840U is a new addition to the JumboSwitch line, providing a solution when multiple Ethernet ports are needed.

Features
  • MEF Carrier Ethernet 2.0 Compliant
  • E-Line, E-LAN, E-Tree, and E-Access Services
  • Ethernet OAM Service Assurance
  • Sub-50ms Protection Switching by ITU-T G.8032v2 ERPS
  • IEEE 1588v2 PTP Time Synchronization
  • Temperature, Power Consumption & SFP Monitoring
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEC 60834, IEEE1613 & NEMA TS-2 Standards
  • Fully supports third-party NMS through SNMP compatibility

Applications

The TC3840U is a new addition to the JumboSwitch line, providing a solution where multiple ethernet ports are required. Functionally equivalent to the TC3840-5 management card, but with more Ethernet ports available.

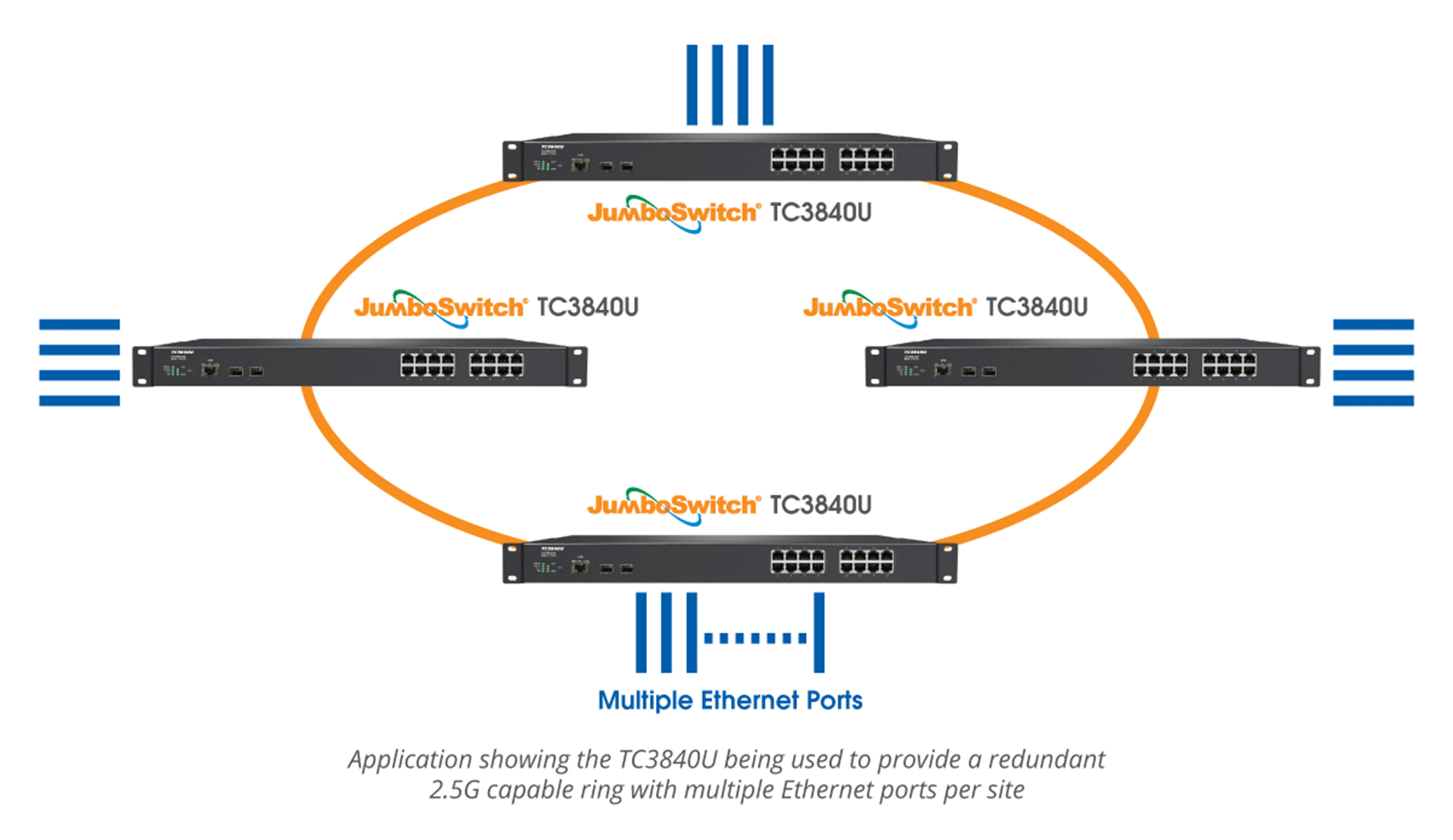

TC3840U application with other JumboSwitch series products
Click to enlarge

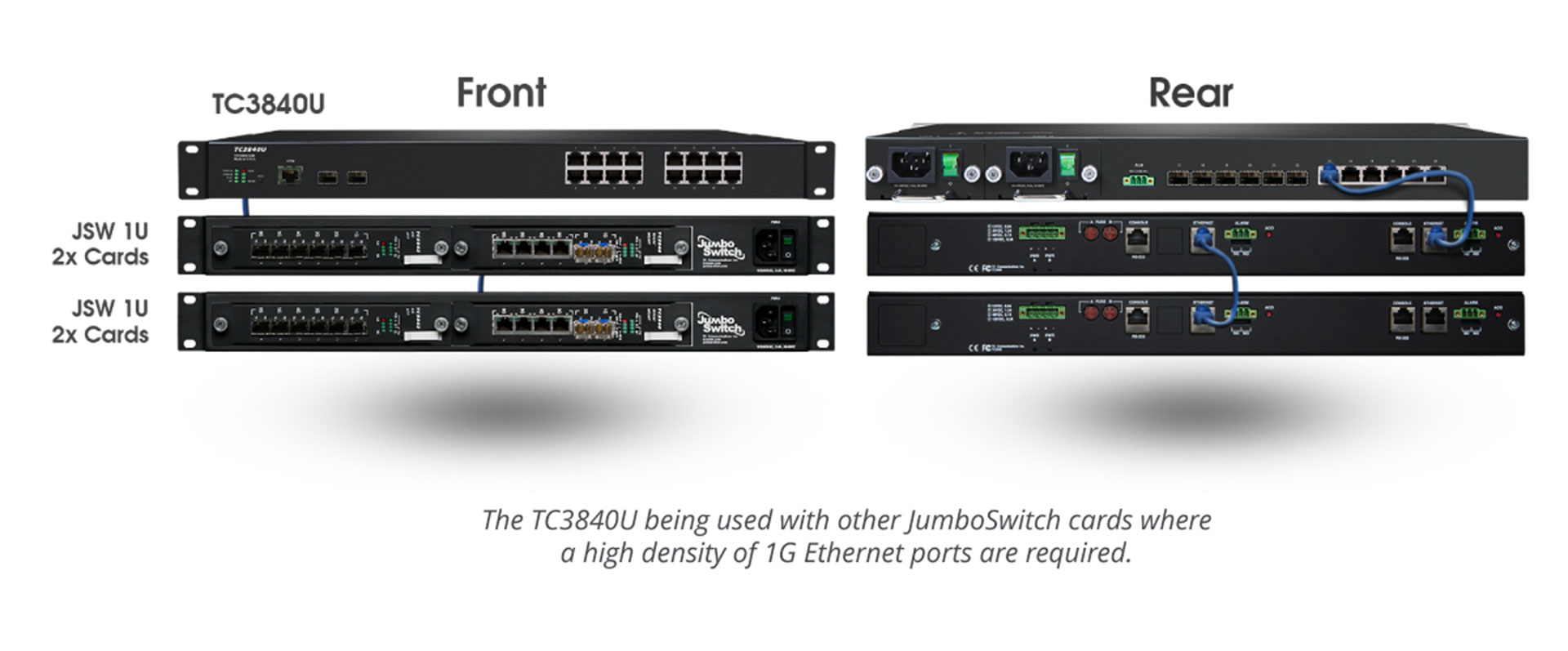

The TC3840U allows full customer integration with new or existing JumboSwitch installations providing customers with ultimate flexability.

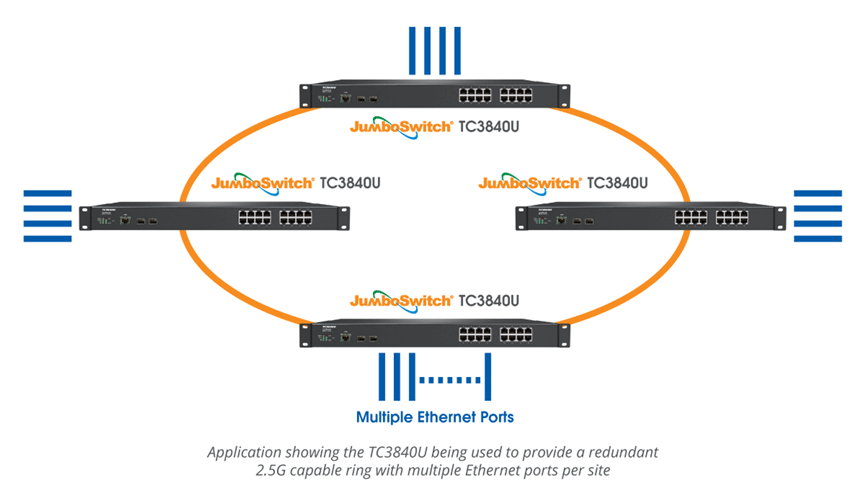

TC3840U - 24 Port Ethernet Switch for 1U Chassis
Click to enlarge

Specifications

Configuration
  • 2-Port GbE SFP (Optional 2.5G)

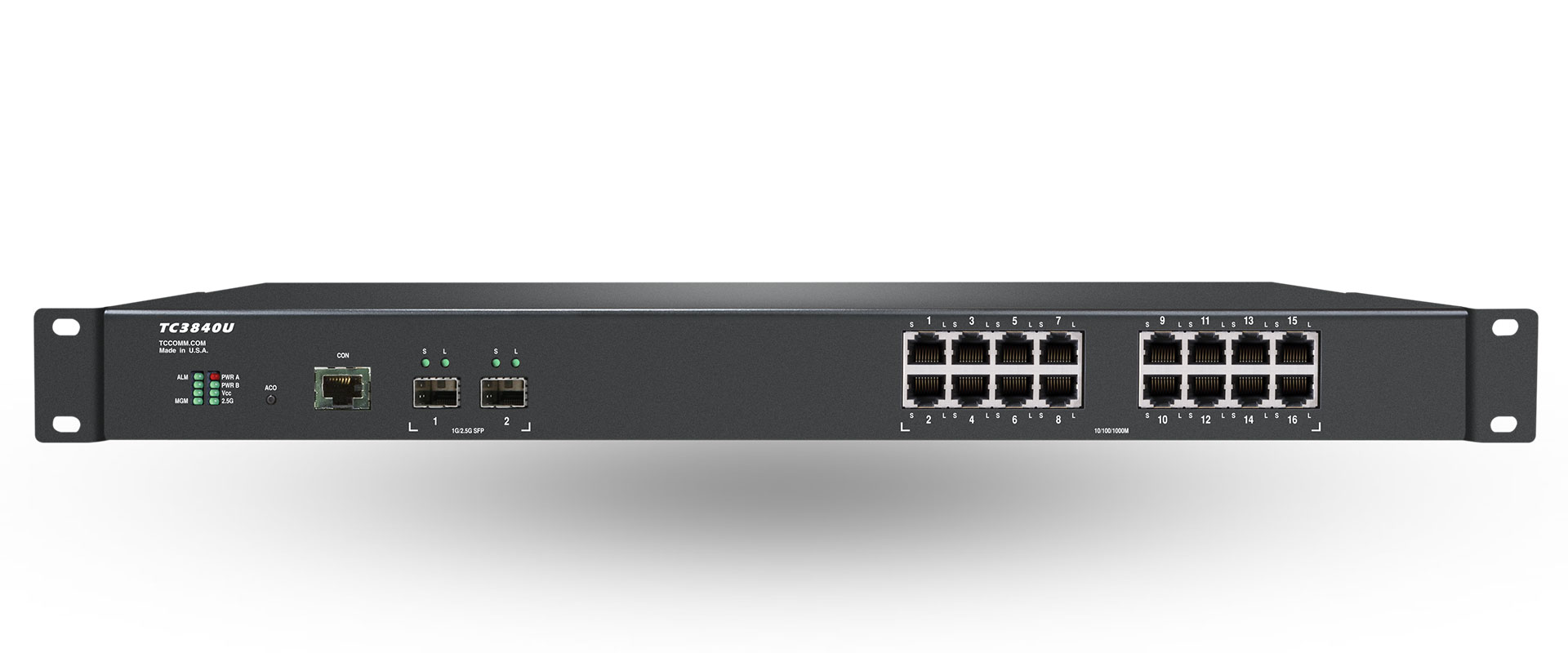

  • 16-Port GbE RJ45 (Front)

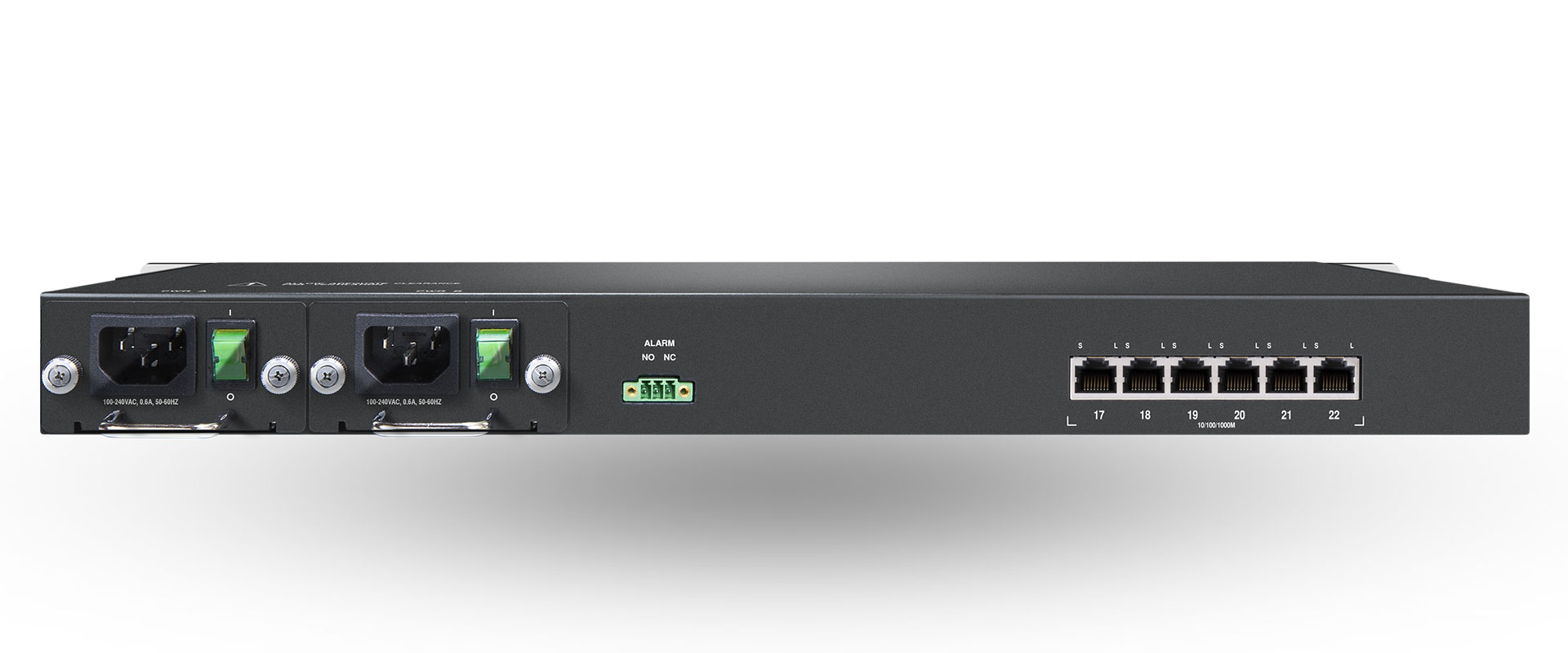

  • 6-Port GbR RJ45 (Back)
  • Member of JumboSwitch® Product Family
Data Rates
  1. SFPup to 2.5 Gbps
  2. RJ4510/100/1000 Mbps
Optical
  1. Wavelength
  2. Multimode850nm
  3. Single Mode1310/1550nm
  4. SFP Optic
  5. ConnectorLC
  6. Port2
  7. SFP I/F1000 BASE-LX/SX, 100FX, 2.5G
Electrical
  1. Ethernet
  2. ConnectorRJ45
  3. Front Port16
  4. Back Port6
  5. Interface1000 Base-T
  6. Console
  7. ConnectorRJ45
  8. Port1
  9. InterfaceRS-232
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA

LEDs
  1. PWR A, PWR B, VCC, MGM, ALARM, LINK, SPEED

Power
  1. AC115/230V, 50/60Hz
  2. DC12/24/48/125V
Operating Temperature
  1. High Temp-20°C to 70°C
  2. Extreme Temp (optional)-40°C to 80°C
Storage
  1. Storage-40°C to 90°C
  2. Humidity95% non-condensing
Physical
  1. Height(4.22 cm) 1.66"
  2. Width(48.26 cm) 19"
  3. Depth(30.5 cm) 12"
  4. Weight(2.49 kg) 5.5 lbs
* Contact factory for higher requirements

Below are SFP module options available. Click on the products to view datasheets.

SFP Modules
Model No. Data Rate Mode Wavelength Distance
760-011S1-00
760-011S1-05 		1.25 Gbps Multimode 850 nm 550 m
760-031S1-00
760-031S1-05		 1.25 Gbps Multimode 1310 nm 2 km
760-050S1-20
760-050S1-25		 155 Mbps Single Mode 1310 nm 20 km
760-050S1-40
760-050S1-45		 155 Mbps Single Mode 1310 nm 40 km
760-051S1-00
760-051S1-05		 1.25 Gbps Single Mode 1310 nm 2km
760-051S1-20
760-051S1-25		 1.25 Gbps Single Mode 1310 nm 20km
760-051S1-40
760-051S1-45		 1.25 Gbps Single Mode 1310 nm 40km
760-071S1-C0
760-071S1-C5		 1.25 Gbps Single Mode 1550 nm 120 km
760-071S1-D0
760-071S1-D5		 1.25 Gbps Single Mode 1550 nm 160 km
760-071S1-G0
760-071S1-G5		 1.25 Gbps Single Mode 1550 nm 200 km
760-071S1-80
760-071S1-85		 1.25 Gbps Single Mode 1550 nm 80 km
760-G57S1-20
760-G57S1-25		 1.25 Gbps Single Mode 1310 nm/1550 nm 20 km
760-G57S1-40
760-G57S1-45		 1.25 Gbps Single Mode 1310 nm/1550 nm 40 km
760-G75S1-20
760-G75S1-25		 1.25 Gbps Single Mode 1550 nm/1310 nm 20 km
760-G75S1-40
760-G75S1-45		 1.25 Gbps Single Mode 1550 nm/1310 nm 40 km
