TC3845-3

T3 / E3-over-Ethernet ( DS3-over-Ethernet ) or Enterprise Networks

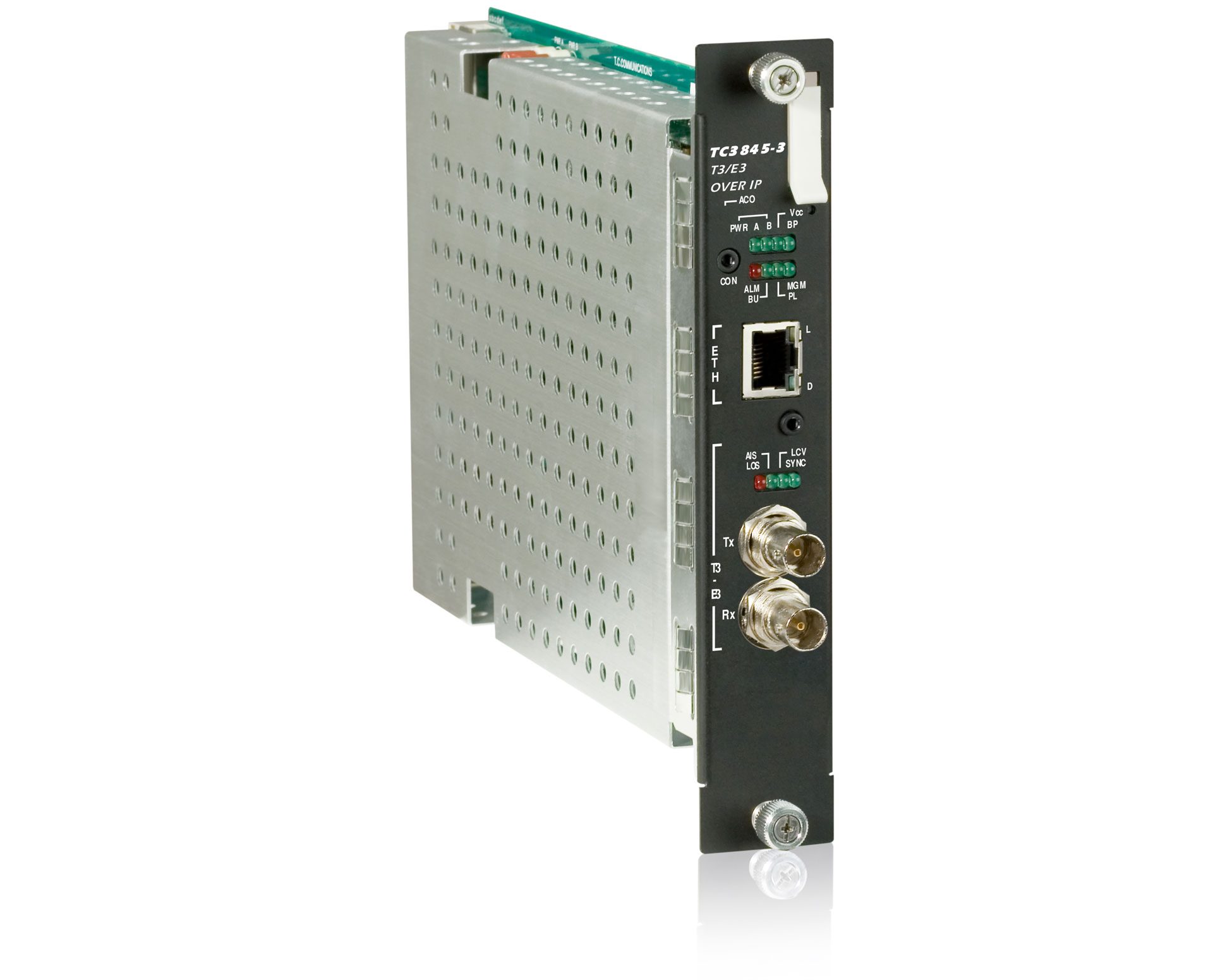

TC3845-3
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

This T3/E3 over IP Gateway transports a single T3 or E3 circuit over Layer 2/3 Ethernet networks with low latency.

Notice: Product End of Life
(10/8/2024)
No replacement planned

It is part of the JumboSwitch® series, a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN).

Typical applications for the TC3845-3 include transporting voice, video, and data across IP networks, such as extending T3/E3 links between PBX’s, connect video conferencing or link Cell Towers to Central Offices, as well as extending T3/E3 links between M13 multiplexers and Routers.

  • Jitter complies with G.823 and G.824 standards.
  • Transports 1 Ch. T3/E3 Over Ethernet/IP
  • Extremely Low Latency
  • Point-to-Point Applications
  • VLAN and QoS Support
  • Manage Via Web, SNMP, Serial Console, Telnet
  • Built-In Temperature & Power Sensors
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEEE1613 & NEMA TS-2 Standards

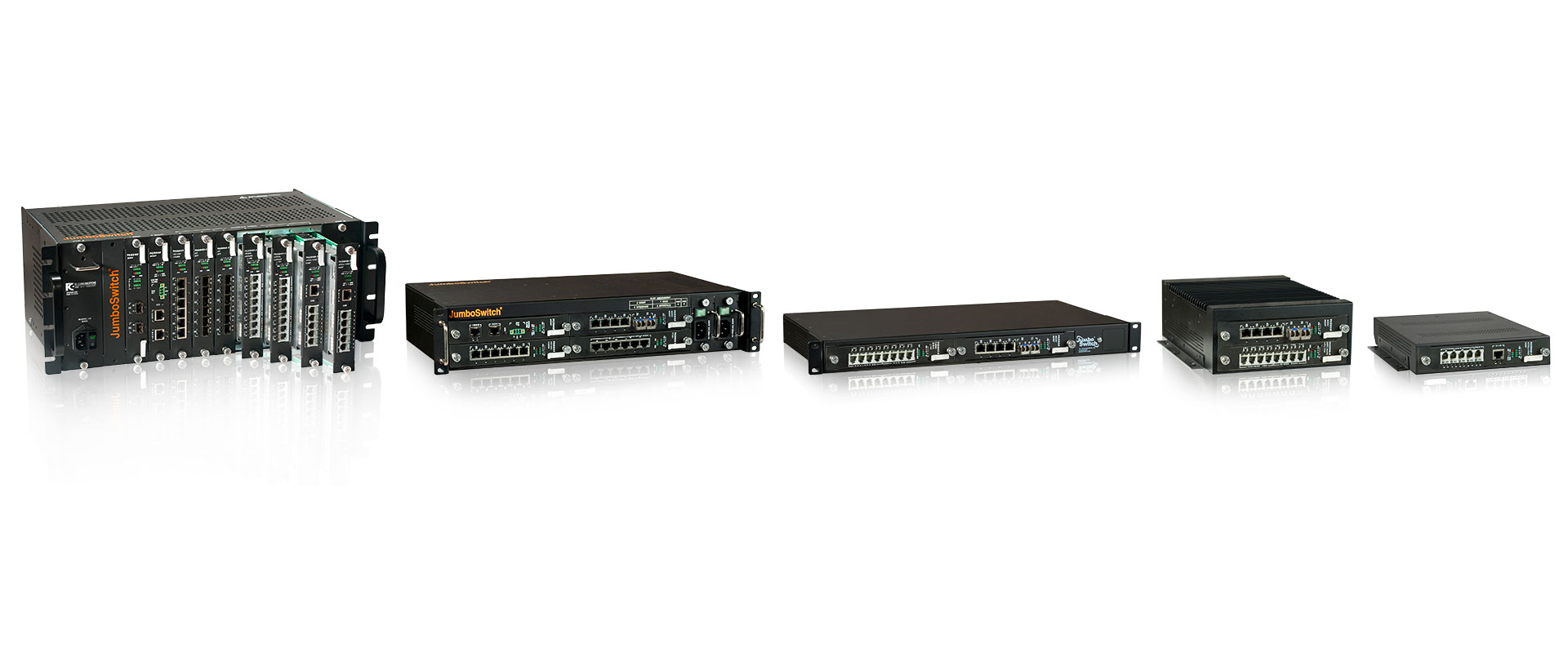

  • Member of the JumboSwitch® Product Family

Applications

Notice: Product End of Life
(10/8/2024)
No replacement planned

Typical applications include transporting voice, video, and data across IP networks.

For example, the TC3845-3 is often used to extend T3/E3 links between PBX’s, connect video conferencing or link Cell Towers to Central Offices.

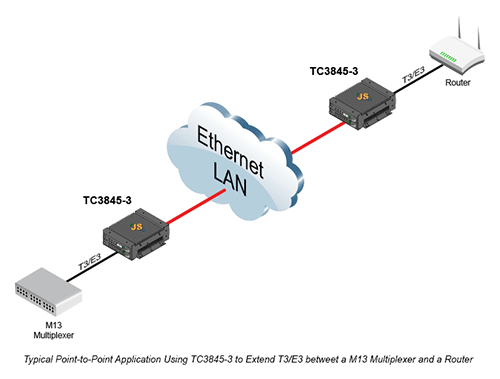

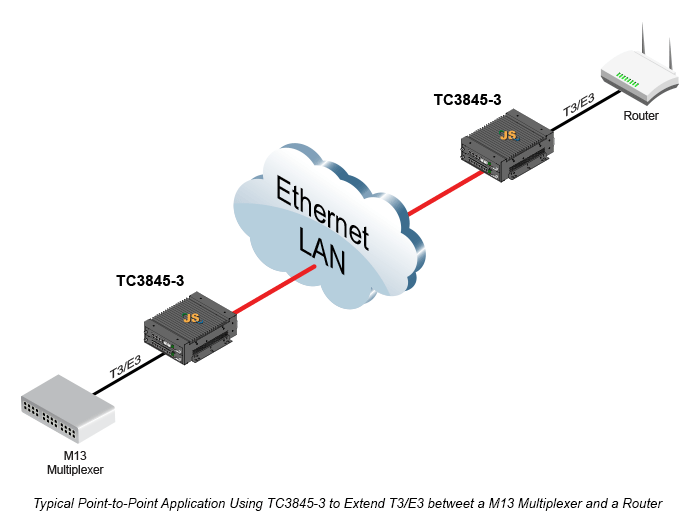

It is also used to extend T3/E3 links between M13 multiplexers and Routers.

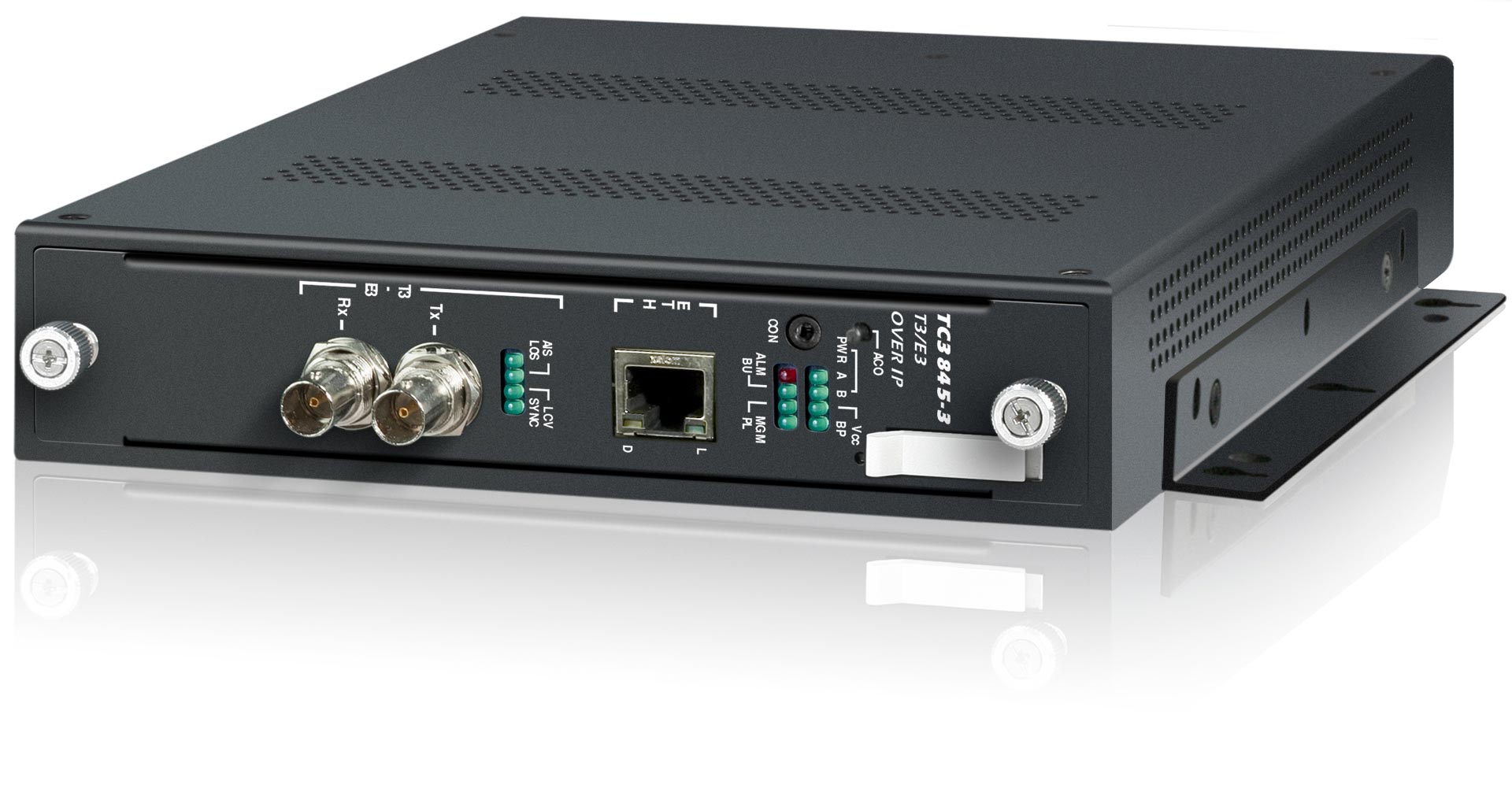

TC3845-3 - T3 / E3-over-Ethernet
Click to enlarge

Specifications

Notice: Product End of Life
(10/8/2024)
No replacement planned
Electrical
  1. T344.736 Mbps
  2. E334.368 Mbps
  3. Ethernet10/100 Mbps Full Duplex
  4. Console9.6K
Connection Capacity
  1. T3/E31 Channel
  2. Ethernet1 Port
Electrical
  1. T3 Interface
  2. Line CodeB3ZS
  3. StandardsG.703,G.824, ANSI,T1.102, Bellcore, TR-NWT-W499
  4. ConnectorBNC
  5. Impedance75 Ω
  6. E3 Interface
  7. Line CodeHDB3
  8. StandardsG.703,G.823
  9. ConnectorBNC
  10. Impedance75 Ω
  11. Ethernet Interface
  12. StandardsIEEE 802.3, 802.3u, 802.1p&Q
  13. ConnectorRJ45
  14. Console PortRJ45
System
  1. Bit Error Rate1 in 1010or Better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
Diagnostic Functions
  1. Local and Remote Loopback for T3/E3 and Ethernet
LEDs
  1. Unit StatusPWR (A, B), Alarm,Vcc, BP, MGM
  2. T3/E3Status
  3. EthernetLink/Act
Power
  1. Standard12VDC
  2. Optional24, -48 VDC 90-260 VAC, 50/60Hz
  3. Power Consumption < 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (rack mount card)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs
