TCRM191/192

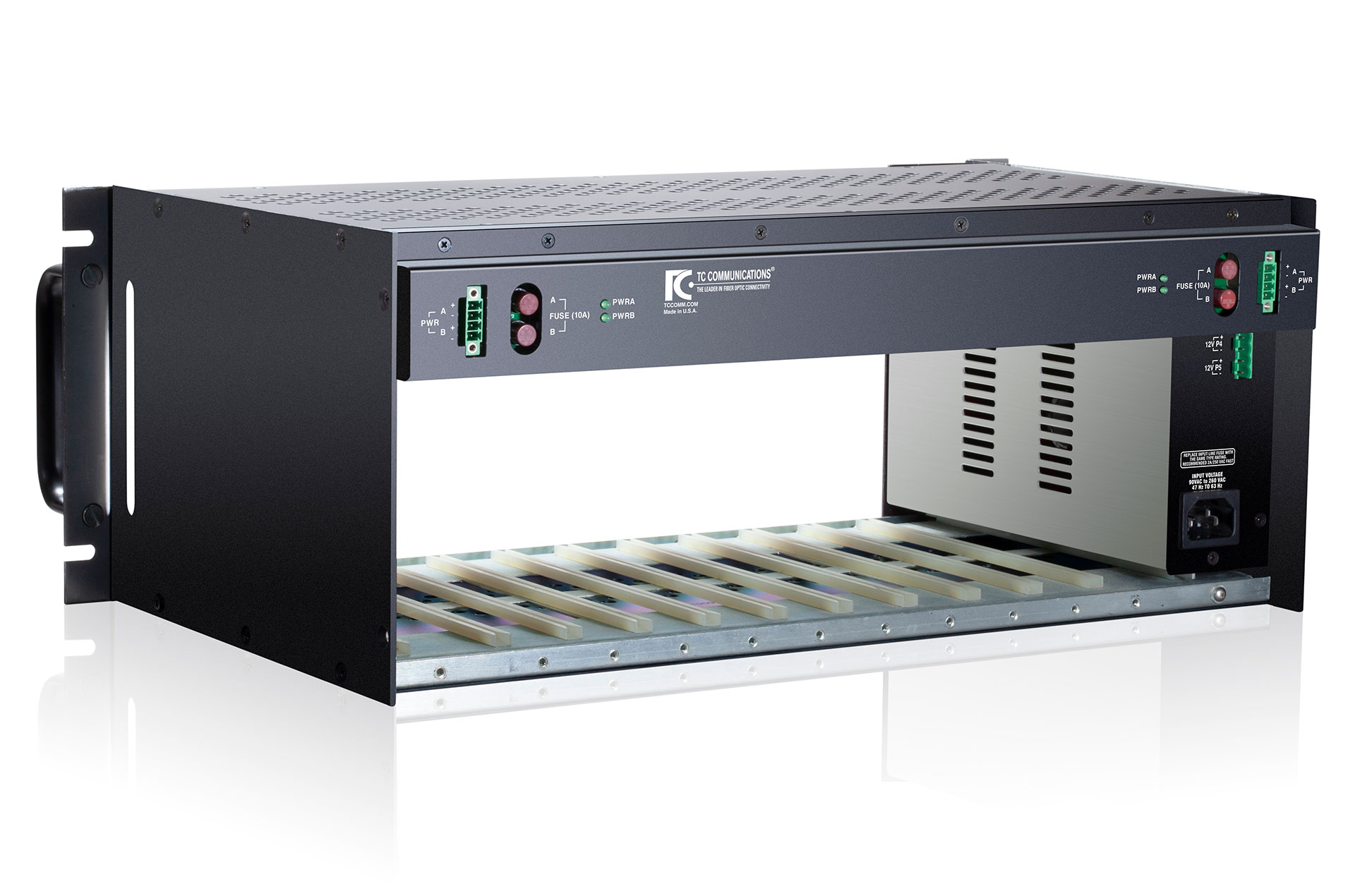

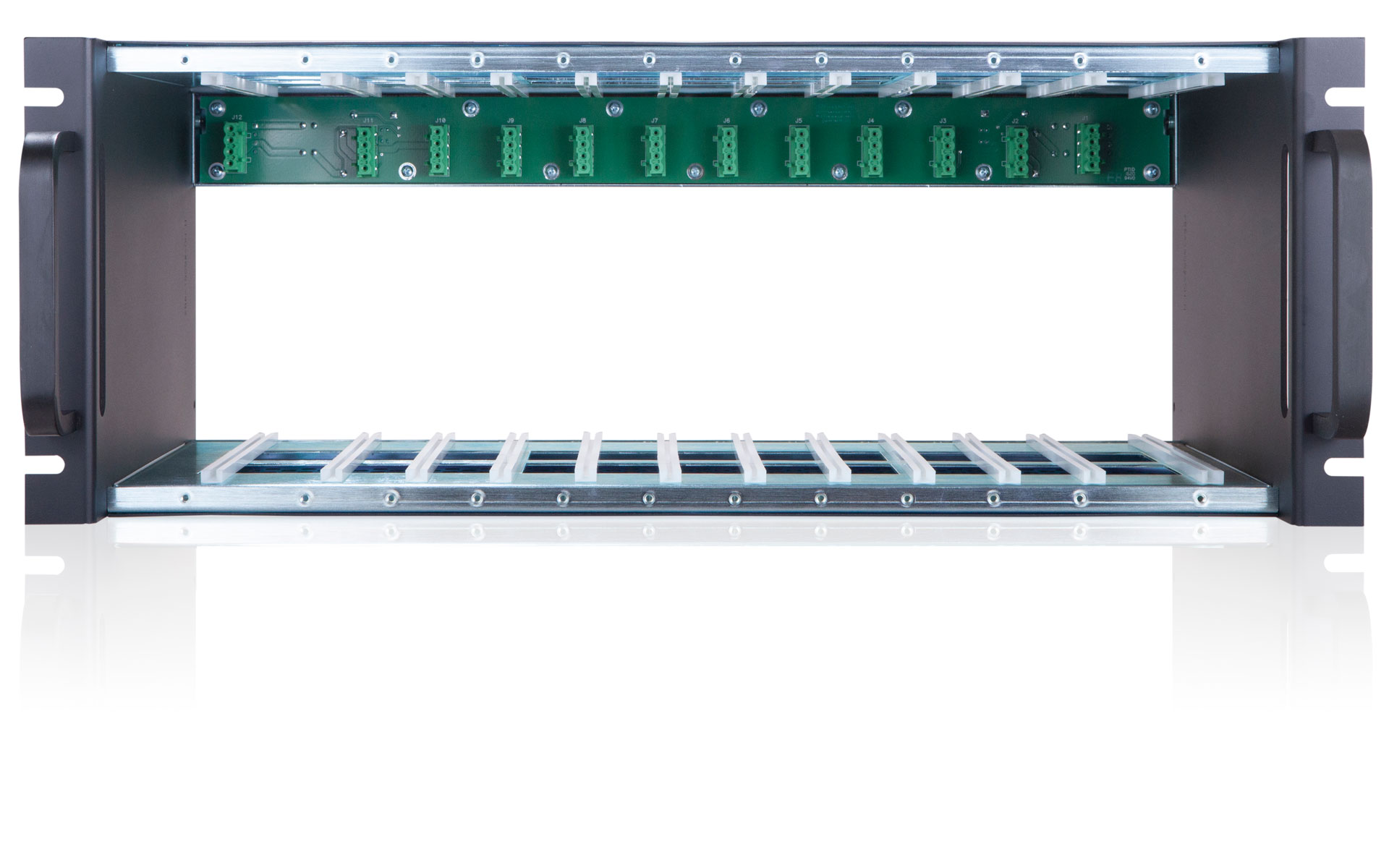

Universal 4U 19'' Rackmount Card Cage

TCRM191/192

Rollover or Touch for Expanded View. Scroll to Zoom.

The TCRM19 Series also called Rack Mount Card Cages feature sturdy construction. The 19" racks house all applicable TC products.

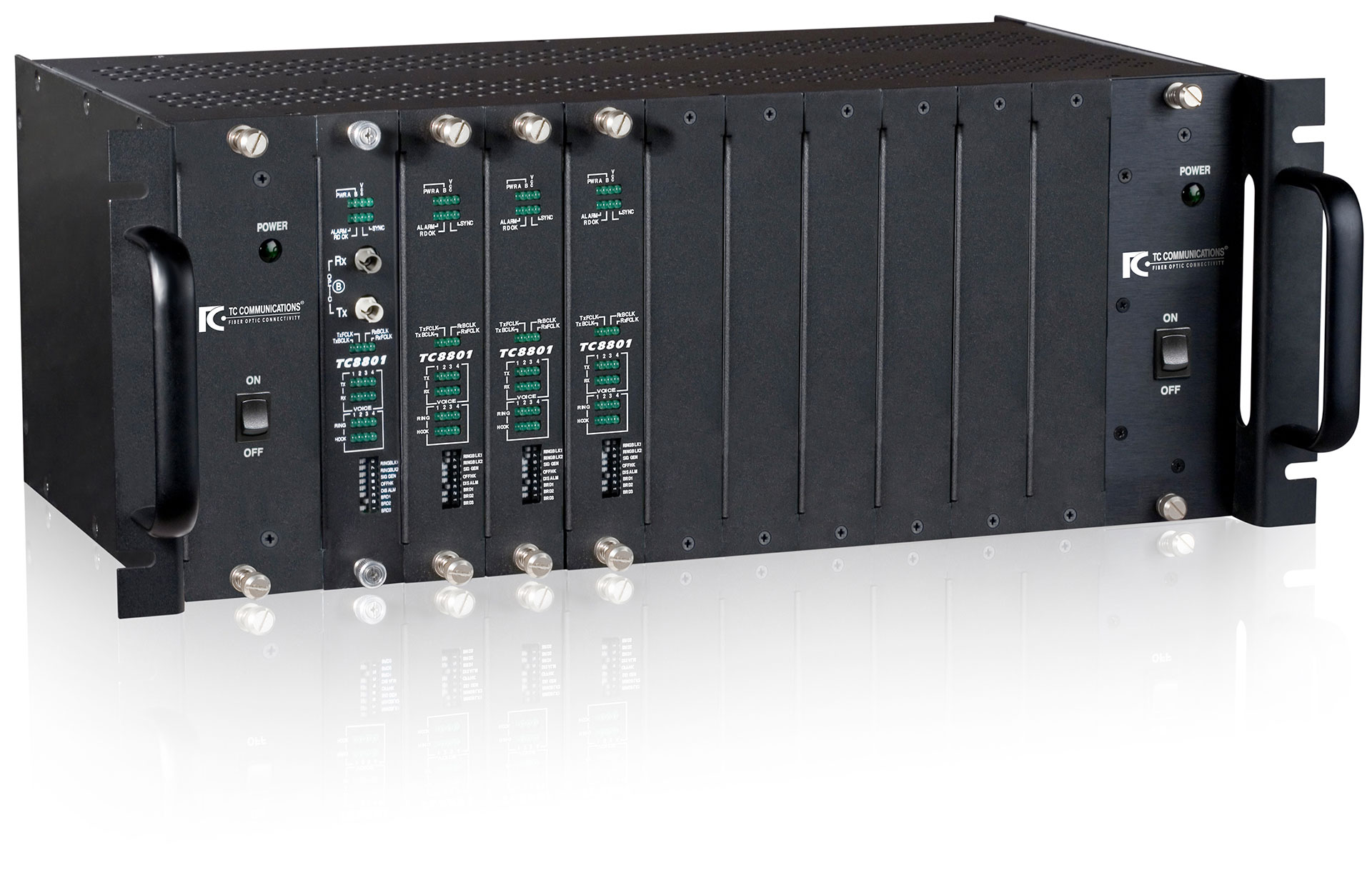

The TCRM191/192 Universal Rack Mount Card Cages can hold up to 10 single multiplexer or modem type cards, or up to 5 double-multiplexer or double-modem type cards. In general, the TCRM191 is used for multiplexers and the TCRM192 for modems.

The TCRM191/192 can operate with one power supply or dual load sharing power supplies. The AC power supply automatically adjusts for 90 to 264 VAC input and 47 to 63 Hz operation. The DC power supplies accept 24VDC, -48VDC or 125VDC input. The AC and DC power supplies can be mixed in the same unit. The dual load-sharing power supplies feature automatic switchover in the event of a power failure.


For assistance with this product or to request a user manual please contact Technical Support.


Features

  • 4U High (7") - TCRM191/192
  • Dual Power Capability with Automatic Switchover in the Event of Failure (currently available on TCRM191/192)
  • Universal Switching Power Supply Accepts 90 to 264VAC (47 to 63 Hz)
  • Optional 24VDC, -48VDC or 125VDC Power Supply
  • Overload & Short-Circuit Protection

Applications

The TCRM19 Card Cages are designed with sturdy construction to house TC products in standard 19" racks

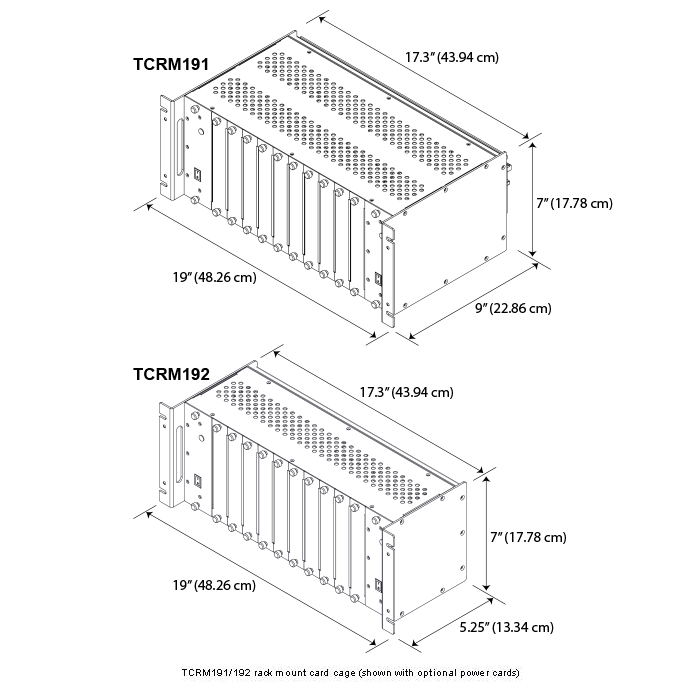

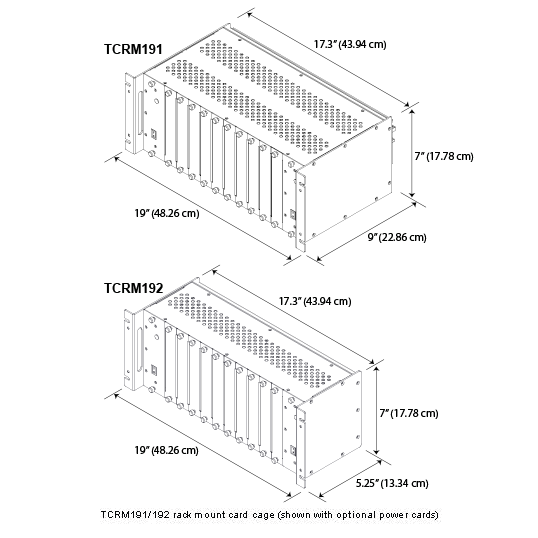

TCRM191/192 - 19'' Rackmount
Click to enlarge

Specifications

TCRM191
  1. Width19" (48.26 cm)
  2. Height7" (4U) (17.78 cm)
  3. Depth9" (22.86 cm)
  4. Power SupplySingle or Dual 115/240VAC, 24VDC, -48VDC, 125VDC
TCRM192
  1. Width19" (48.26 cm)
  2. Height7" (4U) (17.78 cm)
  3. Depth5.25 in. (13.34 cm)
  4. Power SupplySingle or Dual 115/240VAC, 24VDC, -48VDC, 125VDC
