TCRM198

JumboSwitch 19" 2U Rackmount Card Cage

TCRM198

Rollover or Touch for Expanded View. Scroll to Zoom.

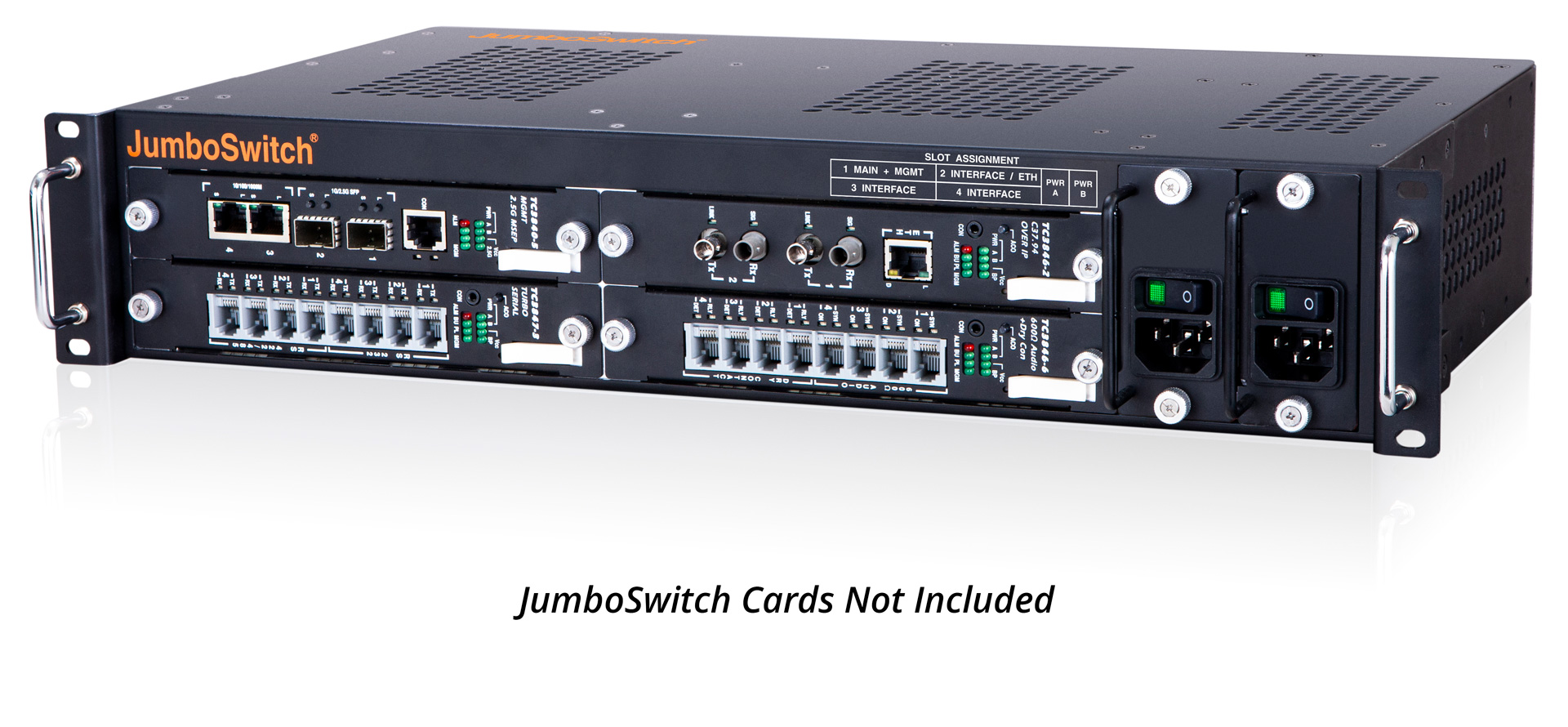

The 2U cage holds one Main, one Management and two interface card options.

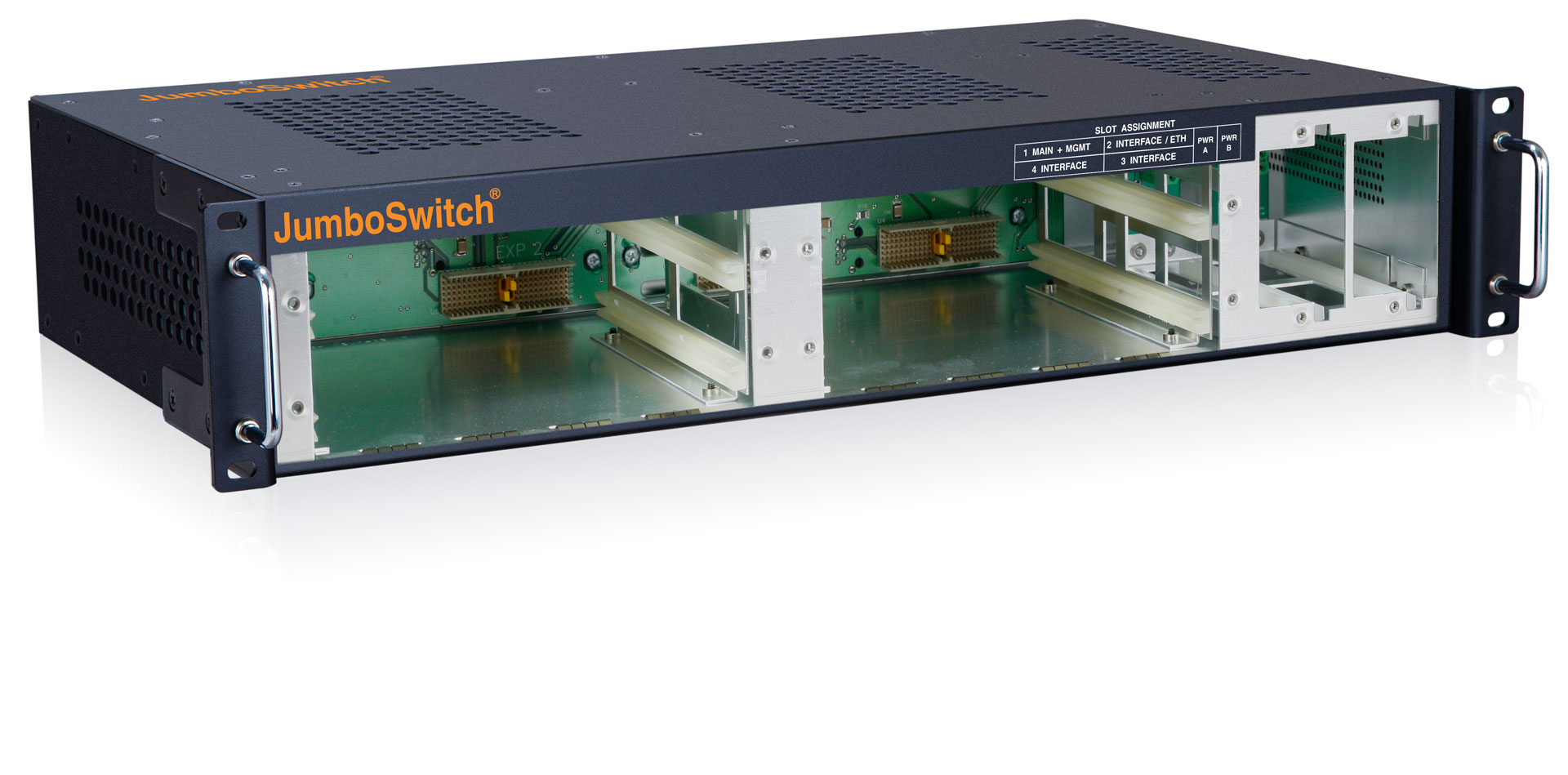

The JumboSwitch 2U rack mount cage is designed to hold JumboSwitch family hot-swappable cards. It holds one Main, one Management and two interface cards.

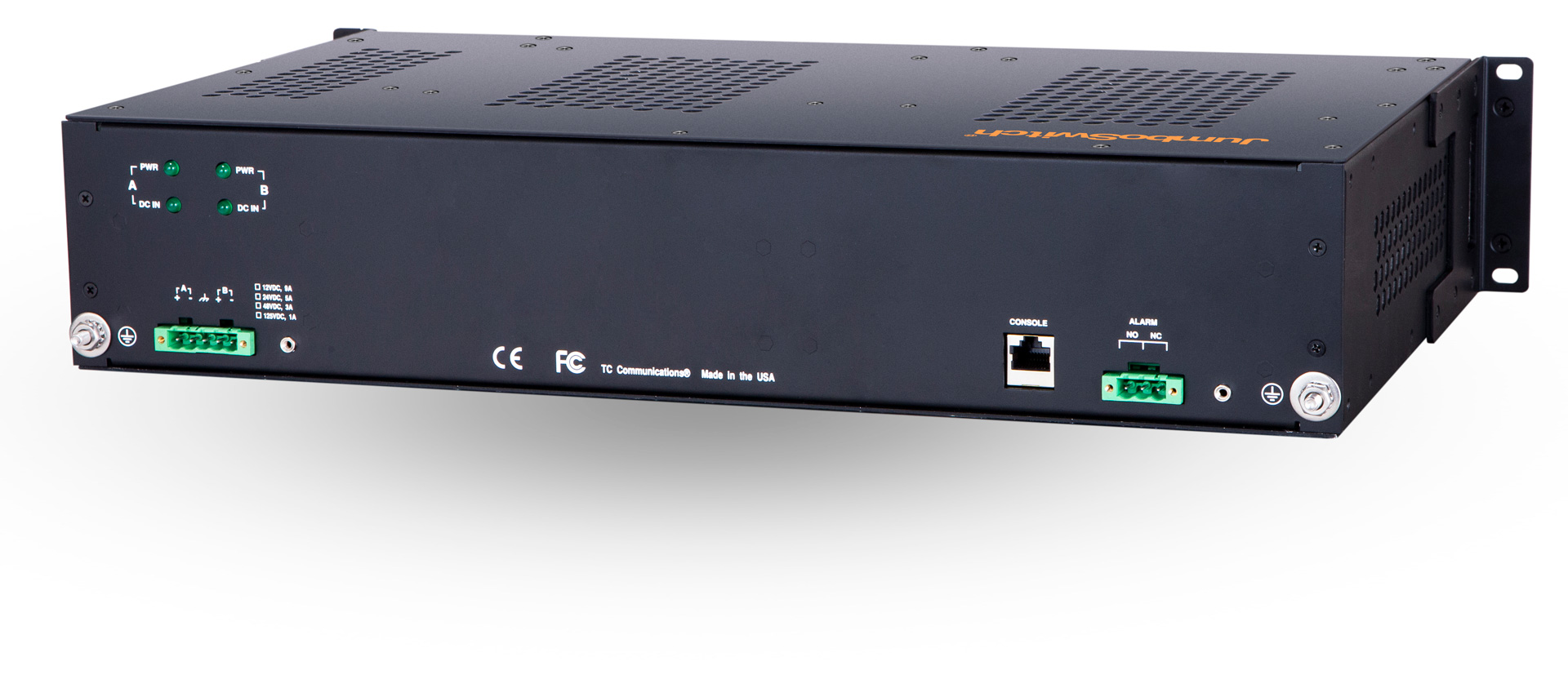

The TCRM198 comes standard with dual load-sharing power supplies. AC and DC power supplies can be mixed in the same unit. The universal AC power supply automatically adjusts for 90 to 264VAC input and 47 to 63 Hz operation. Here are the options:

  • 12VDC, 24VDC, -48VDC and 125VDC
  • 115VAC, 230VAC and 240VAC (50-60Hz)

The dual load-sharing power supplies automatically switch over in the event of a power failure. Through the TC3840 Management card, the power supply can be remotely managed via Web, SNMP, Serial Console or Telnet. Power supply cycling and monitoring ON/OFF status can be done remotely.

Standard operating temperature is -20°C to +70°C and the extreme temperature version
is -40°C to +80°C.


For assistance with this product or to request a user manual please contact Technical Support.


Features

  • Industry Standard 19” Wide
  • Ruggedized Design for Harsh Environments
  • Designed to Hold All JumboSwitch Family Hot-Swappable Cards
  • Extreme Temperature (-40°C to +80°C) Optional
  • Power Supplies Managed via Web, SNMP, Serial Console or Telnet
  • Various AC & DC Power Ranges
  • Built-In Power Redundancy

Applications

Sturdy and durable, JumboSwitch 2U card cage houses hot-swappable JumboSwitch family cards in a standard 19" rack. Power supplies can be remotely managed and dual load sharing power supplies automatically switch over in the event of a power failure.

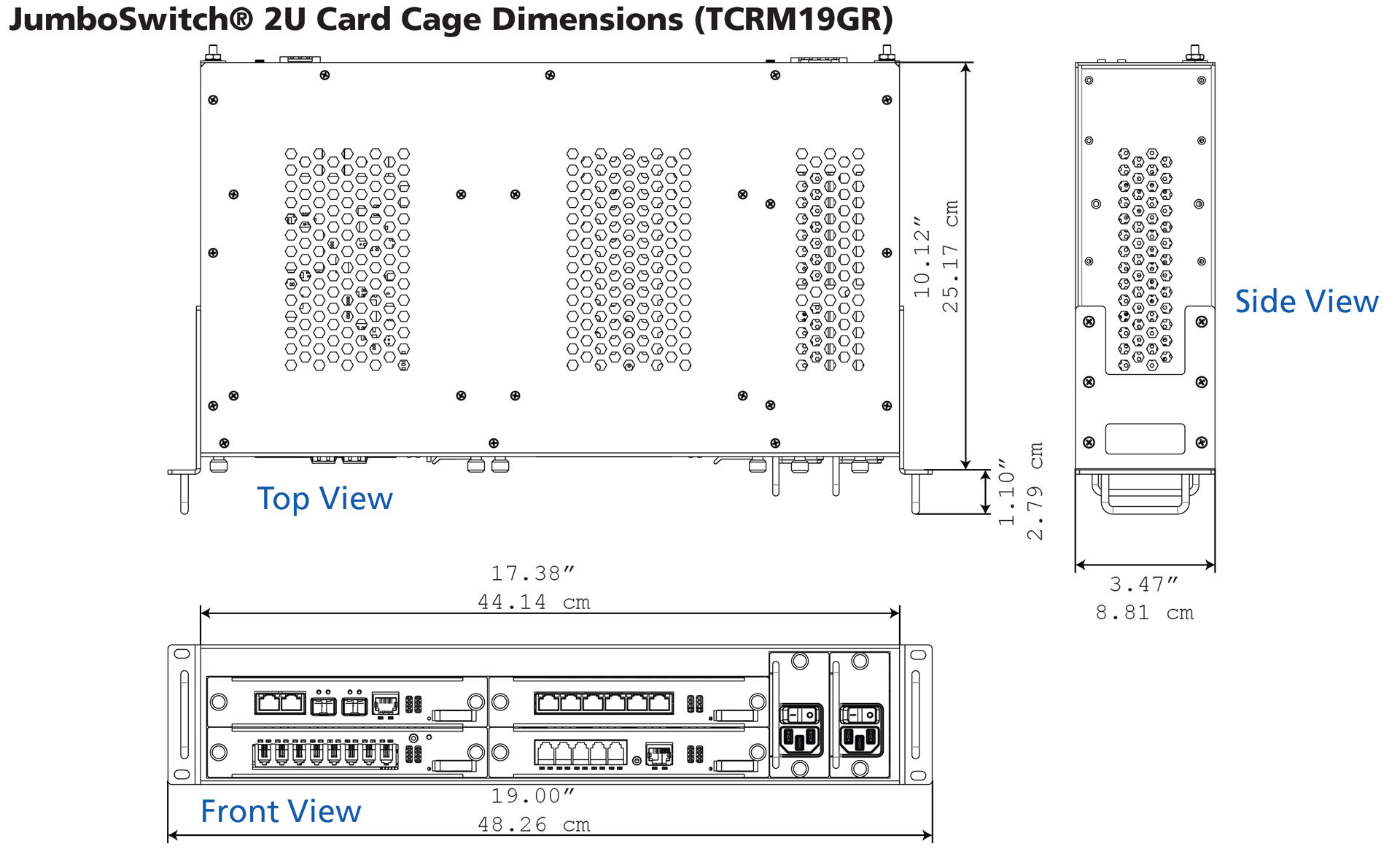

TCRM198 - 2U JumboSwitch Card Cage
Click to enlarge

Specifications

  1. Width19" (48.3 cm)
  2. Height3.5" (8.9 cm)
  3. Depth10.5" (26.7 cm)
