TC3848-1 and -2

VoIP Virtual-PBX

TC3848-1 and -2

Rollover or Touch for Expanded View. Scroll to Zoom.

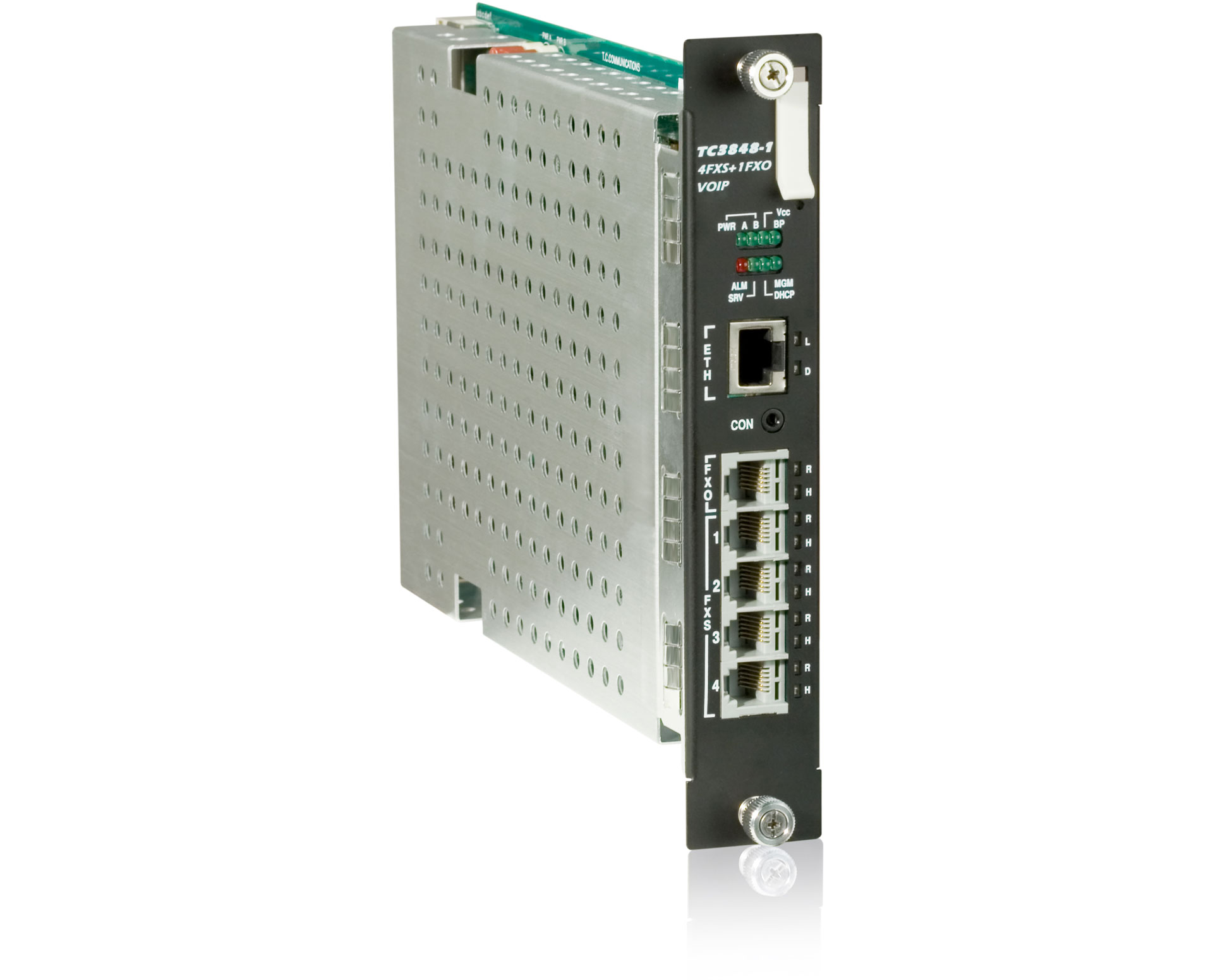

VoIP+, TC3848-1/-2 is a complete telephony solution that merges the simplicity of Ethernet with the call processing features of PABXs into one compact interface card. With no central hub required, the TC3848-1/-2 utilizes VoIP technology to become a self-contained phone system/product.


Features

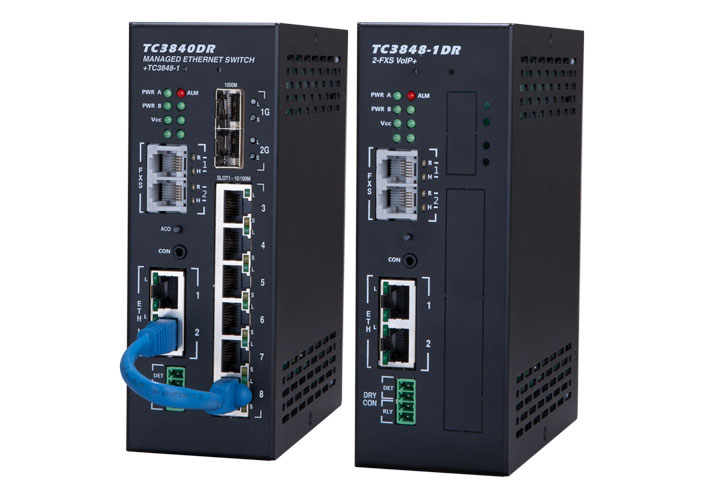

DIN Rail (DR) versions also available for specialized applications view datasheet

  • 4 FXS + 1 FXO; or 5 FXO (for full interface card)
  • Extreme Temp (-40°C to +80°C) Optional
  • Audio Codes Standards: G.711 ALAW/ULAW, G.726-32, T.38 Fax
  • Internal Address Book
  • Compatible with SIP
  • Manage via Web, SNMP or Telnet
  • Remote Firmware Upgrade
  • Meets or Exceeds IEC 61850-3, IEEE 1613, & NEMA TS-2, Standards

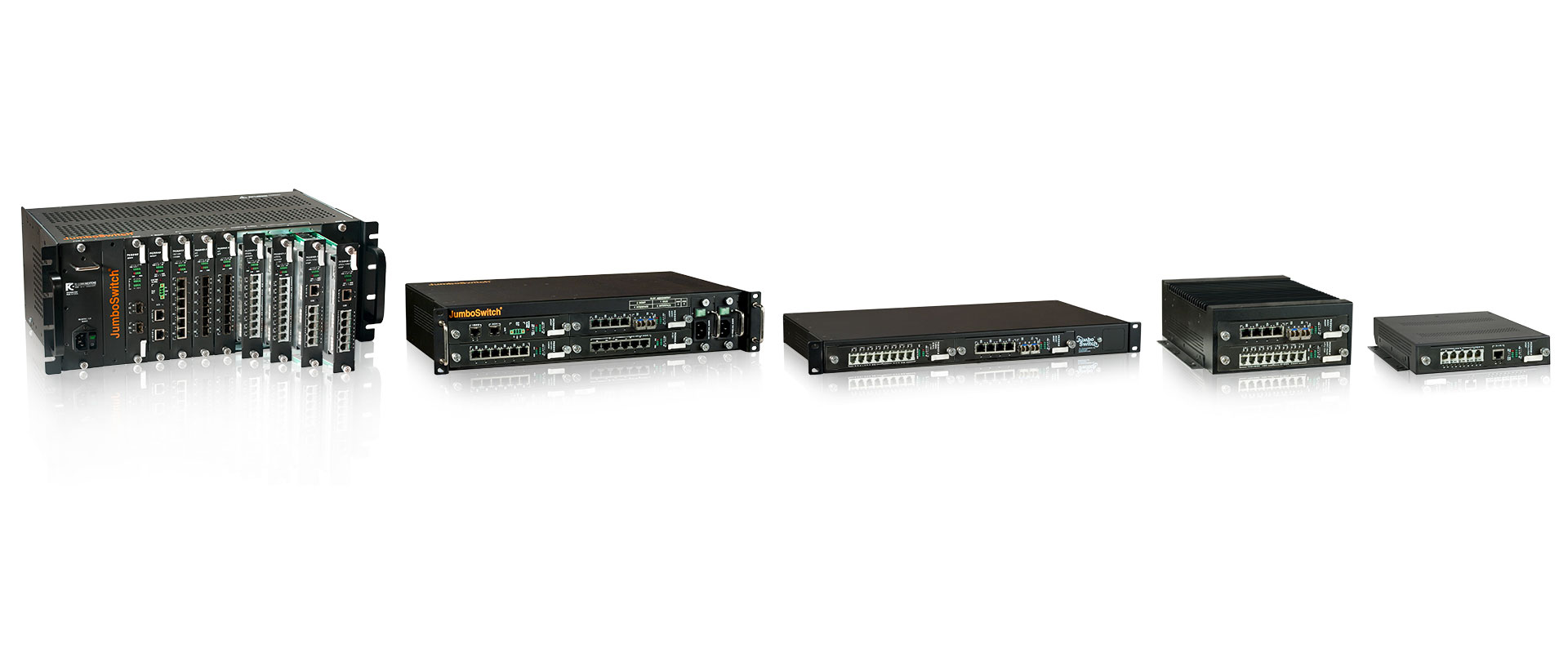

  • Member of the JumboSwitch® Product Family

Applications

VoIP+ is ideal to create phone solutions for private LANs in harsh environments. Seamlessly integrate reliable phone service and comprehensive call processing features without having to use PBXs. It is the first industrial grade VoIP Virtual PBX product in the industry.

VoIP+ Introduction

The TC3848-1 and -2 features all essential PABX call processing features including 3-Way Conferencing, Call Forwarding, Music on Hold, Call Transfer, Call Waiting, Hot Line, Group Hunting, Volume Control, Mute, Caller ID and more. Compatible with analog phones, the TC3848 utilizes IEEE 802.1p/Q QoS prioritization to guarantee consistent, toll quality voice, regardless of network traffic. It is straight forward to setup, so it works with existing phone systems. No need to re-train users.

TC3848 - FXO/FXS Connectivity
Click to enlarge
  • Auto-Attendant - Transfer callers to the desired extension without the need of a receptionist
  • Caller ID - 2 lines of identification displaying the name and number of the caller
  • Hot Line - Create an instant phone connection by simply picking up your phone to ring a remote phone
  • Group Hunting - Distribute phone calls to multiple locations anywhere within your VoIP network
  • 3-Way Conferencing - 3 parties can connect at the same time in a conference call
  • Call Processing - Comprehensive features to assist callers, such as Call Forwarding, Music on Hold, Transfer,Fax, etc.
  • Temperature & Power Monitoring - Monitor the live temperature and power usage of each card to ensure operation
More Features

Management is simple and comprehensive. Accessible via a web browser, Telnet, or SNMP. Password protection prevents unauthorized phone service use. Diagnostic LEDs include power, Ethernet status, as well as Ring and Hook status.

TC3848 - Hot-Line
Click to enlarge

The TC3848-1 and -2 has a built-in address book that allows it to operate as a fully functioning and independent telephony system for up to 100 phone numbers, without the need of an additional SIP server or Call Manager. It also supports SIP protocols with an external SIP server. With its straightforward FXS and FXO port connectivity, it is possible to gracefully extend PSTN service from a single node to several remote locations. This eliminates the need for excessive PSTN lines and even the PBX itself!

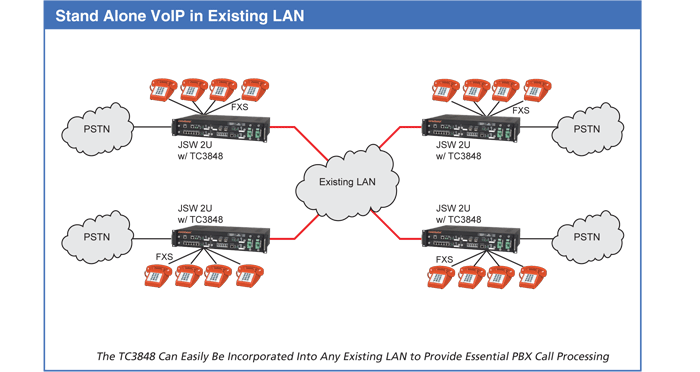

TC3848 - Stand Alone VoIP in Existing LAN
Click to enlarge
Environmental & EMI Compliance

The JumboSwitch® and its product family interface cards meet or exceed all pertinent industrial environmental and EMI industry standards including IEC 61850-3 and IEEE 1613 for networking devices installed in electric power substations and NEMA TS-2 for traffi c control environments.

The chart below details information related to JumboSwitch® environmental and EMI compliance testing. TC Communications Industrial grade products are manufactured with special components, connectors and circuitry. This ensures reliable operation in the event of wide temperature swings, electromagnetic interference (EMI), radio interference, vibrations, or moisture and humidity fluctuations. Conformal coating is optional.

TC3848 - C3848 Environmental & EMI Compliance
Click to enlarge


TC3848-1 and -2 - Voice over IP
Click to enlarge

Specifications

Interfaces
  1. TC3848-14 FXS + 1 FXO
  2. TC3848-25 FXO
Media Processing
  1. Voice CodecG.711 ALAW, G.711 ULAW, G.726-32, T.38 Fax, G.729 Optional
  2. Silence SuppressionVAD, CNG
  3. Adaptive Jitter Buffer300 msec
Packetization
  1. RTP/RTCPRFC 3350, 3551, 2198
  2. DTMF RelayRFC 2833
Protocols
  1. VoIP Signaling ProtocolsSIP - RFC 3261, 3262, 3263, 3264, 2327
  2. Ethernet ProtocolsHTTP, IPv4, TCP, UDP, ICMP, ARP, DNS, IEEE 802.1p/Q QoS, IEEE 803/3u/3x
SLIC Characteristics
  1. Maximum Ringer Load (REN)5
  2. Short/Long Haul
  3. Ringer Voltage65Vrms
  4. Distance18,000 feet
LEDs
  1. System StatusPWR A, PWR B, SRV, ANS, Vcc, ALM
  2. PhoneRing, Hook
  3. EthernetLink, Duplex
Power
  1. Standard12VDC
  2. Optional24, -48VDC, 90-260 VAC, 50/60Hz
  3. Power Consumption<10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing

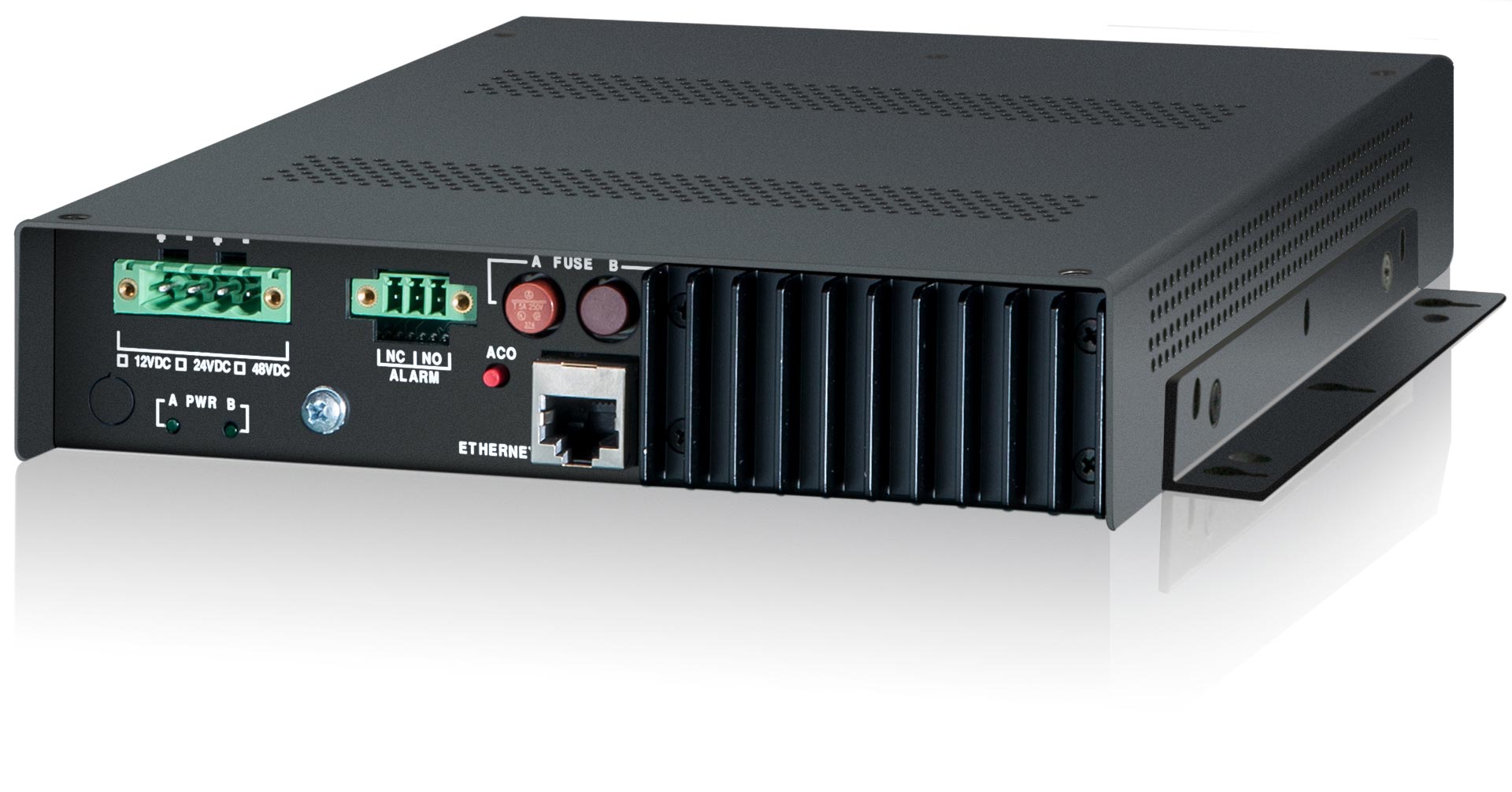

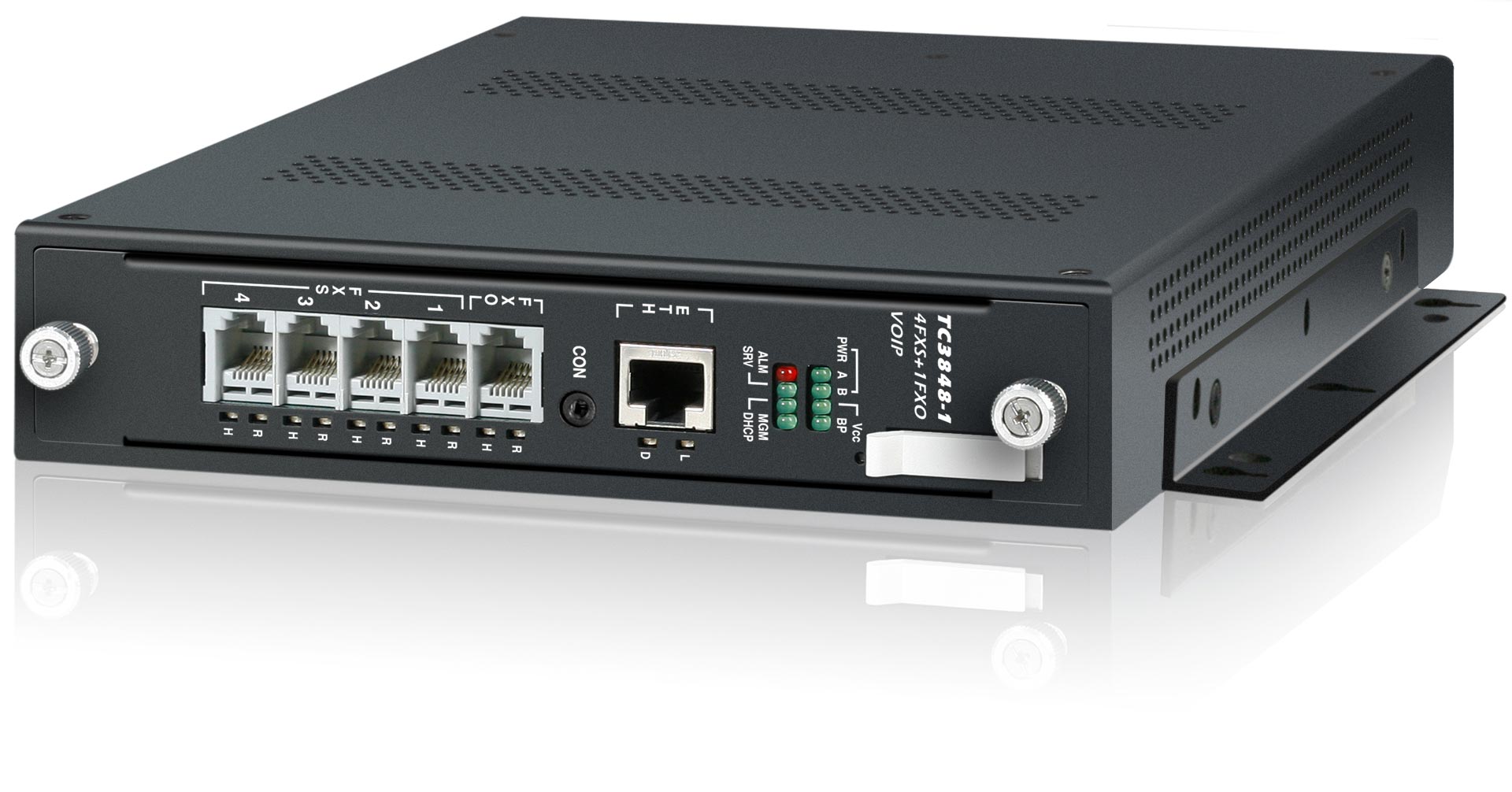

Physical (Standalone Unit)
  1. Height(38.9 mm) 1.53"
  2. Width(185.4 mm) 7.3"
  3. Depth(248.7 mm) 9.79"
  4. Weight(0.4 kg) 1.0 lb
