TC3840DR2

JumboSwitch DIN Rail Managed Industrial Ethernet Switch
TC3840DR2

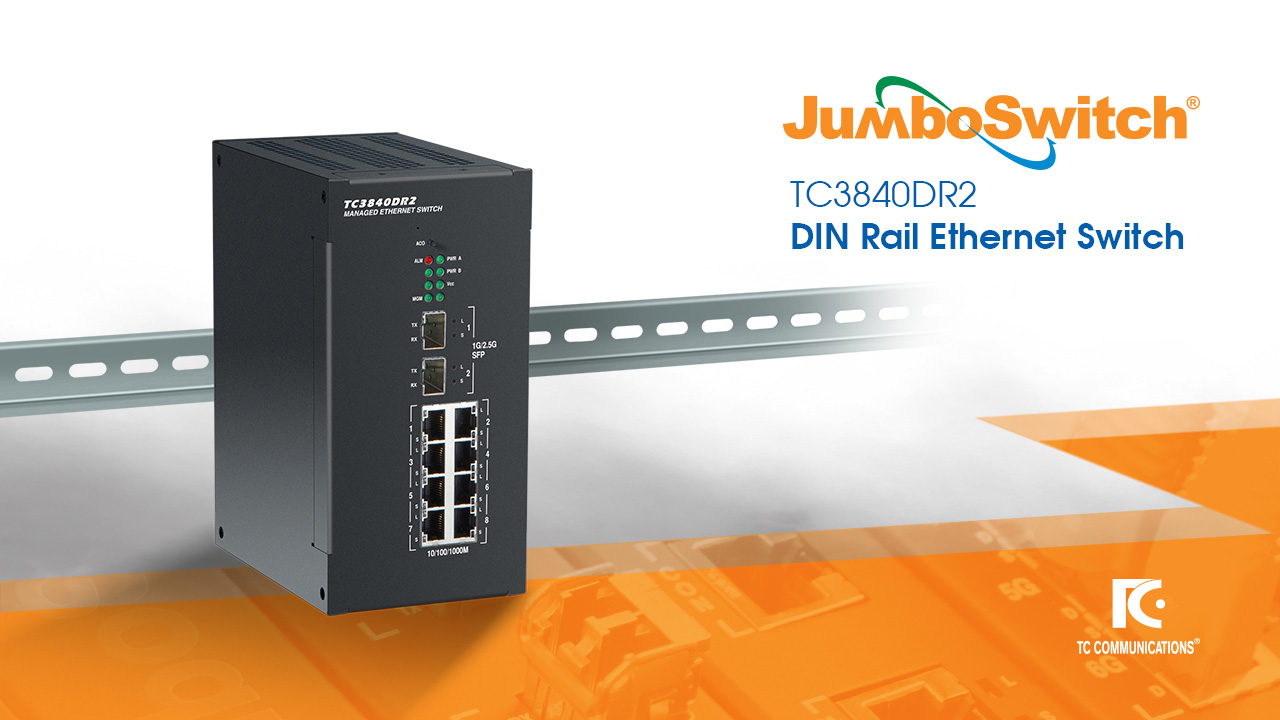

Front View Back View Option View TC3840DR2 - 2.5G DIN Rail MGmt Switch
  • Mission-critical network switching
  • -40 to +80°C operational range
  • 2.5G and 1G operation
  • Compact DIN-mounted format
  • Fiber monitoring system
  • Optional TCView® NMS; SNMP-enabled
  • Full JumboSwitch product line compatibility
Datasheet
Request details

Features

The TC3840DR2 is a compact, efficient Industrial Ethernet switch solution with full JumboSwitch® network compatibility. Increased number of Ethernet and SFP ports are available for flexibility and expandibility.

  • Compatible with full JumboSwitch suite of products
  • Compact chassis with full management
  • MEF Carrier Ethernet 2.0 Compliant
  • Sub-50ms Protection Switching by ITU-T G.8032v2 ERPS
  • IEEE 1588v2 PTP Time Synchronization

Configuration

Designed with both space and optional expansion in mind, the standard TC3840DR provides two SFP ports for Gigabit Ethernet and six RJ45 ports, with expansions available:

  • 2-Port GbE SFP (Optional 2.5G)
  • 6-Port GbE RJ45
  • Optional expansion card:
    • 8-Port GbE RJ45 Ethernet
    • 4-Port GbE RJ45 + 4 ports GbE SFP

Specifications

Data Rates
  1. SFPup to 2.5 Gbps
  2. RJ4510/100/1000 Mbps
Optical
  1. Wavelength
  2. Multimode850nm
  3. Single Mode1310/1550nm
  4. SFP Optic
  5. ConnectorLC
  6. Port2
  7. SFP I/F1000 BASE-LX/SX, 100FX, 2.5G
Electrical
  1. Ethernet
  2. ConnectorRJ45
  3. Port8
  4. Interface1000 Base-T
  5. Console
  6. ConnectorRJ45
  7. Port1
  8. InterfaceRS-232
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA

LEDs
  1. PWR A, PWR B, VCC, MGM, ALARM, LINK, SPEED

Expansion
  1. Ethernet
  2. TC3841-5DR8 Ports RJ45

Power

  1. AC115/230V, 50/60Hz
  2. DC12/24/48/125V
Operating Temperature
  1. High Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Storage-40°C to 90°C
  2. Humidity95% non-condensing
Physical
  1. Height(17.8 cm) 7.0"
  2. Width(8.9 cm) 3.5"
  3. Depth(13.3 cm) 5.25"
  4. Weight(0.9 kg) 2.0 lbs
* Contact factory for higher requirements

Below are SFP module options available. Click on the products to view datasheets.

SFP Modules
Model No. Data Rate Mode Wavelength Distance
760-011S1-00
760-011S1-05 		1.25 Gbps Multimode 850 nm 550 m
760-031S1-00
760-031S1-05		 1.25 Gbps Multimode 1310 nm 2 km
760-050S1-20
760-050S1-25		 155 Mbps Single Mode 1310 nm 20 km
760-050S1-40
760-050S1-45		 155 Mbps Single Mode 1310 nm 40 km
760-051S1-00
760-051S1-05		 1.25 Gbps Single Mode 1310 nm 2km
760-051S1-20
760-051S1-25		 1.25 Gbps Single Mode 1310 nm 20km
760-051S1-40
760-051S1-45		 1.25 Gbps Single Mode 1310 nm 40km
760-071S1-C0
760-071S1-C5		 1.25 Gbps Single Mode 1550 nm 120 km
760-071S1-D0
760-071S1-D5		 1.25 Gbps Single Mode 1550 nm 160 km
760-071S1-G0
760-071S1-G5		 1.25 Gbps Single Mode 1550 nm 200 km
760-071S1-80
760-071S1-85		 1.25 Gbps Single Mode 1550 nm 80 km
760-G57S1-20
760-G57S1-25		 1.25 Gbps Single Mode 1310 nm/1550 nm 20 km
760-G57S1-40
760-G57S1-45		 1.25 Gbps Single Mode 1310 nm/1550 nm 40 km
760-G75S1-20
760-G75S1-25		 1.25 Gbps Single Mode 1550 nm/1310 nm 20 km
760-G75S1-40
760-G75S1-45		 1.25 Gbps Single Mode 1550 nm/1310 nm 40 km

Applications

An all-in-one connectivity solution for industrial automation and commercial network applications, the TC3840DR DIN Rail Ethernet Switch benefits users by offering an additional built-in 4-channel Serial Server or 8-port Gigabit Ethernet card.

The TC3840DR is often used by Utilities to connect substation RTUs/PLCs, including older legacy units with serial interfaces, to a central control center. Transportation entities use the TC3840DR for traffic control and intelligent transportation system communication networks.

The TC3847-1DR DIN Rail serial card is also used to support MicroLok devices over IP networks in railroad Positive Train Control (PTC) applications.

TC3840DR2 - 2.5G DIN Rail MGmt Switch
