TC3840-5

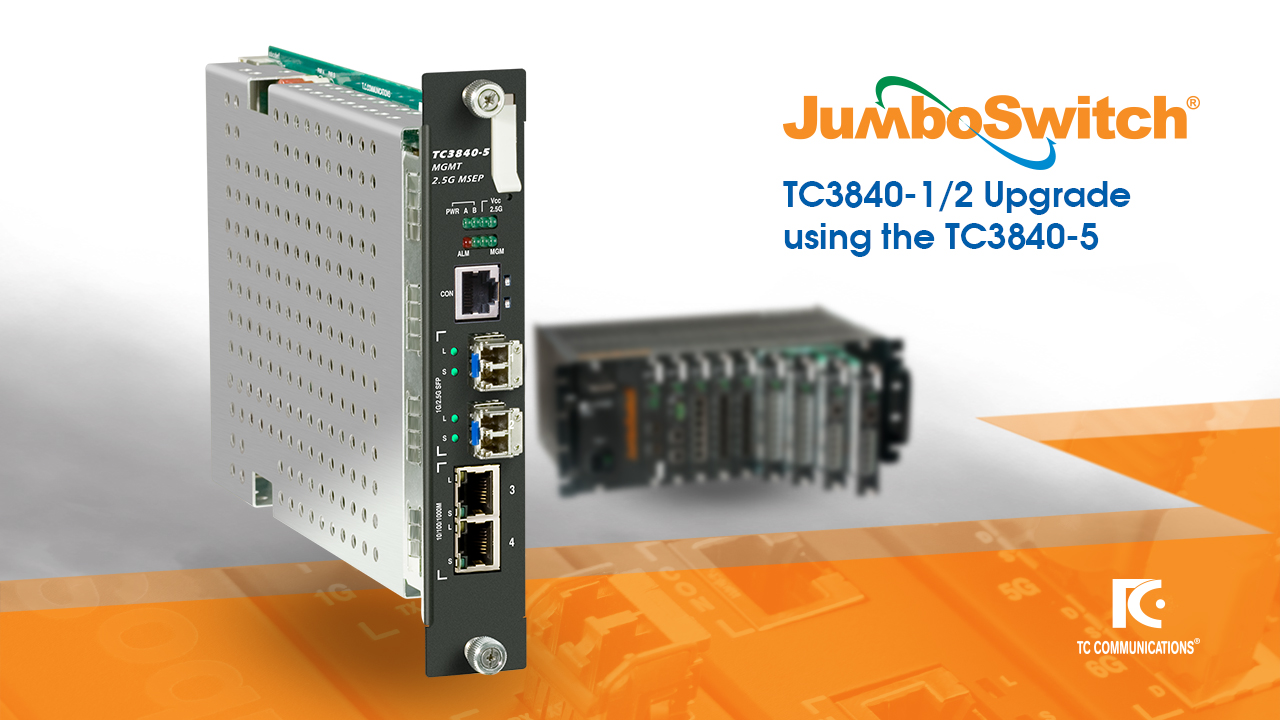

JumboSwitch 2.5G 1U/2U/4U Ethernet Management Card
- Mission-critical network switching
- -40 to +80°C operational range
- MEF Carrier Ethernet 2.0 compatible
- Fiber monitoring system
- Optional TCView® NMS
- Fully supports third-party NMS through SNMP compatibility
- Full JumboSwitch product line compatibility
Features
The JumboSwitch® TC3840-5 is a 2.5G Multi-Service Layer 2 Switch supported in a modular chassis design, offering 2 x SFP ports capable of speeds up to 2.5G for connecting nodes to form a ring or bus topology.
- MEF Carrier Ethernet 2.0 Compliant
- E-Line, E-LAN, E-Tree, and E-Access Services
- Ethernet OAM Service Assurance
- Sub-50ms Protection Switching by ITU-T G.8032v2 ERPS
- IEEE 1588v2 PTP Time Synchronization
- Temperature, Power Consumption & SFP Monitoring
Configuration
The TC3840-5 provides two SFP ports and two RJ45 ports for Gigabit Ethernet connectivity, with options for expansion cards:
- 2-Port GigE SFP (Optional 2.5G)
- 2-Port GigE RJ45
- Supports up to 7 JumboSwitch® Interface cards
- Supports 1 additional JumboSwitch® Ethernet card
- For JumboSwitch 1U/2U/4U Chassis
Specifications
Data Rates
- SFPup to 2.5 Gbps
- RJ4510/100/1000 Mbps
Optical
- Wavelength
- Multimode850nm
- Single Mode1310/1550nm
- SFP Optic
- ConnectorLC
- Port2
- SFP I/F1000 BASE-LX/SX, 100FX, 2.5G
Electrical
- Ethernet
- ConnectorRJ45
- Port2
- Interface1000 Base-T
- Console
- ConnectorRJ45
- Port1
- InterfaceRS-232
Regulatory Approval
- CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA
LEDs
- PWR A, PWR B, VCC, MGM, ALARM, LINK, SPEED
Power
- AC115/230V, 50/60Hz
- DC12/24/48/125V
Operating Temperature
- High Temp-20°C to 70°C
Storage
- Storage-40°C to 90°C
- Humidity95% non-condensing
Physical (Rack mount card)
- Height(3.2 cm) 1.25"
- Width(17.8 cm) 7.0"
- Depth(23.5 cm) 9.25"
- Weight(0.5 kg) 1.0 lbs
* Contact factory for higher requirements
Below are SFP module options available. Click on the products to view datasheets.
| SFP Modules | ||||
|---|---|---|---|---|
| Model No. | Data Rate | Mode | Wavelength | Distance |
| 760-011S1-00
760-011S1-05 |
1.25 Gbps | Multimode | 850 nm | 550 m |
| 760-031S1-00
760-031S1-05 |
1.25 Gbps | Multimode | 1310 nm | 2 km |
| 760-050S1-20
760-050S1-25 |
155 Mbps | Single Mode | 1310 nm | 20 km |
| 760-050S1-40
760-050S1-45 |
155 Mbps | Single Mode | 1310 nm | 40 km |
| 760-051S1-00
760-051S1-05 |
1.25 Gbps | Single Mode | 1310 nm | 2km |
| 760-051S1-20
760-051S1-25 |
1.25 Gbps | Single Mode | 1310 nm | 20km |
| 760-051S1-40
760-051S1-45 |
1.25 Gbps | Single Mode | 1310 nm | 40km |
| 760-071S1-C0
760-071S1-C5 |
1.25 Gbps | Single Mode | 1550 nm | 120 km |
| 760-071S1-D0
760-071S1-D5 |
1.25 Gbps | Single Mode | 1550 nm | 160 km |
| 760-071S1-G0
760-071S1-G5 |
1.25 Gbps | Single Mode | 1550 nm | 200 km |
| 760-071S1-80
760-071S1-85 |
1.25 Gbps | Single Mode | 1550 nm | 80 km |
| 760-G57S1-20
760-G57S1-25 |
1.25 Gbps | Single Mode | 1310 nm/1550 nm | 20 km |
| 760-G57S1-40
760-G57S1-45 |
1.25 Gbps | Single Mode | 1310 nm/1550 nm | 40 km |
| 760-G75S1-20
760-G75S1-25 |
1.25 Gbps | Single Mode | 1550 nm/1310 nm | 20 km |
| 760-G75S1-40
760-G75S1-45 |
1.25 Gbps | Single Mode | 1550 nm/1310 nm | 40 km |
Applications
The JumboSwitch® Management Card is commonly used by utilities to connect substation RTUs/PLCs and telephones or T1/E1 links to a central control center.
It is also used by Data Service Providers for its modular multi-interface, rate limiting, single fiber-bi-directional and media conversion capabilities.
