TC3850-1

JumboSwitch 10G Multi-Service Ethernet Switch
TC3850-1

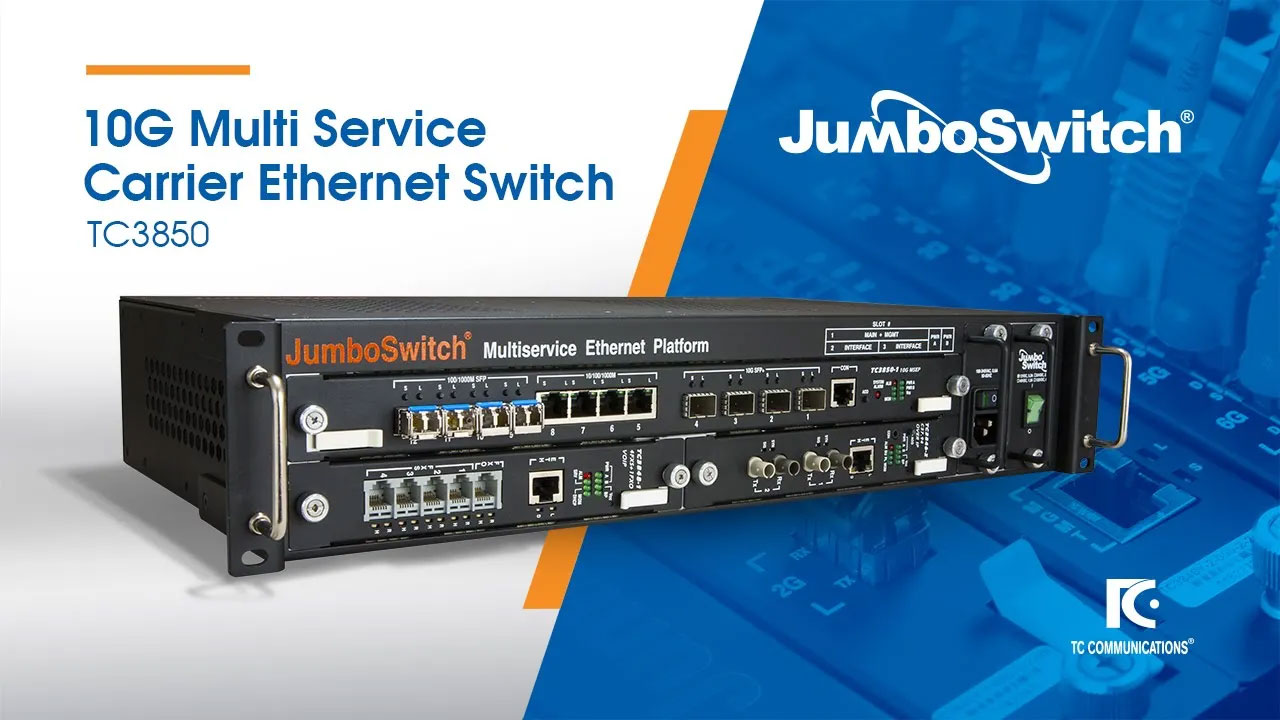

Front View Back View TC3850-1 - 10G Ethernet Switch
  • Mission-critical network switching
  • -40 to +80°C operational range
  • Compatible with MEF Carrier Ethernet 2.0
  • Built-in fiber monitoring system
  • Optional TCView® NMS; SNMP-enabled
  • Full JumboSwitch product line compatibility
Datasheet
Request details

Features

Supported in a modular chassis design, the JumboSwitch® TC3850-1 is a premium 10G Multi-Service Layer 2 Switch that is MEF Carrier Ethernet 2.0 compliant, helping network providers leverage Ethernet technology for both mission-critical and commercial networks.

  • IEEE 1588v2 PTP Time Synchronization
  • Sub-50ms Protection Switching (ITU-T G.8032v2 ERPS)
  • Ethernet OAM Service Assurance
  • Redundant Modular Power Supplies (AC/DC)
  • Advanced Networking: Rate Control, VLAN, QoS, and Security
  • Extended Temperature, Shock/Vibration, and Surge Ratings for Durability and Reliability

25 Interface Card Options:

  • 4W E&M
  • C37.94
  • RS-232
  • Turbo Serial
  • FXS/FXO
  • T1 & T3 over IP
  • IP over T1 & T3
  • OC-3/STM-1
  • VoIP
  • Modem
  • and more

Resiliency

The TC3850-1 is equipped with various features and mechanisms to ensure reliable communication between devices and keep potential downtime to a minimum:

  • Dual power supplies (hot-swappable cards, AC/DC)
  • Industrial-hardened for operation in harsh environments
  • Card and port-level traffic redundancy
  • Domain clock redundancy
  • Management sub-system redundancy

Specifications

Data Rates
  1. SFP+10 Gbps
  2. SFP100/1000 Mbps
  3. RJ4510/100/1000 Mbps

Optical
  1. Wavelength
  2. Multimode850nm
  3. Single Mode1310/1550nm
  4. SFP+ Optic
  5. ConnectorsLC
  6. Port4
  7. Interface10G BASE-SR/ER/LR/ZR
  8. SFP Optic
  9. ConnectorsLC
  10. Port4
  11. Interface1G LX/SX, 100M-FX
Electrical
  1. Ethernet
  2. ConnectorRJ45
  3. Female Ports4
  4. Interface1000 Base-T
  5. Console
  6. ConnectorRJ45
  7. Port1
  8. InterfaceRS-232
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2, EN50155, AREMA
LEDs
  1. PWR A, PWR B, VCC, MGM, FAN, UNIT ALARM, SYSTEM ALARM, LINK, SPEED
Power
  1. AC115/230V, 50/60Hz
  2. DC12/24/48/125V
Operating Temperature
  2. High Temp-20°C to 70°C
  3. Extreme Temp-40°C to 70°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (Rackmount Card)
  1. Height(8.9 cm) 3.5"
  2. Width(48.3 cm) 19.0"
  3. Depth(26.7 cm) 10.5"
  4. Weight(6.8 kg) 15.0 lbs
*Contact factory for additional requirements

Below are SFP module options available. Click on the products to view datasheets.

SFP Modules
Model No. Data Rate Mode Wavelength Distance
760-011S1-00
760-011S1-05 		1.25 Gbps Multimode 850 nm 550 m
760-031S1-00
760-031S1-05		 1.25 Gbps Multimode 1310 nm 2 km
760-050S1-20
760-050S1-25		 155 Mbps Single Mode 1310 nm 20 km
760-050S1-40
760-050S1-45		 155 Mbps Single Mode 1310 nm 40 km
760-051S1-00
760-051S1-05		 1.25 Gbps Single Mode 1310 nm 2km
760-051S1-20
760-051S1-25		 1.25 Gbps Single Mode 1310 nm 20km
760-051S1-40
760-051S1-45		 1.25 Gbps Single Mode 1310 nm 40km
760-071S1-C0
760-071S1-C5		 1.25 Gbps Single Mode 1550 nm 120 km
760-071S1-D0
760-071S1-D5		 1.25 Gbps Single Mode 1550 nm 160 km
760-071S1-G0
760-071S1-G5		 1.25 Gbps Single Mode 1550 nm 200 km
760-071S1-80
760-071S1-85		 1.25 Gbps Single Mode 1550 nm 80 km
760-G57S1-20
760-G57S1-25		 1.25 Gbps Single Mode 1310 nm/1550 nm 20 km
760-G57S1-40
760-G57S1-45		 1.25 Gbps Single Mode 1310 nm/1550 nm 40 km
760-G75S1-20
760-G75S1-25		 1.25 Gbps Single Mode 1550 nm/1310 nm 20 km
760-G75S1-40
760-G75S1-45		 1.25 Gbps Single Mode 1550 nm/1310 nm 40 km

Applications

The TC3850-1 is built for a wide range of critical and industrial communications, including:

  • Teleprotection
  • Internet Service Provider (ISP)
  • Public Safety
  • Air Traffic Control
  • Oil & Gas
