TC3847-1 RS-422

2-Channel RS-422 Serial Server w/Handshake

TC3847-1 RS-422

Rollover or Touch for Expanded View. Scroll to Zoom.

Compact and simple to configure, the TC3847-1 RS-422 Serial Server interface card transports two channels RS-422 data over existing Layer 2/Layer 3 Ethernet networks.

The JumboSwitch® series is a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN). TDM over IP/Ethernet is a TDM pseudowire (PW) technology making it possible to provision E1, T1, E3, T3, STS-1 and serial data services across PSN's such as IP, MPLS or layer 2 Ethernet Networks.


For assistance with this product or to request a user manual please contact Technical Support.


Features

  • Transports 2 Ch. RS-422 over Ethernet/IP
  • Supports RS-422 Handshaking (CTS/RTS)
  • Supports MicroLok®*, Genisys, Modbus, DNP 3 serial protocols
  • 128 bit SSL Encryption for Management and Serial Data
  • Port Password Protection
  • Manage Via Web, SNMP or Telnet
  • Temperature and Power Consumption Monitoring
  • Extreme Temp (-40°C to +80°C) Optional
  • Meets or Exceeds IEC 61850-3, IEEE 1613 & NEMA TS-2 Standards
  • Member of the JumboSwitch® Product Family
MicroLok® is a trademark for ANSALDO STS USA, INC.

Applications

Typical applications centered around transporting serial data over IP networks.

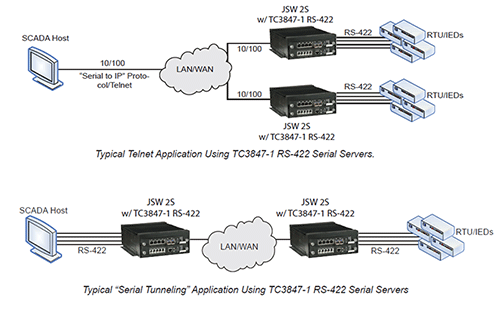

For example the TC3847-1 RS-422 is often used in Utility, SCADA, Traffic Control and Process Control Networks to link RS-422 RTUs and PLCs to a Host CPU.

TC3847-1 RS-422 - 2-Ch. Serial Server
Click to enlarge

Specifications

Data Rates
  1. RS-422Up to 115Kbps
  2. Ethernet10/100Mbps, Full Duplex/Auto negotiation
Connection Capacity
  1. RS-4222 Ports
  2. Ethernet1 Port
Electrical
  1. RS-422 Interface
  2. Termination (optional)100 Ohm
  3. ESD Protection+/-15KV HBM
  4. ConnectorRJ11F
  5. Ethernet Interface
  6. StandardsIEEE 802.3, 802.3u, 802.1p&Q
Regulatory Approval
  1. CE, FCC Part 15, CISPR, CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
System
  1. Bit Error Rate1 in 1010 or Better
Diagnostic Functions
  1. Local and Remote Loopback for Serial Data
LEDs
  1. Unit StatusPWR (A, B), Alarm, Vcc, BP, MGM
  2. ChannelRx/Tx/Control
  3. EthernetLink/Act
Power
  1. Standard12VDC
  2. Optional24, -48 VDC, 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (rack mount card)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs

Ordering
