8-Channel Dry Contact-over-IP Gateway

TC3847-5
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3847-5 is ideal for users needing to extend dry contacts across existing Layer 2/Layer 3 networks and low latency is an important requirement. It is part of the JumboSwitch® series.

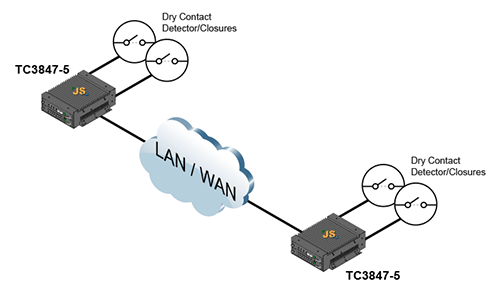

Typical applications for the TC3847-5 include extending dry contact across IP networks. For example, it is often used to extend dry contact signals point-to-point across Layer 2/Layer 3 Networks.

  • Extremely Low Latency
  • VLAN & QoS Support
  • Built-In Temperature & Power Sensors
  • Extreme Temp (-40°C to +80ºC) Optional
  • Meets or Exceeds IEC 61850-3, IEEE 1613 & NEMA TS-2 Standards
  • Member of the JumboSwitch® Product Family

Applications

Typical applications include extending dry contact across IP networks.

For example, the TC3847-5 is often used to extend dry contact signals point-to-point across Layer 2/Layer 3 Networks.

TC3847-5 - Dry Contact IP Gateway
Click to enlarge

Specifications

Connection Capacity
  1. Dry Contact8 Ports
  2. Ethernet1 Port
Electrical
  1. Dry Contact Interface
  2. Normal openStandard
  3. Normal closeOptional
  4. Load Voltage (peak AC)60V
  5. Load Voltage (DC)60V
  6. Continuous load current0.55A
  7. Peak load current1.2A
  8. Max On Resistance2.5 Ω
  9. Output Capacitance150pF
  10. Detector Max input voltage9V
  11. Ethernet Interface
  12. StandardsIEEE 802.3, 802.3u, 802.1p&Q
  13. ConnectorRJ45
  14. Console PortRJ45
System
  1. Bit Error Rate1 in 1010 or Better
Diagnostic Functions
  1. Local and Remote Loopback for Serial and Ethernet
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS A, IEC 61850-3, IEEE 1613, NEMA TS-2
LEDs
  1. Unit StatusPWR (A, B), Alarm Vcc, BP, MGM>
  2. ChannelRx/Tx/Status
  3. EthernetLink/Act
Power
  1. Standard12VDC
  2. Optional24, -48 VDC, 90-260 VAC, 50/60Hz
  3. Power Consumption< 10W
System
  1. Bit Error Rate1 in 1010 or Better
Operating Temperature
  1. Standard Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (4-Channel Standalone)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
