T1 / E1-over-IP Gateway (1-4 ch.)

TC3845-1
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

This T1/E1 over IP device transports up to 4 channels of T1 or E1 over Layer 2/3 Ethernet networks with low latency. It is part of the JumboSwitch® series, a TDM over IP/Ethernet based solution designed to emulate time-division multiplexing over packet switched networks (PSN).

Typical applications for the TC3845-1 are the replacement of copper T1/E1 lines as well as the connection of existing T1/E1 based channel banks often as part of a network migration.

Migrating T1/E1 using JumboSwitch positions a user for complete channel bank replacement with JumboSwitch at a future date.

  • Transports 4 Ch. T1/E1 Over Ethernet/IP
  • Extremely Low Latency
  • Point-to-Point & Point-to-MultiPoint Applications
  • VLAN and QoS Support
  • Manage Via Web, SNMP, Serial Console, Telnet
  • Built-In Temperature & Power Sensors
  • Extreme Temp (-40°C to +80°C) Optional
  • Meets or Exceeds IEC 61850-3, IEEE1613 & NEMA TS-2 Standards
  • Member of the JumboSwitch® Product Family

Applications

Typical applications include transporting voice, video, and data across IP networks. For example, the TC3845-1 is used to extend T1/E1 links between PBX’s, connect video conferencing, or link Cell Towers to Central Offices, all over existing Layer 2 / Layer 3 Networks.

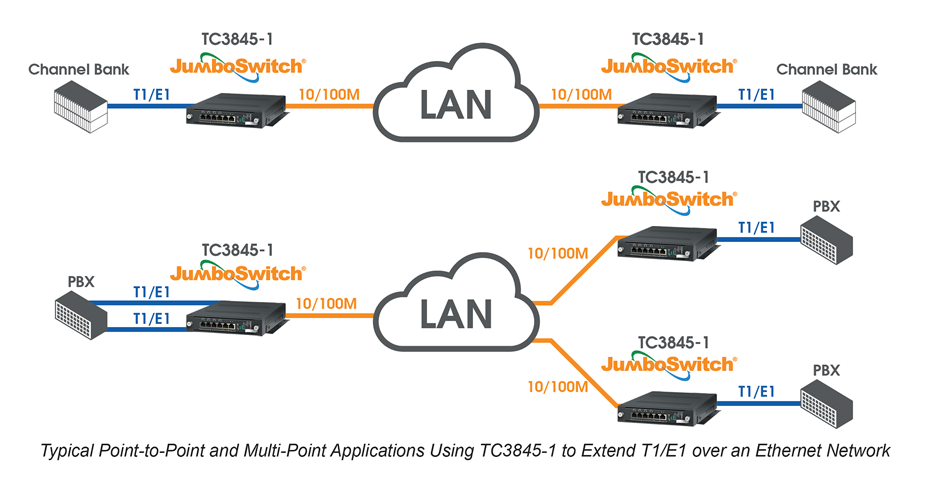

TC3845-1 - T1 / E1 Over IP
Click to enlarge

Specifications

Data Rates
  1. T11.544 Mbps
  2. E12.048 Mbps
  3. Ethernet10/100 Mbps Full Duplex
  4. Console9.6K
Connection Capacity
  1. T1/E14 Channels
  2. Ethernet1 Port
Electrical
  1. T1 Interface
  2. Line CodeAMI, B8ZS
  3. StandardsAT&T TR-62411, G.703, G.704, G.824, ANSI T1.403
  4. ConnectorRJ48
  5. Impedance100 Ohm
  6. E1 Interface
  7. Line CodeAMI, HDB3
  8. StandardsG.703, G.704, G.706, G.732, G.823
  9. ConnectorRJ48, BNC via cable
  10. Impedance75, 120 Ohm
  11. Ethernet Interface
  12. StandardsIEEE 802.3, 802.3u, 802.1p&Q
  13. ConnectorRJ45
  14. Console PortRJ45
System
  1. Bit Error Rate1 in 1010 or Better
Regulatory Approval
  1. CE, FCC Part 15, CISPR (EN55022) CLASS AYes
  2. IEC 61850-3, IEEE 1613, NEMA TS-2Yes
Diagnostic Functions
  1. Local and Remote Loopback for T1/E1 and EthernetYes
LEDs
  1. Unit StatusPWR (A, B), Alarm, Vcc, BP, MGM
  2. T1/E1Status
  3. EthernetLink/Act
Power
  1. Standard12VDC
  2. Optional24, -48 VDC, 90-260 VAC, 50/60Hz
  3. Power Consumption<10W
Operating Temperature
  1. Hi-Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Operating Temperature
  1. High Temp-20°C to 70°C
  2. Extreme Temp-40°C to 80°C
Storage
  1. Temperature-40°C to 90°C
  2. Humidity95% non-condensing
Physical (Standalone Unit)
  1. Height(3.15 cm) 1.24"
  2. Width(17.78 cm) 7.0"
  3. Depth(22.86 cm) 9.0"
  4. Weight(0.3 kg) 0.75 lbs

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
