TC8116

Multi-Interface Fiber Optic Data Multiplexer (8/16 ch)

TC8116
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC8116 Serial Data Fiber Optic Multiplexer is an inexpensive method to connect asynchronous & synchronous terminals, printers, & status collecting devices. It effectively multiplexes RS-232, RS-422, RS-485 (2 or 4 wire), and Dry Contact Closure interfaces and is available in 8 or 16 channel versions, each with or without Control/Handshaking.

The TC8116 provides a flexible, inexpensive solution for connecting async/sync terminals, printers, and status collecting devices. It is also used in harsh environments where EMI/RFI interference, ground loops and lightning conditions may exist.

  • Mix or match field-interchangeable interfaces: RS-232, RS-422, RS-485, & Dry Contact Relays
  • Data rates up to 38.4 Kbps*
  • Built-in power redundancy
  • Optional optical redundancy
  • Local dry contact relay alarm
  • Built-in test signal generator
  • Local & remote loopback
  • Multimode (850/1300nm) or single mode (850/1310/1550nm)
  • High and Extreme temperature versions (Optional)

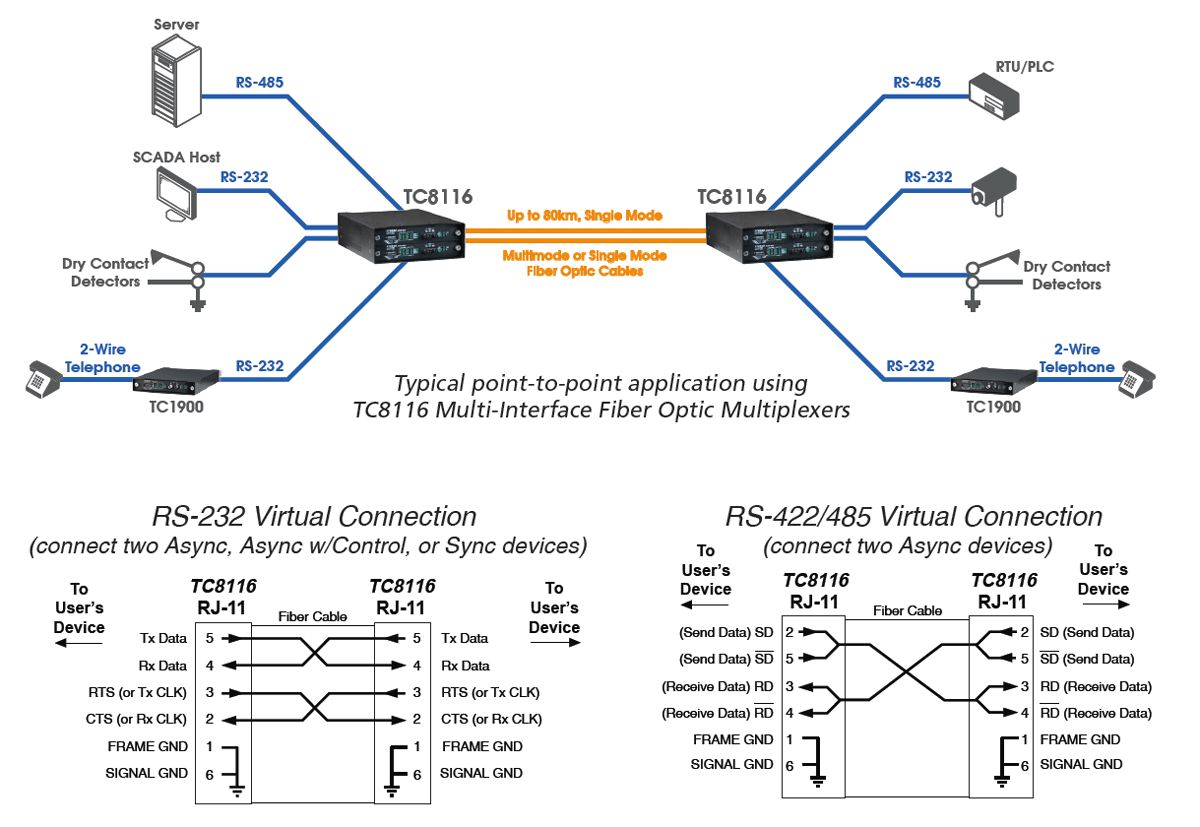

Applications

The TC8116 Fiber Optic Multiplexer provides a flexible, inexpensive method for connecting async/sync terminals, printers, and status collecting devices. It is also used in harsh environments where EMI/RFI interference, ground loops and lightning conditions may exist.

TC8116 - 8/16 Channel Fiber Optic Data Multiplexer
Click to enlarge

Specifications

Data Rates (per channel)
  1. AsyncUp to 38.4 Kbps*
  2. SyncUp to 19.2 Kbps
Channel Capacity
  1. Async8 or 16
  2. Sync (RS-232 only)8 or 16
Optical
  1. TransmitterLED/FP LD
  2. ReceiverPIN Diode
  3. Wavelength850/1300nm MM, 1310/1550nm SM
  4. Fiber Optic ConnectorsST, Optional FC
  5. Loss Budget * - 850/1300/1550nm
  6. Multimode @ 62.5/125µm15dB
  7. Single Mode @ 9/125µm20dB
Electrical

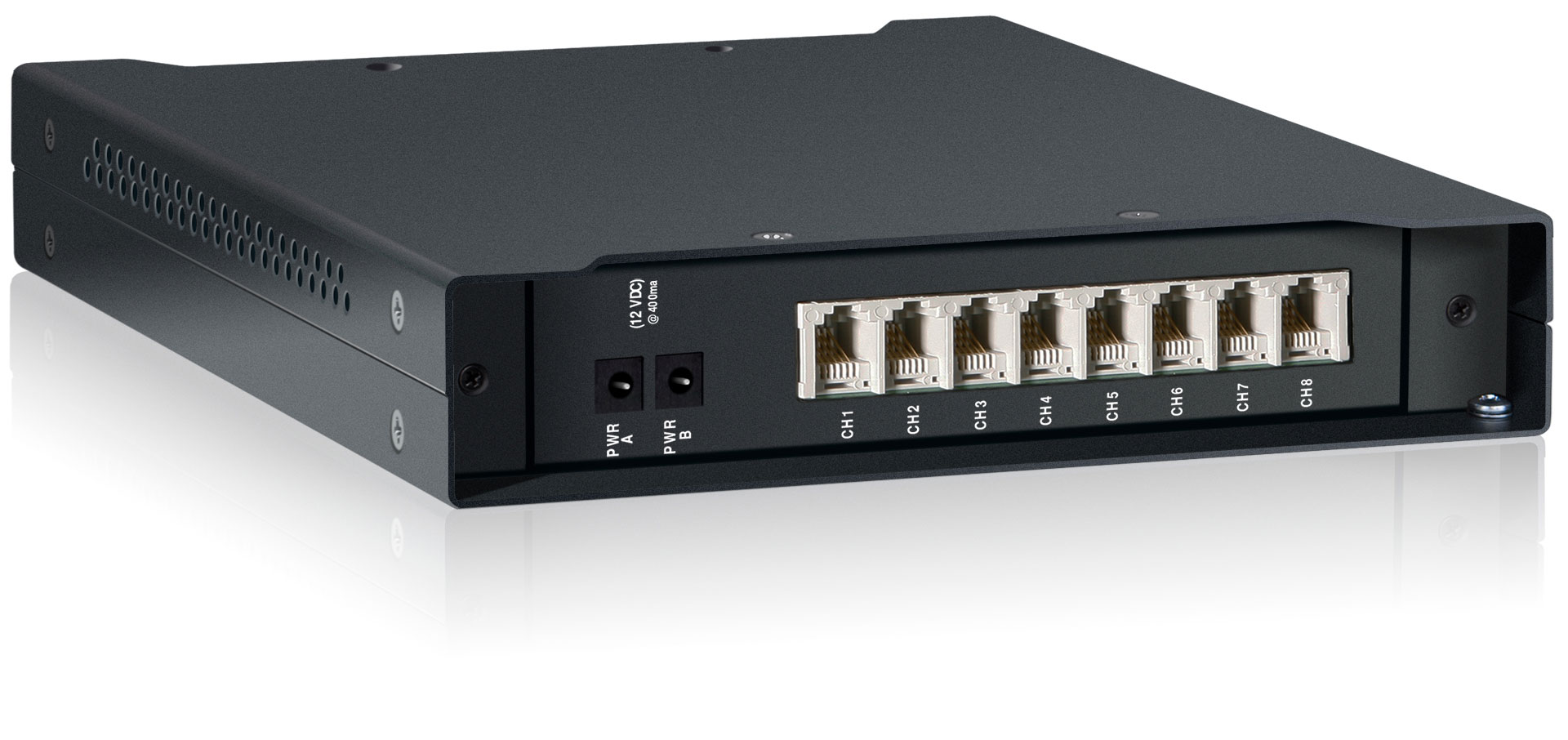

  1. ConnectorRJ11 Female
  2. Interface (standard)RS-232
  3. Interface (optional)2 or 4-wire RS-485, RS-422 and Dry Contact Relay, or any combination*
System
  1. Bit Error Rate1 in 109 or better

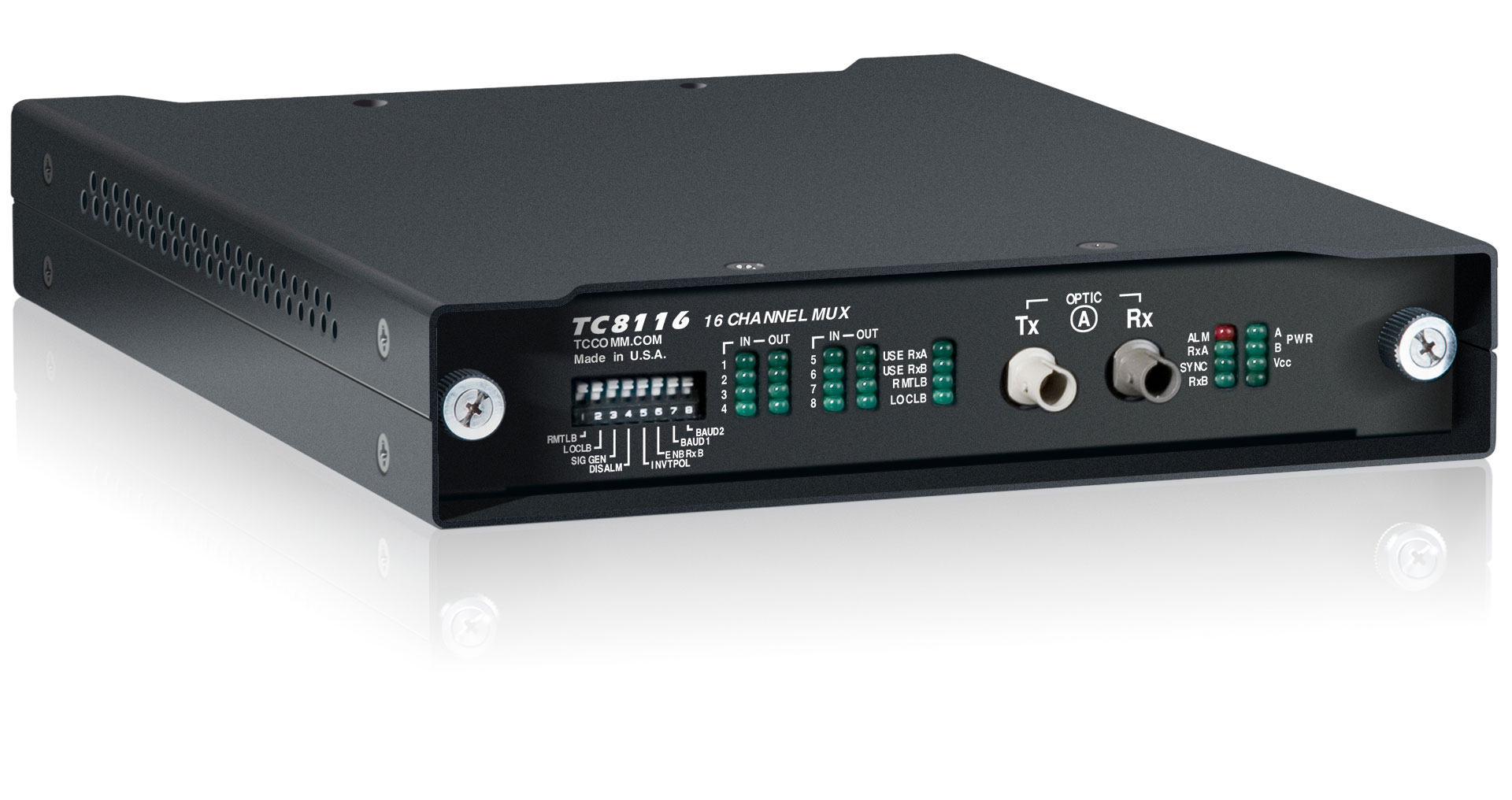

Visual Indicators
  1. Channel Status (each ch.)Tx, Rx
  2. SystemPWR A, PWR B, VccA, VccB, ALM
  3. OpticSYNC, RxA, RxB, USE RxA, Use RxB, OPTIC TxB, OPTIC RxB
Alarm
  1. Dry ContactNormal OPEN
Power
  1. Standard12VDC @400mA
  2. Optional24VDC, -48VDC, or 115/230VAC w/ ext power cube
Temperature
  1. Operating-10°C to 50°C
  2. Hi-Temp (optional)-20°C to 70°C
  3. Extreme Temp (optional)-40°C to 80°C
  4. Storage-40°C to 90°C
  5. Humidity95% non-condensing

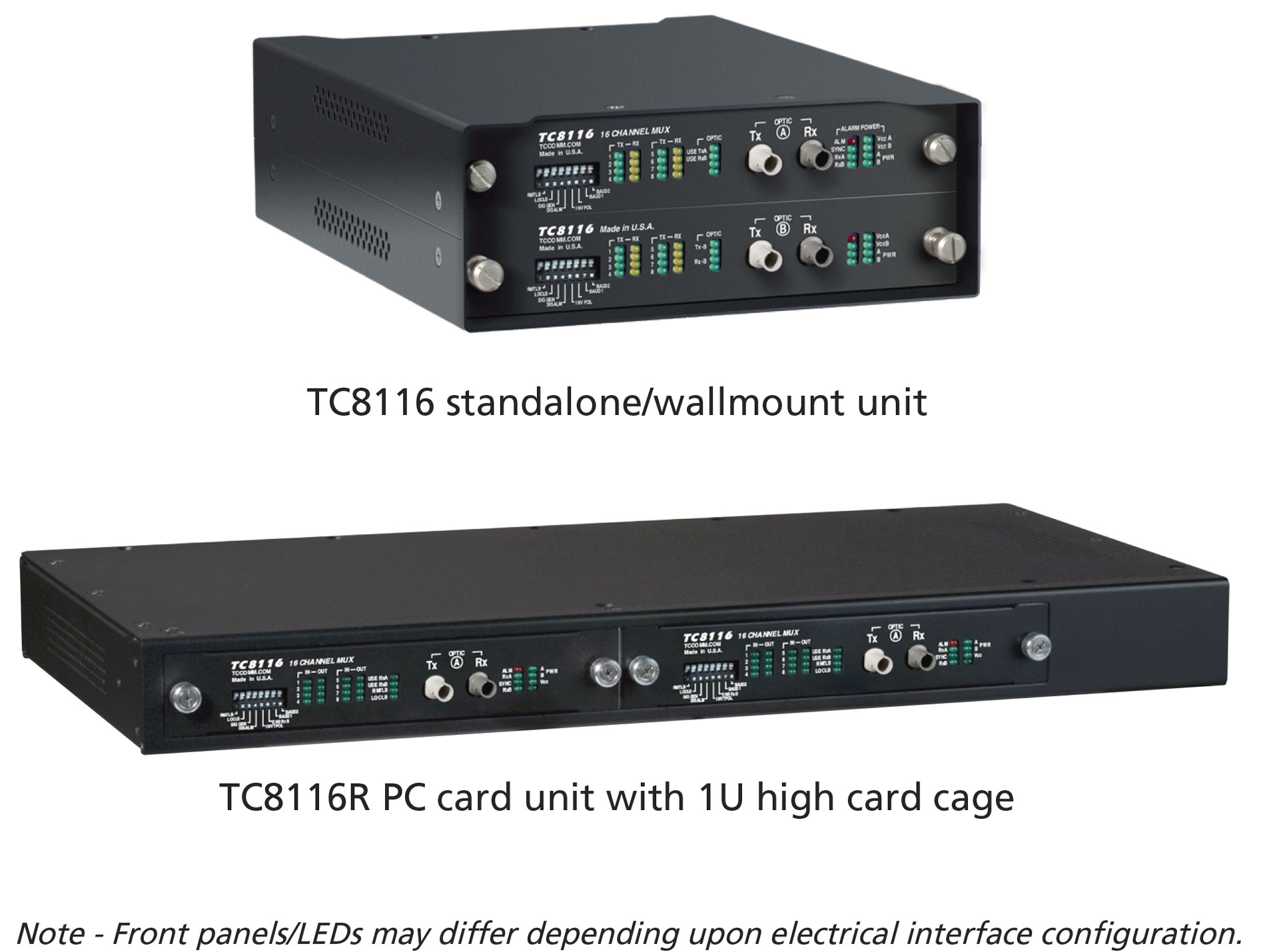

Physical (Standalone Unit)
  1. Height(6.71 cm) 2.64"
  2. Width(18.13 cm) 7.14"
  3. Depth(24.89 cm) 9.80"
  4. Weight(1.36 kg) 3 lbs
* Contact factory for higher requirements
