TCRM195/196

19'' Wide 1U Rackmount Card Cage

TCRM195/196
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

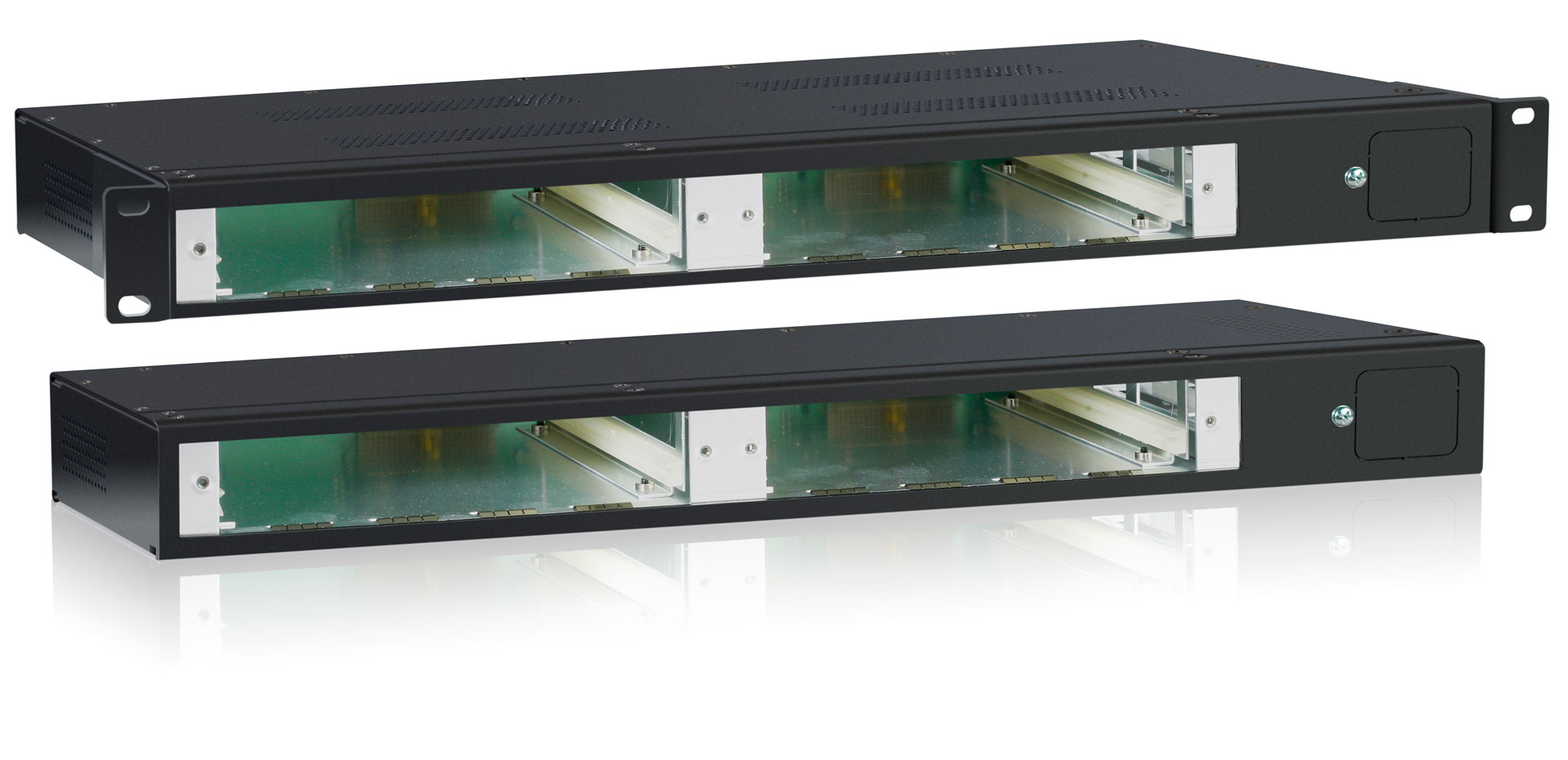

The TCRM19 Series Interface Card Cages feature sturdy construction and house all applicable TC products in standard 19" racks. The TCRM195 and TCRM196 Universal Rack Mount Card Cages hold up to two single multiplexer or modem-type cards, or one doublemux or double-modem type card.

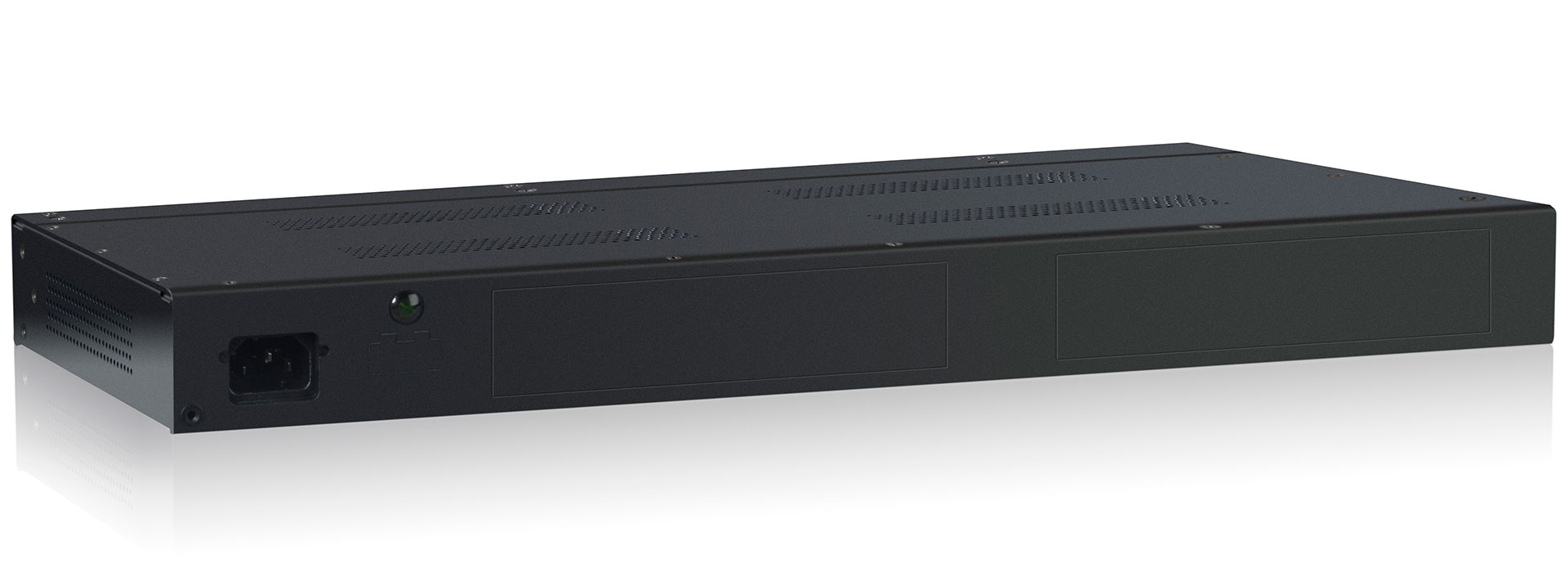

Both can operate with one power supply or dual load-sharing power supplies (built-in or external). The AC power supply automatically adjusts for 90 to 264VAC input and 47 to 63 Hz operation. The DC power supply accepts -48VDC input. The AC and DC power supplies can be mixed in the same unit. The built-in power supply switch and its status LED are located on the front panel.

Both rack assemblies are 19” wide by 1.75” high (1 U). The TCRM195 is 8.5” deep and the TCRM196 is 5.25” deep.

  • 1U High (1.75") - TCRM195/196
  • Dual Power Capability with Automatic Switchover in the Event of Failure (currently available on TCRM191/192)
  • Universal Switching Power Supply Accepts 90 to 264VAC (47 to 63 Hz)
  • Optional 24VDC, -48VDC or 125VDC Power Supply
  • Overload & Short-Circuit Protection

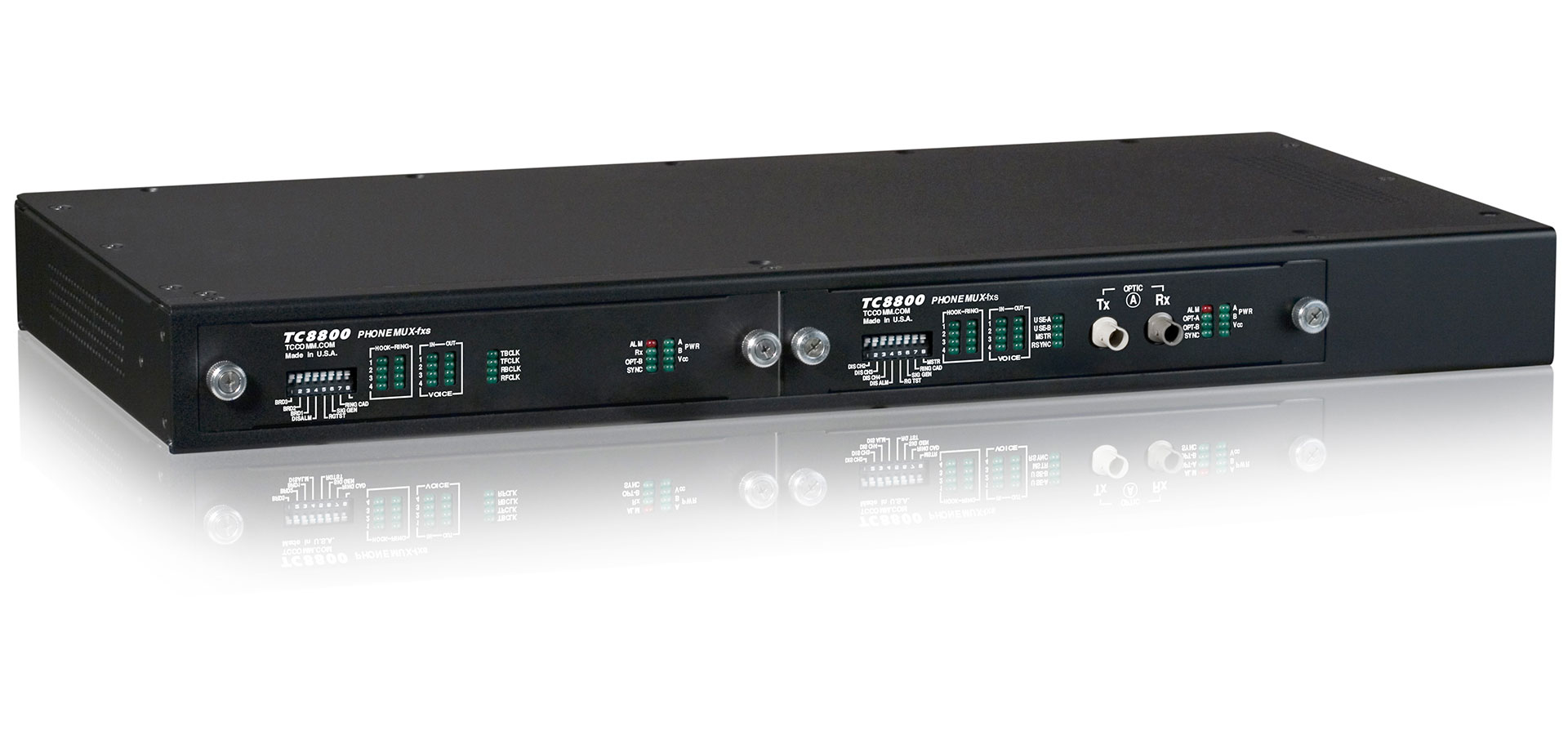

The TCRM195 is most often used for multiplexers and the TCRM196 is most often used for modems.

Applications

The TCRM19 Card Cages are designed with sturdy construction to house TC products in standard 19" racks.

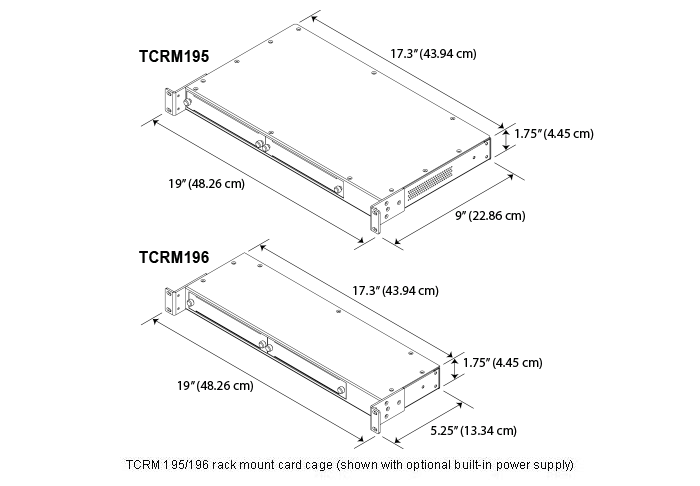

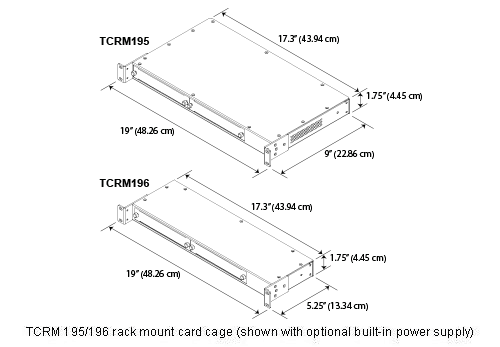

TCRM195/196 - 1 Unit High Rack
Click to enlarge

Specifications

TCRM195
  1. Width19" (48.26 cm)
  2. Height1.75" (1U) (4.45 cm)
  3. Depth9" (22.86 cm)
  4. Power SupplySingle 115/240VAC, 24VDC, -48VDC, 125VDC
TCRM196
  1. Width19" (48.26 cm)
  2. Height1.75" (1U) (4.45 cm)
  3. Depth5.25" (13.34 cm)
  4. Power SupplySingle 115/240VAC, 24VDC, -48VDC, 125VDC

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
