TCRMPS3

JumboSwitch 4U Power Supply Card

TCRMPS3
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TCRMPS3 power supply cards are dual load-sharing and automatically switch over in the event of a power failure. A single card is sufficient to fully power the chassis.

The AC or DC power supply cards for the 4U chassis are hot-swappable and located on opposite ends of the chassis. Power supply cards are dual load-sharing and automatically switch over in the event of a power failure. A single card is sufficient to fully power the chassis.

The AC power supply automatically adjusts for 90 to 264 VAC input and 47 to 63 Hz operation. The DC power supplies accept 12VDC, 24VDC, -48VDC or 125VDC input. AC and DC power supplies can be mixed in the same unit. Power options include:

  • 12VDC, 24VDC, -48VDC and 125VDC
  • 115VAC, 230VAC and 240VAC (50-60Hz)

Through the TC3840 Management card, the power supply can be remotely managed via Web, SNMP, Serial Console or Telnet. Power supply cycling and monitoring ON/OFF status can be done remotely. More extensive management and control operations can be done through the Network Management System, TCView. With TCView, users can monitor voltage, temperature and set alarm thresholds.

Each card has its own power controller, 2 fuses and can be powered from the wall, UPS or generator. DC power supply cards have a front side replaceable fuse. Power supply cards do not require fans and comply with all popular industry and environmental standards including IEC 61850-3.

To take full advantage of the redundant power supplies, it is recommended that each module be plugged into separate power circuit.

  • AC/DC with All Popular Power Options
  • Hot-Swappable
  • Load Sharing
  • Redundant with Automatic Failure Switchover
  • Monitoring for temperature, and set alarm thresholds
  • Complies with Industry Standards including IEC 61850-3

Applications

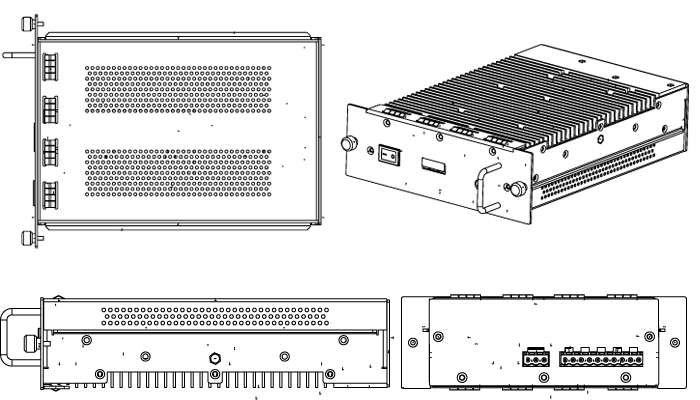

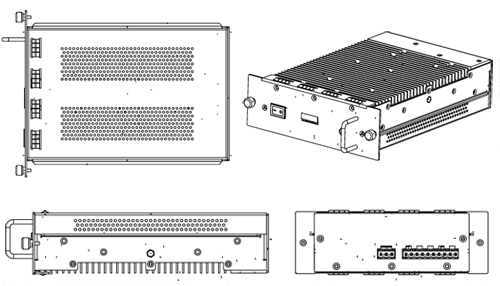

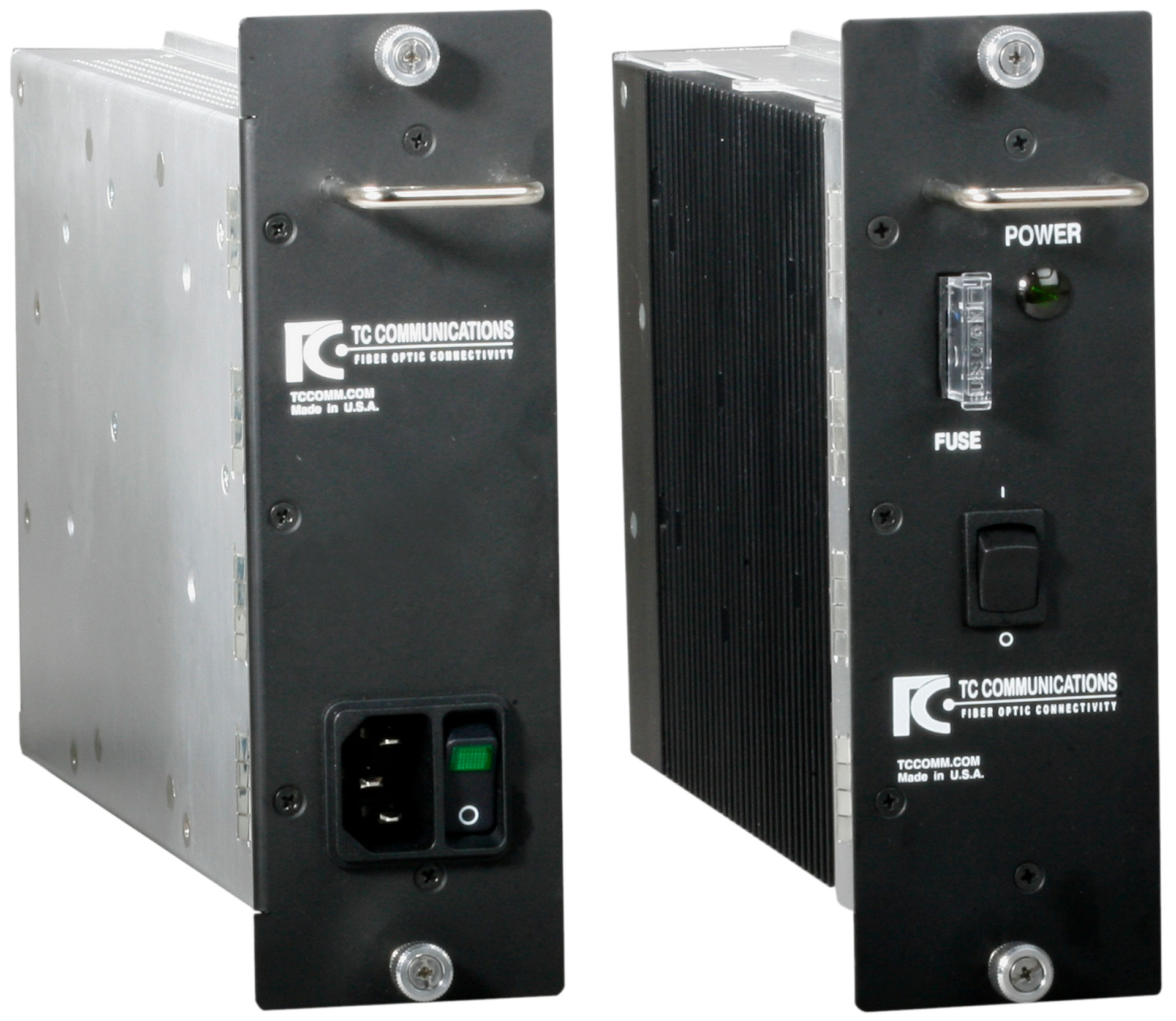

TCRMPS3 - 4U Power Source (AC or DC)
Click to enlarge

Specifications

DC Power Supply Specifications

12VDC PSU

  1. Product Input Voltage Range9-18 VDC
  2. Input Under Voltage Lockout7.8-8.4 VDC
  3. Input Overvoltage Shutdown>36 VDC
  4. Output Voltage5.5 VDC
  5. Maximum Output Power175W
  6. Efficiency78% Typical
  7. Overload ProtectionUp to 125% of Max Output Load

24VDC PSU

  1. Product Input Voltage Range18-36 VDC
  2. Input Under Voltage Lockout15.5-16.3 VDC
  3. Input Overvoltage Shutdown>75 VDC
  4. Output Voltage5.5 VDC
  5. Maximum Output Power132W
  6. EfficiencyUp to 91%
  7. Overload ProtectionUp to 140% of Max Output Load

-48VDC PSU

  1. Product Input Voltage Range9-18 VDC
  2. Input Under Voltage Lockout7.8-8.4 VDC
  3. Input Overvoltage Shutdown>75 VDC
  4. Output Voltage5.5 VDC
  5. Maximum Output Power132W
  6. EfficiencyUp to 91%
  7. Overload ProtectionUp to 140% of Max Output Load

125VDC PSU

  1. Product Input Voltage Range9-18 VDC
  2. Input Under Voltage Lockout7.8-8.4 VDC
  3. Input Overvoltage Shutdown>155 VDC
  4. Output Voltage5.5 VDC
  5. Maximum Output Power150W
  6. Efficiency85% Typical
  7. Overload ProtectionUp to 125% of Max Output Load

AC Power Supply Specifications

110/230VAC Power Supply

  1. Product Input Voltage Range90VAC to 264VAC
  2. Input Frequency47Hz to 63Hz
  3. Input Current2Arms Max/115VAC or 1Arms Max/230VAC
  4. Inrush currentless than 30A at 115VAC less than 60A at 230VAC
  5. Cold Start25°C
  6. Efficiencyup to 80%
  7. Overload ProtectionAuto Recovery
  8. Short circuit protectionAuto Recovery
  9. Over voltage ProtectionLatch Off

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
