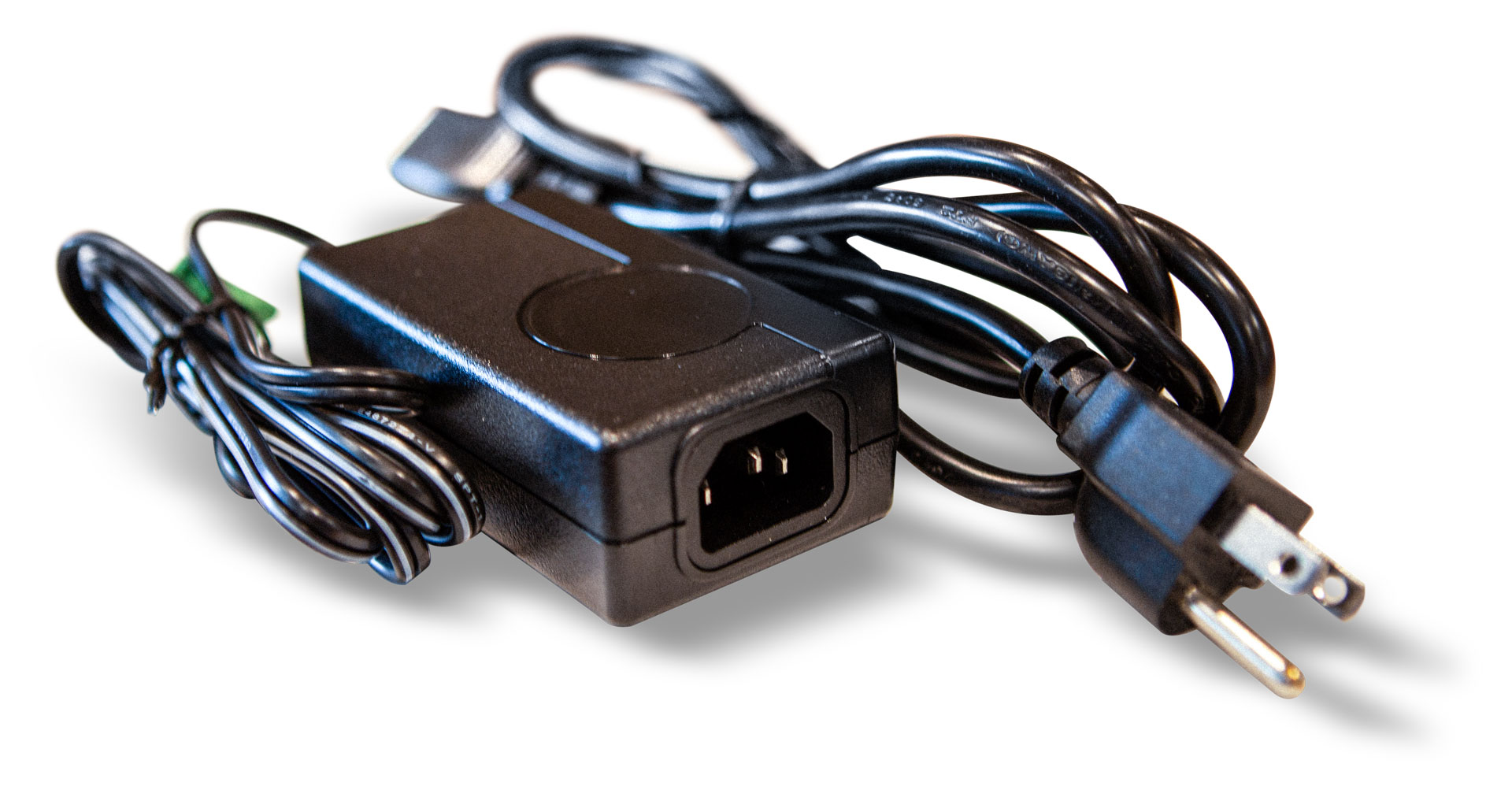

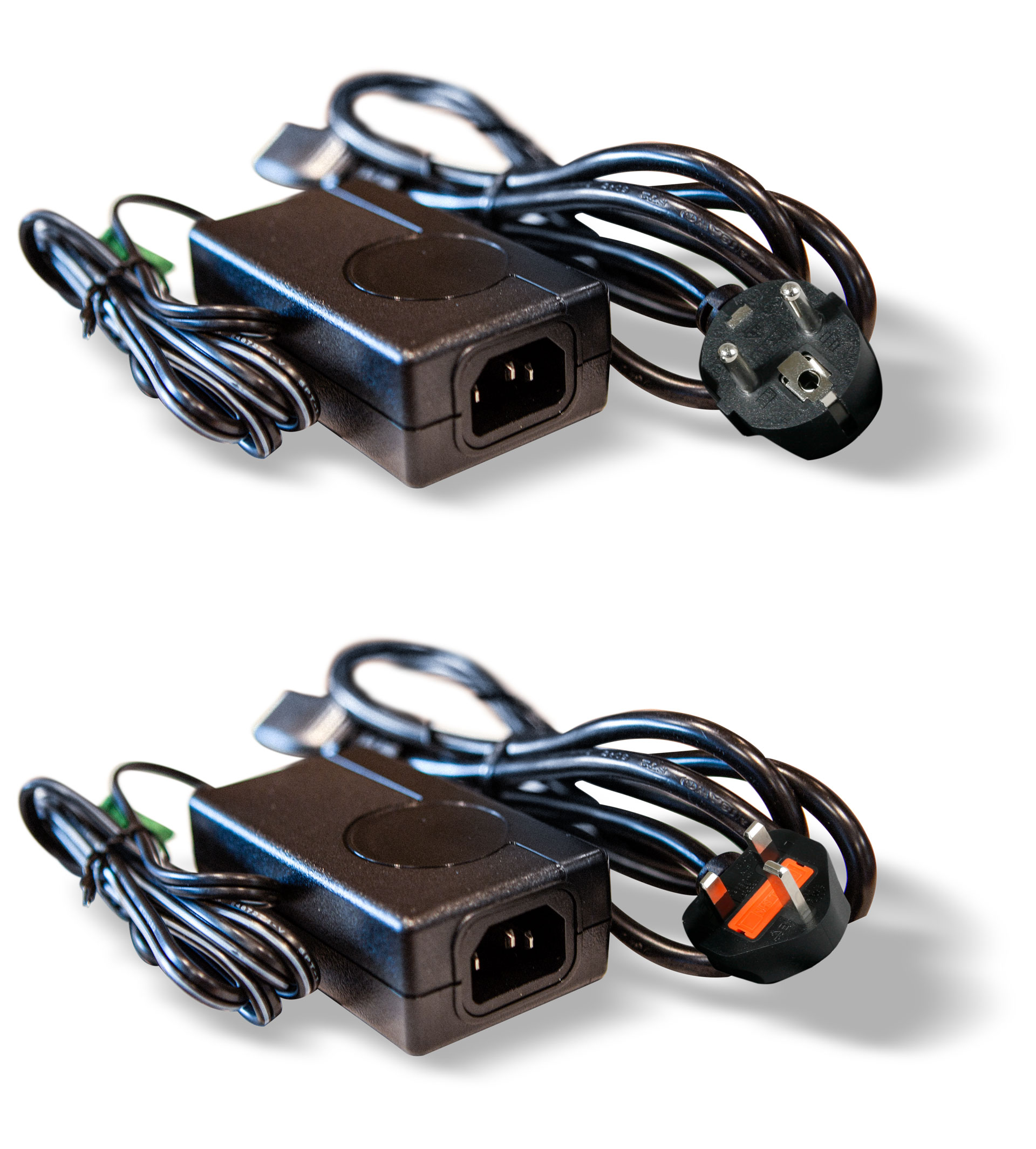

TC3PS-TB-25

12 Volt Power Adapter with 2 or 3 Pin Terminal Block

TC3PS-TB-25
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TC3PS-TB-25 Universal Power Adapter is compatible with standard and large TC Communications products. It draws 2.5 Amps and is compatible with standard and large TC Communications products. It is a 115/240V AC to 12V DC Power Adapter with a 2- or 3-Pin Terminal Block connector.

  • AC Input 100-240 VAC, 47-63Hz
  • DC Output 12V, 2.5A, 30W Max
  • Class B EMI
  • Low Profile Design
  • Level VI Efficiency Compliant
  • Eco-design ErP Directive 2009/125/EC Level 2 Annex 1b Compliant

Applications

This power supply applies to the following products:

  • TC8930
  • TC8916
  • TC8800S/R
  • TC861X
  • TC8530
  • TC8520
  • TC8510
  • TC8300
  • TC8116
  • TC8108
  • TC8000
  • TC4001
  • TC3848
  • TC3847
  • TC3846
  • TC3845
  • TC3840DR
  • TC3847-1DR
  • TC3400/3420
  • TC3340
  • TC3300
  • TC3240
  • TC3210
  • TC302X
  • TC3007/3006
  • TC3005/3004
  • TC2900
  • TC2850
  • TC2800
  • TC2400
  • TC2200
  • TC2100
  • TC1920
  • TC1905
  • TC1903
  • TC1901
  • TC1900
  • TC1631
  • TC1720
  • TC1710
  • TC1705
  • TC1680

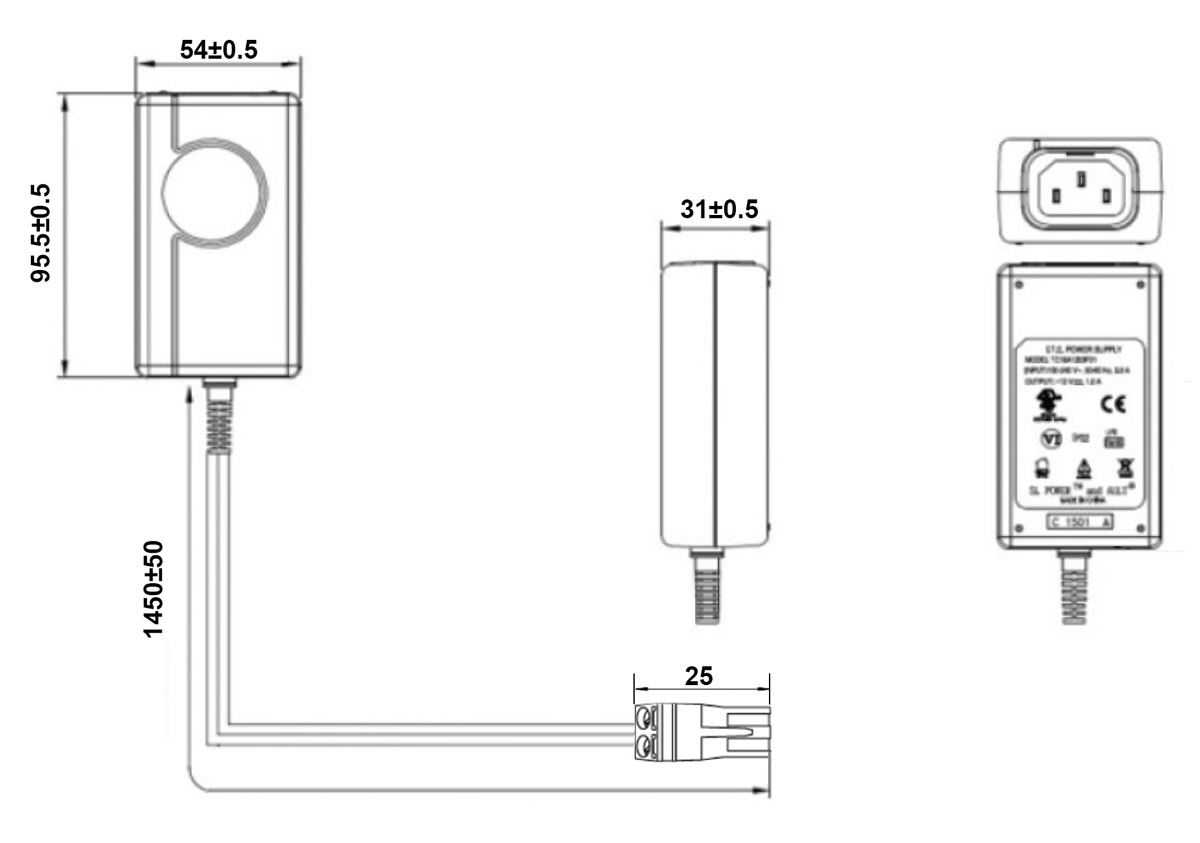

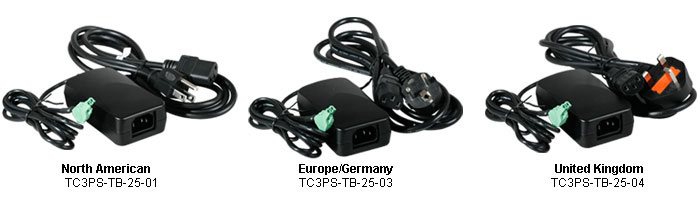

TC3PS-TB-25 - 2 or 3 Pin Terminal Block
Click to enlarge

Specifications

Mechanical Characteristics
  1. Length103.4mm (4.07in)
  2. Width42mm (1.65in)
  3. Height28.7mm (1.13in)
  4. Weight140g (4.94oz.)
  5. DC Output ConnectorTerminal Block
  6. DC Cord Length1500mm (59.1in)
  7. AC Output ConnectorIEC C14
  8. AC Cord Length1828.8mm (72in)
Input
  1. AC Input
  2. Voltage Rating100VAC to 240VAC
  3. Voltage Range90VAC to 264VAC
  4. Frequency47Hz to 63Hz
  5. Input Current
  6.  0.8A (RMS) maximum at 120VAC
  7.  0.5A (RMS) maximum at 240VAC
  8. Leakage Current3.5mA maximum at 254VAC, 50Hz
  9. Inrush Current
  10.  60A max @ 100VAC & max load
  11.  100A max @ 240VAC & max load
  12. (Cold start at ambient 25°C)
  13. Power Saving<0.1W Max @ 0A 23VAC 50Hz
Output
  1. DC Output Voltage+12V
  2. DC Output Power30W
  3. Load
  4. Minimum0A
  5. Maximum2.50A
  6. Ripple
  7. 120mV
  8. Efficiency
  9. LevelDOE Levl VI
  10.  >88% Typical
  11. Over-Voltage Protection 10Vmax
  12. Over-Current ProtectionAuto restart mode without damage
  13. Short-Circuit ProtectionOutput can be shorted permanently without damage
Environmental
  1. Operating Temperature-20° to 70°C
  2. Storage Temperature-20° to 75°C
  3. Operating Humidity20% to 90%
  4. Immunity
  5. EN61000-4-2level 4
  6. EN61000-4-3level 2
  7. EN61000-4-4level 2
  8. EN61000-4-5level 3
  9. EN61000-4-6level 2
  10. EN61000-4-8level 1
  11. EN61000-4-11
  12. EmissionsFCC Class B, EN55022 Class B
  13. Dielectric Withstand (Hi-pot) Test
  14. Input to output:3000VAC, 10mA for 1 minute
  15. Input to F.G.:1500VAC, 10mA for 1 minute
Safety Approvals
  1.  cUL/UL, CB, CE
