TCRM197

JumboSwitch 4U 19'' Rackmount Card Cage

TCRM197
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

The TCRM197 JumboSwitch 4U rack mount cage is designed to hold JumboSwitch family hot-swappable cards. It holds one Main, one Management and up to seven interface cards.

It comes standard with dual load-sharing power supplies. AC and DC power supplies can be mixed in the same unit. The universal AC power supply automatically adjusts for 90 to 264VAC input and 47 to 63 Hz operation. Options include:

  • 12VDC, 24VDC, -48VDC and 125VDC
  • 115VAC, 230VAC and 240VAC (50-60Hz)

The dual load-sharing power supplies automatically switch over in the event of a power failure. Through the TC3840 Management card, the power supply can be remotely managed via Web, SNMP, Serial Console or Telnet. Power supply cycling and monitoring ON/OFF status can be done remotely.

Standard operating temperature is -20°C to +70°C and the extreme temperature version is -40°C to +80°C

  • Industry Standard 19” Wide
  • Ruggedized Design for Harsh Environments
  • Designed to Hold All JumboSwitch Family Hot-Swappable Cards
  • Extreme Temperature (-40°C to +80°C) Optional
  • Power Supplies Managed via Web, SNMP, Serial Console or Telnet
  • Various AC & DC Power Ranges
  • Built-In Power Redundancy

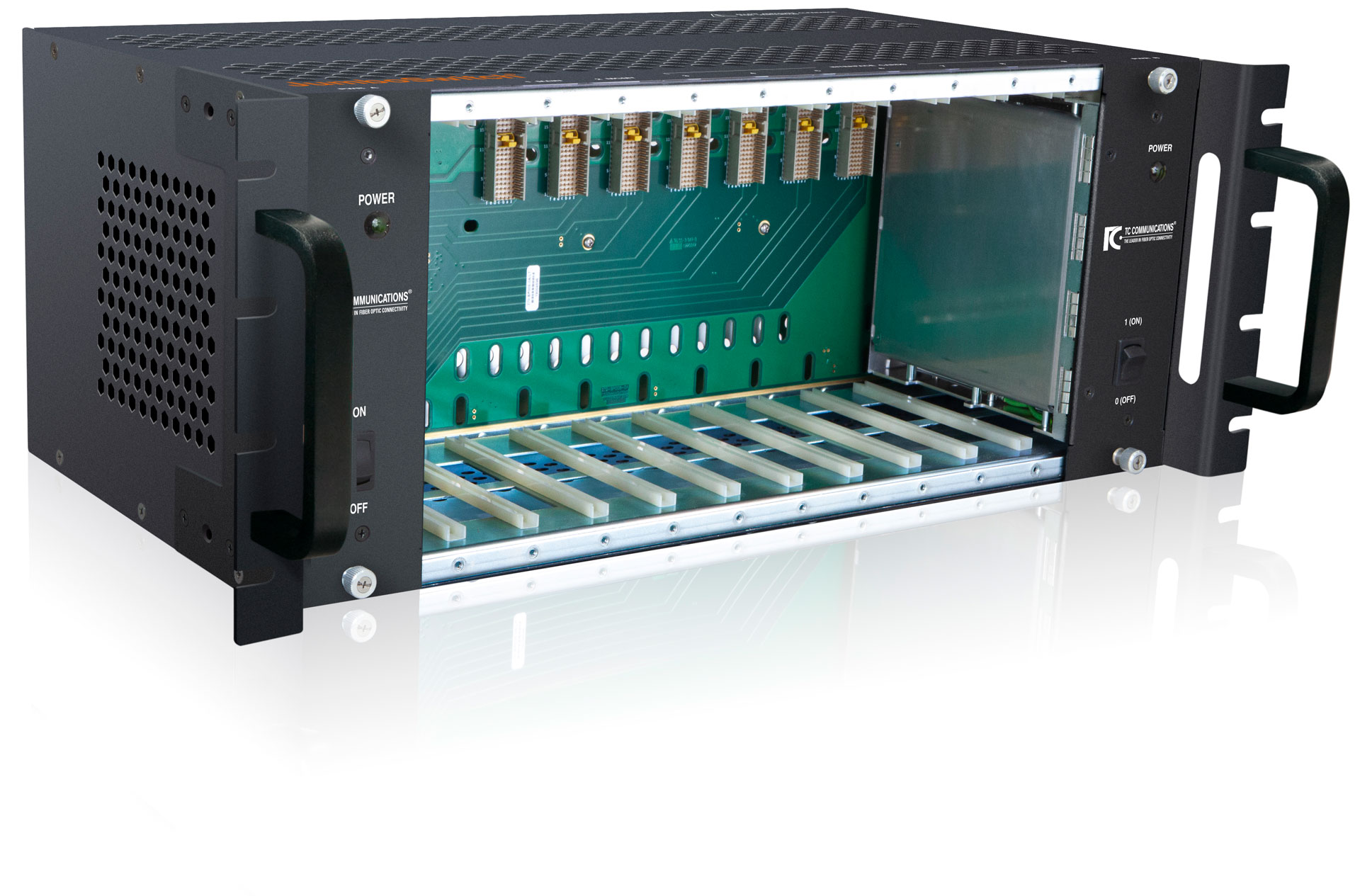

The TCRM197 JumboSwitch 4U card cages house hot-swappable JumboSwitch family cards in a standard 19” rack.

Applications

Sturdy and durable, JumboSwitch 4U card cages house hot-swappable JumboSwitch family cards in a standard 19” rack. Power supplies can be remotely managed and dual load sharing power supplies automatically switch over in the event of a power failure.

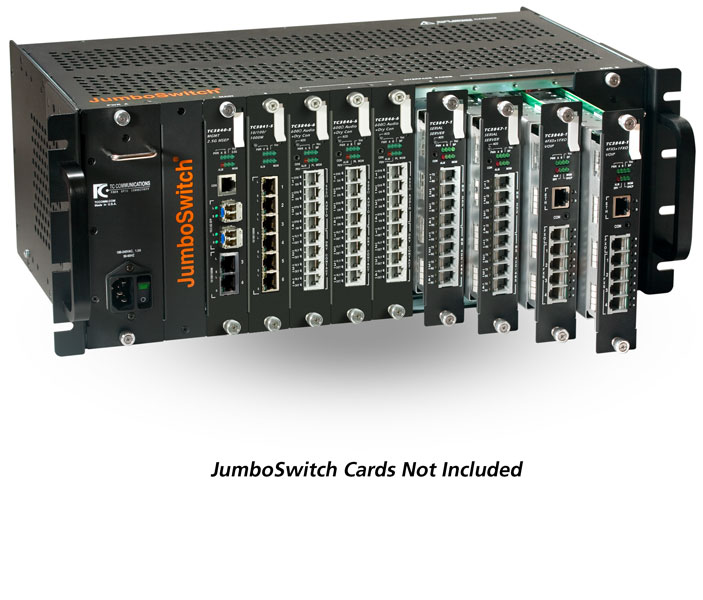

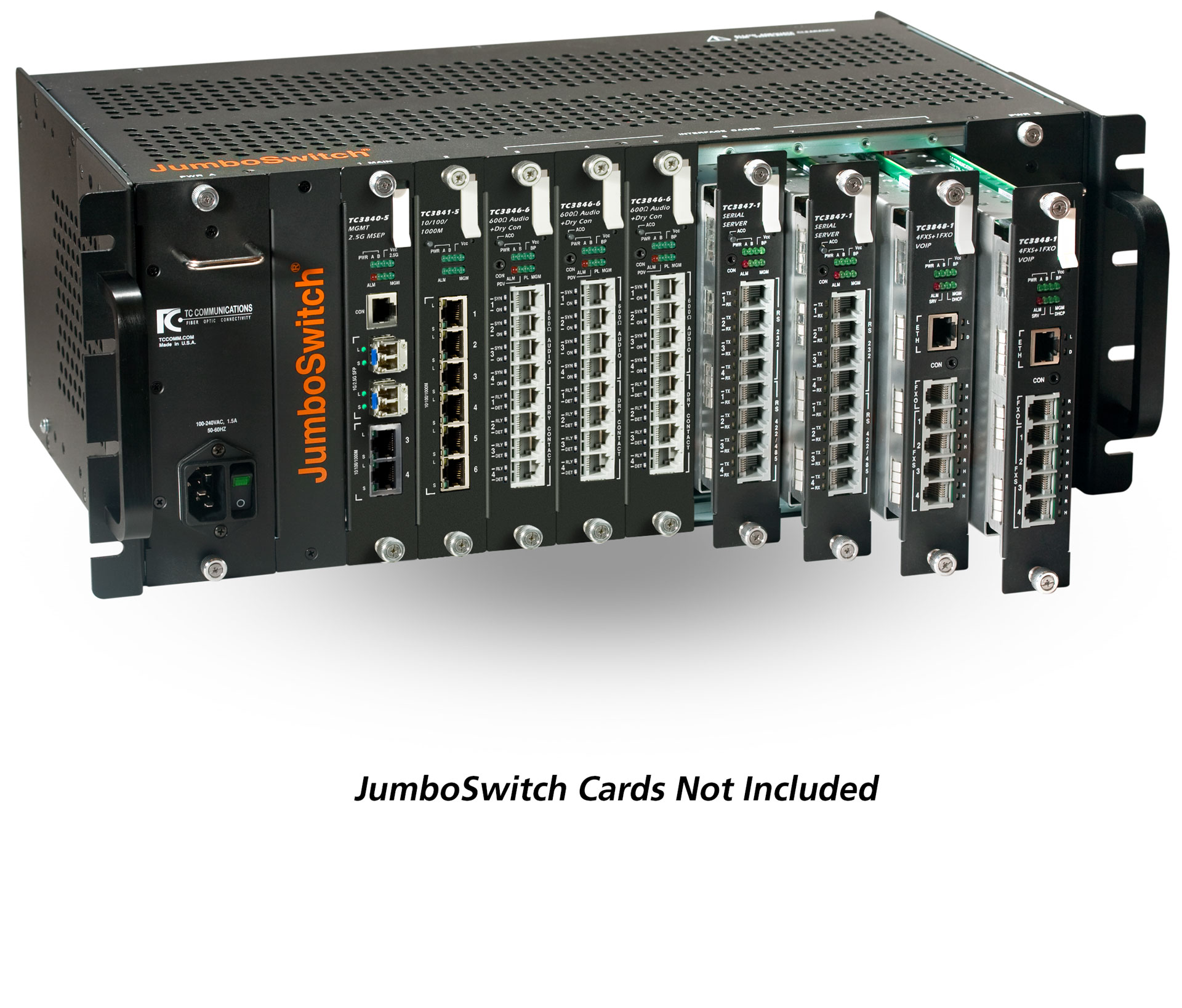

TCRM197 - 4U JumboSwitch Card Cage
Click to enlarge

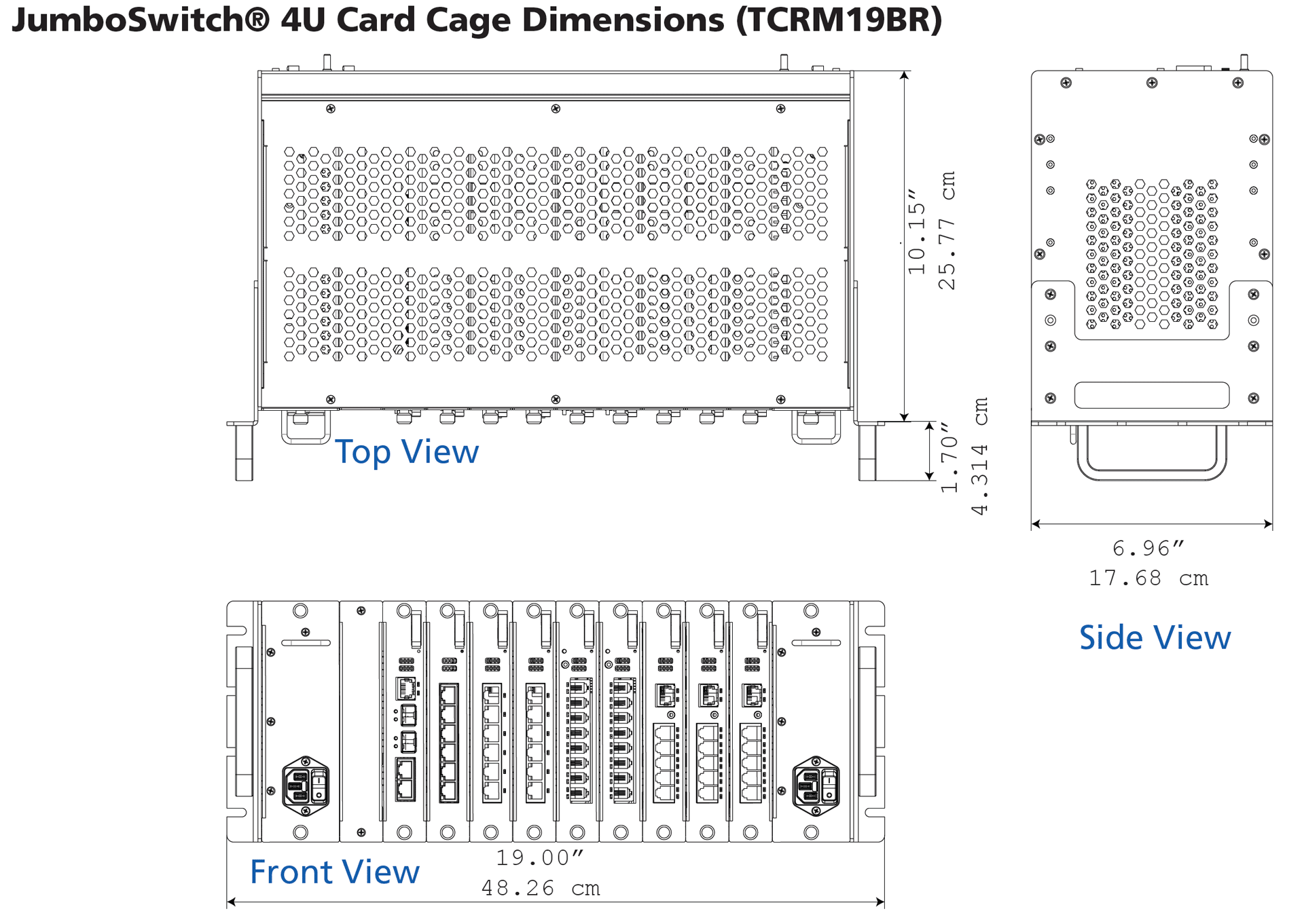

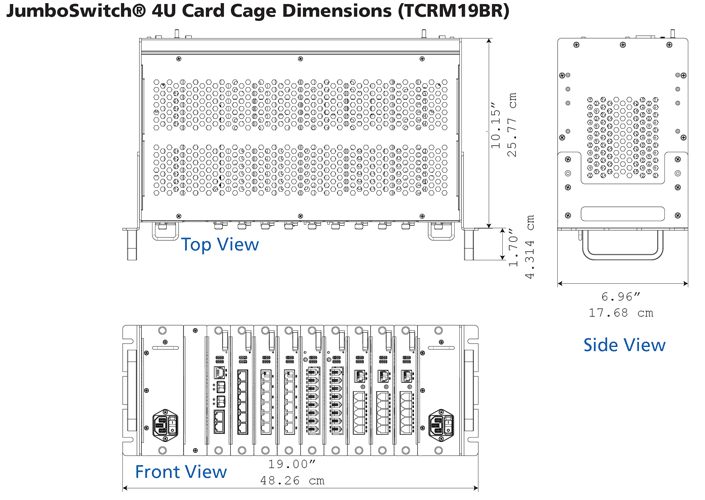

Specifications

  1. Width19" (48.26 cm)
  2. Height7" (4U) (17.78 cm)
  3. Depth11.75" (29.9cm)
  4. Power SupplySingle or Dual 115/240VAC, 12VDC, 24VDC, -48VDC, 125VDC
    See TCRMPS3 for full power supply specfications.
