TCSD11-1/2

JumboSwitch 1S/2S Standalone/Wallmount Chassis

TCSD11-1/2
Rollover or Touch for Expanded View. Scroll to Zoom.

Features

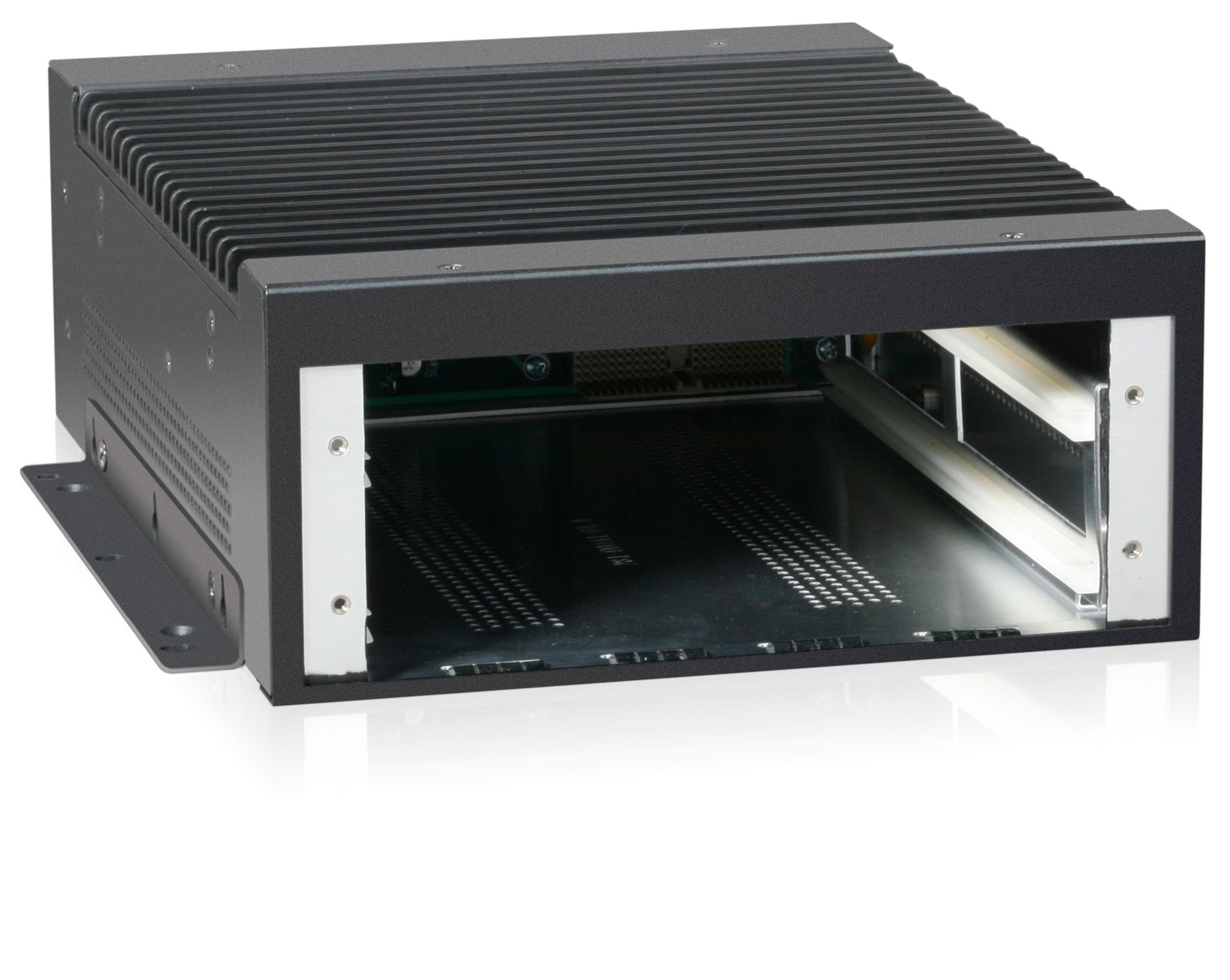

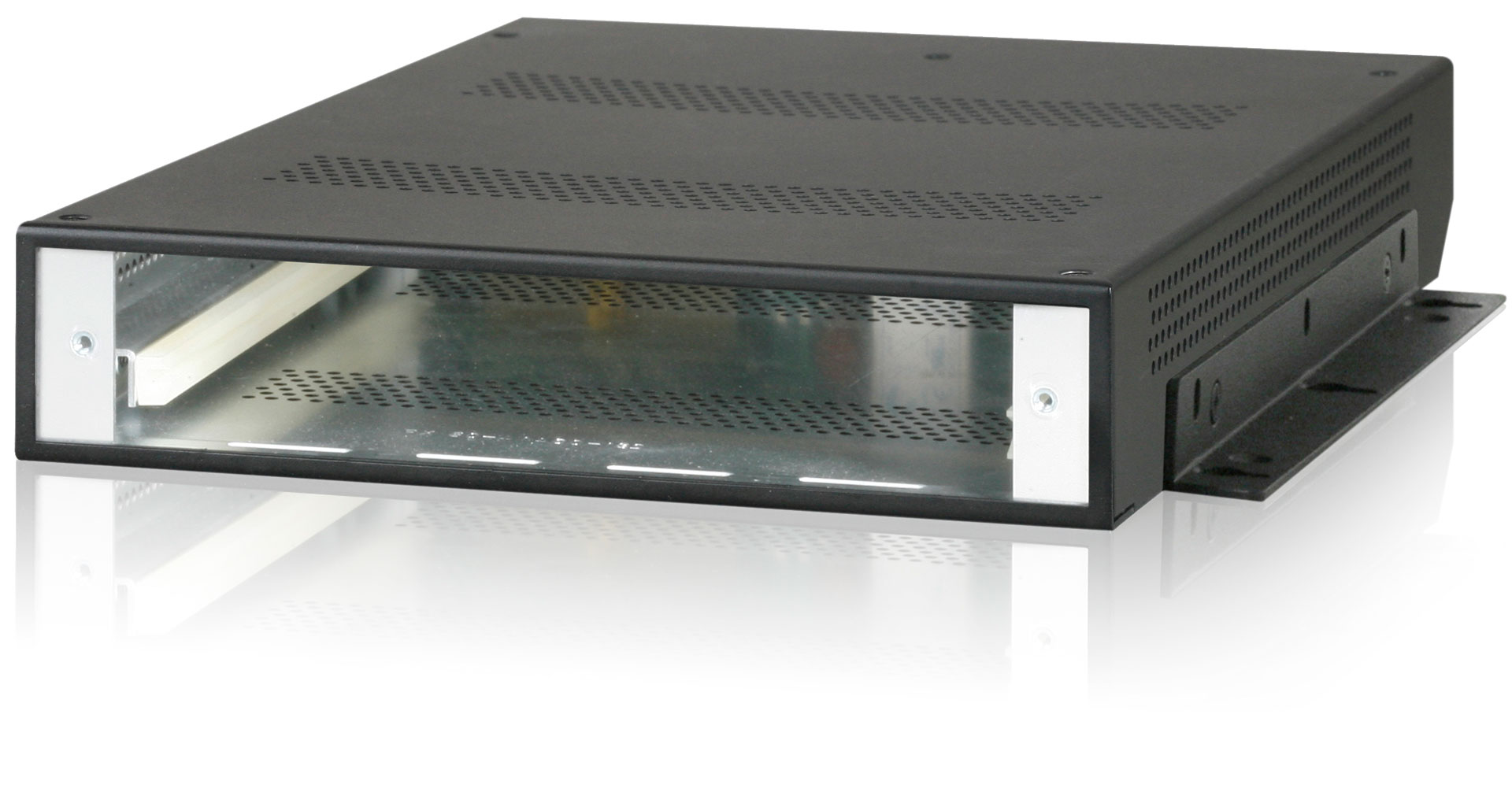

The TCSD11-1/2 JumboSwitch 1S & 2S standalone/wall-mount chassis are designed to hold JumboSwitch family cards. The 1S chassis holds one interface card. The 2S chassis holds one Main/Management card and one interface card.

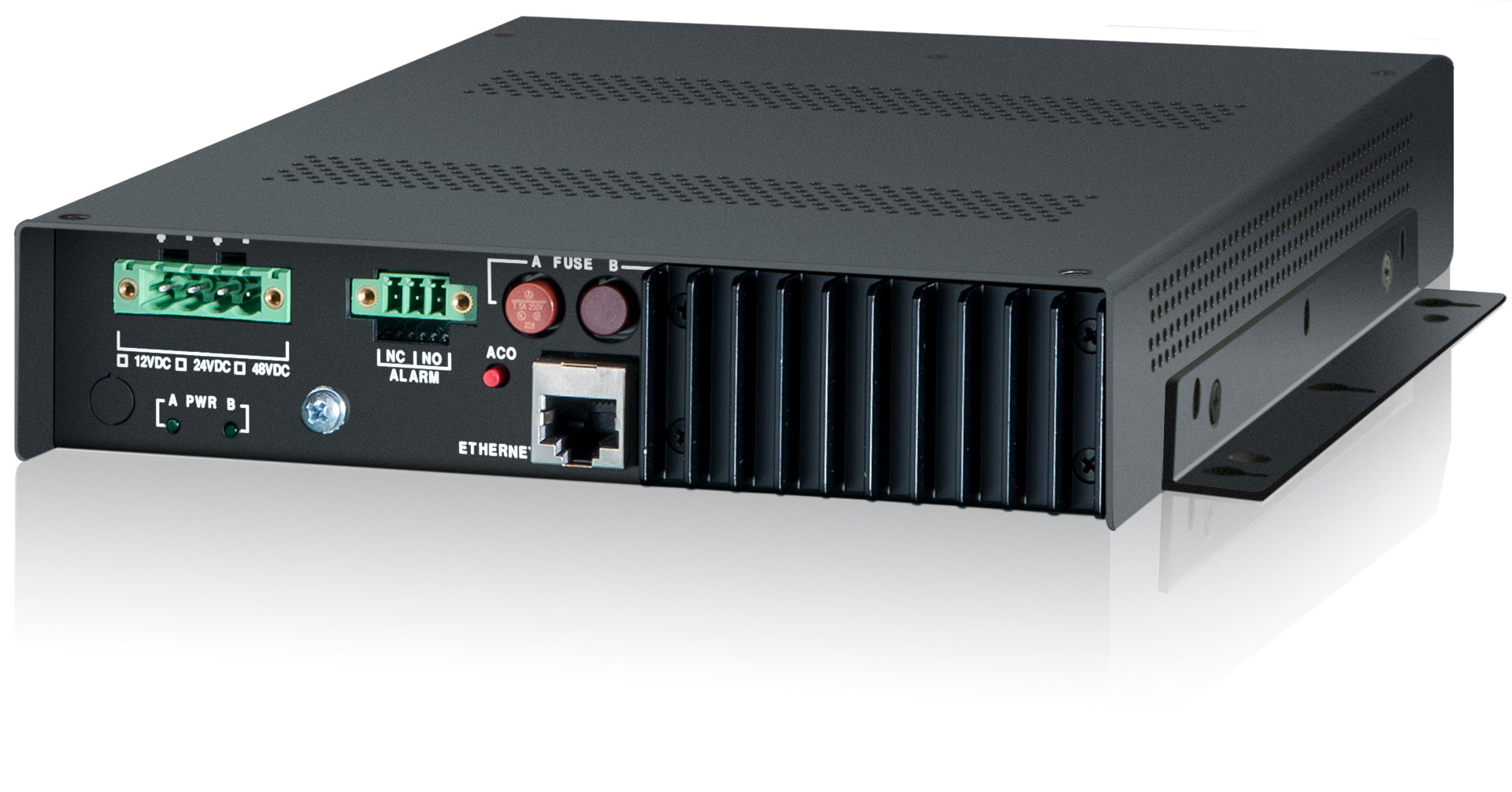

Both chassis come standard with dual load-sharing 12VDC power supplies. Options include:

  • 12VDC (standard)
  • 24VDC and -48VDC (optional)
  • 115VAC, 230VAC and 240VAC (via External AC Power Adapter)

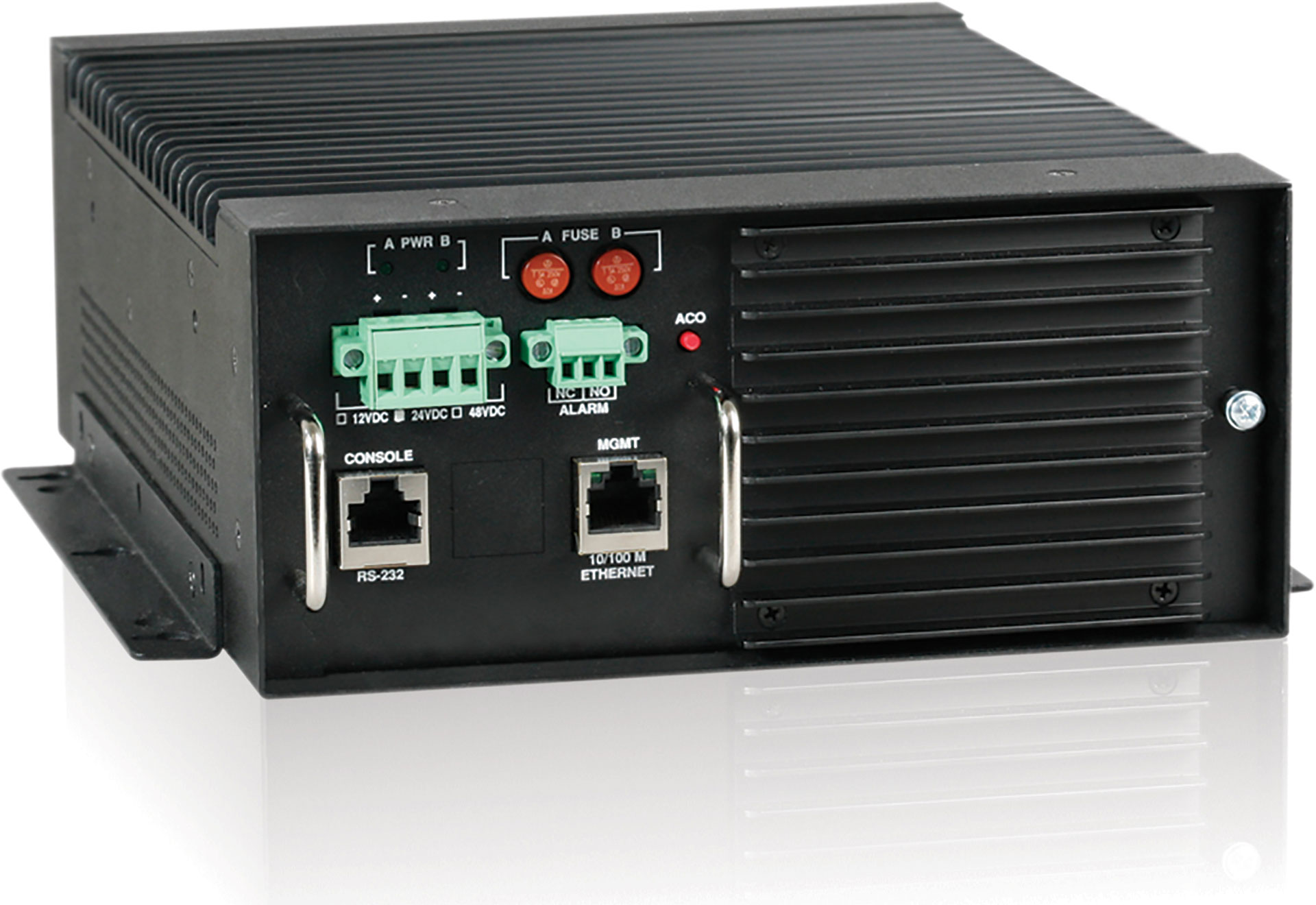

The dual load-sharing power supplies feature automatically switch over in the event of a power failure. Through the TC3840 Main/Management card, the power supply on the 2S can be remotely managed via Web, SNMP, Serial Console or Telnet. Power supply cycling and monitoring ON/OFF status can be done remotely.

Standard temperature range is -20°C to +70°C and the extreme temperature option is -40°C to +80°C.

  • Ruggedized design for Harsh Environments
  • Designed to Hold JumboSwitch Family of Cards
  • Extreme Temperature (-40°C to +80°C) Optional
  • Power Supply Managed via Web, SNMP, Serial Console or Telnet (2S Only)
  • Various AC & DC Power Ranges
  • Built-In Power Redundancy
  • Member of the JumboSwitch® Product Family

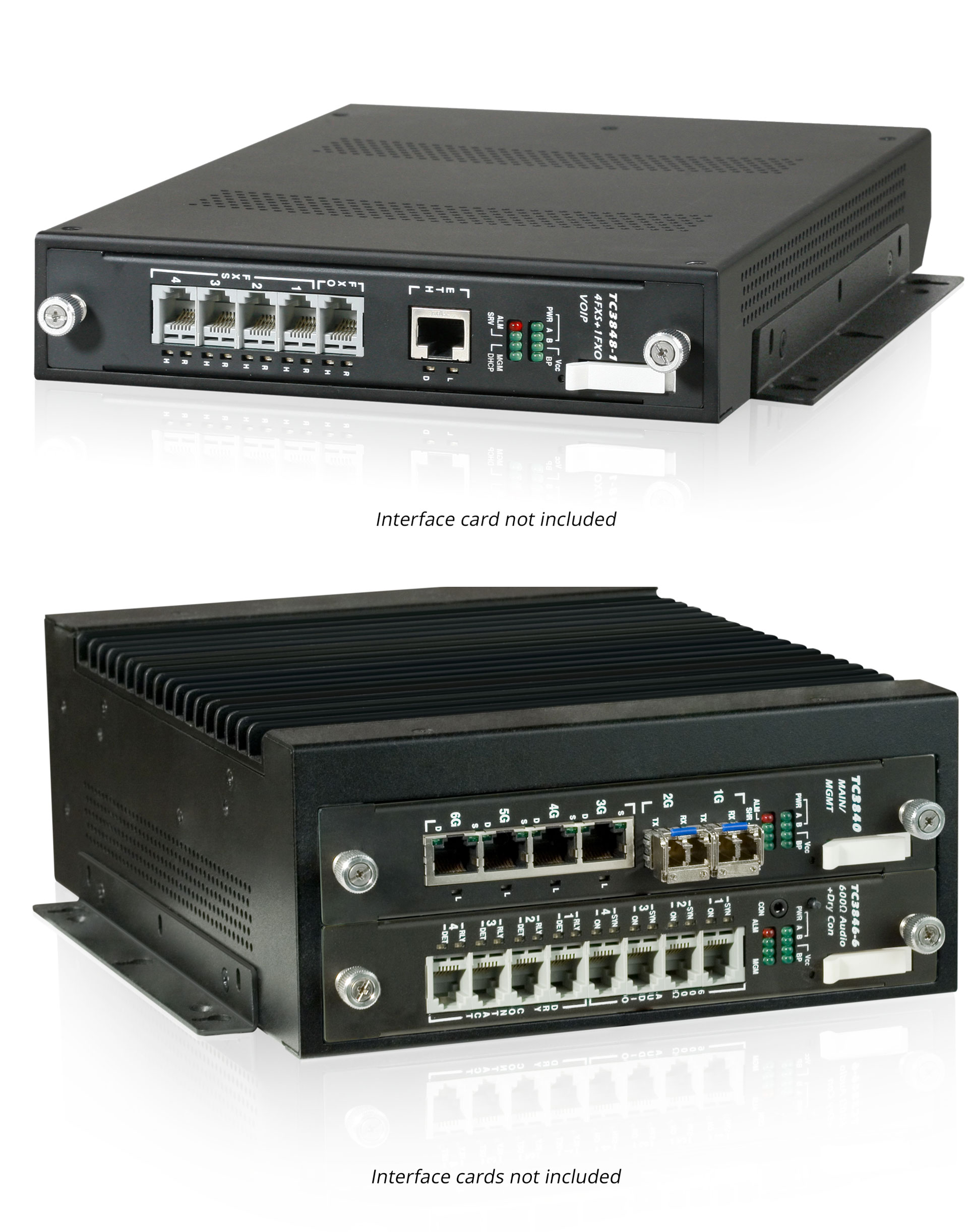

The TCSD11-1/2 1S/2S standalone/wall-mount chassis are designed to house various combinations of JumboSwitch family cards.

Applications

Sturdy and durable, the 1S/2S standalone/wallmount chassis house various combinations of JumboSwitch family cards.

TCSD11-1/2 - JumboSwitch Standalone/Wallmount Chassis
Click to enlarge

Specifications

1S Chassis
  1. Width: 8.62" (21.9 cm)
  2. Height: 1.58" (4.0 cm)
  3. Depth: 9.91" (25.2 cm)
2S Chassis
  1. Width: 8.83" (22.4 cm)
  2. Height: 3.33" (8.5 cm)
  3. Depth: 9.89" (25.1 cm)

Ordering

For more information

For assistance with this product or to request a user manual please contact Technical Support.
